Silv-O-lite / 3410H.020
Part #: 3410H.020
UPC: 800745027801
Loading...
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chevrolet 366ci/6.0L (V8)
Description:
Description
Silv-O-Lite Piston - Chevrolet 366ci/6.0L (V8)
Features & benefits
- Hypereutectic dome head .095" with 1 valve relief.
- Truck engine.
- Except H5D.
Application summary
| Year | Make / model |
|---|---|
| 1993 | Chevrolet B7 |
| 1991 | Chevrolet C5500 Kodiak |
| 1991-1993 | Chevrolet C60 Kodiak |
| 1991-1993 | Chevrolet C70 Kodiak |
| 1992-1993 | Chevrolet P6000 |
| 1993 | GMC B7 |
| 1991 | GMC C5000 Topkick |
| 1991-1993 | GMC C6000 Topkick |
| 1991-1993 | GMC C7000 Topkick |
| 1992-1993 | GMC P6500 |
Specifications
- GTIN
- 00800745027801
- Weight
- 16 lb
- Height
- 18 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3410H
- Bore (in)
- 3.938
- Bore (mm)
- 100
- Bore Diameter
- 3.938
- Crown (cc)
- -6cc
- Crown Type
- DOME
- Eng. Disp Liters
- 6.0
- Eng. Disp. In.
- 366
- Eng. Disp. Liters
- 6
- Engine Family
- Chevy Big Block Truck
- Engine Manufacturer
- Chevrolet
- Oe Assembly
- 10126748
- Oil Ring Thickness
- 0.1875
- Oversize
- .020
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Centered
- Pin Number
- 0990x230A
- Pin Type
- Press
- Piston Head Type
- Dome
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .990
- Ring Pack
- 3/32, 5/64, 5/64, 3/16 Shallow Oil Groove
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 0.0938
- Top Land
- .420
- Year From
- 1991
- Year Range
- 1991-1993
- Year To
- 1993
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1993 Chevrolet B7; 1991 Chevrolet C5500 Kodiak; 1991-1993 Chevrolet C60 Kodiak; 1991-1993 Chevrolet C70 Kodiak; 1992-1993 Chevrolet P6000; 1993 GMC B7; 1991 GMC C5000 Topkick; 1991-1993 GMC C6000 Topkick; 1991-1993 GMC C7000 Topkick; 1992-1993 GMC P6500

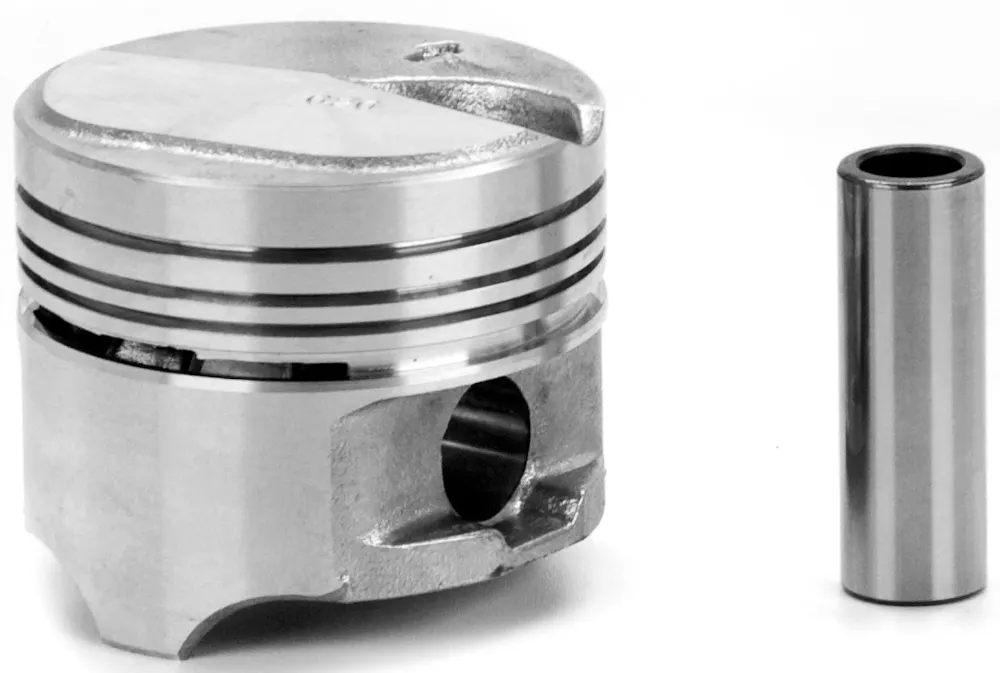

Silv-O-lite 3410H.020
