Silv-O-lite · 3408HC-.060K1
Part #: 3408HC-.060K1
UPC: 800745303219
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - Chevrolet 454ci/7.4L (V8)
Description:
Description

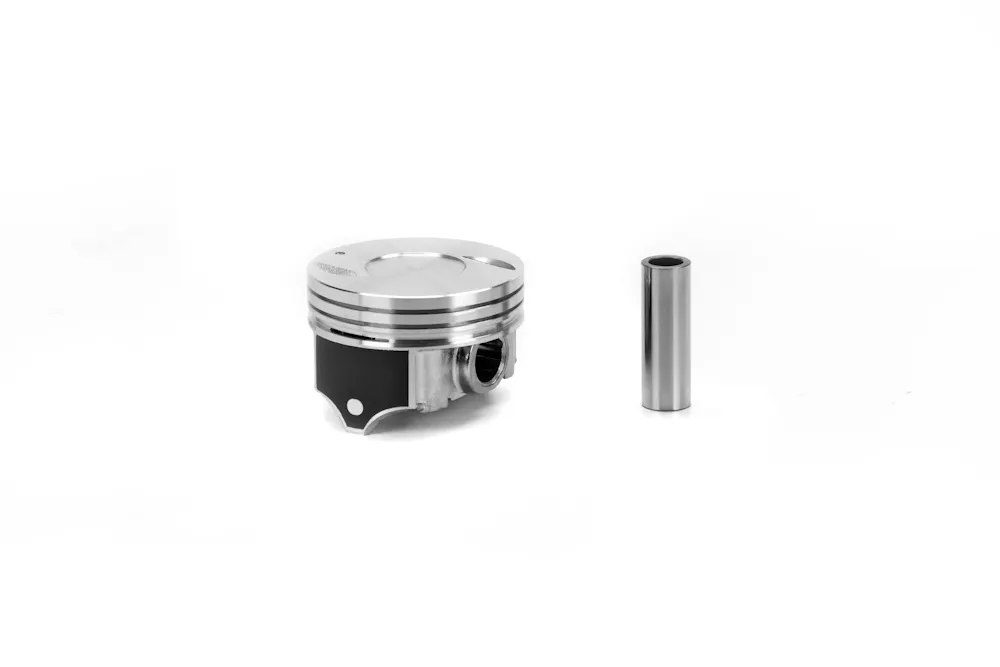

Silv-O-Lite Piston & Ring Kit - Chevrolet 454ci/7.4L (V8)
Features & benefits
- Hypereutectic.
- L19 engine.
- 2.000" diameter recess .050" deep.
- 2 valve reliefs.
Application summary
| Year | Make / model |
|---|---|
| 1991-1993 | Chevrolet C1500 |
| 1991-1998 | Chevrolet C2500 |
| 1992-1998 | Chevrolet C2500 Suburban |
| 1991-1998 | Chevrolet C3500 |
| 1991-1998 | Chevrolet C3500HD |
| 1996-1998 | Chevrolet Express 3500 |
| 1991-1996 | Chevrolet G30 |
| 1991-1998 | Chevrolet K2500 |
| 1992-1998 | Chevrolet K2500 Suburban |
| 1991-1998 | Chevrolet K3500 |
| 1991-1998 | Chevrolet P30 |
| 1991 | Chevrolet R2500 Suburban |
| 1991 | Chevrolet R3500 |
| 1991 | Chevrolet V3500 |
| 1991-1998 | GMC C2500 |
| 1992-1998 | GMC C2500 Suburban |
| 1991-1998 | GMC C3500 |
| 1991-1998 | GMC C3500HD |
| 1991-1996 | GMC G3500 |
| 1991-1998 | GMC K2500 |
| 1992-1998 | GMC K2500 Suburban |
| 1991-1998 | GMC K3500 |
| 1991-1998 | GMC P3500 |
| 1991 | GMC R2500 Suburban |
| 1991 | GMC R3500 |
| 1996-1998 | GMC Savana 3500 |
| 1991 | GMC V3500 |
Specifications
- GTIN
- 00800745303219
- Weight
- 17 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3408HC
- Bore (in)
- 4.25
- Bore (mm)
- 108
- Bore Diameter
- 4.25
- Compression Ratio
- 8.7
- Crown (cc)
- +5cc
- Crown Type
- DISH
- Eng. Disp. In.
- 454
- Eng. Disp. Liters
- 7.4
- Engine Family
- Chevy Big Block Gen V
- Engine Manufacturer
- Chevrolet
- Includes Ring Set
- 22020.060
- Oe Assembly
- 12506746, 10126746, 10166822, 12522358
- Oil Ring Thickness
- 0.1875
- Oversize
- 0.06
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0990x230A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.99
- Piston Rings Included
- Yes
- Ring Pack
- 5/64, 5/64, 3/16 Shallow Oil Groove
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 0.0781
- Top Land
- 0.265
- Vin Code
- J, N
- Year From
- 1991
- Year Range
- 1991-1998
- Year To
- 1998
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1991-1993 Chevrolet C1500; 1991-1998 Chevrolet C2500; 1992-1998 Chevrolet C2500 Suburban; 1991-1998 Chevrolet C3500; 1991-1998 Chevrolet C3500HD; 1996-1998 Chevrolet Express 3500; 1991-1996 Chevrolet G30; 1991-1998 Chevrolet K2500; 1992-1998 Chevrolet K2500 Suburban; 1991-1998 Chevrolet K3500; 1991-1998 Chevrolet P30; 1991 Chevrolet R2500 Suburban; 1991 Chevrolet R3500; 1991 Chevrolet V3500; 1991-1998 GMC C2500; 1992-1998 GMC C2500 Suburban; 1991-1998 GMC C3500; 1991-1998 GMC C3500HD; 1991-1996 GMC G3500; 1991-1998 GMC K2500; 1992-1998 GMC K2500 Suburban; 1991-1998 GMC K3500; 1991-1998 GMC P3500; 1991 GMC R2500 Suburban; 1991 GMC R3500; 1996-1998 GMC Savana 3500; 1991 GMC V3500

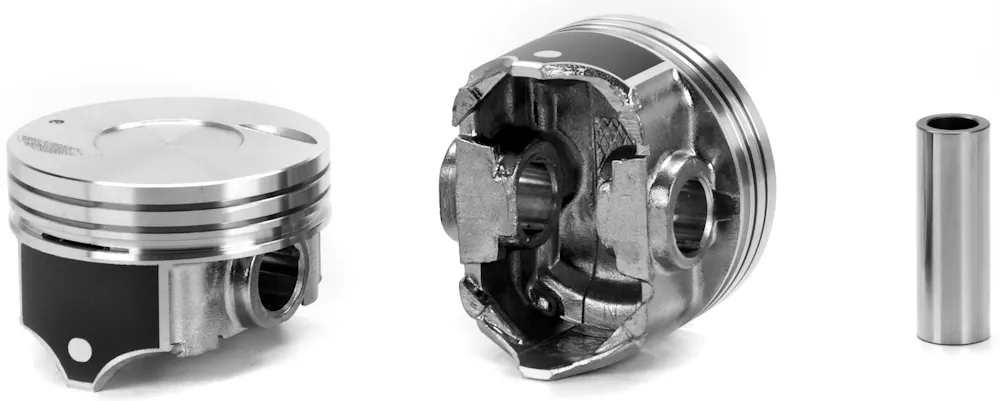

Silv-O-lite 3408HC-.060K1
