Silv-O-lite · 3344HCA-STDK1
Part #: 3344HCA-STDK1
UPC: 800745301147
Log in for inventory
Notify me when this item is in stock.

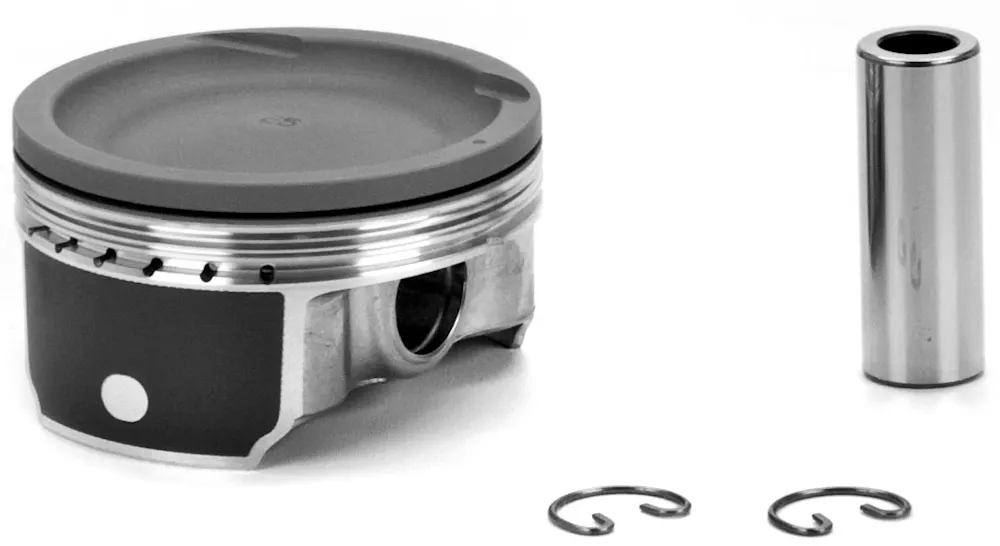

Description: Silv-O-Lite Piston & Ring Kit - Ford 153ci/2.5L (L4)
Description:
Description
Silv-O-Lite Piston & Ring Kit - Ford 153ci/2.5L (L4)
Features & benefits
- DOHC Duratec.
- Hypereutectic.
- Hard anodized crown.
- Coated skirts.
- Floating pin.
Application summary
| Year | Make / model |
|---|---|
| 2009-2019 | Ford Escape |
| 2010-2011 | Ford Fusion |
| 2013-2020 | Ford Fusion |
| 2014-2020 | Ford Transit Connect |
| 2011-2012 | Lincoln MKZ |
| 2009-2011 | Mercury Mariner |
| 2010-2011 | Mercury Milan |
Specifications
- GTIN
- 00800745301147
- Weight
- 7 lb
- Height
- 5.25 in
- Length
- 17.75 in
- Width
- 9.75 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3344HCA
- Bore (in)
- 3.504
- Bore (mm)
- 89
- Bore Diameter
- 3.504
- Compression Ratio
- 9.7:1
- Crown (cc)
- +21.5cc
- Crown Type
- DISH
- Eng. Disp. In.
- 152
- Eng. Disp. Liters
- 2.5
- Engine Family
- Duratec
- Engine Manufacturer
- Ford
- Includes Ring Set
- 22008.STD
- Lock
- LR787F
- Model
- Escape
- Oe Assembly
- 8E5Z-6108-AA / 1275KS
- Oil Ring Thickness
- 2.5
- Oversize
- STD
- Oversized
- No
- Oversizes
- STD, .25mm, .50mm, .75mm, 1.0mm
- Pin Configuration
- Offset
- Pin Number
- P787A
- Pin Type
- Floating
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 20
- Piston Rings Included
- Yes
- Ring Pack
- 1.2mm, 1.2mm, 2.5mm
- Rod (in)
- 5.976
- Rod (mm)
- 151.8
- Second Compression Ring Thickness
- 1.2
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 3.937
- Stroke (mm)
- 100
- Top Compression Ring Thickness
- 1.2
- Top Land
- 0.2
- Year From
- 2009
- Year Range
- 2009-2019
- Year To
- 2019
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2009-2019 Ford Escape; 2010-2011 Ford Fusion; 2013-2020 Ford Fusion; 2014-2020 Ford Transit Connect; 2011-2012 Lincoln MKZ; 2009-2011 Mercury Mariner; 2010-2011 Mercury Milan
