Silv-O-lite · 3343HCA-STDK1

Silv-O-lite 3343HCA-STDK1

Part #: 3343HCA-STDK1
UPC: 800745291929

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Hypereutectic Flat Top Coated Skirt Piston and Ring Sets

Log in to order

Description: Silv-O-Lite Piston & Ring Kit - Ford Coyote 5.0L V8 F-150 2011-17

Description

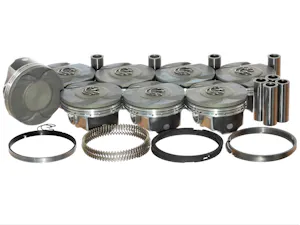

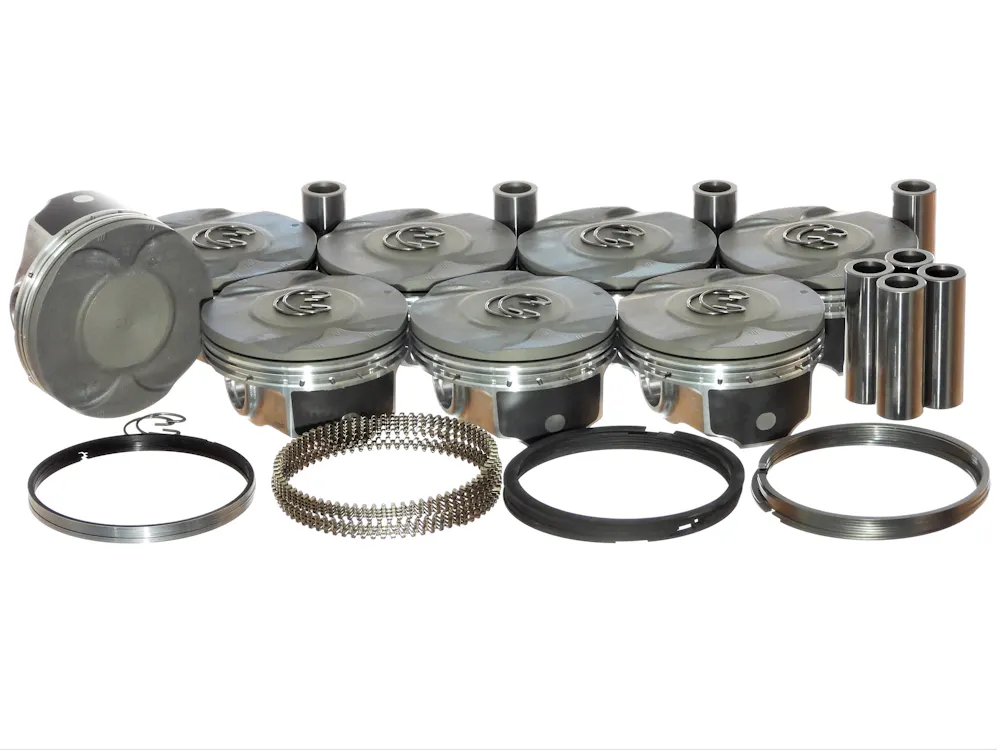

Silv-O-Lite Piston & Ring Kit - Ford Coyote 5.0L V8 F-150 2011-17

Features & benefits

- .010" Reduced Compression Height.
- Anodized Crown, Top land and 1st ring groove.
- Piston & Ring Kit.

Application summary

Year	Make / model
2011-2017	Ford F-150

Specifications

GTIN: 00800745291929
Weight: 18 lb
Height: 5.25 in
Length: 22.25 in
Width: 9.5 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Alloy: Cast 390 Hypereutectic Alloy
Base Number: 3343HCA
Bore (in): 3.6299
Bore (mm): 92.2
Compression Ratio: 10.5:1
Crown (cc): +0.3cc
Crown Type: Flat
Cylinder Bore Diameter: 3.6299
Eng. Disp. In.: 302
Eng. Disp. Liters: 5
Engine Family: Coyote
Engine Manufacturer: Ford
Grade Type: Regular
Lock: LR866FC
Make For Engine Family: Ford
Oe Assembly: BL3Z-6108-N
Oil Ring Thickness: 2.5
Oversize: STD
Oversized: No
Oversized Amount: STD
Oversizes: STD .25mm .5mm .75mm
Pin Configuration: Offset
Pin Diameter (in): 0.8662
Pin Diameter (mm): 22
Pin Number: P866B
Pin Type: Press
Piston Material: Cast 390 Hypereutectic Alloy
Piston Pin Outside Diameter: 0.8662
Ring Pack: 1.2mm, 1.2mm, 2.5mm
Rod (in): 5.933
Rod (mm): 150.7
Second Compression Ring Thickness: 1.2
Sold As: Complete Piston and Ring Kit
Stroke (in): 3.649
Stroke (mm): 92.7
Top Compression Ring Thickness: 1.2
Top Land: 0.22
Uses Ring Set: 3630MS8
Year From: 2011
Year Range: 2011-2017
Year To: 2017

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2011-2017 Ford F-150
