Silv-O-lite · 3340HCA-STDK1

Silv-O-lite 3340HCA-STDK1

Part #: 3340HCA-STDK1
UPC: 800745291813

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Hypereutectic Dome Coated Skirt Piston and Ring Sets

Log in to order

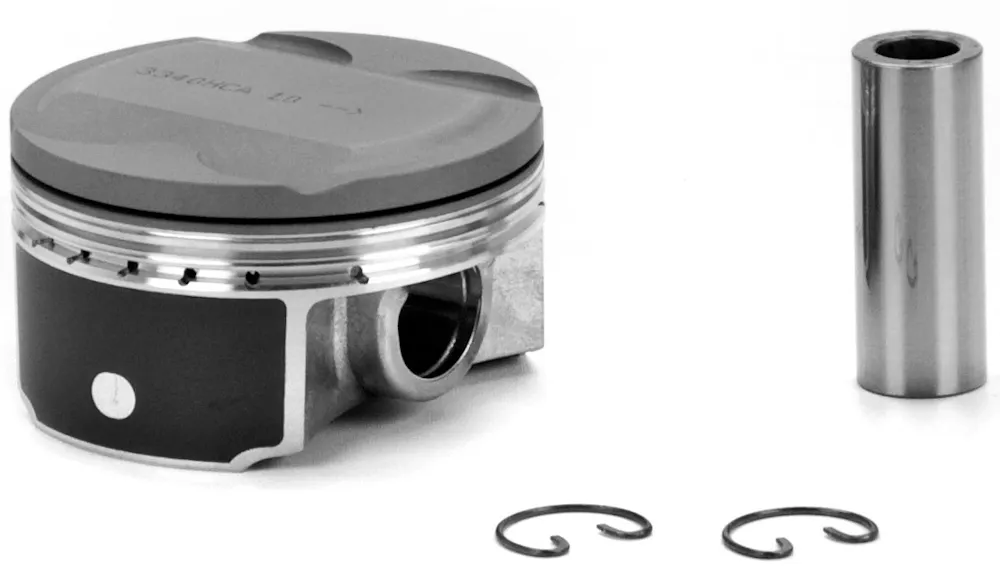

Description: Silvolite Piston Kit - Ford 3.5L Duratec V6 2012-2019 with Rings

Description

Silvolite Piston Kit - Ford 3.5L Duratec V6 2012-2019 with Rings

Features & benefits

- Fits Duratec/Cyclone/Mazda MZI Applications from 2012-2019
- Hypereutectic.
- 3.298" dia. x .086" dome.
- 4 valve reliefs.
- Coated skirts.
- Anodized crown & top groove.

Specifications

GTIN: 00800745291813
Weight: 12 lb
Height: 5.25 in
Length: 17.75 in
Width: 9.75 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Alloy: Cast 390 Hypereutectic Alloy
Base Number: 3340HCA
Bore (in): 3.6417
Bore (mm): 92.5
Compression Ratio: 10.8:1
Crown (cc): -5.7cc
Crown Type: Dome
Cylinder Bore Diameter: 3.6417
Eng. Disp. In.: 214
Eng. Disp. Liters: 3.5
Engine Family: Duratec
Engine Manufacturer: Ford
Grade Type: Regular
Lock: LR906F
Make For Engine Family: Ford
Oe Assembly: AT4Z-6108-C
Oil Ring Thickness: 2.5
Oversize: STD
Oversized: No
Oversized Amount: STD
Oversizes: STD 0.10mm .25mm .5mm .75mm 1.0mm
Pin Configuration: Offset
Pin Diameter (in): 0.905
Pin Diameter (mm): 23
Pin Number: P906A
Pin Type: Floating
Piston Material: Cast 390 Hypereutectic Alloy
Piston Pin Outside Diameter: 0.905
Ring Pack: 1.2mm, 1.5mm, 2.5mm
Rod (in): 6.01
Rod (mm): 152.68
Second Compression Ring Thickness: 1.5
Sold As: Complete Piston and Ring Kit
Stroke (in): 3.413
Stroke (mm): 86.7
Top Compression Ring Thickness: 1.2
Top Land: 0.24
Uses Ring Set: 3642UN6
Year From: 2012
Year Range: 2012-2019
Year To: 2019
