Silv-O-lite / 3246.020
Part #: 3246.020
UPC: 800745108555
Loading...
Notify me when this item is in stock.

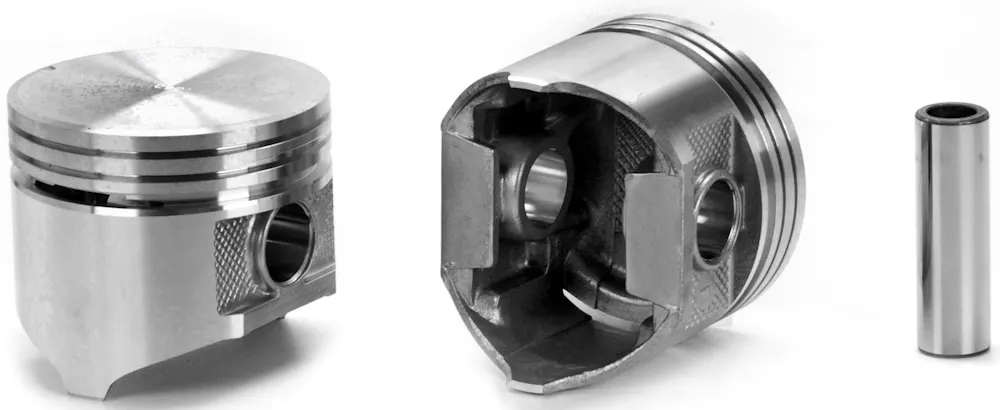

Description: Silv-O-Lite ReMan Pro Piston - Chrysler/Dodge 239ci/3.9L (V6)
Description:
Description
Silv-O-Lite ReMan Pro Piston - Chrysler/Dodge 239ci/3.9L (V6)
Features & benefits
- Flat top.
- Same as 3236 with a early ring pack.
Application summary
| Year | Make / model |
|---|---|
| 1988-1994 | Dodge B150 |
| 1995 | Dodge B1500 |
| 1988-1994 | Dodge B250 |
| 1995 | Dodge B2500 |
| 1988-1989 | Dodge D100 |
| 1988-1993 | Dodge D150 |
| 1988-1993 | Dodge D250 |
| 1987-1995 | Dodge Dakota |
| 1994-1995 | Dodge Ram 1500 |
| 1989 | Dodge W100 |
| 1989-1993 | Dodge W150 |
Specifications
- GTIN
- 00800745108555
- Weight
- 10 lb
- Height
- 18 in
- Length
- 4.25 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3246
- Bore (in)
- 3.91
- Bore (mm)
- 99.3
- Bore Diameter
- 3.91
- Compression Ratio
- 9.0
- Crown Type
- FLAT TOP
- Eng. Disp Liters
- 3.9
- Eng. Disp. In.
- 239
- Eng. Disp. Liters
- 3.9
- Engine Family
- Mopar V6
- Engine Manufacturer
- Chrysler
- Oil Ring Thickness
- 0.1875
- Oversize
- .020
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0984x300B
- Pin Type
- Press
- Piston Head Type
- Flat
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- .984
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 0.0781
- Top Land
- .240
- Year From
- 1986
- Year Range
- 1986-2002
- Year To
- 2002
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1988-1994 Dodge B150; 1995 Dodge B1500; 1988-1994 Dodge B250; 1995 Dodge B2500; 1988-1989 Dodge D100; 1988-1993 Dodge D150; 1988-1993 Dodge D250; 1987-1995 Dodge Dakota; 1994-1995 Dodge Ram 1500; 1989 Dodge W100; 1989-1993 Dodge W150
Equivalent Parts
Silv-O-lite 3246.020
