Silv-O-lite · 3238HC-.020K1
Part #: 3238HC-.020K1
UPC: 800745316981
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - AMC 153ci/2.5L (L4)
Description:
Description

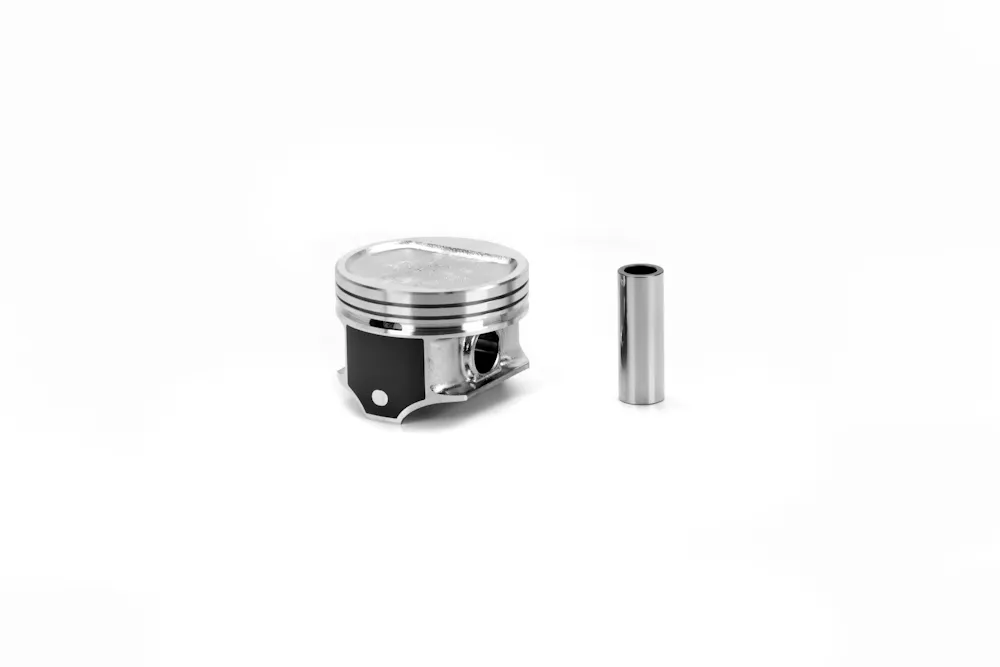

Silv-O-Lite Piston & Ring Kit - AMC 153ci/2.5L (L4)
Features & benefits
- Hypereutectic.
- "D" shaped head recess .116" deep.
- Coated skirts.
Application summary
| Year | Make / model |
|---|---|
| 1995-2002 | Dodge Dakota |
Specifications
- GTIN
- 00800745316981
- Weight
- 10 lb
- Height
- 5.25 in
- Length
- 17.75 in
- Width
- 9.75 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3238HC
- Bore (in)
- 3.875
- Bore (mm)
- 98.4
- Bore Diameter
- 3.875
- Compression Ratio
- 9.1
- Crown (cc)
- +13.7cc
- Crown Type
- DISH
- Eng. Disp. In.
- 151
- Eng. Disp. Liters
- 2.5
- Engine Family
- AMC 4-cylinder
- Engine Manufacturer
- AMC
- Includes Ring Set
- 22015.5MM
- Oe Assembly
- 4798331
- Oil Ring Thickness
- 4
- Oversize
- 0.02
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0931x222A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.931
- Piston Rings Included
- Yes
- Ring Pack
- 1.5mm, 1.5mm, 4.0mm Shallow Oil Groove
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 1.5
- Top Land
- 0.25
- Vin Code
- P
- Year From
- 1996
- Year Range
- 1996-2002
- Year To
- 2002
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1995-2002 Dodge Dakota

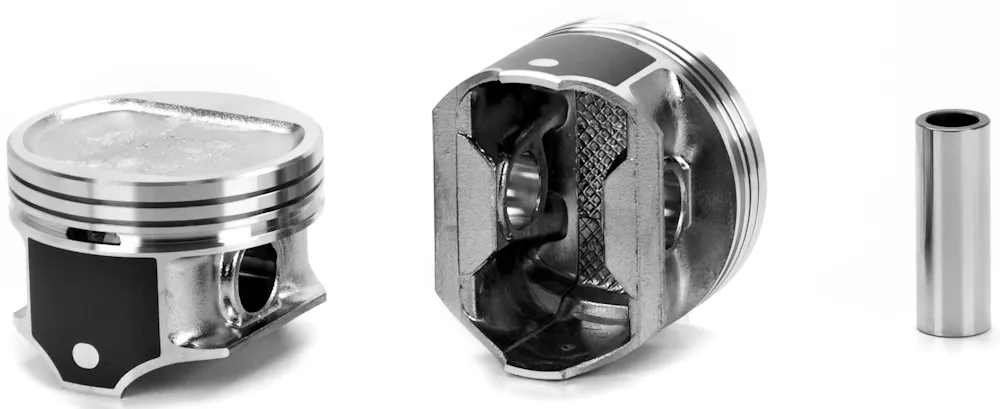

Silv-O-lite 3238HC-.020K1
