Silv-O-lite · 3237HC.060
Part #: 3237HC.060
UPC: 800745090492
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chrysler/Dodge 488ci/8.0L (V10)
Description:
Description

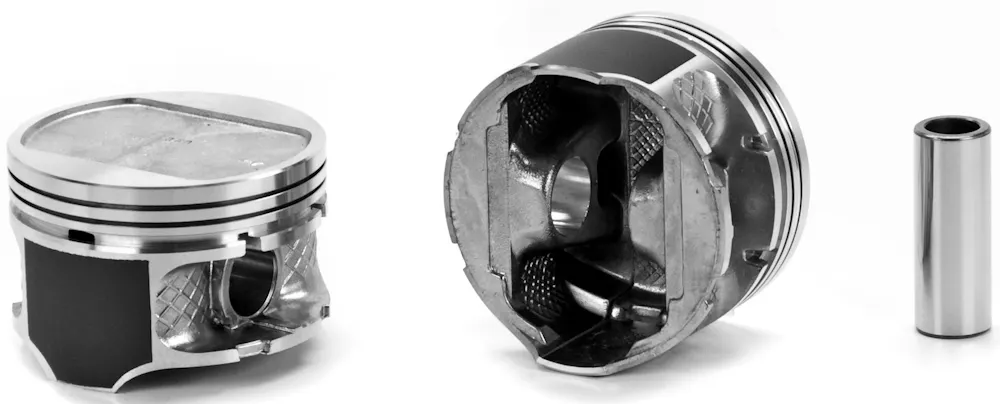

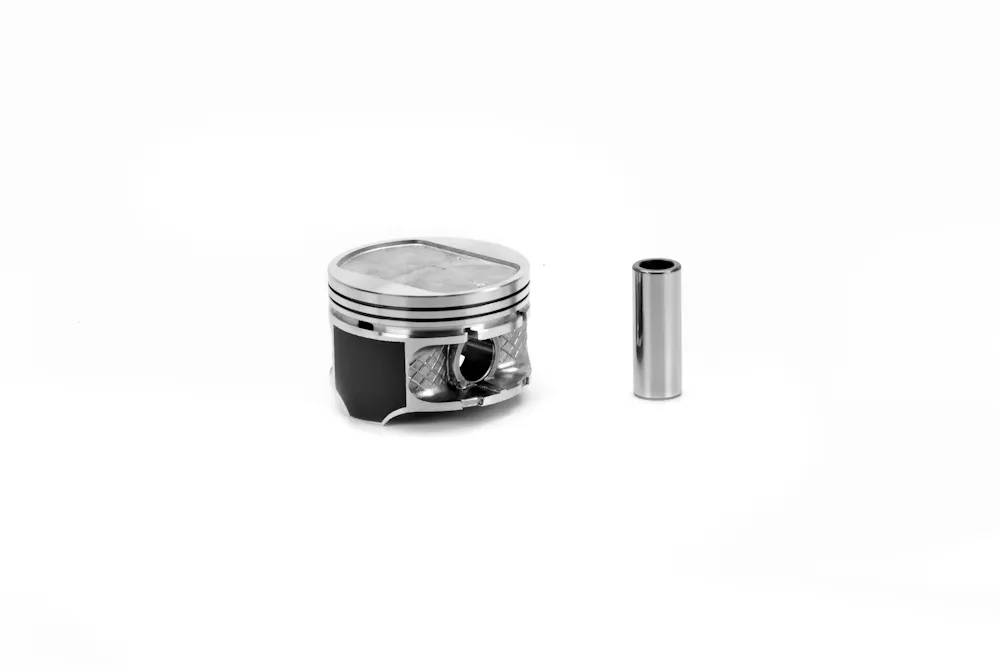

Silv-O-Lite Piston - Chrysler/Dodge 488ci/8.0L (V10)
Features & benefits
- Hypereutectic.
- Rectangular head recess .080" deep.
- Coated skirts.
Application summary
| Year | Make / model |
|---|---|
| 1994-2001 | Dodge Ram 2500 |
| 1994-2001 | Dodge Ram 3500 |
Specifications
- GTIN
- 00800745090492
- Weight
- 15 lb
- Height
- 22.5 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3237HC
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Bore Diameter
- 4
- Compression Ratio
- 8.6
- Crown Type
- DISH
- Eng. Disp Liters
- 8.0
- Eng. Disp. In.
- 488
- Eng. Disp. Liters
- 8
- Engine Family
- Mopar V10
- Engine Manufacturer
- Chrysler
- Oe Assembly
- 4741665, 4778878, 4778879, 4856120, 4856121
- Oil Ring Thickness
- 4.0000
- Oversize
- .060
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0984x222A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .984
- Ring Pack
- 1.5mm, 1.5mm, 4.0mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.5
- Top Land
- .240
- Vin Code
- W
- Year From
- 1994
- Year Range
- 1994-2001
- Year To
- 2001
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1994-2001 Dodge Ram 2500; 1994-2001 Dodge Ram 3500
Equivalent Parts
Silv-O-lite 3237HC.060
