Silv-O-lite · 3214HC.1.0MM
Part #: 3214HC.1.0MM
UPC: 800745090188
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chrysler/Dodge 214ci/3.5L (V6)
Description:
Description

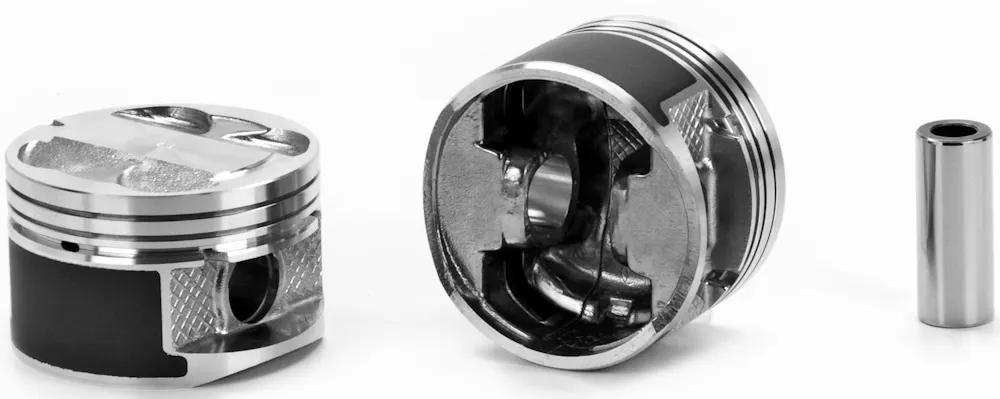

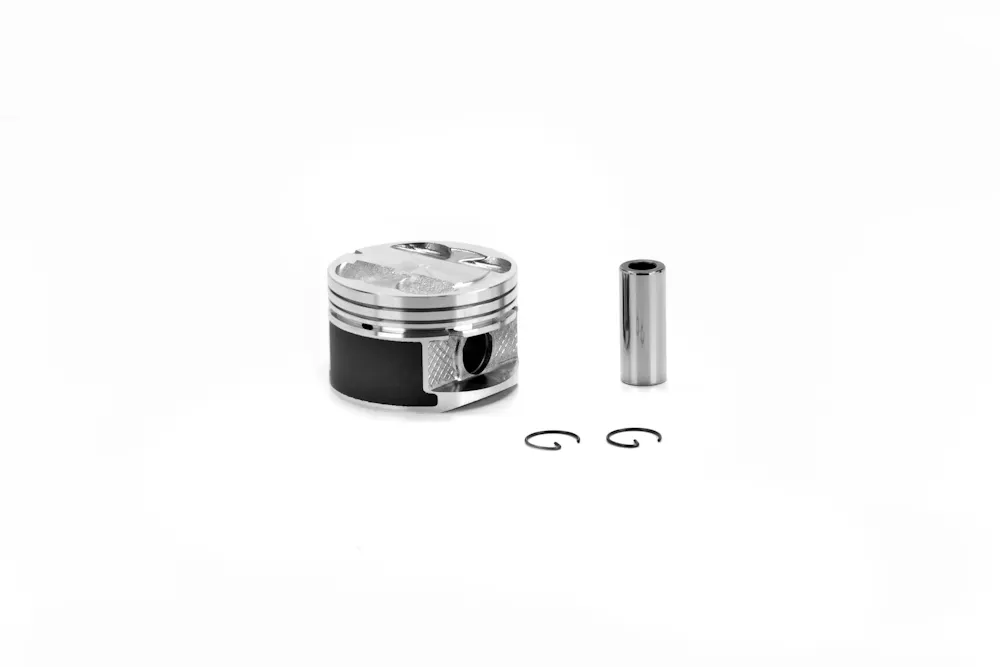

Silv-O-Lite Piston - Chrysler/Dodge 214ci/3.5L (V6)
Features & benefits
- Hypereutectic.
- .050" Dome.
- 4 valve reliefs.
- For both left and right applications.
- Full floating pin.
- Coated skirts.
Application summary
| Year | Make / model |
|---|---|
| 1995-1997 | Chrysler Concorde |
| 1995-1997 | Chrysler Intrepid |
| 1995-1997 | Chrysler LHS |
| 1995-1996 | Chrysler New Yorker |
| 1995-1997 | Dodge Intrepid |
| 1995-1997 | Eagle Vision |
| 1997 | Plymouth Prowler |
Specifications
- GTIN
- 00800745090188
- Weight
- 10 lb
- Height
- 13.63 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 3214HC
- Bore (in)
- 3.7795
- Bore (mm)
- 96
- Bore Diameter
- 3.7795
- Compression Ratio
- 10.4
- Crown Type
- DOME
- Eng. Disp Liters
- 3.5
- Eng. Disp. In.
- 213
- Eng. Disp. Liters
- 3.5
- Engine Family
- Mopar V6
- Engine Manufacturer
- Chrysler
- Lock
- SRW-012
- Oe Assembly
- 4638835L, 4638836R, 4728709R, 4728726L, 4883222R, 4883223L
- Oil Ring Thickness
- 3.0000
- Oversize
- 1.0mm
- Oversized
- Yes
- Oversizes
- STD .5mm .75mm 1.0mm 1.5mm
- Pin Configuration
- Offset
- Pin Number
- 0945x212A
- Pin Type
- Floating
- Piston Head Type
- Dome
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- .945
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.5
- Top Land
- .246
- Vin Code
- F
- Year From
- 1993
- Year Range
- 1993-1997
- Year To
- 1997
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1995-1997 Chrysler Concorde; 1995-1997 Chrysler Intrepid; 1995-1997 Chrysler LHS; 1995-1996 Chrysler New Yorker; 1995-1997 Dodge Intrepid; 1995-1997 Eagle Vision; 1997 Plymouth Prowler
