Silv-O-lite · 2229C-.010K1
Part #: 2229C-.010K1
UPC: 800745297921
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - AMC 242ci/4.0L (L6)
Description:
Description
Silv-O-Lite Piston & Ring Kit - AMC 242ci/4.0L (L6)
Features & benefits
- "D" shaped recess .100" deep.
- * Same as 2229 with coated skirts.
- Piston & Ring Kit.
Application summary
| Year | Make / model |
|---|---|
| 1987-1995 | Jeep Cherokee |
| 1987-1992 | Jeep Comanche |
| 1993-1995 | Jeep Grand Cherokee |
| 1987-1990 | Jeep Wagoneer |
| 1991-1995 | Jeep Wrangler |
Specifications
- GTIN
- 00800745297921
- Weight
- 12 lb
- Height
- 5.25 in
- Length
- 17.75 in
- Width
- 9.75 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 2229C
- Bore (in)
- 3.875
- Bore (mm)
- 98.4
- Bore Diameter
- 3.875
- Compression Ratio
- 9.2
- Crown (cc)
- +11cc
- Crown Type
- DISH
- Eng. Disp. In.
- 242
- Eng. Disp. Liters
- 4
- Engine Family
- AMC I6
- Engine Manufacturer
- AMC
- Includes Ring Set
- 3875AM8.010
- Oe Assembly
- 8983500251
- Oil Ring Thickness
- 0.1875
- Oversize
- 0.01
- Oversized
- Yes
- Oversizes
- STD .010 .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0931x306A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- 0.931
- Piston Rings Included
- Yes
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 0.0781
- Top Land
- 0.3
- Vin Code
- 0
- Year From
- 1987
- Year Range
- 1987-1995
- Year To
- 1995
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1987-1995 Jeep Cherokee; 1987-1992 Jeep Comanche; 1993-1995 Jeep Grand Cherokee; 1987-1990 Jeep Wagoneer; 1991-1995 Jeep Wrangler

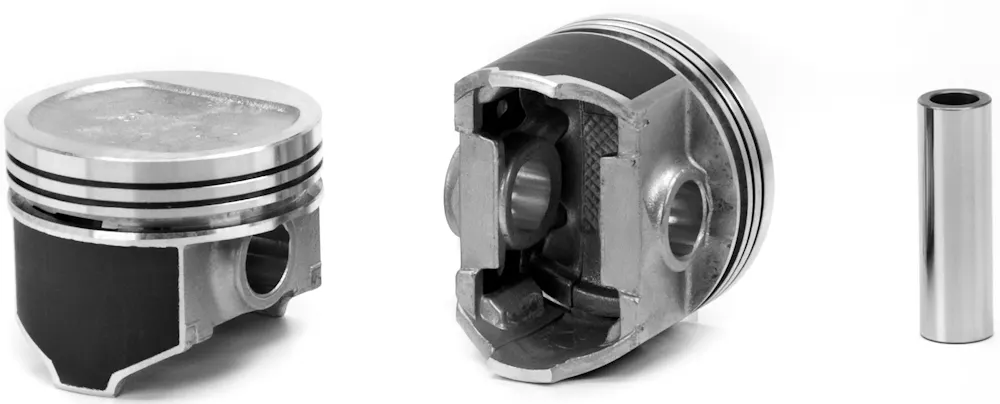

Silv-O-lite 2229C-.010K1
