Silv-O-lite · 2225C-.020K1
Part #: 2225C-.020K1
UPC: 800745297877
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - AMC 360ci/5.9L (V8)
Description:
Description

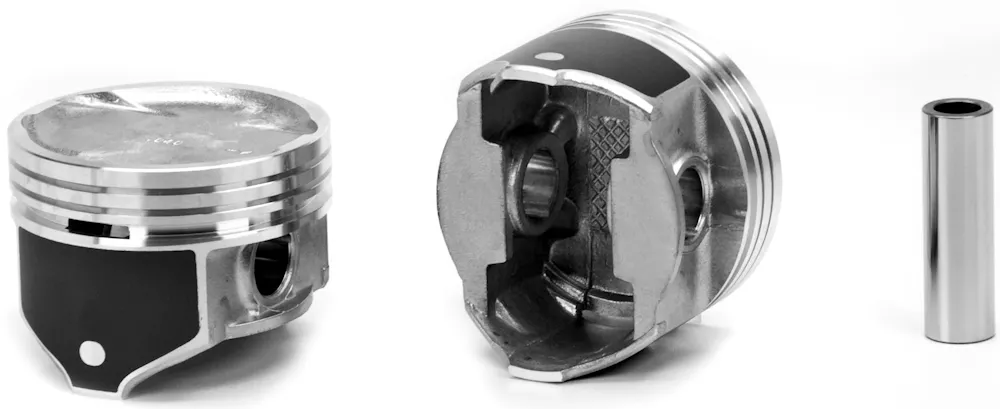

Silv-O-Lite Piston & Ring Kit - AMC 360ci/5.9L (V8)
Features & benefits
- 3.600" diameter recess .190" deep.
- 4 valve reliefs.
- * Same as 2225 with coated skirts.
- Piston & Ring Kit.
Application summary
| Year | Make / model |
|---|---|
| 1970-1974 | American Motors Ambassador |
| 1970 | American Motors AMX |
| 1971-1974 | American Motors Hornet |
| 1970-1974 | American Motors Javelin |
| 1971-1978 | American Motors Matador |
| 1970 | American Motors Rebel |
| 1974 | Bricklin SV-1 |
| 1974-1983 | Jeep Cherokee |
| 1984-1991 | Jeep Grand Wagoneer |
| 1971-1973 | Jeep J-100 |
| 1970-1973 | Jeep J-2500 |
| 1970-1973 | Jeep J-2600 |
| 1970-1971 | Jeep J-3800 |
| 1971-1973 | Jeep J-4500 |
| 1971-1973 | Jeep J-4600 |
| 1971-1973 | Jeep J-4700 |
| 1971-1973 | Jeep J-4800 |
| 1974-1988 | Jeep J10 |
| 1974-1988 | Jeep J20 |
| 1972-1983 | Jeep Wagoneer |
Specifications
- GTIN
- 00800745297877
- Weight
- 17 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 2225C
- Bore (in)
- 4.08
- Bore (mm)
- 103.6
- Bore Diameter
- 4.08
- Compression Ratio
- 9
- Crown (cc)
- +26.4cc
- Crown Type
- DISH
- Eng. Disp. In.
- 360
- Eng. Disp. Liters
- 5.9
- Engine Family
- AMC V8
- Engine Manufacturer
- AMC
- Includes Ring Set
- 4080AM8.020
- Oe Assembly
- 4487567, 8133807
- Oil Ring Thickness
- 0.1875
- Oversize
- 0.02
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0931x306A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- 0.931
- Piston Rings Included
- Yes
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 0.0781
- Top Land
- 0.25
- Vin Code
- 0
- Year From
- 1970
- Year Range
- 1970-1991
- Year To
- 1991
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970-1974 American Motors Ambassador; 1970 American Motors AMX; 1971-1974 American Motors Hornet; 1970-1974 American Motors Javelin; 1971-1978 American Motors Matador; 1970 American Motors Rebel; 1974 Bricklin SV-1; 1974-1983 Jeep Cherokee; 1984-1991 Jeep Grand Wagoneer; 1971-1973 Jeep J-100; 1970-1973 Jeep J-2500; 1970-1973 Jeep J-2600; 1970-1971 Jeep J-3800; 1971-1973 Jeep J-4500; 1971-1973 Jeep J-4600; 1971-1973 Jeep J-4700; 1971-1973 Jeep J-4800; 1974-1988 Jeep J10; 1974-1988 Jeep J20; 1972-1983 Jeep Wagoneer
