Silv-O-lite · 1902HC.1.0MM

Silv-O-lite 1902HC.1.0MM

Part #: 1902HC.1.0MM
UPC: 800745097859

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Hypereutectic Dish Coated Skirt Piston Sets

Log in to order

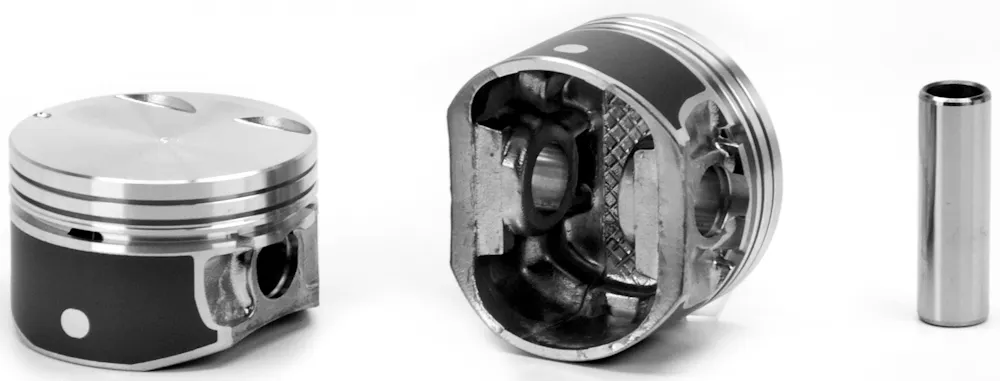

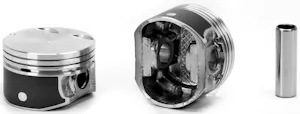

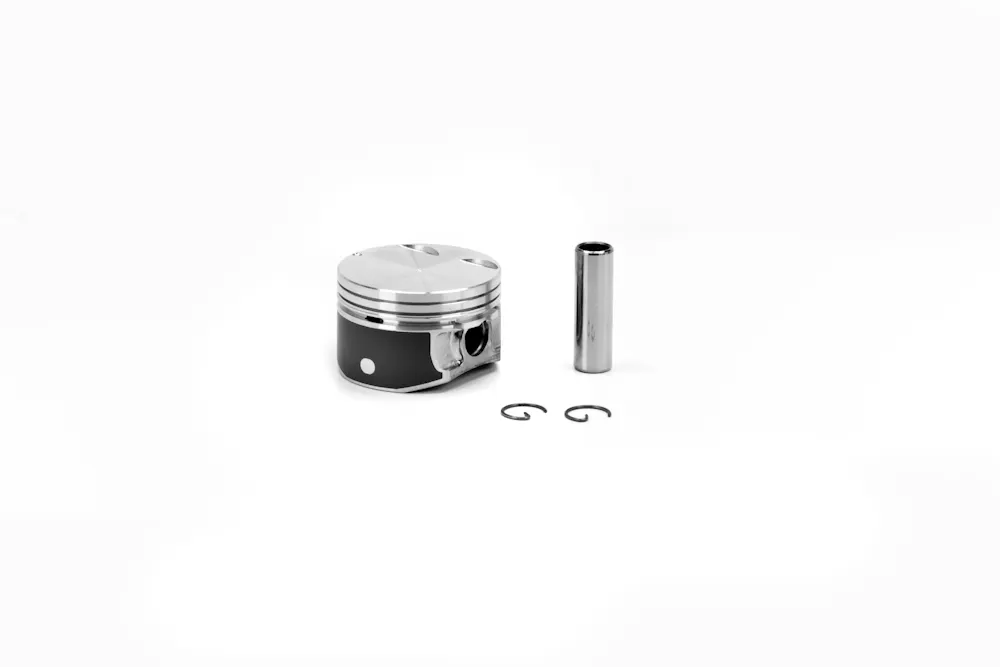

Description: Silv-O-Lite Piston - Saturn 116ci/1.9L (L4)

Description

Silv-O-Lite Piston - Saturn 116ci/1.9L (L4)

Features & benefits

- Hypereutectic.
- DOHC.
- 2.700" diameter recess .060" deep.
- 2 valve reliefs.
- Coated skirts.
- Floating pin.

Application summary

Year	Make / model
1994-1998	Saturn SC2
1995-1998	Saturn SL2
1994-1998	Saturn SW2

Specifications

GTIN: 00800745097859
Weight: 4 lb
Height: 9.13 in
Length: 4.5 in
Width: 9.13 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 1902HC
Bore (in): 3.2283
Bore (mm): 82
Bore Diameter: 3.2283
Compression Ratio: 9.5
Crown (cc): +3.2cc
Crown Type: DISH
Eng. Disp Liters: 1.9
Eng. Disp. In.: 116
Eng. Disp. Liters: 1.9
Engine Family: Saturn 4-Cylinder
Engine Manufacturer: Saturn
Lock: SRW-013
Oe Assembly: 21006738
Oil Ring Thickness: 3.0000
Oversize: 1.0mm
Oversized: Yes
Oversizes: STD .5mm .75mm 1.0mm
Pin Configuration: Offset
Pin Number: 0767x216T
Pin Type: Floating
Piston Head Type: Dish
Piston Material: Cast 390 Hypereutectic Alloy
Piston Pin Outside Diameter: .768
Ring Pack: 1.2mm, 1.5mm, 3.0mm Shallow Oil Groove
Second Compression Ring Thickness: 1.5
Sold As: Complete Piston Set
Top Compression Ring Thickness: 1.2
Top Land: .210
Vin Code: 7 , 9
Year From: 1994
Year Range: 1994-1998
Year To: 1998

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1994-1998 Saturn SC2; 1995-1998 Saturn SL2; 1994-1998 Saturn SW2

Resources

Retail View

Year	Make/Model
1994-1998	Saturn SC2
1995-1998	Saturn SL2
1994-1998	Saturn SW2
