Silv-O-lite · 1825.5MM
Part #: 1825.5MM
UPC: 800745080448
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Cadillac 183ci/3.0L (V6)
Description:
Description
Silv-O-Lite Piston - Cadillac 183ci/3.0L (V6)
Features & benefits
- .102" high spherical dome.
- Replaces pistons stamped "02".
- Catera, Saturn-L, VUE.
- Floating pin.
Application summary
| Year | Make / model |
|---|---|
| 1997-2001 | Cadillac Catera |
| 2001-2005 | Saturn L300 |
| 2000 | Saturn LS2 |
| 2000 | Saturn LW2 |
| 2001-2003 | Saturn LW300 |
| 2002-2003 | Saturn Vue |
Specifications
- GTIN
- 00800745080448
- Weight
- 10 lb
- Height
- 18 in
- Length
- 4.25 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 1825
- Bore (in)
- 3.3858
- Bore (mm)
- 86
- Bore Diameter
- 3.3858
- Compression Ratio
- 10.1
- Crown (cc)
- -5.5cc
- Crown Type
- DOME
- Eng. Disp Liters
- 3
- Eng. Disp. In.
- 181
- Eng. Disp. Liters
- 3
- Engine Family
- GM V6
- Engine Manufacturer
- Cadillac
- Lock
- SRW-009
- Oe Assembly
- 90571288
- Oil Ring Thickness
- 3.0000
- Oversize
- .50mm
- Oversized
- Yes
- Oversizes
- STD .5mm .75mm 1.0mm
- Pin Configuration
- Offset
- Pin Number
- 0826x218A
- Pin Type
- Floating
- Piston Head Type
- Dome
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- .827
- Ring Pack
- 1.2mm, 1.5mm, 3.0mm Shallow Oil Groove
- Second Compression Ring Thickness
- 1.5
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.2
- Top Land
- .143
- Vin Code
- R
- Year From
- 1997
- Year Range
- 1997-2001
- Year To
- 2001
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1997-2001 Cadillac Catera; 2001-2005 Saturn L300; 2000 Saturn LS2; 2000 Saturn LW2; 2001-2003 Saturn LW300; 2002-2003 Saturn Vue

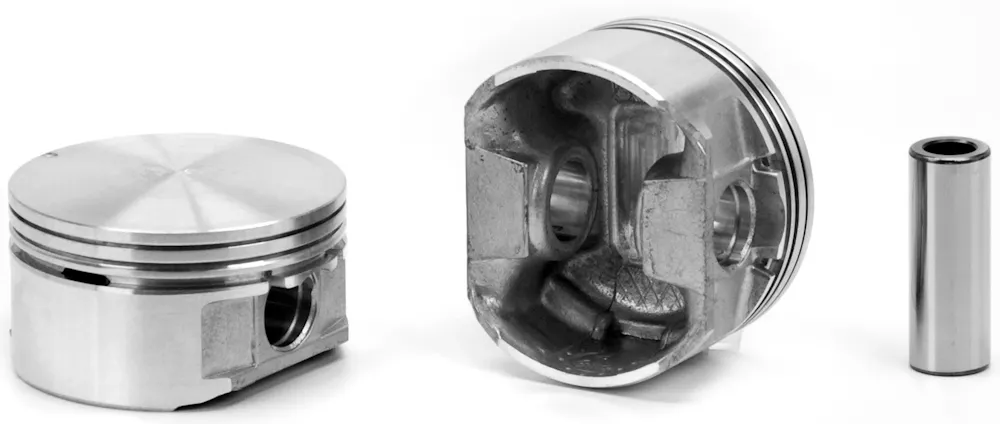

Silv-O-lite 1825.5MM
