Silv-O-lite / 1815-.060K1
Part #: 1815-.060K1
UPC: 800745297839
Loading...
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - Cadillac 500ci/8.2L (V8)
Description:
Description

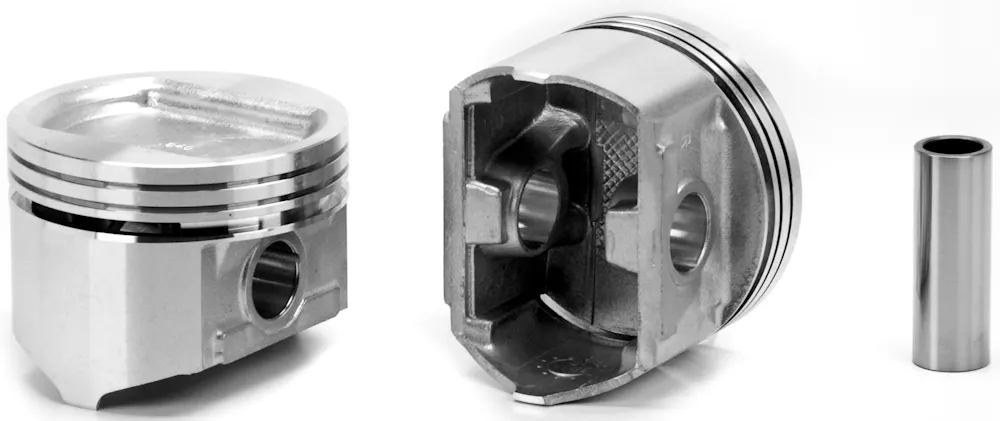

Silv-O-Lite Piston & Ring Kit - Cadillac 500ci/8.2L (V8)
Features & benefits
- Oblong recess .097" deep.
- Piston & Ring Kit.
Application summary
| Year | Make / model |
|---|---|
| 1970-1973 | Cadillac Eldorado |
Specifications
- GTIN
- 00800745297839
- Weight
- 19 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 1815
- Bore (in)
- 4.3
- Bore (mm)
- 109.2
- Bore Diameter
- 4.3
- Compression Ratio
- 8.5
- Crown (cc)
- +51cc
- Crown Type
- DISH
- Eng. Disp. In.
- 500
- Eng. Disp. Liters
- 8.2
- Engine Family
- Cadillac V8
- Engine Manufacturer
- Cadillac
- Includes Ring Set
- 4300AM8.060
- Oe Assembly
- 3633561
- Oil Ring Thickness
- 0.1875
- Oversize
- 0.06
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 1000x302A
- Pin Type
- Press
- Piston Head Type
- Dish
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- 1
- Piston Rings Included
- Yes
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 0.0781
- Top Land
- 0.255
- Year From
- 1970
- Year Range
- 1970-1973
- Year To
- 1973
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970-1973 Cadillac Eldorado
