Silv-O-lite · 1536H.5MM

Silv-O-lite 1536H.5MM

Part #: 1536H.5MM
UPC: 800745084903

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Hypereutectic Dish Piston Sets

Log in to order

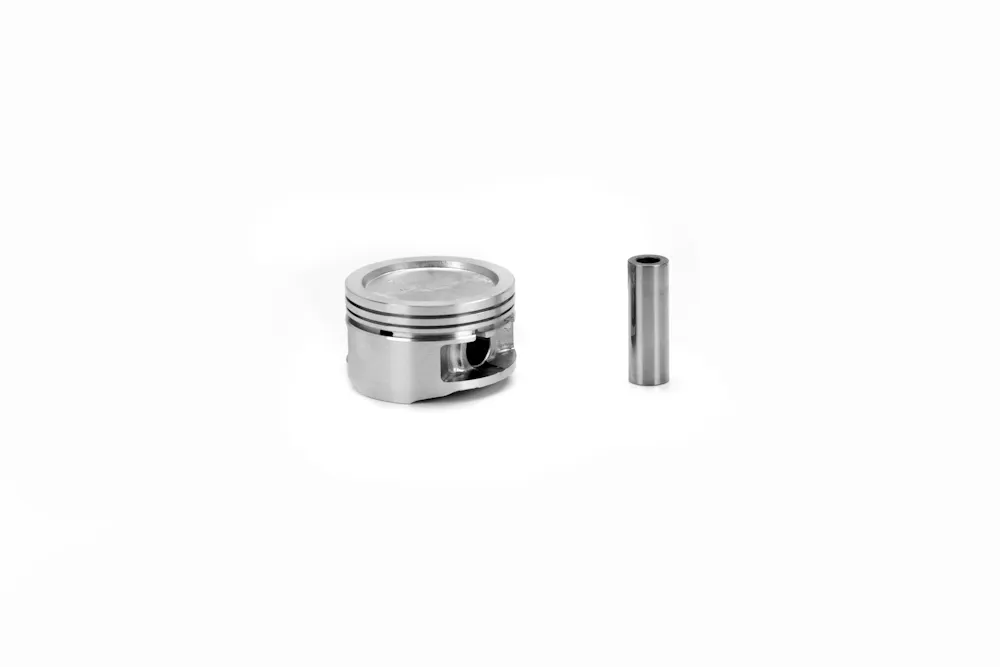

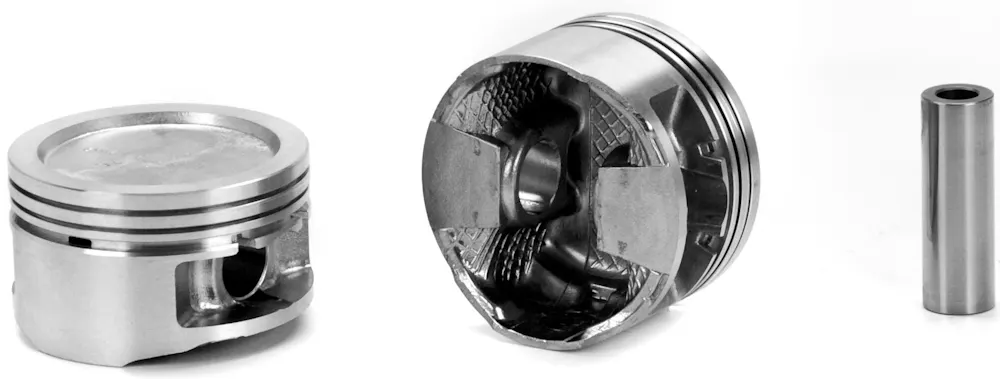

Description: Silv-O-Lite Piston - Pontiac 122ci/2.0L (L4)

Description

Silv-O-Lite Piston - Pontiac 122ci/2.0L (L4)

Features & benefits

- Hypereutectic.
- 2.780" diameter recess .142" deep.
- Non-turbo.

Specifications

GTIN: 00800745084903
Weight: 4 lb
Height: 9.13 in
Length: 4.5 in
Width: 9.13 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 1536H
Bore (in): 3.3858
Bore (mm): 86
Bore Diameter: 3.3858
Compression Ratio: 8.8
Crown (cc): +13.5cc
Crown Type: DISH
Eng. Disp Liters: 2
Eng. Disp. In.: 121
Eng. Disp. Liters: 2
Engine Family: GM L4
Engine Manufacturer: Pontiac
Oe Assembly: 52273299
Oil Ring Thickness: 3.0000
Oversize: .50mm
Oversized: Yes
Oversizes: STD 0.5mm .75mm 1.0mm
Pin Configuration: Offset
Pin Number: 0827x216K
Pin Type: Press
Piston Head Type: Dish
Piston Material: Cast 390 Hypereutectic Alloy
Piston Pin Outside Diameter: .827
Ring Pack: 1.5mm, 1.5mm, 3.0mm Shallow Oil Groove
Second Compression Ring Thickness: 1.5
Sold As: Complete Piston Set
Top Compression Ring Thickness: 1.5
Top Land: .197
Vin Code: K
Year From: 1987
Year Range: 1987-1991
Year To: 1991

Fitment status

This product is universal and will fit your application.
