Silv-O-lite · 1470C.080

Silv-O-lite 1470C.080

Part #: 1470C.080
UPC: 800745276407

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Dish Piston Sets

Log in to order

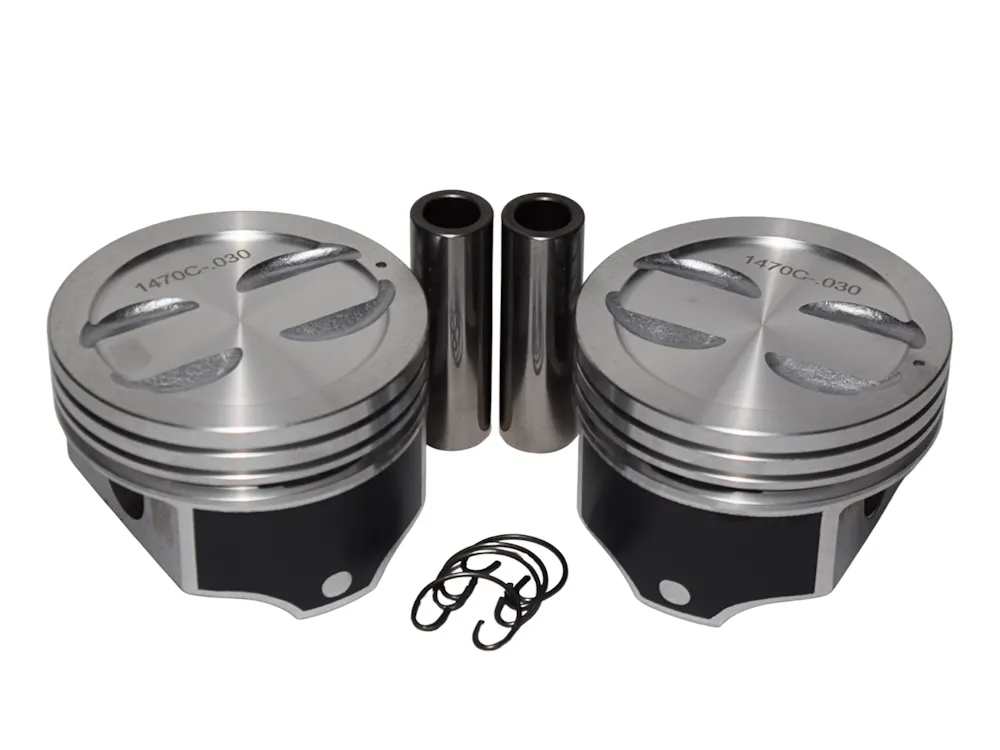

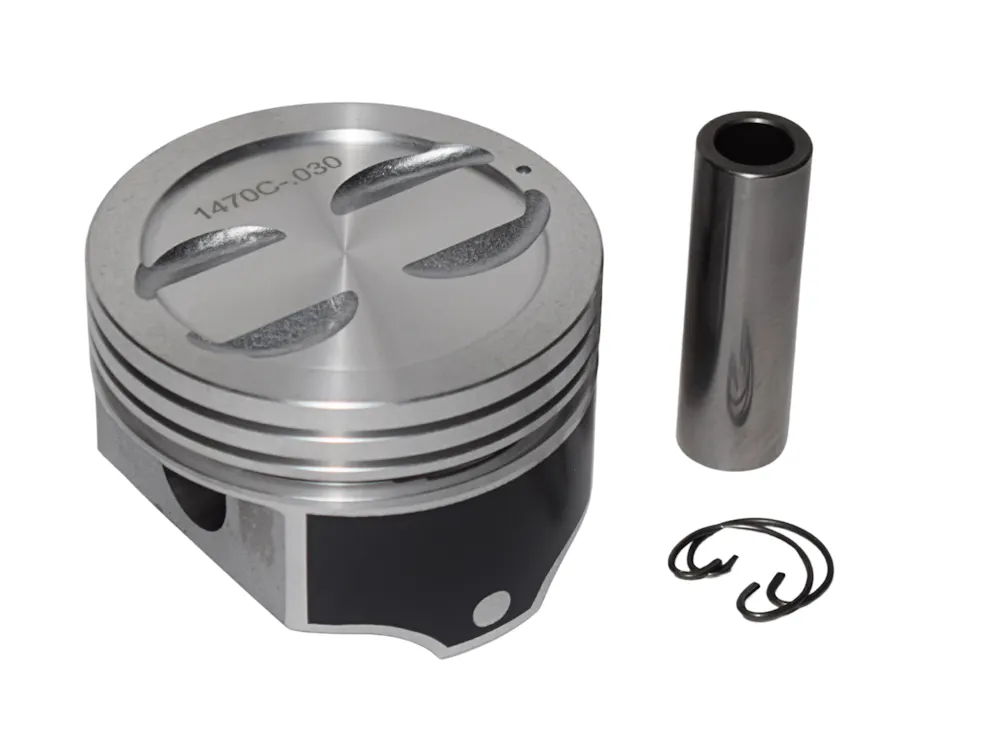

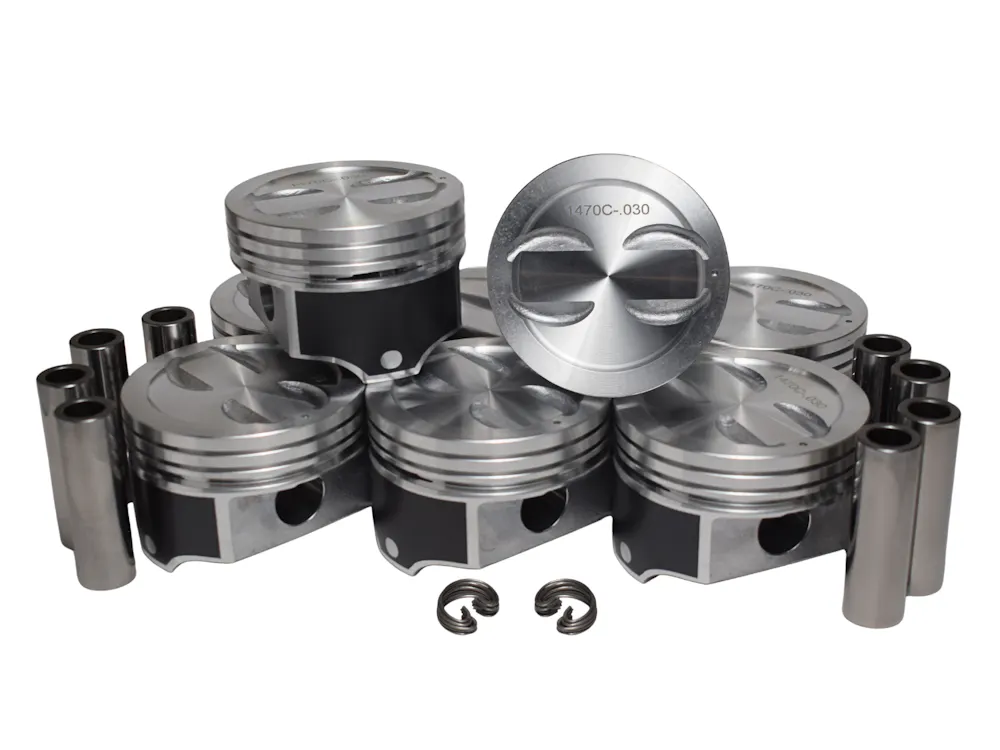

Description: Silvolite Piston - Chevrolet 350ci/5.7L (V8)

Description

Silvolite Piston - Chevrolet 350ci/5.7L (V8)

Features & benefits

- 3.160" diameter recess .080" deep.
- 4 valve reliefs.
- Use 1986 and earlier rings.

Specifications

GTIN: 00800745276407
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Alloy: Cast 332 Alloy
Base Number: 1470C
Bore (in): 4
Bore (mm): 101.6
Bore Diameter: 4
Compression Ratio: 7.9:1
Crown (cc): 13
Crown Type: Dish
Eng. Disp. In.: 350
Eng. Disp. Liters: 5.7
Engine Family: Chevrolet SB V8 Gen I
Engine Manufacturer: Chevrolet
Grade Type: Performance
Make For Engine Family: General Motors
Oil Ring Thickness: 0.188
Oversize: 0.08
Oversized: Yes
Oversizes: STD, .020, .030, .040, .060, .080, .100
Pin Configuration: Offset
Pin Diameter (in): 0.927
Pin Diameter (mm): 23.5
Pin Number: 0927X300A
Pin Type: Press
Piston Material: Cast 332 Alloy
Piston Pin Outside Diameter: 0.927
Ring Pack: 5/64, 3/64, 6/16
Second Compression Ring Thickness: 0.047
Sold As: Complete Piston Set
Stroke (in): 3.484
Stroke (mm): 88.49
Top Compression Ring Thickness: 0.078
Top Land: 0.245

Fitment status

This product is universal and will fit your application.
