Silv-O-lite · 1470C-.030K1
Part #: 1470C-.030K1
UPC: 800745295804
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston Kit - Chevrolet 350ci/5.7L (V8) with Rings
Description:
Description

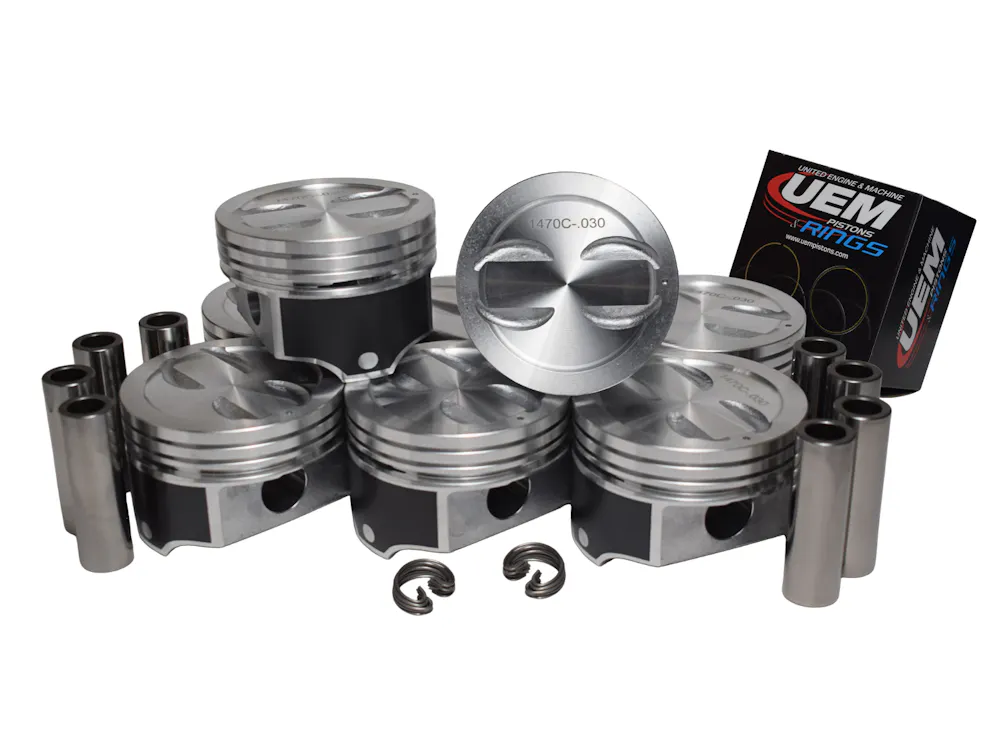

Silv-O-Lite Piston Kit - Chevrolet 350ci/5.7L (V8) with Rings
Features & benefits
- 3.160" diameter recess .080" deep.
- 4 valve reliefs.
- Use 1986 and earlier rings.
Specifications
- GTIN
- 00800745295804
- Weight
- 16 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Alloy
- Cast 332 Alloy
- Base Number
- 1470C
- Bore (in)
- 4.000
- Bore (mm)
- 101.6
- Compression Ratio
- 7.9:1
- Crown (cc)
- 13
- Crown Type
- Dish
- Cylinder Bore Diameter
- 4.000
- Eng. Disp. In.
- 350
- Eng. Disp. Liters
- 5.7
- Engine Family
- Chevrolet SB V8 Gen I
- Engine Manufacturer
- Chevrolet
- Grade Type
- Regular
- Includes Ring Set
- 4000AM8.030
- Oe Assembly
- 14075656
- Oil Ring Thickness
- .1875
- Oversize
- .030
- Oversized
- Yes
- Oversized Amount
- .030
- Oversizes
- STD, .020, .030, .040, .060, .080
- Pin Configuration
- Offset
- Pin Diameter (in)
- 0.927
- Pin Diameter (mm)
- 23.5
- Pin Number
- 0927X300A
- Pin Type
- Press
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- 0.927
- Piston Rings Included
- Yes
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- .0781
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 3.484
- Stroke (mm)
- 88.49
- Top Compression Ring Thickness
- .0781
- Top Land
- 0.245
- Uses Ring Set
- 4000AM8.030
- Valve Reliefs
- 4
- Year From
- 1971
- Year Range
- 1971-1995
- Year To
- 1995
