Silv-O-lite · 1463C.STD
Part #: 1463C.STD
UPC: 800745076724
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Chevrolet 170.8ci/2.8L (V6)
Description:
Description

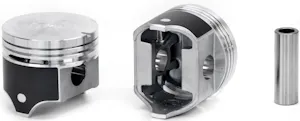

Silv-O-Lite Piston - Chevrolet 170.8ci/2.8L (V6)
Features & benefits
- Flat top.
- 2nd design with 1.5mm top ring.
- * Same as 1463 with coated skirts.
Application summary
| Year | Make / model |
|---|---|
| 1982-1986 | Buick Century |
| 1982-1985 | Buick Skylark |
| 1985-1986 | Cadillac Cimarron |
| 1982-1986 | Chevrolet Camaro |
| 1985-1986 | Chevrolet Cavalier |
| 1982-1986 | Chevrolet Celebrity |
| 1982-1986 | Chevrolet Citation |
| 1984-1985 | Chevrolet Citation II |
| 1982-1985 | Chevrolet S10 |
| 1983-1985 | Chevrolet S10 Blazer |
| 1982-1985 | GMC S15 |
| 1983-1985 | GMC S15 Jimmy |
| 1984-1986 | Jeep Cherokee |
| 1986 | Jeep Comanche |
| 1984-1986 | Jeep Wagoneer |
| 1982-1986 | Oldsmobile Cutlass Ciera |
| 1985-1986 | Oldsmobile Firenza |
| 1982-1984 | Oldsmobile Omega |
| 1982-1986 | Pontiac 6000 |
| 1985-1986 | Pontiac Fiero |
| 1982-1986 | Pontiac Firebird |
| 1982-1984 | Pontiac Phoenix |
Specifications
- GTIN
- 00800745076724
- Weight
- 10 lb
- Height
- 13.63 in
- Length
- 3.38 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 1463C
- Bore (in)
- 3.5039
- Bore (mm)
- 89
- Bore Diameter
- 3.5039
- Compression Ratio
- 8.5
- Crown Type
- FLAT TOP
- Eng. Disp Liters
- 2.8
- Eng. Disp. In.
- 173
- Eng. Disp. Liters
- 2.8
- Engine Family
- GM V6
- Engine Manufacturer
- Chevrolet
- Oe Assembly
- 14033250, 14003994
- Oil Ring Thickness
- 4.75
- Oversize
- STD
- Oversized
- No
- Oversizes
- STD 0.5mm .75mm 1.0mm 1.5mm
- Pin Configuration
- Offset
- Pin Number
- 0905x224A
- Pin Type
- Press
- Piston Head Type
- Flat
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- .905
- Ring Pack
- 1.5mm, 2.0mm, 4.75mm
- Second Compression Ring Thickness
- 2.0000
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 1.5
- Top Land
- .315
- Year From
- 1982
- Year Range
- 1982-1986
- Year To
- 1986
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1982-1986 Buick Century; 1982-1985 Buick Skylark; 1985-1986 Cadillac Cimarron; 1982-1986 Chevrolet Camaro; 1985-1986 Chevrolet Cavalier; 1982-1986 Chevrolet Celebrity; 1982-1986 Chevrolet Citation; 1984-1985 Chevrolet Citation II; 1982-1985 Chevrolet S10; 1983-1985 Chevrolet S10 Blazer; 1982-1985 GMC S15; 1983-1985 GMC S15 Jimmy; 1984-1986 Jeep Cherokee; 1986 Jeep Comanche; 1984-1986 Jeep Wagoneer; 1982-1986 Oldsmobile Cutlass Ciera; 1985-1986 Oldsmobile Firenza; 1982-1984 Oldsmobile Omega; 1982-1986 Pontiac 6000; 1985-1986 Pontiac Fiero; 1982-1986 Pontiac Firebird; 1982-1984 Pontiac Phoenix

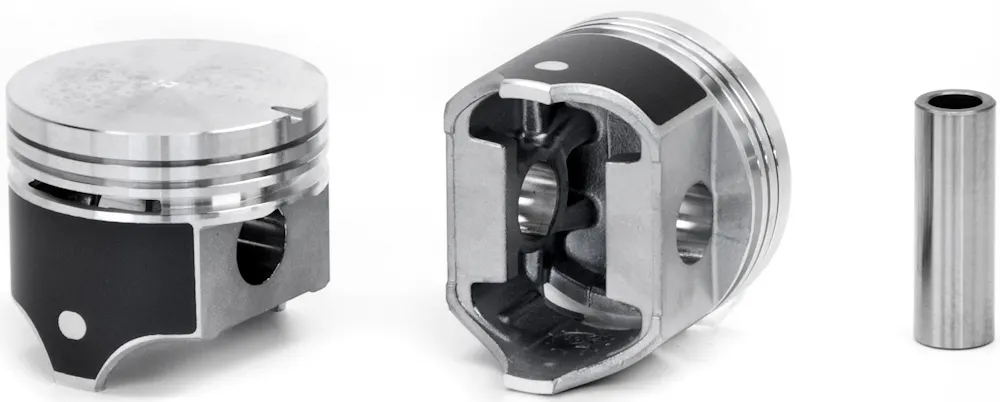

Silv-O-lite 1463C.STD
