Silv-O-lite / 1445H-.030K1
Part #: 1445H-.030K1
UPC: 800745294975
Loading...
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - Chevrolet 396ci/6.5L (V8)
Description:
Description

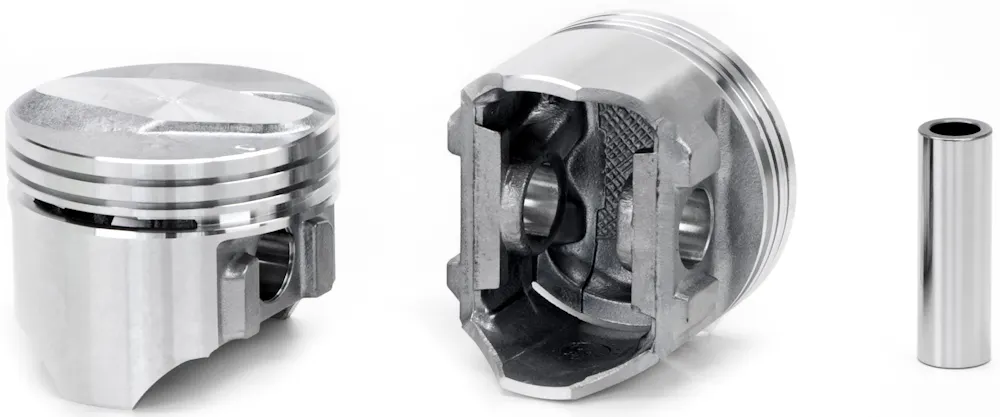

Silv-O-Lite Piston & Ring Kit - Chevrolet 396ci/6.5L (V8)
Features & benefits
- Big block.
- .132" high crown.
- Use STD size piston for .030" O/S 396 application.
- Used in either left or right cylinder bank.
- Piston & Ring Kit.
Application summary
| Year | Make / model |
|---|---|
| 1970 | Chevrolet El Camino |
| 1970 | Chevrolet Nova |
Specifications
- GTIN
- 00800745294975
- Weight
- 19 lb
- Height
- 5.25 in
- Length
- 22.25 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 1445
- Bore (in)
- 4.125
- Bore (mm)
- 104.8
- Bore Diameter
- 4.125
- Compression Ratio
- 9.3, 8.3, 9.4
- Crown (cc)
- -8cc
- Crown Type
- DOME
- Eng. Disp. In.
- 396
- Eng. Disp. Liters
- 6.5
- Engine Family
- Chevy Big Block Mark IV
- Engine Manufacturer
- Chevrolet
- Includes Ring Set
- 4125AM8.030
- Oe Assembly
- 3969981, 3993849, 3969981-2, 3993861-2
- Oil Ring Thickness
- 0.1875
- Oversize
- 0.03
- Oversized
- Yes
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0990x230A
- Pin Type
- Press
- Piston Head Type
- Dome
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- 0.99
- Piston Rings Included
- Yes
- Ring Pack
- 5/64, 5/64, 3/16
- Second Compression Ring Thickness
- 0.0781
- Sold As
- Complete Piston and Ring Kit
- Top Compression Ring Thickness
- 0.0781
- Top Land
- 0.247
- Year From
- 1970
- Year Range
- 1970-1970
- Year To
- 1970
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970 Chevrolet El Camino; 1970 Chevrolet Nova
