Silv-O-lite · 1177HC-.080K1

Silv-O-lite 1177HC-.080K1

Part #: 1177HC-.080K1
UPC: 800745293183

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Hypereutectic Flat Top Coated Skirt Piston and Ring Sets

Log in to order

Description: Silv-O-Lite Piston - Ford 289/302ci 4.7/5.0L (V8) Kit with Rings

Description

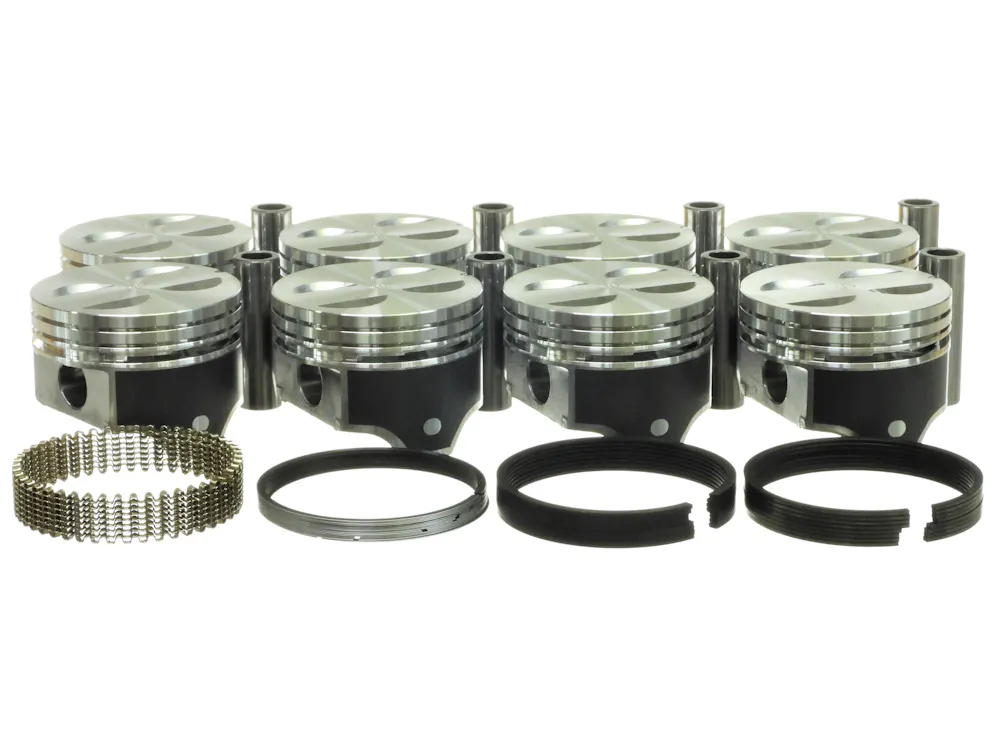

Silv-O-Lite Piston - Ford 289/302ci 4.7/5.0L (V8) Kit with Rings

Features & benefits

- Hypereutectic.
- M42 Skirt Coating.
- Flat top.
- 4 valve reliefs.
- Includes Ring Set 4000AM8.080
- Compression rations with heads: 51cc=9.7; 54cc=9.3; 58cc=8.8; 64cc=8.3; 69cc=7.8.

Specifications

GTIN: 00800745293183
Weight: 15 lb
Height: 5.25 in
Length: 22.25 in
Width: 9.75 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 1177HC
Bore (in): 4
Bore (mm): 101.6
Bore Diameter: 4
Compression Ratio: 51cc=9.7:1/54cc=9.3:1/58cc=8.8:1/64cc=8.3:1/69cc=7.8:1
Crown (cc): +3cc
Crown Type: FLAT TOP
Eng. Disp. In.: 289/302
Eng. Disp. Liters: 4.7/5.0
Engine Family: Ford Small Block Windsor
Engine Manufacturer: Ford
Includes Ring Set: 4000AM8.080
Oe Assembly: D9AZ6108A
Oil Ring Thickness: 3
Oversize: 0.08
Oversized: Yes
Oversizes: STD .020 .030 .040 .060
Pin Configuration: Offset
Pin Number: 0912x301A
Pin Type: Press
Piston Head Type: Flat
Piston Material: Cast 390 Hypereutectic Alloy
Piston Pin Outside Diameter: 0.912
Ring Pack: 5/64, 5/64, 3/16
Second Compression Ring Thickness: 1.2
Sold As: Complete Piston and Ring Kit
Top Compression Ring Thickness: 1.2
Top Land: 0.245
Year From: 1977
Year Range: 1977-1986
Year To: 1986
