Silv-O-lite / 1177H-.030K1
Part #: 1177H-.030K1
UPC: 800745291158
Loading...
Notify me when this item is in stock.

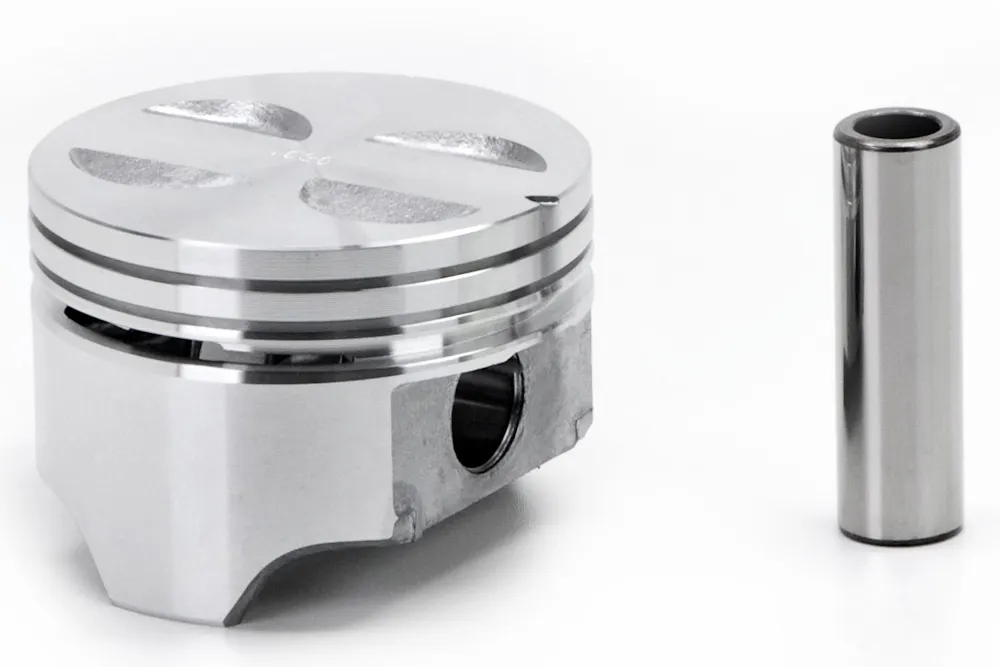

Description: Silv-O-Lite Piston & Ring Kit - Ford 302ci/5.0L (V8)
Description:
Description
Silv-O-Lite Piston & Ring Kit - Ford 302ci/5.0L (V8)
Features & benefits
- Flat top.
- 4 valve reliefs.
- Compression ratios with cylinder heads: 51cc=9.7; 54cc=9.3; 58cc=8.8; 64cc=8.3; 69cc=7.8.
- Piston & Ring Kit
Application summary
| Year | Make / model |
|---|---|
| 1966-1968 | Ford Bronco |
| 1964-1967 | Ford Country Sedan |
| 1964-1967 | Ford Country Squire |
| 1964-1967 | Ford Custom |
Specifications
- GTIN
- 00800745291158
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Alloy
- Cast 390 Hypereutectic Alloy
- Base Number
- 1177H
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Compression Ratio
- See Notes
- Crown (cc)
- +3cc
- Crown Type
- Flat
- Cylinder Bore Diameter
- 4
- Eng. Disp. In.
- 289
- Eng. Disp. Liters
- 4.7
- Engine Family
- Ford Small Block Windsor
- Engine Manufacturer
- Ford
- Grade Type
- Regular
- Make For Engine Family
- Ford
- Oe Assembly
- D9AZ6108A, E6TZ6108A-B
- Oil Ring Thickness
- 0.187
- Oversize
- 0.03
- Oversized
- Yes
- Oversized Amount
- 0.03
- Oversizes
- STD .020 .030 .040 .060 .080
- Pin Configuration
- Offset
- Pin Diameter (in)
- 0.912
- Pin Diameter (mm)
- 23.16
- Pin Number
- 0912x301A
- Pin Type
- Press
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.912
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 5.155
- Rod (mm)
- 130.93
- Second Compression Ring Thickness
- 0.078
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 2.87
- Stroke (mm)
- 72.89
- Top Compression Ring Thickness
- 0.078
- Top Land
- 0.245
- Uses Ring Pack
- 4000AM8
- Uses Ring Set
- 4000AM8
- Year From
- 1964
- Year Range
- 1964-1968
- Year To
- 1968
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966-1968 Ford Bronco; 1964-1967 Ford Country Sedan; 1964-1967 Ford Country Squire; 1964-1967 Ford Custom

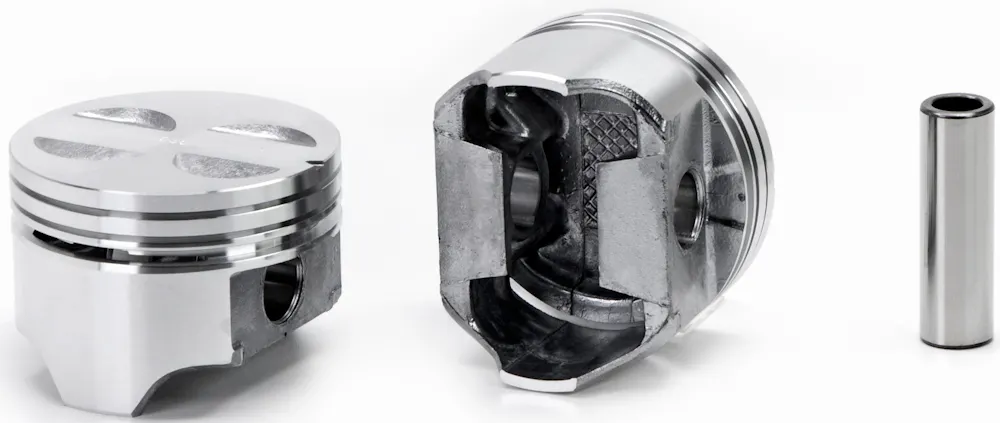

Silv-O-lite 1177H-.030K1
