Silv-O-lite / 1171H-.060K1
Part #: 1171H-.060K1
UPC: 800745291066
Loading...
Notify me when this item is in stock.
Description: Silv-O-Lite Piston & Ring Kit - Ford 351ci/5.8L (V8)
Description:
Description
Silv-O-Lite Piston & Ring Kit - Ford 351ci/5.8L (V8)
Features & benefits
- Hypereutectic.
- Windsor engine.
- Rectangular recess .140".
- 2 valve reliefs.
- Coated skirts.
- Piston & Ring Kit
Specifications
- GTIN
- 00800745291066
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Alloy
- Cast 390 Hypereutectic Alloy
- Base Number
- 1171H
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Compression Ratio
- 8.1:1
- Crown (cc)
- +12.5cc
- Crown Type
- Dish
- Cylinder Bore Diameter
- 4
- Eng. Disp. In.
- 351
- Eng. Disp. Liters
- 5.8
- Engine Family
- Ford Small Block Windsor
- Engine Manufacturer
- Ford
- Grade Type
- Regular
- Make For Engine Family
- Ford
- Oe Assembly
- D7DZ6108A-B, D9AZ6108G-H, D30Z6108G-H
- Oil Ring Thickness
- 0.187
- Oversize
- 0.06
- Oversized
- Yes
- Oversized Amount
- 0.06
- Oversizes
- STD .020 .030 .040 .060 .080
- Pin Configuration
- Offset
- Pin Diameter (in)
- 0.912
- Pin Diameter (mm)
- 23.16
- Pin Number
- 0912x301A
- Pin Type
- Press
- Piston Material
- Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter
- 0.912
- Ring Pack
- 5/64, 5/64, 3/16
- Rod (in)
- 5.9575
- Rod (mm)
- 151.32
- Second Compression Ring Thickness
- 0.078
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 3.5
- Stroke (mm)
- 88.9
- Top Compression Ring Thickness
- 0.078
- Top Land
- 0.295
- Uses Ring Pack
- 4000AM8
- Uses Ring Set
- 4000AM8
- Year From
- 1977
- Year Range
- 1977-1993
- Year To
- 1993
Fitment status
Select a vehicle or engine to see whether this part applies to your application.

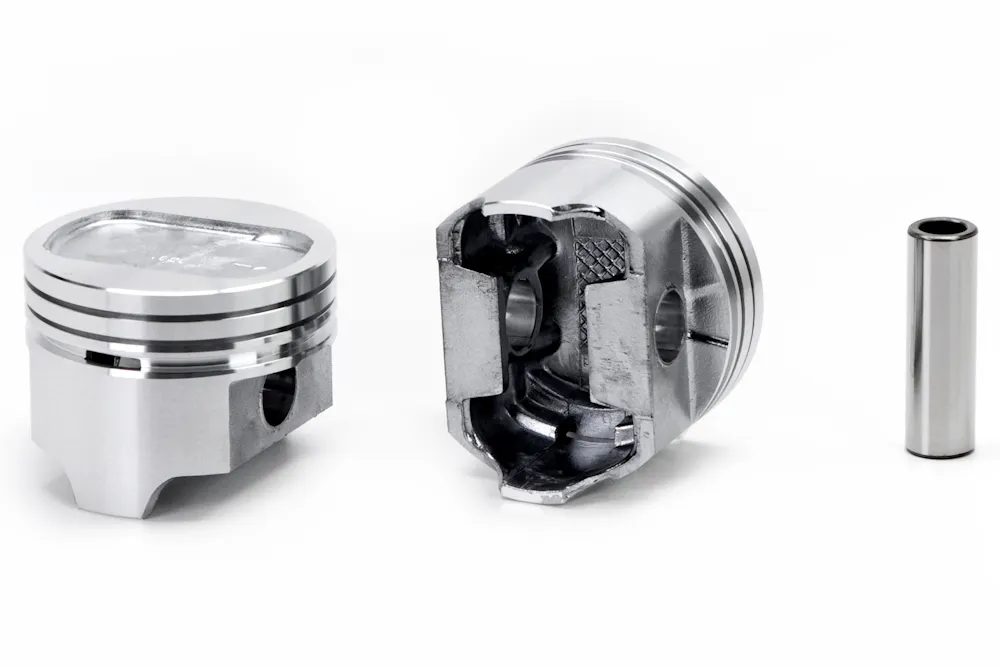

Silv-O-lite 1171H-.060K1
