Silv-O-lite · 1136.020

Silv-O-lite 1136.020

Part #: 1136.020
UPC: 800745001979

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Dish Piston Sets

Log in to order

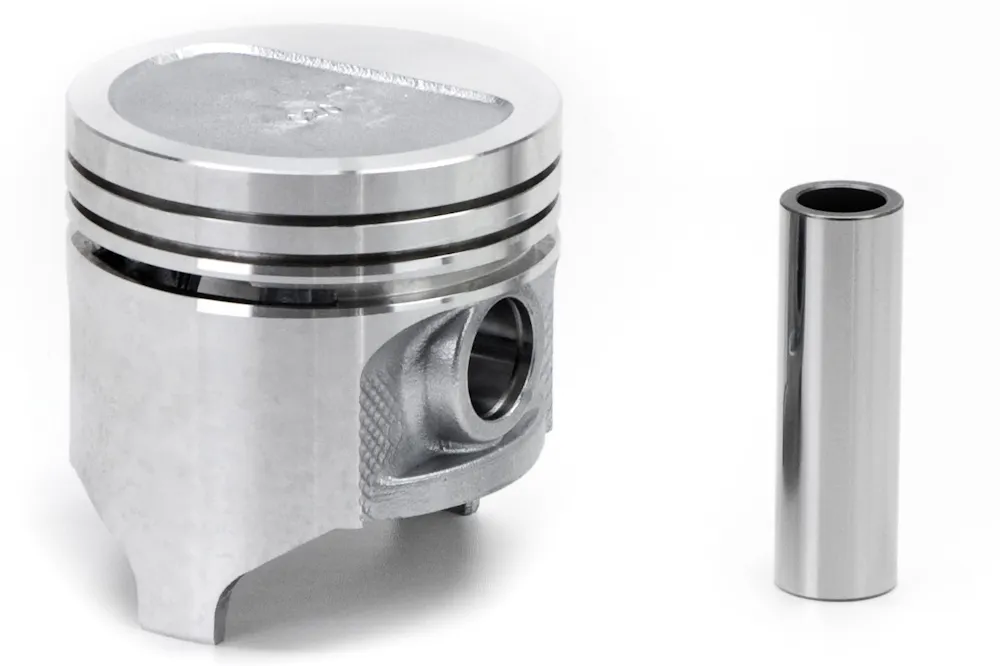

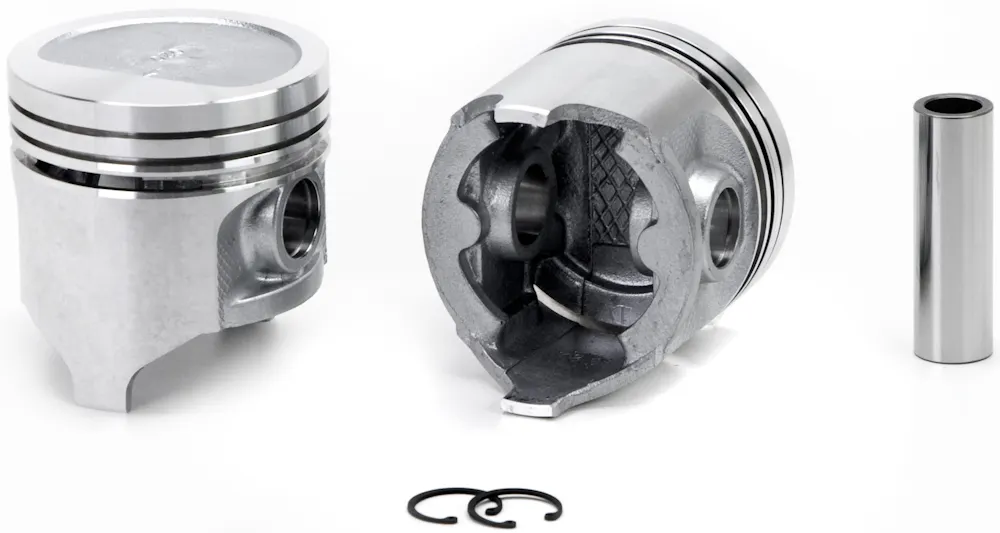

Description: Silv-O-Lite Piston - Ford 330ci/5.4L (V8)

Description

Silv-O-Lite Piston - Ford 330ci/5.4L (V8)

Features & benefits

- "D" shaped recess .054" deep.
- Pin inside diameter .700".
- Truck engine.
- Medium and heavy duty.
- Head volume +6cc.

Application summary

Year	Make / model
1975-1977	Ford F-500

Specifications

GTIN: 00800745001979
Weight: 17 lb
Height: 18 in
Length: 4.25 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 1136
Bore (in): 3.875
Bore (mm): 98.4
Bore Diameter: 3.875
Compression Ratio: 7.2, 7.4
Crown (cc): +6cc
Crown Type: DISH
Eng. Disp Liters: 5.4
Eng. Disp. In.: 330
Eng. Disp. Liters: 5.4
Engine Family: Ford Big Block FT (Medium/Heavy Truck)
Engine Manufacturer: Ford
Lock: 98
Oe Assembly: C4TZ6108P, C4TZ6108CP, C8TZ6108G
Oil Ring Thickness: 0.1875
Oversize: .020
Oversized: Yes
Oversizes: STD .020 .030 .040 .060
Pin Configuration: Centered
Pin Number: 0975x305A
Pin Type: Floating
Piston Head Type: Dish
Piston Material: Cast 332 Alloy
Piston Pin Outside Diameter: .975
Ring Pack: 5/64, 3/32, 3/16
Second Compression Ring Thickness: 0.0938
Sold As: Complete Piston Set
Top Compression Ring Thickness: 0.0781
Top Land: .355
Year From: 1964
Year Range: 1964-1978
Year To: 1978

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1975-1977 Ford F-500

Resources

Retail View

Year	Make/Model
1975-1977	Ford F-500
