Silv-O-lite · 1131.STD
Part #: 1131.STD
UPC: 800745001832
Log in for inventory
Notify me when this item is in stock.
Description: Silv-O-Lite Piston - Ford 360ci/5.9L (V8)
Description:
Description

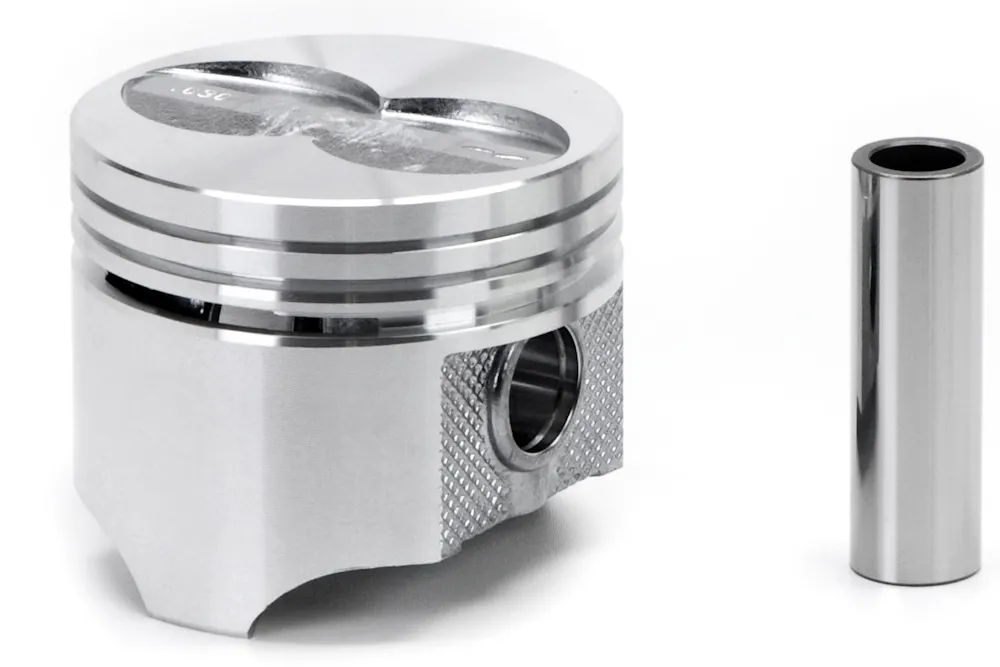

Silv-O-Lite Piston - Ford 360ci/5.9L (V8)
Features & benefits
- Flat top.
- 4 valve reliefs.
- Floating pin.
- Truck engine.
Application summary
| Year | Make / model |
|---|---|
| 1968-1976 | Ford F-100 |
| 1975-1976 | Ford F-150 |
| 1968-1976 | Ford F-250 |
| 1968-1976 | Ford F-350 |
| 1971-1973 | Ford M-400 |
| 1974 | Ford M-450 |
| 1968-1974 | Ford P-350 |
Specifications
- GTIN
- 00800745001832
- Weight
- 17 lb
- Height
- 18 in
- Length
- 4.25 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- SOL
- Warehouse brand code
- BCRJ
- AAIA brand code
- BCRJ
Attributes
- Base Number
- 1131
- Bore (in)
- 4.05
- Bore (mm)
- 102.9
- Bore Diameter
- 4.05
- Compression Ratio
- 8.2, 10.1
- Crown (cc)
- +8cc
- Crown Type
- FLAT TOP
- Eng. Disp Liters
- 5.9
- Eng. Disp. In.
- 360
- Eng. Disp. Liters
- 5.9
- Engine Family
- Ford Big Block FE
- Engine Manufacturer
- Ford
- Lock
- 98
- Oe Assembly
- C8TZ6108A
- Oil Ring Thickness
- 0.1875
- Oversize
- STD
- Oversized
- No
- Oversizes
- STD .020 .030 .040 .060
- Pin Configuration
- Offset
- Pin Number
- 0975x305A
- Pin Type
- Floating
- Piston Head Type
- Flat
- Piston Material
- Cast 332 Alloy
- Piston Pin Outside Diameter
- .975
- Ring Pack
- 5/64, 3/32, 3/16
- Second Compression Ring Thickness
- 0.0938
- Sold As
- Complete Piston Set
- Top Compression Ring Thickness
- 0.0781
- Top Land
- .307
- Year From
- 1968
- Year Range
- 1968-1976
- Year To
- 1976
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1968-1976 Ford F-100; 1975-1976 Ford F-150; 1968-1976 Ford F-250; 1968-1976 Ford F-350; 1971-1973 Ford M-400; 1974 Ford M-450; 1968-1974 Ford P-350

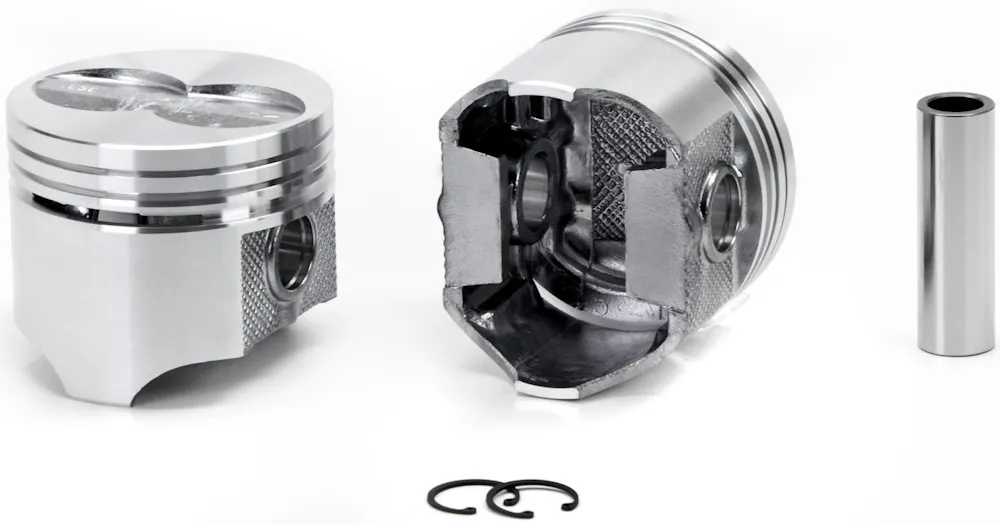

Silv-O-lite 1131.STD
