Silv-O-lite · 1000.090

Silv-O-lite 1000.090

Part #: 1000.090
UPC: 800745136206

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Silv-O-lite Series: Flat Top Piston Sets

Log in to order

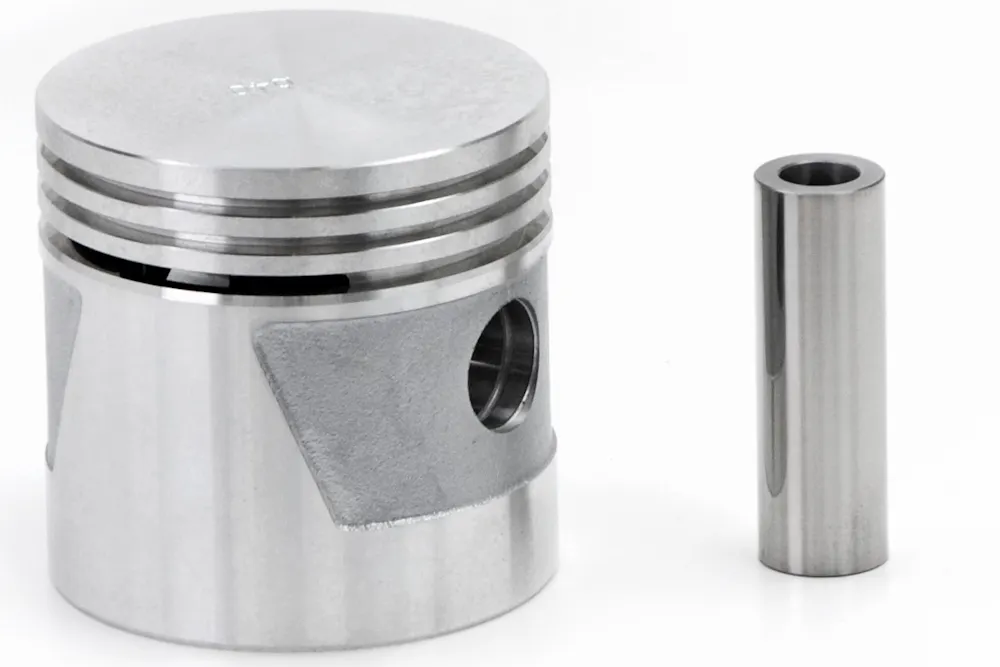

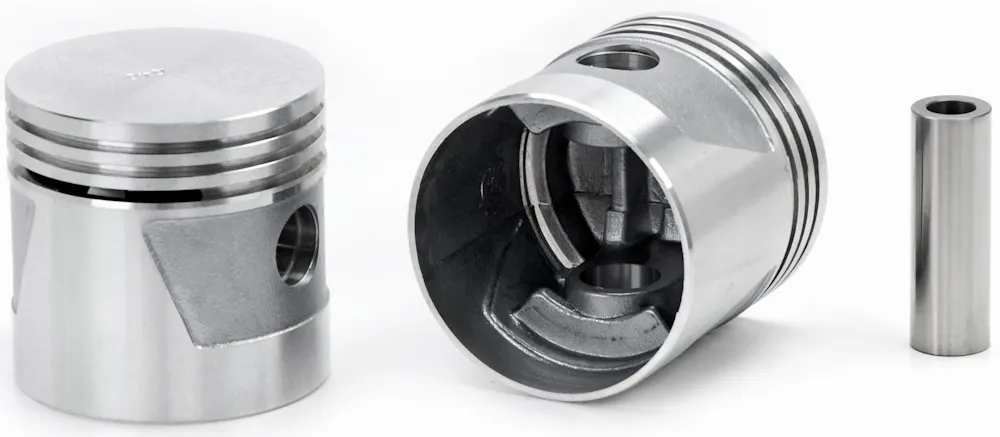

Description: Silv-O-Lite Piston - Ford 200ci/3.3L (L4)

Description

Silv-O-Lite Piston - Ford 200ci/3.3L (L4)

Features & benefits

- Model A.
- Flathead engine.

Application summary

Year	Make / model
1928-1931	Ford Model A

Specifications

GTIN: 00800745136206
Weight: 8 lb
Height: 9.13 in
Length: 4.5 in
Width: 9.13 in
Life cycle: Available to Order
AAM brand code: SOL
Warehouse brand code: BCRJ
AAIA brand code: BCRJ

Attributes

Base Number: 1000
Bore (in): 3.875
Bore (mm): 98.4
Bore Diameter: 3.875
Compression Ratio: 4.2
Crown Type: FLAT TOP
Eng. Disp Liters: 3.3
Eng. Disp. In.: 200
Eng. Disp. Liters: 3.3
Engine Family: Ford Model A
Engine Manufacturer: Ford
Lock: 64
Oil Ring Thickness: 0.1563
Oversize: .090
Oversized: Yes
Oversizes: STD .020 .030 .040 .060 .080 .090 .100 .110 .125
Pin Configuration: Centered
Pin Number: 1000x302A
Pin Type: Floating
Piston Head Type: Flat
Piston Material: Cast 332 Alloy
Piston Pin Outside Diameter: 1.000
Ring Pack: 1/8, 1/8, 5/32
Second Compression Ring Thickness: 0.125
Sold As: Complete Piston Set
Top Compression Ring Thickness: 0.125
Top Land: .250
Year From: 1928
Year Range: 1928-1932
Year To: 1932

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1928-1931 Ford Model A
