Rugged Ridge / 15100.01
Part #: 15100.01
UPC: 804314217518
Loading...
Notify me when this item is in stock.

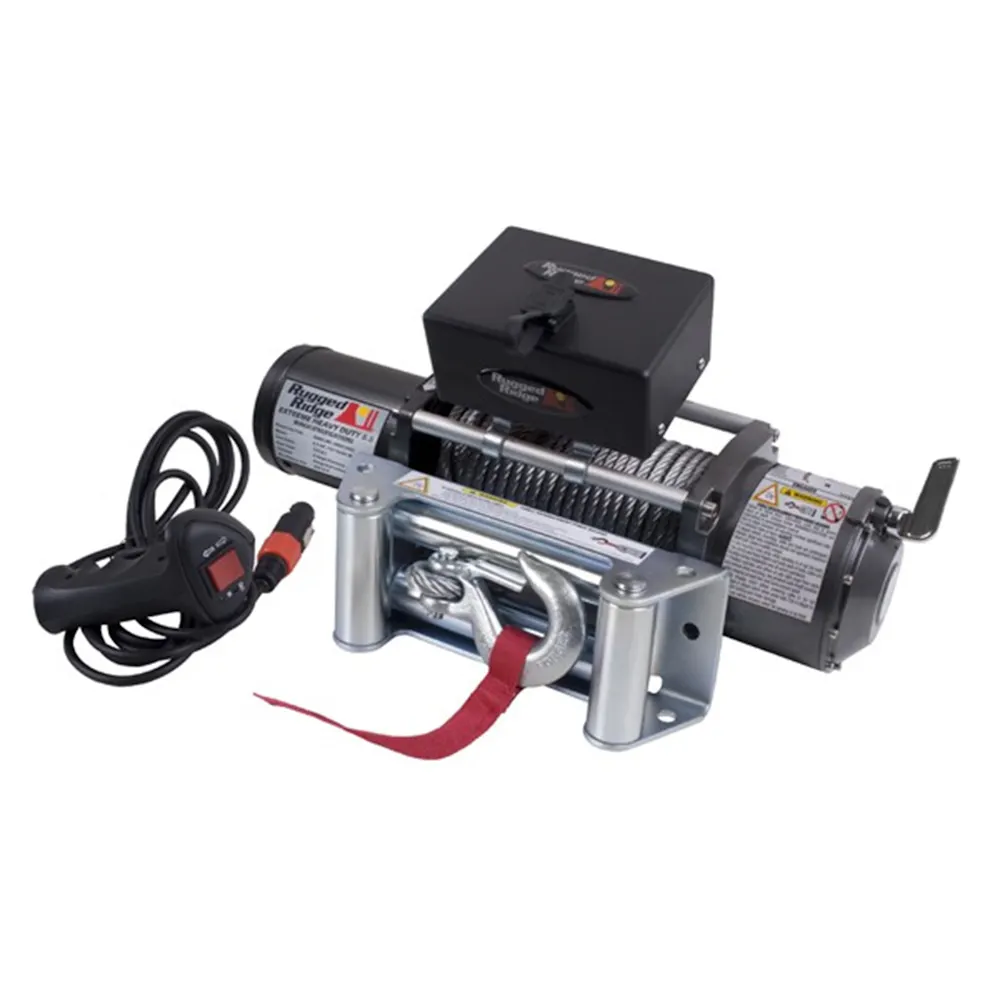

Description: Heavy Duty 8500 lbs Off Road Winch; This 8;500 lb winch from Rugged Ridge comes with 94 feet of 3/8-inch steel cable; a remote control; and a roller fairlead.
Description:
Description
Durable 5.5 HP Series Wound motor for long life and extra pulling power. Tough 3 stage planetary gear box with a 172.8:1 gear ratio delivering power and reliability Includes 94 of 5/16 inch diameter wire rope and latched hook. Automatic load holding brake system (in the drum brake system). Exclusive light mount roller fairlead included- allows for easy no-drill mounting of up to 2 off road lights! Tough stainless hardware is used on the body of the winch to eliminate rust Each winch includes a durable 12 all weather cable remote solenoid box that can be mounted in multiple positions (over cable or over motor) and angles to accommodate most winch bumpers including the Rugged Ridge XHD Bumper System! Limited 3 year warranty against manufacturing defects.
Features & benefits
- Automatic Load Holding Brake System
- Tough 3 Stage Planetary Gear box
- Light Mount Roller Fairlead Included
- Tough Stainless Hardware
- Durable 5.5 HP Series Wound Motor
Information
Durable 5.5 HP Series Wound motor for long life and extra pulling power. Tough 3 stage planetary gear box with a 172.8:1 gear ratio delivering power and reliability Includes 94ft. of 5/16 inch diameter wire rope and latched hook. Automatic load holding brake system (in the drum brake system). Exclusive light mount roller fairlead included-allows for easy no-drill mounting of up to 2 off road lights! Tough stainless hardware is used on the body of the winch to eliminate rust Each winch includes a durable 12ft. all weather cable remote solenoid box that can be mounted in multiple positions (over cable or over motor) and angles to accommodate most winch bumpers including the Rugged Ridge XHD Bumper System! Limited 5 year warranty against manufacturing defects.
Specifications
- GTIN
- 00804314217518
- Weight
- 85 lb
- Height
- 11 in
- Length
- 28 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- RGR
- Warehouse brand code
- RGR
- AAIA brand code
- BKMS
Attributes
- Attribute
- Automatic load holding brake system
- Rated Single Line Pull (lbs.)
- 8500
- Title
- Heavy Duty 8500 lbs Off Road Winch
- Type
- Automotive
- Voltage
- NA
Fitment status
This product is universal and will fit your application.
