Redarc Electronics · TVMSDBWK-001
Part #: TVMSDBWK-001
UPC: 338628006816
Log in for inventory
Notify me when this item is in stock.
Description: The Water Tank Sensor Kit allows the?RedVision Total Vehicle Management System (TVMS) distribution box to measure the water level in an RV/motor home clean water tank.
Description:
Description
The Water Tank Sensor Kit allows the?RedVision Total Vehicle Management System (TVMS) distribution box to measure the water level in an RV/motor home clean water tank. The cable plugs directly into the?TVMS?and includes sensor probes to be fitted to the water tank and crimp lugs to connect the cable to the probes. The Water Tank Sensor combined with the?TVMS?can report five states: empty, one-quarter, one-half, three-quarters, and full. The Water Tank Sensor Kit includes all parts needed to accurately measure the clean water levels in an RV/motorhome. Up to six tanks can be monitored through the?TVMS.?A separate Water Tank Sensor Kit is required for each tank. TVMSDBWK-001 includes all parts.?Water Tank Sensor Kit includes 5m (16?5?) Wiring Loom, 5X Crimp Lugs and 5x Screw-in Water Level Sensor Probes.
Features & benefits
- Allows the?RedVision Total Vehicle Management System (TVMS) distribution box to measure the water level in an RV/motor home clean water tank.
- The cable plugs directly into the?TVMS?and includes sensor probes to be fitted to the water tank and crimp lugs to connect the cable to the probes.
- The Water Tank Sensor combined with the?TVMS?can report five states: empty, one-quarter, one-half, three-quarters, and full.
- Up to six tanks can be monitored through the?TVMS.?A separate Water Tank Sensor Kit is required for each tank.

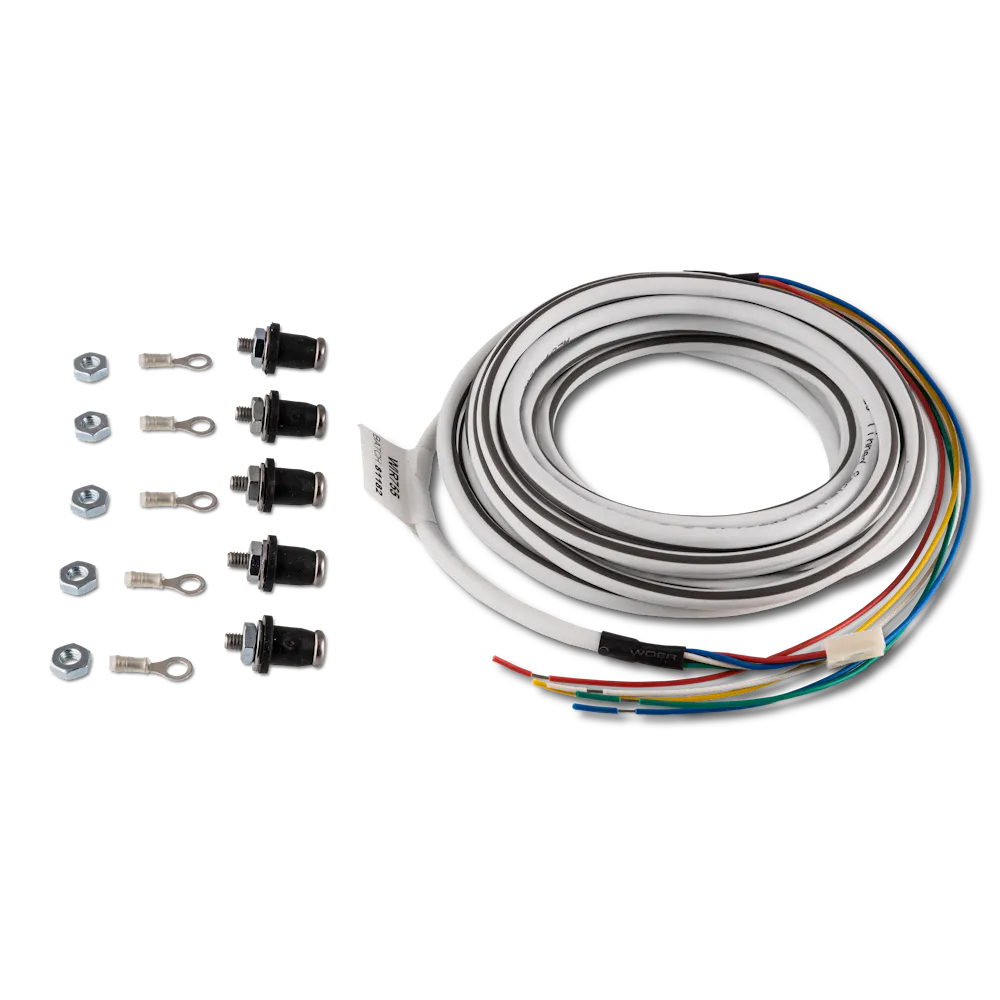

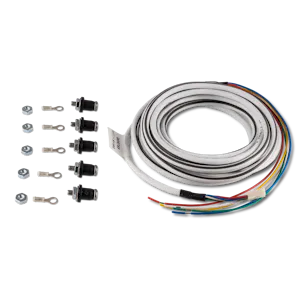

- Water Tank Sensor Kit includes 5m (16?5?) Wiring Loom, 5X Crimp Lugs and 5x Screw-in Water Level Sensor Probes.
Specifications
- GTIN
- 09338628006816
- Weight
- 0.68 lb
- Height
- 9 in
- Length
- 6.1 in
- Width
- 0.5 in
- Life cycle
- Available to Order
- AAM brand code
- RDE
- Warehouse brand code
- JGHJ
- AAIA brand code
- JGHJ
Attributes
- Add-On
- 0
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Title
- WATER TANK SENSOR KIT
Fitment status
This product is universal and will fit your application.
