Redarc Electronics / EPDK-001
Part #: EPDK-001
UPC: 338628005581
Loading...
Notify me when this item is in stock.
Description: Tow-Pro 7A Encapsulated Diode; The REDARC Encapsulated Protection Device (EPDK-001) is rated at 7 Amps for both 12 and 24V applications. It is totally encapsulated with sealed connections.
Description:
Description
REDARC has released an Encapsulated Protection Device (EPDK-001). It is rated at 7 Amps for both 12 and 24V applications. It is totally encapsulated with sealed connections. The EPDK-001 has been designed to fit in the Trailer Stop Lamp feed to support the installation of Tow-Pro Electric Brake Controllers on vehicles where ?back-feed' of 12V (during Tow-Pro Manual Override) may interfere with the vehicle systems. When installed correctly, the EPDK-001 ensures correct Trailer braking and Stop Lamp operation when the vehicle brakes or the Tow-Pro Manual Override is used. It supports 12V and 24V applications capable of supporting a maximum continuous current of 7 Amps at a maximum ambient temperature of 850 deg C.
Features & benefits
- Amps for both 12 and 24V applications.
- It is totally encapsulated with sealed connections.
- Ensures correct Trailer braking and Stop Lamp operation when the vehicle brakes or the Tow-Pro Manual Override is used.
Specifications
- GTIN
- 09338628005581
- Weight
- 0.17 lb
- Height
- 7.87 in
- Length
- 0.5 in
- Width
- 5.9 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- RDE
- Warehouse brand code
- JGHJ
- AAIA brand code
- JGHJ
Attributes
- Add-On
- 0
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Title
- ENCAPSULATED PROTECTION DEVICE
Fitment status
This product is universal and will fit your application.
Rebates & offers

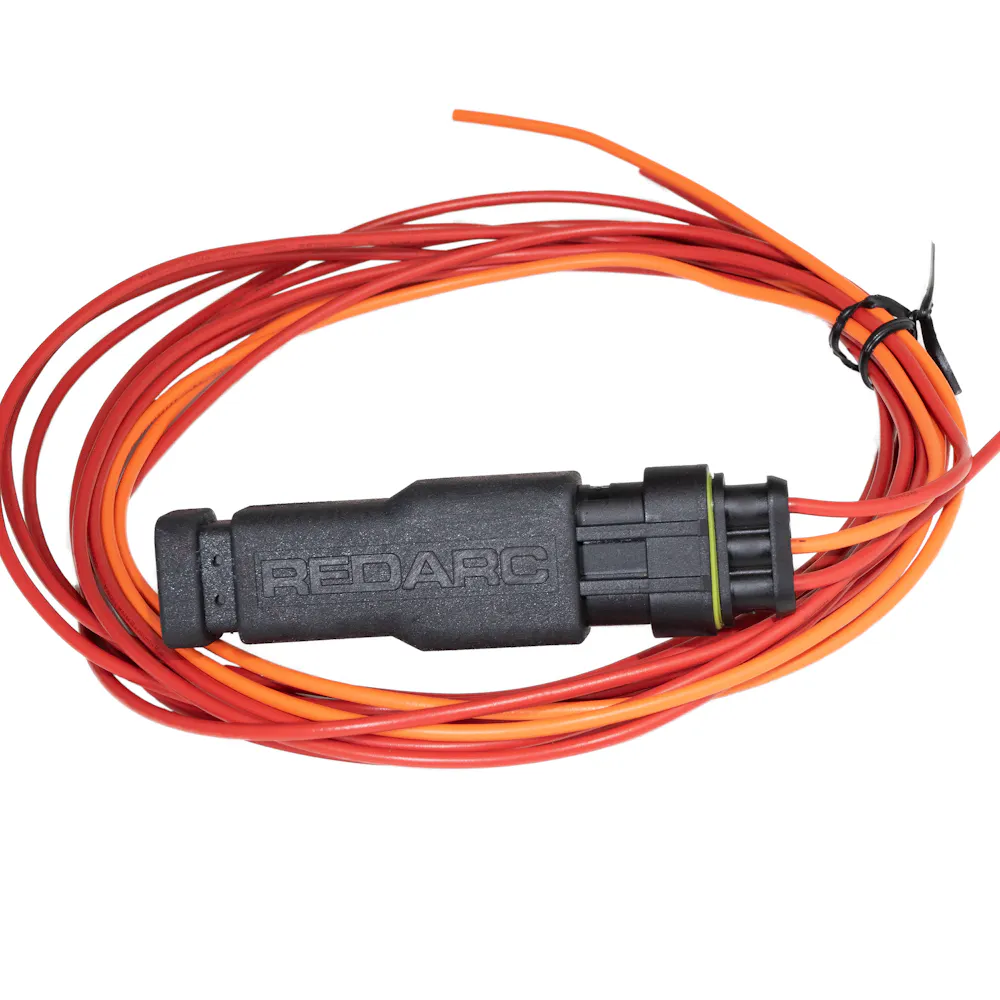

Redarc Electronics EPDK-001
