Rancho · RS999322

Part #: RS999322
UPC: 039703093224

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho Series: RS9000XL Shock Absorbers

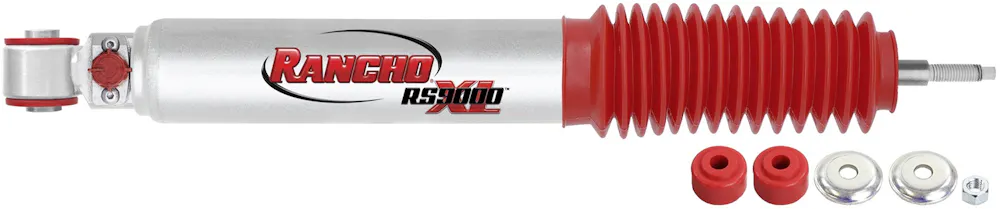

Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999322 Shock Absorber

Description

Get premium control and performance with Rancho RS9000XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.

Features & benefits

NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248F
SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty

Information

2.75in. Body Diameter (on select applications); 18mm Diameter Piston Rod (on select applications); Liquid Metallic Finish; Nitrogen Gas Charged; Limited Lifetime Warranty

Specifications

GTIN: 00039703093224
Weight: 4.85 lb
Height: 3.31 in
Length: 24.25 in
Width: 3.31 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable Damping: Yes
Body Diameter: 2.18
California Proposition 65: No
Collapsed Length: 10.140 in.
Collapsed Length (in.): 10.14
Compressed Bumper Stop: No
Compressed Length: 10.14
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 14.65
Extended Length (in.): 14.650 in.
Lower Mount Code: LS23
Lower Mount Type: Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.1/4" Sleeve OAL
Lower Mounting Description: Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.1/4" Sleeve OAL
Parts Pack: P01192
Parts Pack(s): P01192
Reserve Tube Diameter: 2.18
Shock Stroke: 4.510 in.
Shock Stroke (in.): 4.510
Travel Length: 4.51
Upper Mount Code: S4
Upper Mount Type: Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Upper Mounting Description: Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch

Fitment status

This product is universal and will fit your application.

Application summary

93-96 FORD-Maverick All-F ; 96-03 FORD-Maverick 2 Door-F ; 96-06 MITSUBISHI COMMERCIALS-L 200 4WD-2400-K75T; 2500TD-K74T-F ; 87-93 NISSAN TRUCK (Also See Datsun Truck)-Terrano I WD 21 Excl. Electronic Adjustable Suspension-F ; 93-08 NISSAN TRUCK (Also See Datsun Truck)-Terrano II R 20 2 Door Hard Top with Short Wheel Base-F ; 93-08 NISSAN TRUCK (Also See Datsun Truck)-Terrano II R 20 4 Door Wagon with Long Wheel Base-F
