Rancho / RS994264
Part #: RS994264
UPC: 039703017220
Loading...
Notify me when this item is in stock.
Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS994264 Suspension Shock Absorber
Description:
Description
With nine levels of adjustment, Rancho® RS9000®XL shocks provide premium control and performance. An easy-to-adjust knob enables customized damping and firmness for both on-road and off-road versatility. Now in its fourth generation, this cutting-edge shock boasts integrated bottom mounts for enhanced strength and a dual component 2K paint finish for superior chip resistance. Tougher and better-looking than ever, the RS9000XL sets a new standard in durability and design.
Features & benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- REDUCES FADE -- Nitrogen gas pressurized to 45 or 60 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.38-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BOLD NEW LOOK -- Sleek dual component 2K paint finish not only looks good but delivers superior chip resistance
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 2000-2005 | Ford Excursion |
| 1999-2004 | Ford F-250 Super Duty |
| 1999-2004 | Ford F-350 Super Duty |
Specifications
- GTIN
- 00039703017220
- Weight
- 7.75 lb
- Height
- 3.31 in
- Length
- 24.25 in
- Width
- 4.31 in
- Life cycle
- Available to Order
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable Damping
- Yes
- Adjustable Rebound
- Yes
- Air Adjustable
- No
- Air Ride Suspension
- No
- Bearing Plate Included
- No
- Body Color
- Silver
- Body Diameter
- 2.75
- Body Material
- Steel
- Boot Included
- Yes
- California Proposition 65
- No
- Coil Over Springs Included
- No
- Color
- Silver
- Compressed Length
- 15.7
- Cylinder Color
- Silver
- Cylinder Material
- Steel
- Cylinder Outside Diameter
- 69.9
- Dust Shield Color
- Red
- Dust Shield Included
- Yes
- Extended Length
- 24.34
- Finish
- Painted
- Gas Charged
- Yes
- Grade Type
- Performance
- Internal Construction Type
- Tri Tube
- Lower Mount Code
- LS26
- Lower Mount Type
- Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
- Mounting Hardware Included
- No
- New Or Remanufactured
- New
- Parts Pack(s)
- None
- Rod Diameter
- 18
- Shaft Material
- Nitrocarburized
- Shock Absorber Body End Measuring Point
- Center of Loop
- Shock Absorber Rod End Measuring Point
- Center of Loop
- Shock Stroke
- 219.5
- Spring Included
- No
- Spring Isolators Included
- No
- Spring Seat Included
- No
- Travel Length
- 8.64
- Type
- Telescopic
- Upper Mount Code
- L1
- Upper Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2000-2005 Ford Excursion; 1999-2004 Ford F-250 Super Duty; 1999-2004 Ford F-350 Super Duty

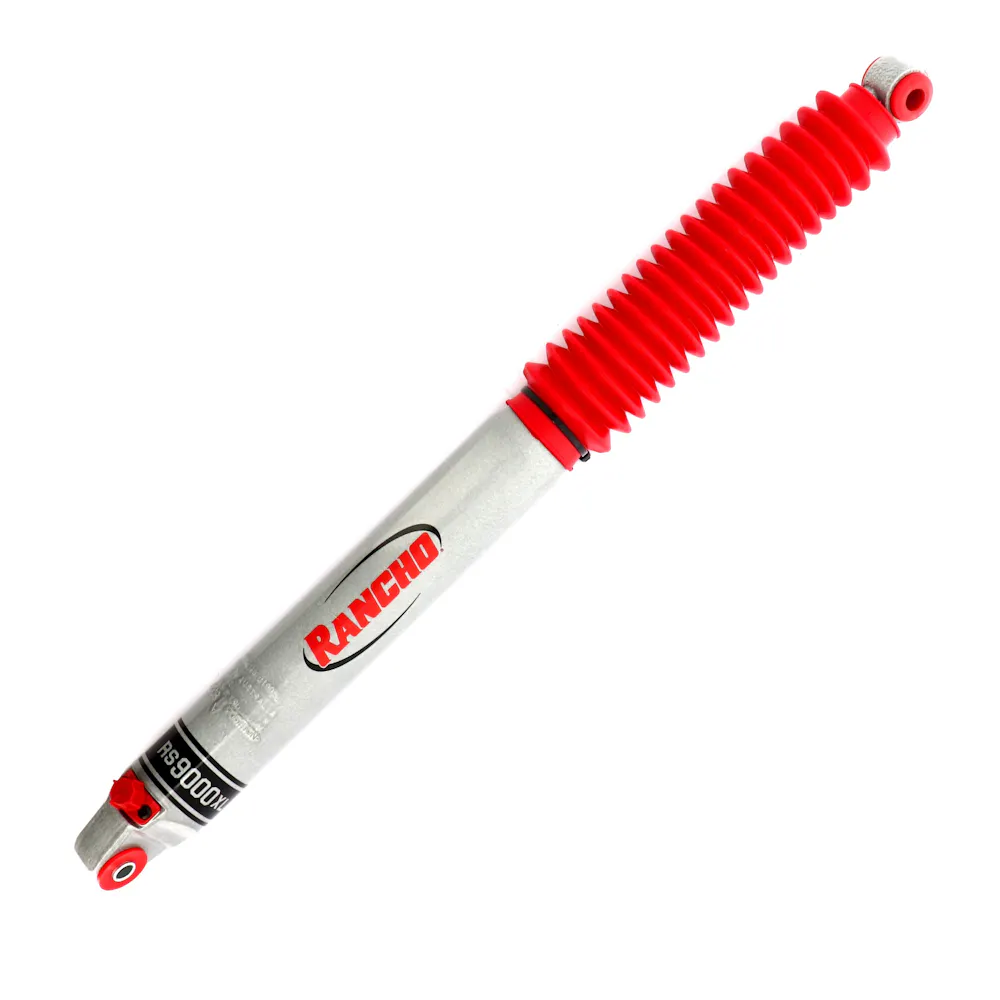

Rancho RS994264
