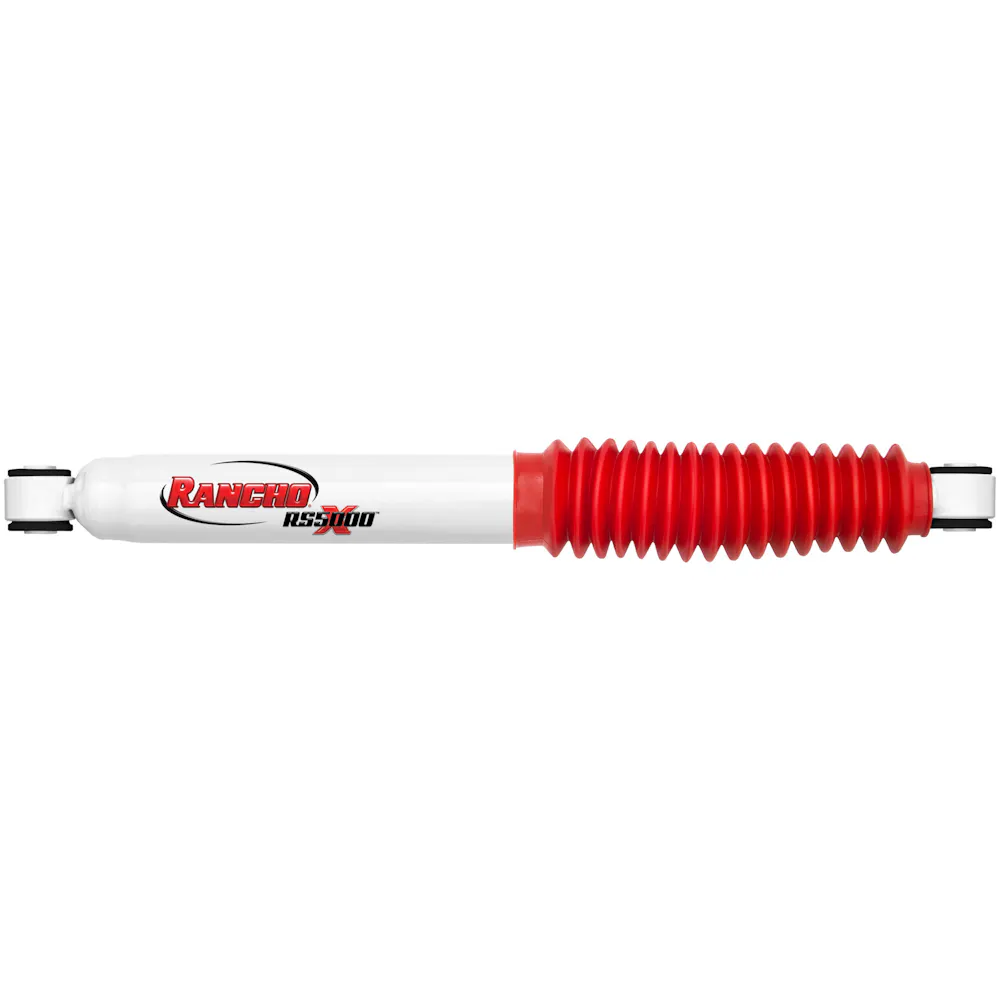

Rancho · RS55262
Part #: RS55262
UPC: 039703005845
Loading...
Notify me when this item is in stock.
Description: RS5000X Suspension Shock Absorber; Rancho RS5000X RS55262 Suspension Shock Absorber for Chevrolet Silverado 1500
Description:
Description
Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.
Features & benefits
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 2002-2006 | Cadillac Escalade |
| 2003-2006 | Cadillac Escalade ESV |
| 2002-2006 | Cadillac Escalade EXT |
| 2007-2013 | Chevrolet Avalanche |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 2002-2006 | Chevrolet Avalanche 2500 |
| 2002 | Chevrolet C1500 |
| 1999-2006 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2001-2006 | Chevrolet Silverado 3500 |
| 2007 | Chevrolet Silverado 3500 Classic |
| 2007-2010 | Chevrolet Silverado 3500 HD |
| 2015-2020 | Chevrolet Suburban |
| 2000-2014 | Chevrolet Suburban 1500 |
| 2000-2013 | Chevrolet Suburban 2500 |
| 2016-2019 | Chevrolet Suburban 3500 HD |
| 2000-2020 | Chevrolet Tahoe |
| 1994-2001 | Dodge Ram 1500 |
| 1994-2002 | Dodge Ram 2500 |
| 1999-2006 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2001-2006 | GMC Sierra 3500 |
| 2007 | GMC Sierra 3500 Classic |
| 2007-2010 | GMC Sierra 3500 HD |
| 2000-2020 | GMC Yukon |
| 2015-2020 | GMC Yukon XL |
| 2000-2014 | GMC Yukon XL 1500 |
| 2000-2013 | GMC Yukon XL 2500 |
Specifications
- GTIN
- 00039703005845
- Weight
- 5.5 lb
- Height
- 24.25 in
- Length
- 3.31 in
- Width
- 3.31 in
- Life cycle
- Available to Order
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Damping
- No
- Adjustable Length
- No
- Adjustable Rebound
- No
- Air Adjustable
- No
- Air Ride Suspension
- No
- Bearing Plate Included
- No
- Body Color
- White
- Body Diameter
- 55.6
- Body Material
- Steel
- Boot Included
- Yes
- California Proposition 65
- No
- Coil Over Springs Included
- No
- Collapsed Length
- 15.080 in.
- Collapsed Length (in.)
- 15.080
- Color
- White
- Compressed Bumper Stop
- No
- Compressed Length
- 15.08
- Cylinder Color
- White
- Cylinder Included
- No
- Cylinder Material
- Steel
- Cylinder Outside Diameter
- 2.188
- Dust Shield
- Yes
- Dust Shield Color
- Red
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 23.89
- Extended Length (in.)
- 23.890 in.
- Finish
- Painted
- Fully Open Length
- 23.890 in.
- Gas Charged
- Yes
- Grade Type
- Performance
- Internal Construction Type
- Twin Tube
- Lower Mount Code
- LS47
- Lower Mount Type
- Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
- Lower Mounting Code
- LS47
- Lower Mounting Description
- Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
- Max Year Covered
- 2019
- Min Year Covered
- 1994
- Most Popular Make / Model
- Chevrolet Silverado 1500
- Most Popular Make/Model
- Chevrolet Silverado 1500
- Most Popular Year
- 2001
- Mounting Hardware Included
- No
- New Or Remanufactured
- New
- Part Description
- Shock Absorber
- Parts Pack
- None
- Parts Pack(s)
- None
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.188
- Rod Diameter
- 0.622
- Shaft Material
- Nitrocarburized
- Shock Absorber Body End Measuring Point
- Center of Loop
- Shock Absorber Bore Size
- 1.3779527559055118
- Shock Absorber Rod End Measuring Point
- Center of Loop
- Shock Stroke
- 8.81
- Shock Stroke (in.)
- 8.810
- Spring Included
- No
- Spring Isolators Included
- No
- Spring Seat Included
- No
- Total Part VIO
- 11505638
- Travel Length
- 223.8
- Type
- Telescopic
- Upper Mount Code
- LS47
- Upper Mount Type
- Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
- Upper Mounting Code
- LS47
- Upper Mounting Description
- Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2002-2006 Cadillac Escalade; 2003-2006 Cadillac Escalade ESV; 2002-2006 Cadillac Escalade EXT; 2007-2013 Chevrolet Avalanche; 2002-2006 Chevrolet Avalanche 1500; 2002-2006 Chevrolet Avalanche 2500; 2002 Chevrolet C1500; 1999-2006 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2001-2006 Chevrolet Silverado 3500; 2007 Chevrolet Silverado 3500 Classic; 2007-2010 Chevrolet Silverado 3500 HD; 2015-2020 Chevrolet Suburban; 2000-2014 Chevrolet Suburban 1500; 2000-2013 Chevrolet Suburban 2500; 2016-2019 Chevrolet Suburban 3500 HD; 2000-2020 Chevrolet Tahoe; 1994-2001 Dodge Ram 1500; 1994-2002 Dodge Ram 2500; 1999-2006 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2001-2006 GMC Sierra 3500; 2007 GMC Sierra 3500 Classic; 2007-2010 GMC Sierra 3500 HD; 2000-2020 GMC Yukon; 2015-2020 GMC Yukon XL; 2000-2014 GMC Yukon XL 1500; 2000-2013 GMC Yukon XL 2500
