Rancho · RS55199

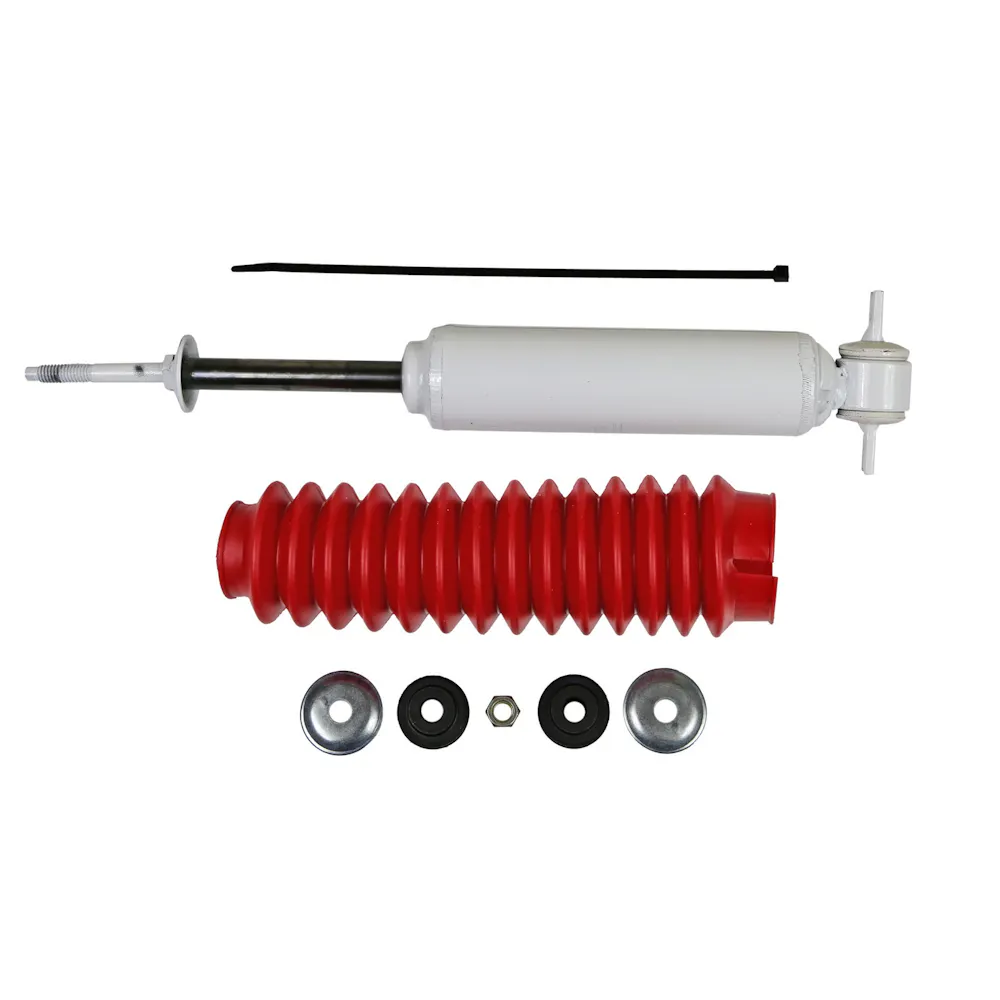

Rancho RS55199

Part #: RS55199
UPC: 039703002714

Loading...
Notify me when this item is in stock.

Brand: Rancho Series: RS5000X Shock Absorbers
Log in to order

Description: RS5000X Suspension Shock Absorber; Rancho RS5000X RS55199 Suspension Shock Absorber for Dodge B2500

Description:

Description

Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.

Features & benefits

  • MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
  • STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
  • IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
  • REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
  • MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
1975-1980 Dodge B100
1971-1974 Dodge B100 Van
1981-1994 Dodge B150
1995-1998 Dodge B1500
1975-1980 Dodge B200
1971-1974 Dodge B200 Van
1981-1994 Dodge B250
1995-1998 Dodge B2500
1975-1980 Dodge B300
1971-1974 Dodge B300 Van
1981-1994 Dodge B350
1995-1998 Dodge B3500
1975-1980 Dodge D100
1984-1989 Dodge D100
1976-1977 Dodge D100 Panel
1979-1980 Dodge D100 Panel
1972-1974 Dodge D100 Pickup
1977-1993 Dodge D150
1975-1980 Dodge D200
1972-1974 Dodge D200 Pickup
1981-1993 Dodge D250
1975-1980 Dodge D300
1972-1974 Dodge D300 Pickup
1981-1993 Dodge D350
1995-2003 Dodge Ram 1500 Van
1996-2003 Dodge Ram 2500 Van
1996-2003 Dodge Ram 3500 Van
1975-1993 Dodge Ramcharger
1975-1980 Plymouth PB100
1974 Plymouth PB100 Van
1981-1983 Plymouth PB150
1975-1980 Plymouth PB200
1974 Plymouth PB200 Van
1981-1983 Plymouth PB250
1975-1980 Plymouth PB300
1974 Plymouth PB300 Van
1981-1983 Plymouth PB350
1975-1978 Plymouth Trailduster

Specifications

GTIN
00039703002714
Weight
3.85 lb
Height
24.25 in
Length
3.31 in
Width
4.31 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Adjustable Damping
No
Adjustable Rebound
No
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Body Color
White
Body Diameter
50.8
Body Material
Steel
Boot Included
Yes
California Proposition 65
No
Coil Over Springs Included
No
Collapsed Length
9.250 in.
Color
White
Compressed Bumper Stop
No
Compressed Length
235
Cylinder Color
White
Cylinder Material
Steel
Cylinder Outside Diameter
50.8
Dust Shield Color
Red
Dust Shield Included
Yes
Extended Bumper Stop
Yes
Extended Hydraulic Lockout
No
Extended Length
341.4
Finish
Painted
Gas Charged
Yes
Grade Type
Performance
Internal Construction Type
Twin Tube
Lower Mount Code
XP8
Lower Mount Type
Cross Pin Mount - Open Ended, 5/16" Hole ID (Both Ends) X 3" Pin Length (Hole Center to Center)
Lower Mounting Code
XP8
Lower Mounting Description
Cross Pin Mount - Open Ended, 5/16" Hole ID (Both Ends) X 3" Pin Length (Hole Center to Center)
Max Year Covered
2003
Min Year Covered
1971
Most Popular Make/Model
Dodge D150
Most Popular Year
1992
Mounting Hardware Included
Yes
New Or Remanufactured
New
Part Description
Shock Absorber
Parts Pack
P01135
Parts Pack(s)
P01135
Product Grade
Premium
Reserve Tube Diameter
2
Rod Diameter
0.622
Shaft Material
Nitrocarburized
Shock Absorber Body End Measuring Point
Base of Stem
Shock Absorber Bore Size
1.3779527559055118
Shock Absorber Rod End Measuring Point
Center of Cross Pin
Shock Stroke
4.2
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Total Part VIO
802174
Travel Length
106.7
Type
Telescopic
Upper Mount Code
S5
Upper Mount Type
Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Upper Mounting Code
S5
Upper Mounting Description
Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1975-1980 Dodge B100; 1971-1974 Dodge B100 Van; 1981-1994 Dodge B150; 1995-1998 Dodge B1500; 1975-1980 Dodge B200; 1971-1974 Dodge B200 Van; 1981-1994 Dodge B250; 1995-1998 Dodge B2500; 1975-1980 Dodge B300; 1971-1974 Dodge B300 Van; 1981-1994 Dodge B350; 1995-1998 Dodge B3500; 1975-1980 Dodge D100; 1984-1989 Dodge D100; 1976-1977 Dodge D100 Panel; 1979-1980 Dodge D100 Panel; 1972-1974 Dodge D100 Pickup; 1977-1993 Dodge D150; 1975-1980 Dodge D200; 1972-1974 Dodge D200 Pickup; 1981-1993 Dodge D250; 1975-1980 Dodge D300; 1972-1974 Dodge D300 Pickup; 1981-1993 Dodge D350; 1995-2003 Dodge Ram 1500 Van; 1996-2003 Dodge Ram 2500 Van; 1996-2003 Dodge Ram 3500 Van; 1975-1993 Dodge Ramcharger; 1975-1980 Plymouth PB100; 1974 Plymouth PB100 Van; 1981-1983 Plymouth PB150; 1975-1980 Plymouth PB200; 1974 Plymouth PB200 Van; 1981-1983 Plymouth PB250; 1975-1980 Plymouth PB300; 1974 Plymouth PB300 Van; 1981-1983 Plymouth PB350; 1975-1978 Plymouth Trailduster

Equivalent Parts

Rancho - RS5199 $0.00
