Rancho / RS55119

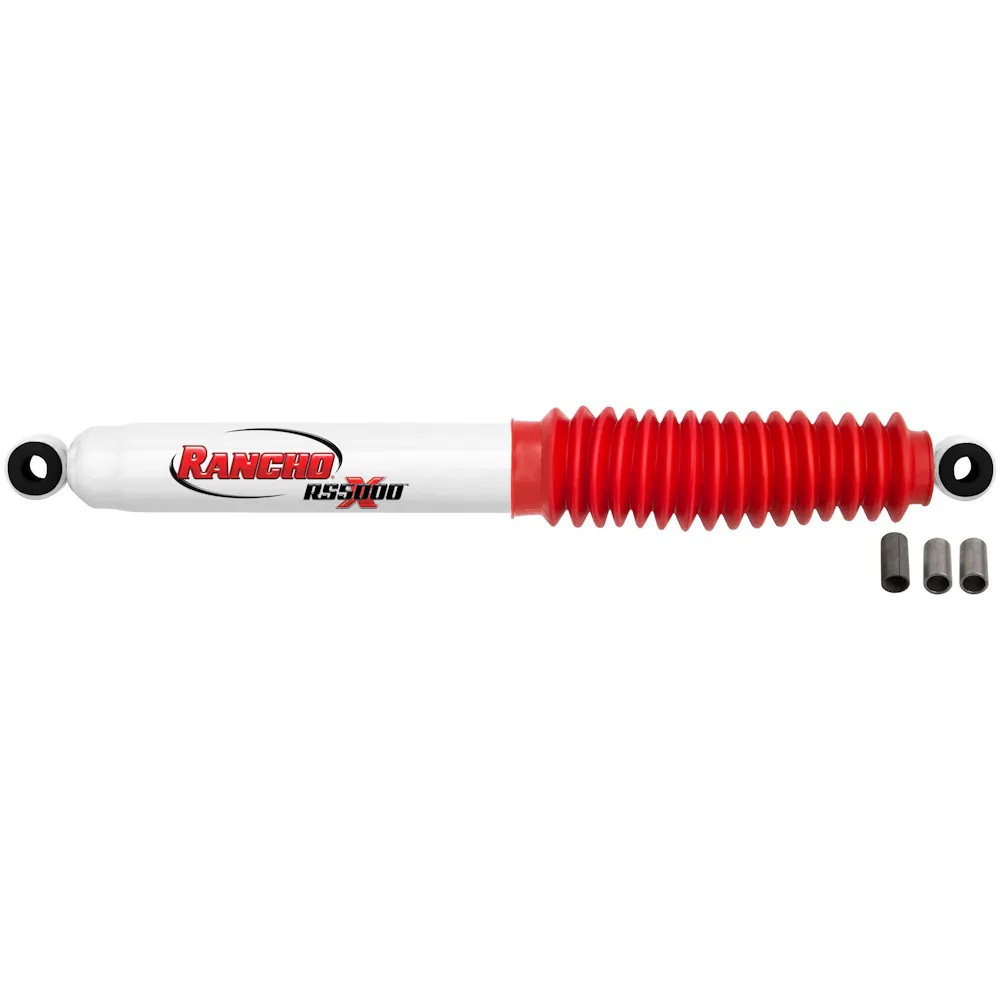

Rancho RS55119

Part #: RS55119
UPC: 039703006316

Loading...
Notify me when this item is in stock.

Brand: Rancho Series: RS5000X Shock Absorbers

Description: RS5000X Suspension Shock Absorber; Rancho RS5000X RS55119 Suspension Shock Absorber for Jeep CJ7

Description:

Log in to order

Description

Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.

Features & benefits

  • IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
  • MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
  • STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
  • HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
  • REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
  • MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
1973-1974 AM General FJ8
1968-1971 Dodge D300 Pickup
1961-1967 Dodge D300 Series
1968-1969 Dodge W300 Pickup
1961-1967 Dodge W300 Series
1966-1971 International Scout 800
1959-1966 Jeep CJ3
1959-1981 Jeep CJ5
1966-1968 Jeep CJ5A
1959-1975 Jeep CJ6
1966-1968 Jeep CJ6A
1976-1981 Jeep CJ7
1969-1973 Jeep Commando
1959-1965 Jeep DJ3
1965-1974 Jeep DJ5
1962 Jeep Gladiator
1969-1971 Jeep Jeepster
1981 Jeep Scrambler
1961-1962 Jeep Utility
1956-1962 Jeep Utility Wagon
1974-1975 Jeep Wagoneer
1943-1958 Jeep Willys
1985-1995 Suzuki Samurai
1964-1983 Toyota Land Cruiser

Specifications

GTIN
00039703006316
Weight
5.5 lb
Height
24.25 in
Length
3.31 in
Width
3.31 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Adjustable
No
Adjustable Damping
No
Adjustable Length
No
Adjustable Rebound
No
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Body Color
White
Body Diameter
2.25
Body Material
Steel
Boot Included
Yes
California Proposition 65
No
Coil Over Springs Included
No
Collapsed Length
11.640 in.
Collapsed Length (in.)
11.640
Color
White
Compressed Bumper Stop
No
Compressed Length
295.7
Cylinder Color
White
Cylinder Included
No
Cylinder Material
Steel
Cylinder Outside Diameter
57.2
Dust Shield
Yes
Dust Shield Color
Red
Dust Shield Included
Yes
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
458.2
Extended Length (in.)
18.040 in.
Finish
Painted
Fully Open Length
18.040 in.
Gas Charged
Yes
Grade Type
Performance
Internal Construction Type
Twin Tube
Lower Mount Code
L1
Lower Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Code
L1
Lower Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered
1995
Min Year Covered
1943
Most Popular Make / Model
Jeep CJ5
Most Popular Make/Model
Jeep CJ5
Most Popular Year
1979
Mounting Hardware Included
Yes
New Or Remanufactured
New
Part Description
Shock Absorber
Parts Pack
P00916,P00925
Parts Pack(s)
P00916,P00925
Product Grade
Premium
Rod Diameter
0.622
Shaft Material
Nitrocarburized
Shock Absorber Body End Measuring Point
Center of Loop
Shock Absorber Bore Size
1.3779527559055118
Shock Absorber Rod End Measuring Point
Center of Loop
Shock Stroke
162.6
Shock Stroke (in.)
6.400
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Total Part VIO
164378
Travel Length
6.4
Type
Telescopic
Upper Mount Code
L1
Upper Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Code
L1
Upper Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1973-1974 AM General FJ8; 1968-1971 Dodge D300 Pickup; 1961-1967 Dodge D300 Series; 1968-1969 Dodge W300 Pickup; 1961-1967 Dodge W300 Series; 1966-1971 International Scout 800; 1959-1966 Jeep CJ3; 1959-1981 Jeep CJ5; 1966-1968 Jeep CJ5A; 1959-1975 Jeep CJ6; 1966-1968 Jeep CJ6A; 1976-1981 Jeep CJ7; 1969-1973 Jeep Commando; 1959-1965 Jeep DJ3; 1965-1974 Jeep DJ5; 1962 Jeep Gladiator; 1969-1971 Jeep Jeepster; 1981 Jeep Scrambler; 1961-1962 Jeep Utility; 1956-1962 Jeep Utility Wagon; 1974-1975 Jeep Wagoneer; 1943-1958 Jeep Willys; 1985-1995 Suzuki Samurai; 1964-1983 Toyota Land Cruiser
