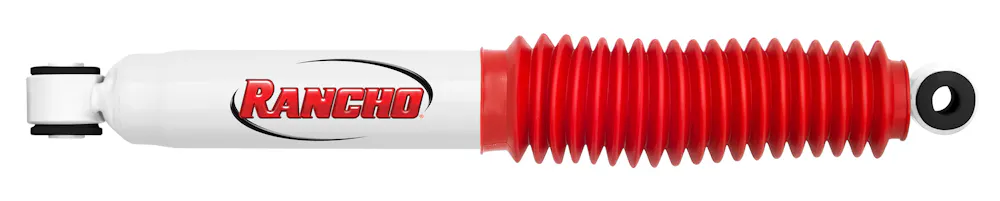

Rancho · RS5419

Part #: RS5419
UPC: 039703008389

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho Series: RS5000 Steering Dampers

Description: RS5000 Steering Damper; Rancho RS5000 RS5419 Steering Damper for Ram 2500

Description

Ideal for off-road driving, towing and street applications, Rancho® RS5000® steering stabilizers enhance a vehicle’s performance and minimize on- and off-road driver fatigue by reducing wheel shimmy, bump steer and vibration.

Features & benefits

ACCOMMODATES LARGER TIRES -- Engineered for vehicles with oversized wheels and tires
ENGINEERED TO LAST -- Features protective boot to safeguard shock rod and oil seal
HANDLES EXTREME TEMPERATURE CHANGES -- Twin-tube cellular gas design filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
IMPROVED HANDLING AND PERFORMANCE -- Reduces wheel shimmy, bump steer and vibration which helps minimize on- or off-road driver fatigue

Application summary

Year	Make / model
2014-2025	Ram 2500
2013-2025	Ram 3500

Specifications

GTIN: 00039703008389
Weight: 4.85 lb
Height: 24.25 in
Length: 3.31 in
Width: 3.31 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Body Diameter: 1.858
California Proposition 65: No
Collapsed Length: 14.560 in.
Collapsed Length (in.): 14.560
Color: White
Compressed Bumper Stop: No
Compressed Length: 14.56
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 24.29
Extended Length (in.): 24.290 in.
Gas Charged: No
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Dual Tube
Internal Rebound Bumper: No
Lower Mount Code: LS38
Lower Mount Type: Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Lower Mounting Code: LS38
Lower Mounting Description: Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Max Year Covered: 2019
Min Year Covered: 2013
Most Popular Make/Model: Ram 2500
Most Popular Year: 2018
Part Description: Steering Damper
Parts Pack: P01730, P00847
Parts Pack(s): P01730, P00847
Position: Front
Product Grade: Premium
Reserve Tube Diameter: 1.858
Shock Stroke: 9.730 in.
Total Part VIO: 946128
Travel Length: 9.73
Upper Mount Code: L1
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Code: L1
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
