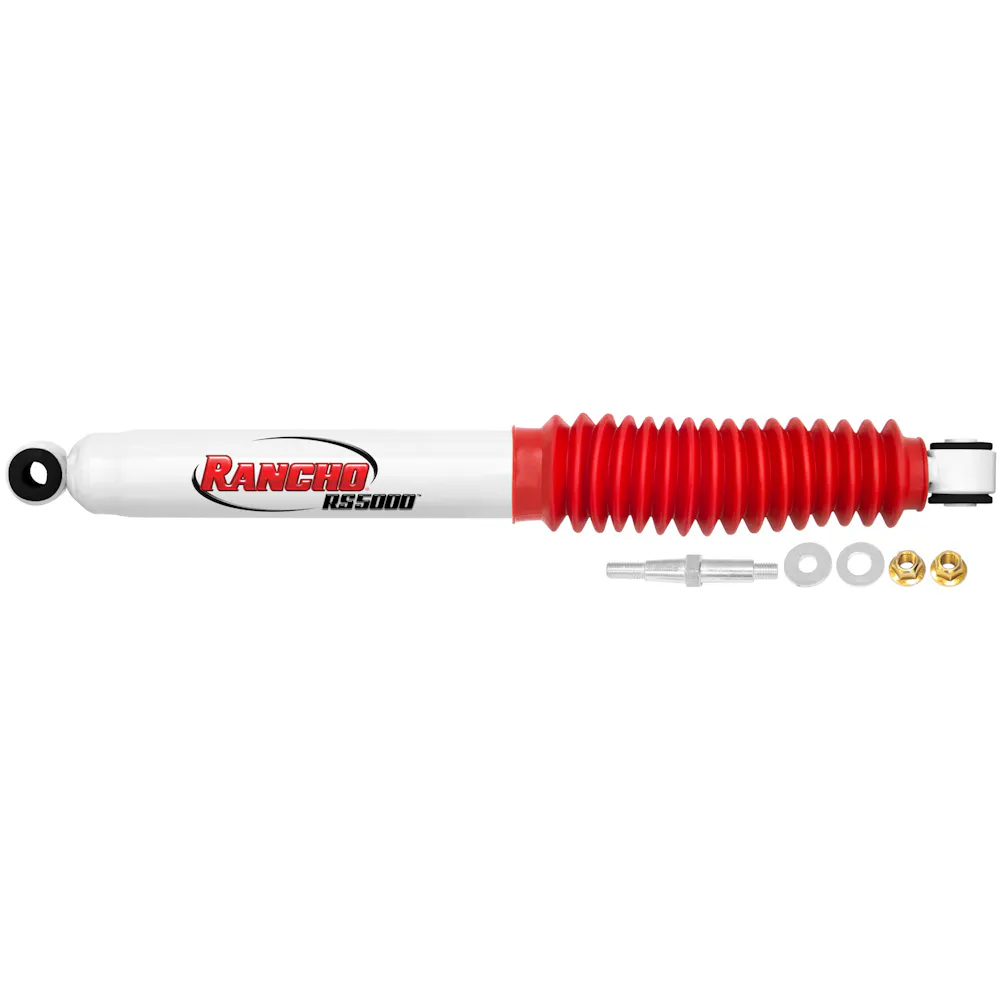

Rancho / RS5415

Part #: RS5415
UPC: 039703541503

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho Series: RS5000 Steering Dampers

Description: RS5000 Steering Damper; Rancho RS5000 RS5415 Steering Damper for Ford F-250 Super Duty

Description

Ideal for off-road driving, towing and street applications, Rancho® RS5000® steering stabilizers enhance a vehicle’s performance and minimize on- and off-road driver fatigue by reducing wheel shimmy, bump steer and vibration.

Features & benefits

IMPROVED HANDLING AND PERFORMANCE -- Reduces wheel shimmy, bump steer and vibration which helps minimize on- or off-road driver fatigue
ACCOMMODATES LARGER TIRES -- Engineered for vehicles with oversized wheels and tires
ENGINEERED TO LAST -- Features protective boot to safeguard shock rod and oil seal
HANDLES EXTREME TEMPERATURE CHANGES -- Twin-tube cellular gas design filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year	Make / model
2011-2024	Ford F-250 Super Duty
2011-2024	Ford F-350 Super Duty
2011-2023	Ford F-450 Super Duty
2011-2023	Ford F-550 Super Duty

Specifications

GTIN: 00039703541503
Weight: 5.15 lb
Height: 24.25 in
Length: 3.31 in
Width: 3.31 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Body Diameter: 1.86
California Proposition 65: No
Collapsed Length: 16.160 in.
Collapsed Length (in.): 16.160
Compressed Bumper Stop: No
Compressed Length: 16.160
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 27.940 in.
Extended Length (in.): 27.940 in.
Fully Open Length: 27.940 in.
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Rebound Bumper: No
Lower Mount Code: L1
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Code: L1
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2020
Min Year Covered: 2011
Most Popular Make / Model: Ford F-250 Super Duty
Most Popular Make/Model: Ford F-250 Super Duty
Most Popular Year: 2017
Part Description: Steering Damper
Parts Pack: P01385
Parts Pack(s): P01385
Position: Front
Product Grade: Premium
Reserve Tube Diameter: 1.86
Shock Stroke: 11.780 in.
Shock Stroke (in.): 11.780
Total Part VIO: 2146868
Travel Length: 11.78
Upper Mount Code: LS26
Upper Mount Type: Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Upper Mounting Code: LS26
Upper Mounting Description: Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
