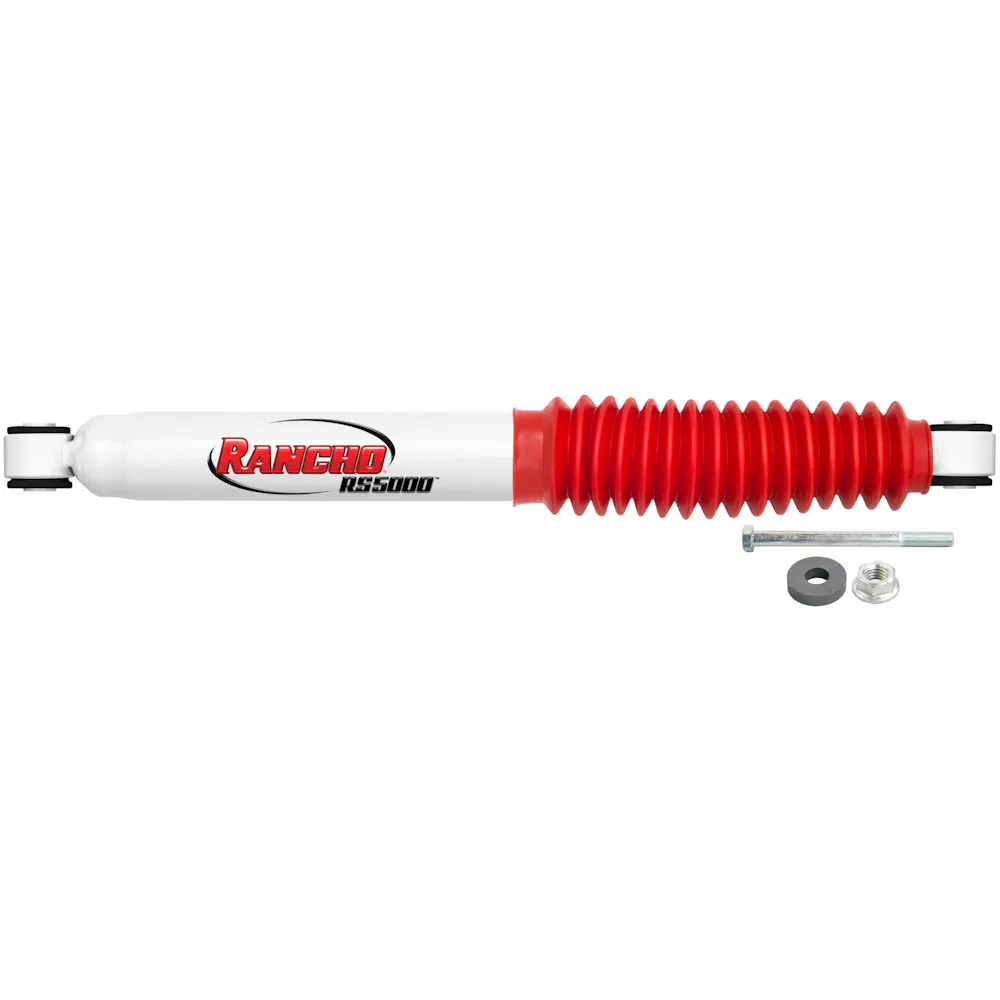

Rancho / RS5409

Part #: RS5409
UPC: 039703540902

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho Series: RS5000 Steering Dampers

Description: RS5000 Steering Damper; Rancho RS5000 RS5409 Steering Damper for Jeep Grand Cherokee

Description

Ideal for off-road driving, towing and street applications, Rancho® RS5000® steering stabilizers enhance a vehicle’s performance and minimize on- and off-road driver fatigue by reducing wheel shimmy, bump steer and vibration.

Features & benefits

IMPROVED HANDLING AND PERFORMANCE -- Reduces wheel shimmy, bump steer and vibration which helps minimize on- or off-road driver fatigue
ACCOMMODATES LARGER TIRES -- Engineered for vehicles with oversized wheels and tires
ENGINEERED TO LAST -- Features protective boot to safeguard shock rod and oil seal
HANDLES EXTREME TEMPERATURE CHANGES -- Twin-tube cellular gas design filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year	Make / model
1999-2004	Jeep Grand Cherokee

Specifications

GTIN: 00039703540902
Weight: 4.2 lb
Height: 24.25 in
Length: 3.31 in
Width: 3.31 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Body Diameter: 47.6
California Proposition 65: No
Collapsed Length: 12.780 in.
Collapsed Length (in.): 12.780
Compressed Bumper Stop: No
Compressed Length: 12.780
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 20.710 in.
Extended Length (in.): 20.710 in.
Fully Open Length: 20.710 in.
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Rebound Bumper: No
Lower Mount Code: LS24
Lower Mount Type: Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL
Lower Mounting Code: LS24
Lower Mounting Description: Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL
Max Year Covered: 2004
Min Year Covered: 1999
Most Popular Make / Model: Jeep Grand Cherokee
Most Popular Make/Model: Jeep Grand Cherokee
Most Popular Year: 2004
Part Description: Steering Damper
Parts Pack: P01326
Parts Pack(s): P01326
Position: Front
Product Grade: Premium
Reserve Tube Diameter: 1.875
Shock Stroke: 7.930 in.
Shock Stroke (in.): 7.930
Total Part VIO: 810654
Travel Length: 7.93
Upper Mount Code: LS5
Upper Mount Type: Loop Bushing & Sleeve Mount - 10MM Sleeve ID X 1.7/16" Sleeve OAL
Upper Mounting Code: LS5
Upper Mounting Description: Loop Bushing & Sleeve Mount - 10MM Sleeve ID X 1.7/16" Sleeve OAL
