Race Sport Lighting · RSCCLED3
Part #: RSCCLED3
UPC: 810077230640
Log in for inventory
Notify me when this item is in stock.
pro mess

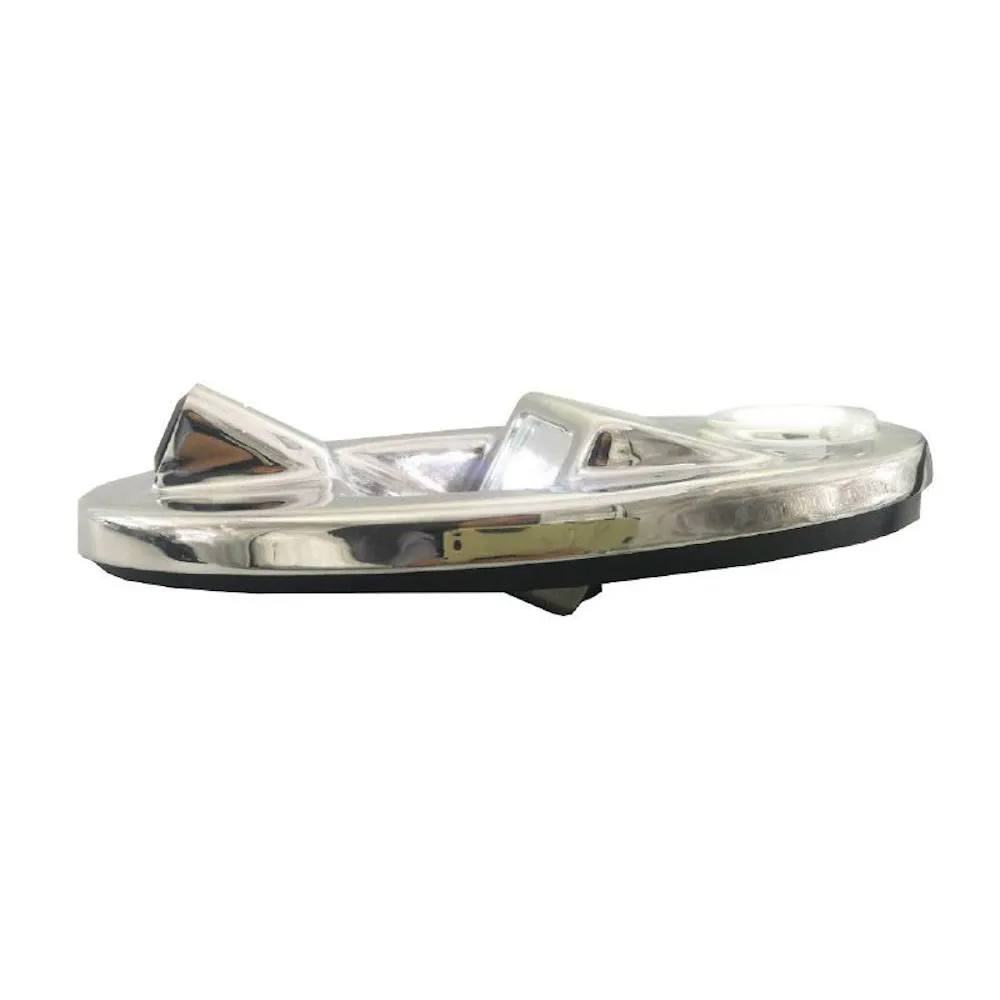

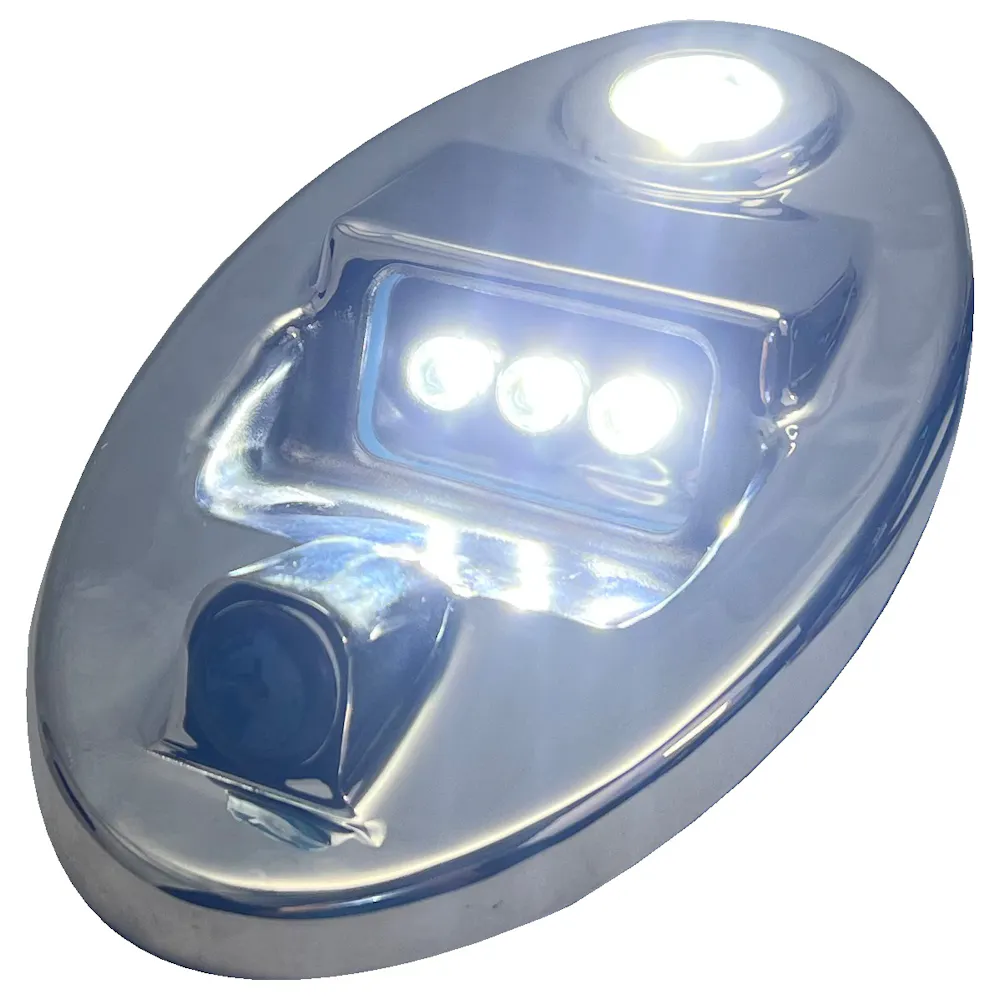

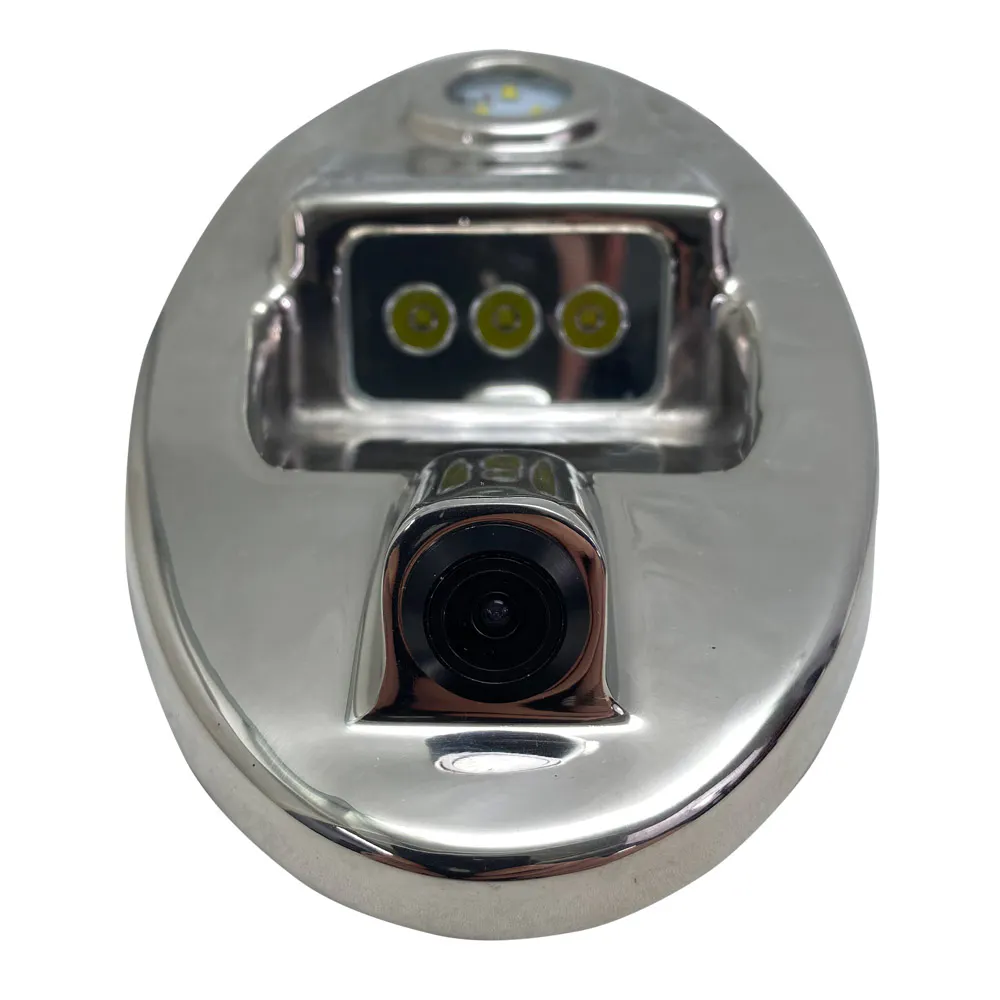

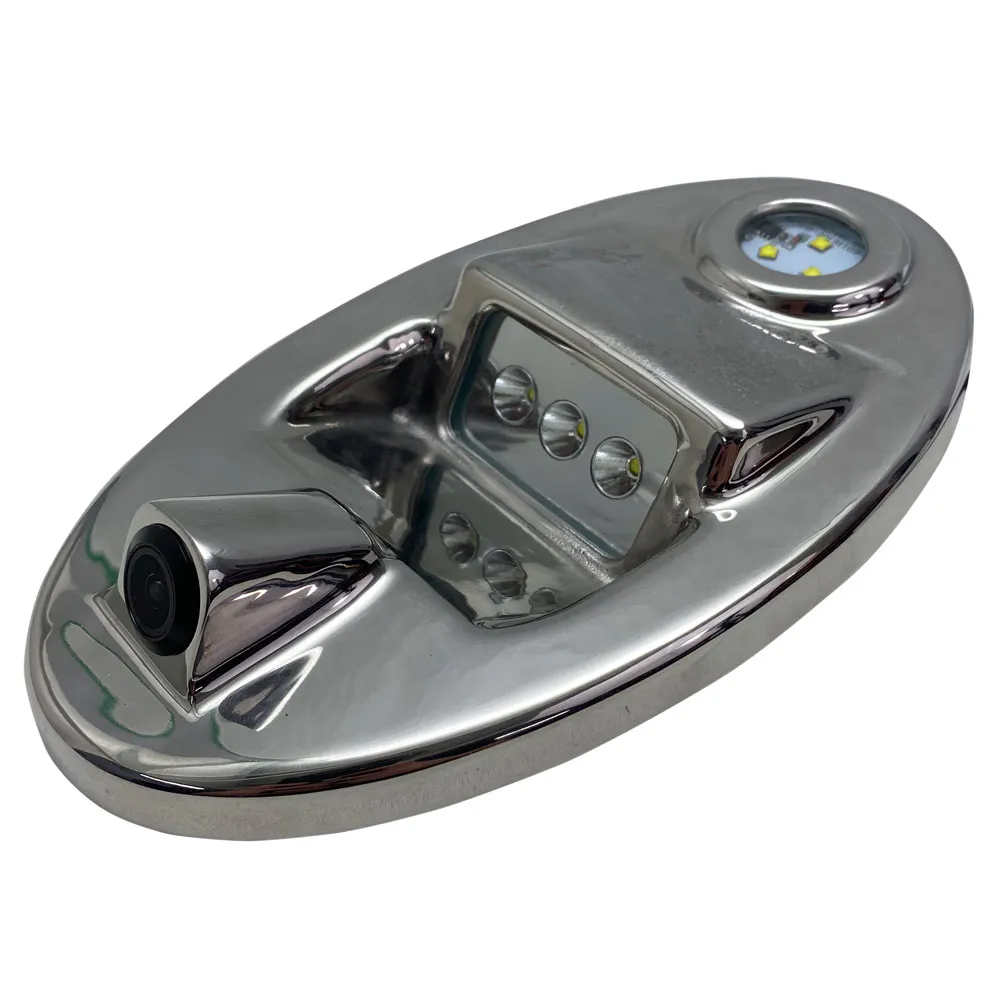

Description: Race Sport Marine Bow Light - 1007159; Professional 316 Stainless Marine Grade Custom Docking LED and Camera Combo Lighting System
Description:
Description

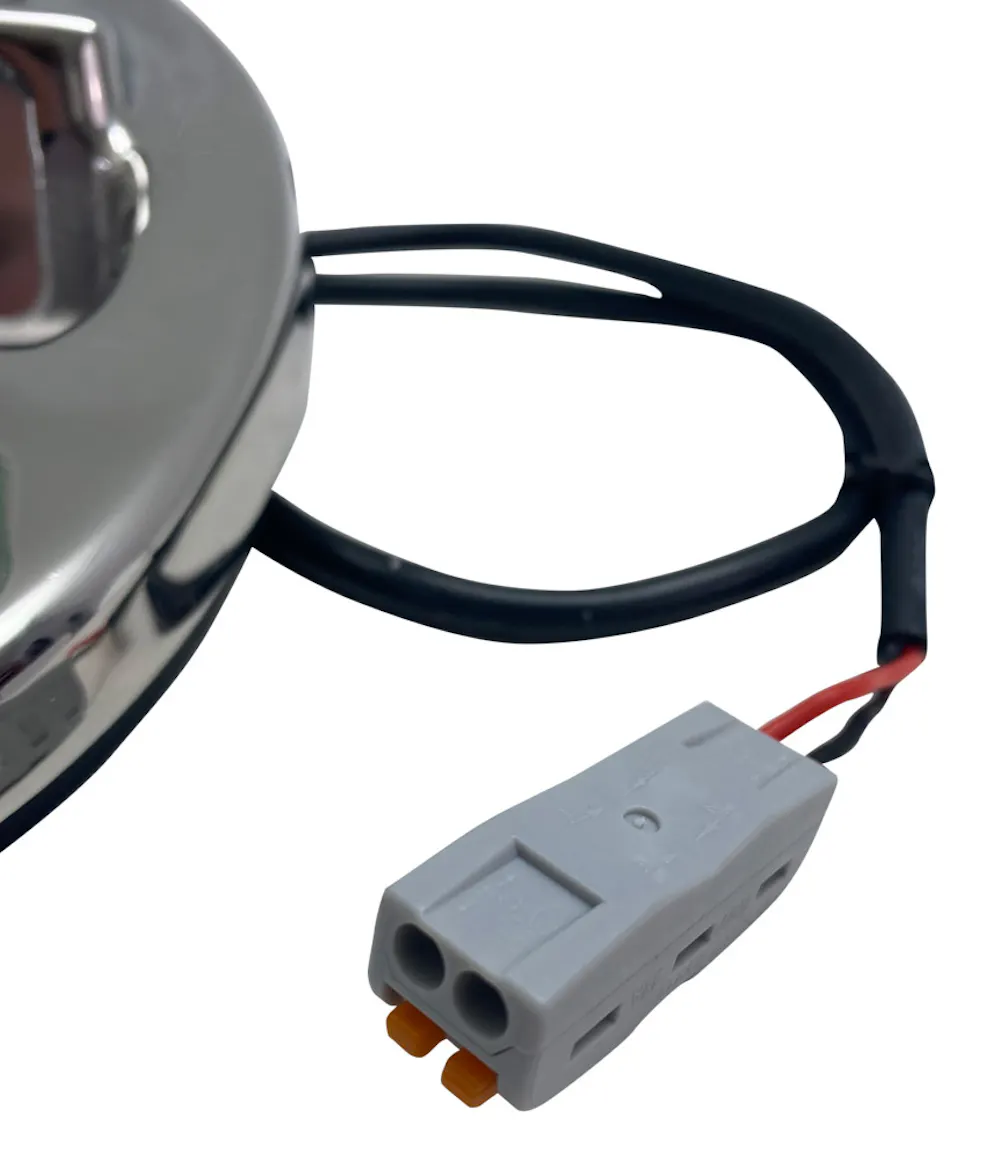

FEATURES. 1. Material: Corrosion Proof Polished 316 stainless steel. 2. Voltage: DC12V (Can range from 10-24V). 3. OVERALL LED LUX RAW Output: 1,975 LUX. 4. Emitting color: 6000-6500k. 5. Marine level PUR line. Two cores, No. 18. 6. Waterproof silicone-rubber seal gasket. 7. Polycarbonate Lens over LED's. 8. 8. 5" Shell Length. 9. 4. 6" Shell Width. 10. 1. 86" Mounting Height. CAMERA. 1. TVL: 600TVL. 2. Beam angle: 170 degree. 3. Ingress Protection: IP68 waterproof. 4. Yellow camera connector (RCA per composite) is 2 feet in length. FORWARD LIGHTS. 1. Power: (3) 3-Watt High Performance diodes Total of 9W. 2. Lumen rating: 1000-1200 lumen. 3. RAW measured LUX Output: 1,750 Lx. 4. Emitting color: 6000-6500k. 5. LED Beam angle: 30 degree. 6. Current Draw: 0. 7Amps. SIDE LIGHTS. 1. Power: (3) 1-Watt High Performance diodes Total of 3W. 2. Lumen rating: 300-400 lumen. 3. LUX RAW Output: 575 LUX. 4. Emitting color: 6000-6500k. 5. LED Beam angle: 60 degree. 6. Current Draw: 0. 25 Amps.
Specifications
- GTIN
- 00810077230640
- Weight
- 2.8 lb
- Height
- 3 in
- Length
- 10 in
- Width
- 6.5 in
- Life cycle
- Available to Order
- Alt. part number
- RSCCLED3
- AAM brand code
- RSP
- Warehouse brand code
- RSP
- AAIA brand code
- GBKR
Attributes
- AAP Selling Package Quantity
- 1
- AAP Selling Package Quantity UOM
- EA
- AAP_UDA_12
- EA
- AAP_UDA_22
- 1
- AAP_UDA_4
- 65
- Add-On
- N/A
- Alternate Part Number
- RSCCLED3
- Battery Location Info
- N/A
- Beam Pattern
- Combo
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Chip Type
- CREE
- Contain Battery
- No
- Cross-Sell SKUs
- RS4LEDDL
- Current Draw
- 0.5-2.0A
- Estimated Install Time
- 3 Hours
- Exportable
- Yes
- Freight Class
- 65
- HAZMAT Item
- No
- IP Rating
- IP67
- Kelvin (Color Temperature)
- 6,000K
- LUX
- 2,000 LUX
- Lead Time AVG
- 1
- Life Expectancy
- 30,000 hours
- Operating Voltage
- 12VDC
- Related SKUs
- RS4LEDDL
- Returnable
- Yes
- Reverse Polarity Protection
- No
- Shipping Port
- Chicago
- Territory Restrictions
- No
- Title
- Professional 316 Stainless Marine Grade Custom Docking LED and Camera Combo Lighting System
- Universal - Yes/No
- YES
- Universal or Vehicle Specific
- Universal
- Warranty
- 1 year
- Warranty Process
- https://www.racesportinc.com/rma
- Wattage
- 13-Watts
- lumens
- 1,450lm
Fitment status
This product is universal and will fit your application.
