Race Sport Lighting / RS6L18WPR
Part #: RS6L18WPR
UPC: 814843028387
Loading...
Notify me when this item is in stock.
Description: Street Series 6 LED Bottom Mount LED Spot Lights - Pair; Street Series 18W 6-LED Bottom Mount LED Spot Lights (Pair)
Description:
pro mess
Description
At 2.5 , these 6-LED 18W spots are some of our lowest profile Street Series spot lights. Their small size makes them perfect for mounting to the bottom of a bumper, a bull bar, or anywhere else you can think of, as fog lights, auxiliary lighting, reverse
Features & benefits
- Kit Contents:
- Mounting stud is 1 long (30mm)- Thread size is 5/16 (8mm)
- 3 Year Warranty

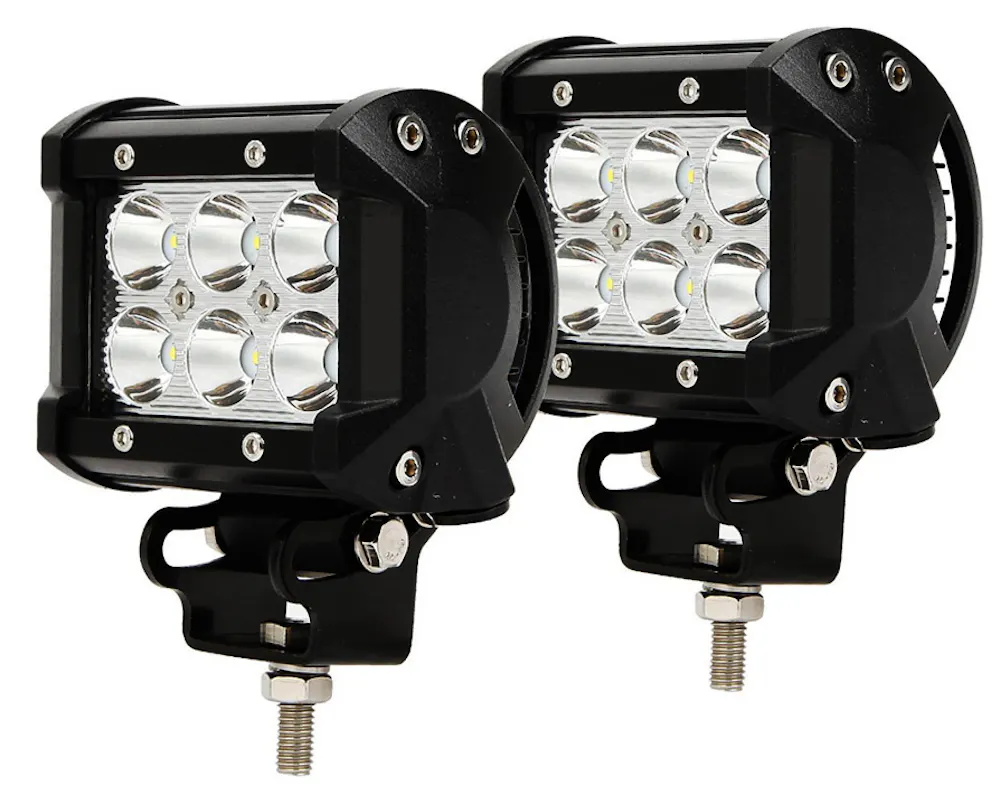

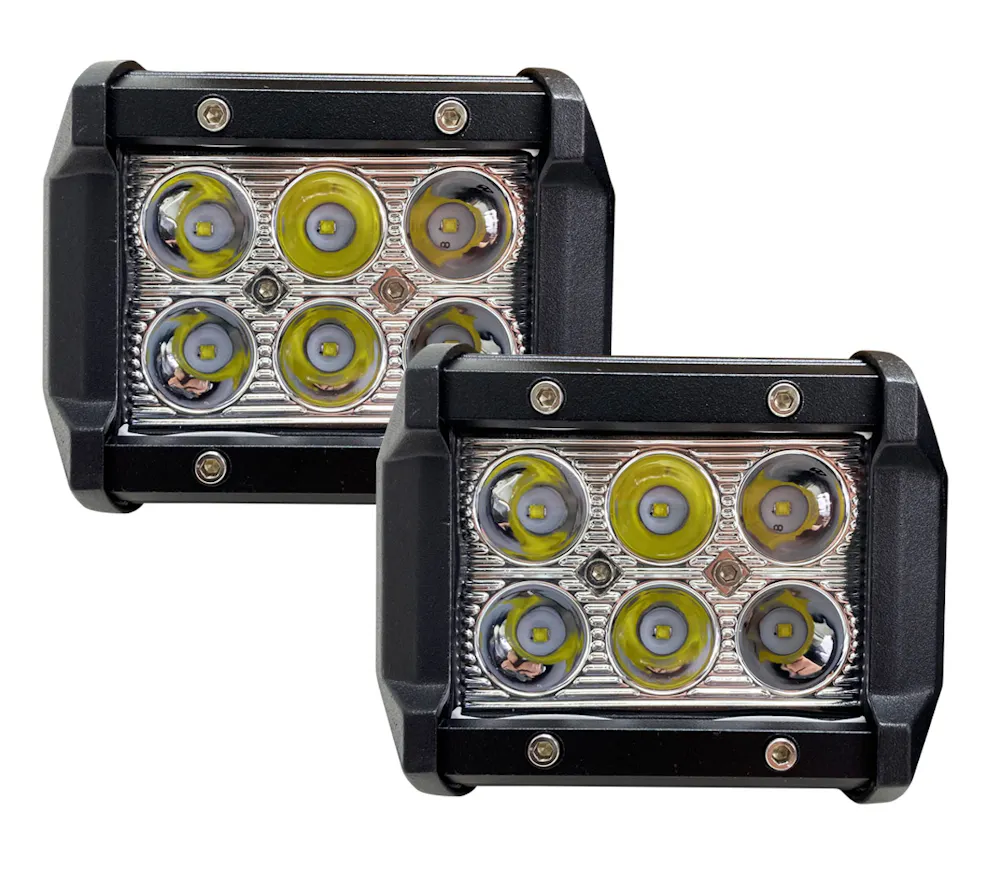

- (2) 6-LED 18W Bottom Mount Spots

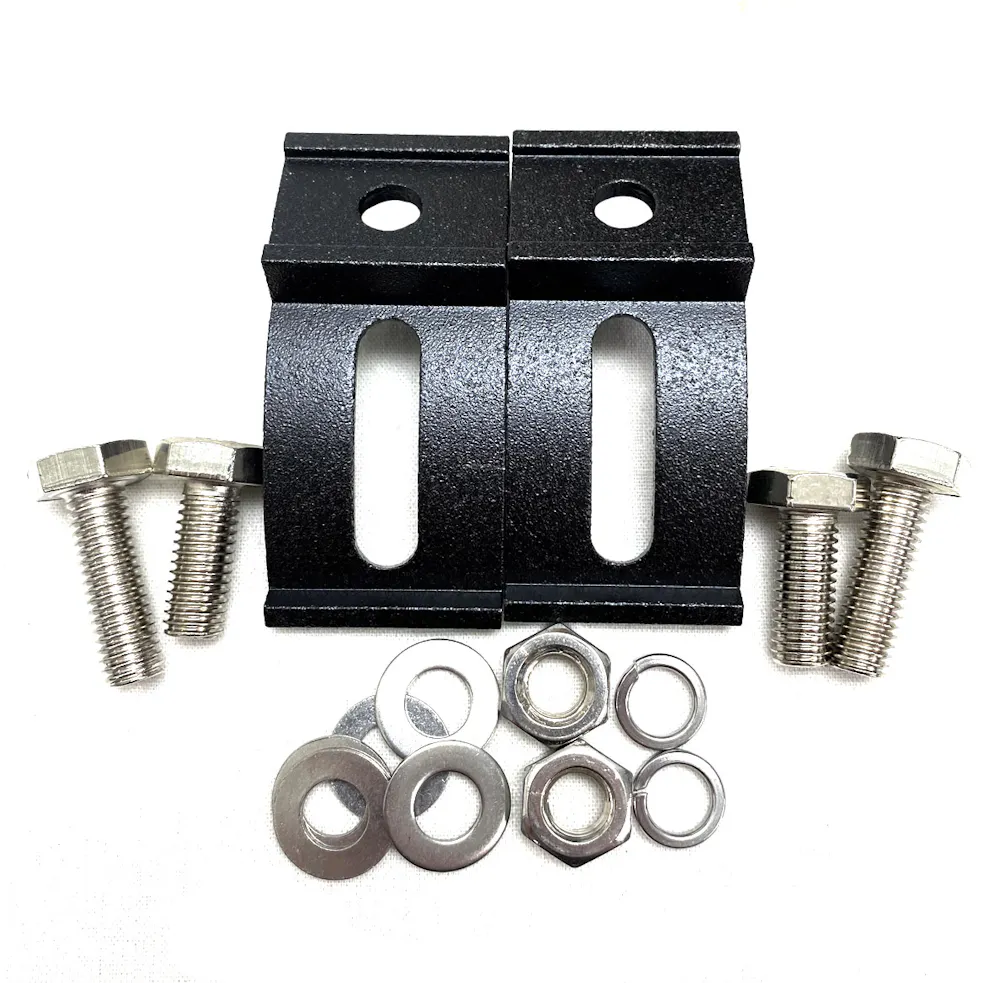

- (2) Mounting Brackets Hardware
- Instructions
- Specifications:
- 18W Per Spot (3W per diode)
- Operating Voltage: 9-32V DC
- Working Temperature: -40 85 degree
- Material: Die-cast aluminum housing
- Mounting Bracket: Stainless steel
- Beam angle: 30
- 3,000 LUX Total Light Output
Information
At 2.5, these 6-LED 18W spots are some of our lowest profile Street Series spot lights. Their small size makes them perfect for mounting to the bottom of a bumper, a bull bar, or anywhere else you can think of, as fog lights, auxiliary lighting, reverse lights, or work lights.Kit Contents? (2) 6-LED 18W Bottom Mount Spots? (2) Mounting Brackets? Hardware & InstructionsSpecifications? 18W Per Spot (3W per diode)? Operating Voltage: 9-32V DC? Working Temperature: -40~85 degree? Material: Die-cast aluminum housing? Mounting Bracket: Stainless steel? Beam angle: 30?? Mounting stud is 1 long (30mm). Thread size is 5/16 (8mm)? 3 Year Warranty-3,000 LUX Total Light Output
Specifications
- GTIN
- 00814843028387
- Weight
- 2.15 lb
- Height
- 4 in
- Length
- 7 in
- Width
- 4.5 in
- Life cycle
- Available to Order
- Alt. part number
- RS6L18WPR
- AAM brand code
- RSP
- Warehouse brand code
- RSP
- AAIA brand code
- GBKR
Attributes
- AAP Selling Package Quantity
- 1
- AAP Selling Package Quantity UOM
- EA
- AAP_UDA_12
- EA
- AAP_UDA_22
- 1
- AAP_UDA_4
- 65
- Add-On
- N/A
- Alternate Part Number
- RS6L18WPR
- Attribute Data
- RS6L18WPR
- Battery Location Info
- N/A
- Beam Pattern
- Spot
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Chip Type
- EPISTAR
- Contain Battery
- No
- Cross-Sell Skus
- RSTP016
- Current Draw
- 3.0 Amps
- Estimated Install Time
- 1 Hour
- Exportable
- Yes
- Freight Class
- 65
- HAZMAT Item
- No
- IP Rating
- IP67
- Kelvin (Color Temperature)
- 6,500K
- LUX
- 3,000LUX
- Lead Time AVG
- 1 Day
- Life Expectancy
- 50,000 hours
- Lumens
- 3,000lm
- Operating Voltage
- 9-32VDC
- Related SKUs
- RS-27W-S-2,RS-27W-R-2
- Returnable
- Yes
- Reverse Polarity Protection
- No
- SEMA Product Type
- Off-Road Light
- Shipping Port
- Chicago
- Territory Restrictions
- No
- Title
- Street Series 18W 6-LED Bottom Mount LED Spot Lights (Pair)
- Warranty
- 3 year
- Warranty Process
- https://www.racesportinc.com/rma
- Wattage
- 18-Watts
Fitment status
This product is universal and will fit your application.
Application summary
Spot Lights
