Race Sport Lighting / RS-B19MM-LEDW
Part #: RS-B19MM-LEDW
UPC: 817999024418
Loading...
Notify me when this item is in stock.

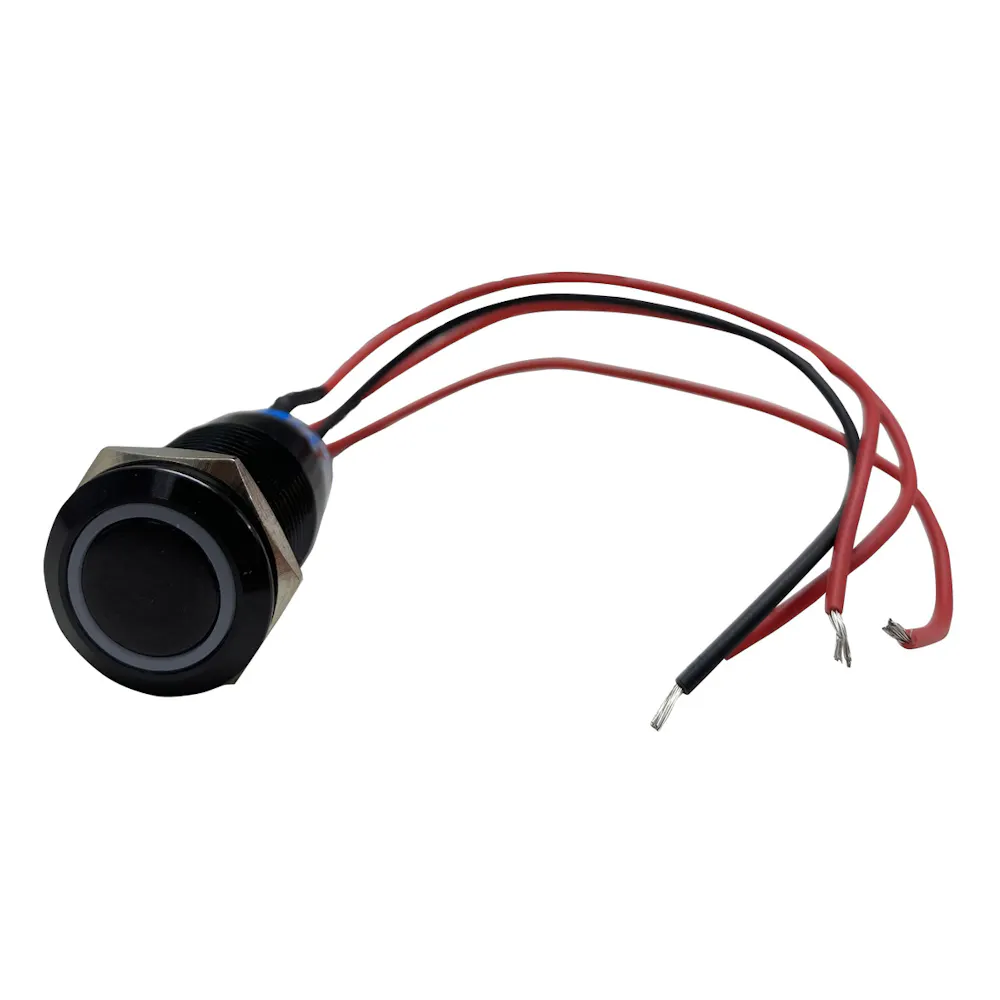

Description: 19mm Black 2-Position On/Off Switch (White) - Black Flush Mount 12V; 19mm 2-Position 12V On/Off Pre-Wired Switch with WHITE LED and Black Flush Mount Finish Race Sport Lighting
Description:
Description
Finished in a seductive black these 19mm Race Sport Lighting flush mount switches can be used in two unique ways, Light press for momentary action, Full press latches on. They also included a led indicator light as well. Single pole double throw Push Butt
Features & benefits
- 19mm White LED indicator uses 20mA@12VDC
- Contacts rated for 6A@12VDC
- Contacts rated for 3A@250VAC
- IP67 rating
- Includes O-ring and mounting nut
- 1 Year Warranty
Information
Finished in a seductive black these 19mm Race Sport Lighting flush mount switches can be used in two unique ways, Light press for momentary action, Full press latches on. They also included a led indicator light as well. Single pole double throw Push Button ON/OFF switch with LED indicator With Common, NO, NC and LED solder lug connections.? LED indicator uses 20mA@12VDC and comes in red, blue, yellow, white, & green? Contacts rated for 6A@12VDC? Contacts rated for 3A@250VAC? Includes O-ring and mounting nut? 1 Year Warranty
Specifications
- GTIN
- 00817999024418
- Weight
- 0.1 lb
- Height
- 5 in
- Length
- 1 in
- Width
- 3 in
- Life cycle
- Available to Order
- Alt. part number
- RSB19MMLEDW
- AAM brand code
- RSP
- Warehouse brand code
- RSP
- AAIA brand code
- GBKR
Attributes
- AAP Selling Package Quantity
- 1
- AAP Selling Package Quantity UOM
- EA
- AAP_UDA_12
- EA
- AAP_UDA_22
- 1
- AAP_UDA_4
- 65
- Add-On
- N/A
- Alternate Part Number
- RSB19MMLEDW
- Battery Location Info
- N/A
- Beam Pattern
- N/A
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Chip Type
- N/A
- Contain Battery
- No
- Current Draw
- 15A
- Exportable
- Yes
- Freight Class
- 65
- HAZMAT Item
- No
- IP Rating
- IP67
- Kelvin (Color Temperature)
- White
- LUX
- N/A
- Lead Time AVG
- 1 Day
- Operating Voltage
- 12VDC
- Returnable
- Yes
- SEMA Product Type
- Accessory Switch
- Shipping Port
- Chicago
- Territory Restrictions
- No
- Title
- 19mm 2-Position 12V On/Off Pre-Wired Switch with WHITE LED and Black Flush Mount Finish Race Sport Lighting
- Warranty
- 1 year
- Warranty Process
- https://www.racesportinc.com/rma
- Wattage
- N/A
- lumens
- N/A
Fitment status
This product is universal and will fit your application.

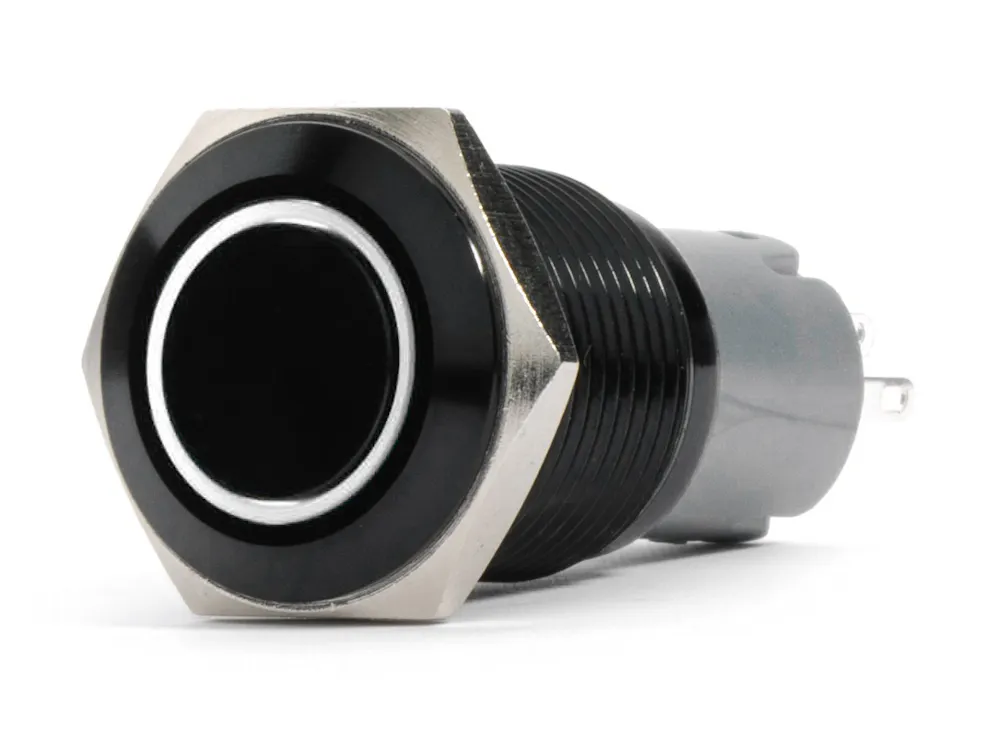

Race Sport Lighting RS-B19MM-LEDW
