Race Sport Lighting · JGHB20UP
Part #: JGHB20UP
UPC: 810077232903
Log in for inventory
Notify me when this item is in stock.
pro mess

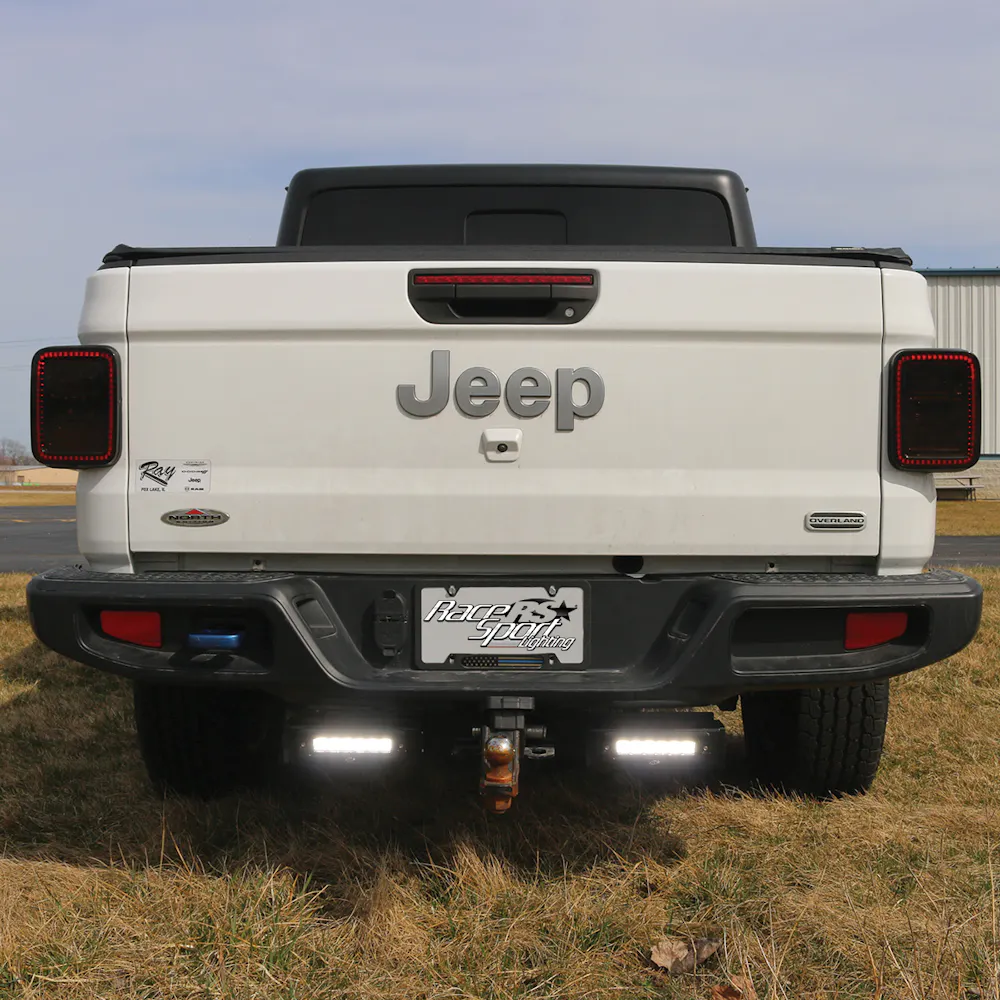

Description: Race Sport Back Up Light - 1007781; 2020-Current Jeep Gladiator Hitch Bar Reverse 7in LED Flood Lighting Heavy Duty Bolt-On Blacked Out Kit with Heated Lens and Dual End Light Cap
Description:
Description
2020-Current JEEP Gladiator Hitch Bar Kit - This Kit is designed to provide 270 degrees of rear and side facing light.Features DUAL Inner and Outer end caps. Inner to illuminate the Hitch Ball and the outer to provide light just behind the rear tires to make sure you never hit a curb and of course Heated Roadrunner High Performance Lights for trailering in the rear.ALL HITCH BARS (TM) ARE PROUDLY MADE IN THE USA-3X3 inch 3/16 STEEL TUBE FRAMED CONSTRUCTION TO MATCH THE -DIMENSIONS OF THE STOCK HITCH FRAME-SATIN BLACK POWDER COATED FOR DURABILITY -3D PRINTED CARBON REINFORCED ENDCAPS -47 DEGREE DOWN ANGLED MARINE GRADE SIDE LIGHTS TO -LIGHT UP THE GROUND TO TIRE AREA AROUND THE REAR WHEELS-2 BOLT INSTALLATION- HARDWARE INCLUDED-EASY TO INSTALL 4-PIN HARNESS CONNECTORS ON EACH LIGHT AND A 25-foot HARDWIRE HARNESS FOR A NO SPLICE INSTALLATION ( INSTALLATION HARNESS INCLUDED W/ Extra Outputs for Optional Strobe Flasher Plate Add On Accessory Sold Separately) -NO EXTERNAL WELDS TO RUST-LIFETIME FRAME GUARANTEE AGAINST DEFECTS IN MANUFACTURING Upgrade your vehicle with Hitch Bar Reverse Light Kits! Improve visibility and safety on the road. Easy to install, sleek design. Order now! Designed and Manufactured in the USA by BMC.
Application summary
| Year | Make / model |
|---|---|
| 2020-2022 | Jeep Gladiator |
Specifications
- GTIN
- 00810077232903
- Weight
- 20 lb
- Height
- 36.19 in
- Length
- 9 in
- Width
- 8.5 in
- Life cycle
- Available to Order
- Alt. part number
- JGHB20UP
- AAM brand code
- RSP
- Warehouse brand code
- RSP
- AAIA brand code
- GBKR
Attributes
- Alternate Part Number
- JGHB20UP
- Beam Pattern
- Flood
- California Proposition 65
- Yes
- Chip Type
- OSRAM
- Current Draw
- 4.4 AMPS
- Estimated Install Time
- 2
- HAZMAT Item
- N
- IP Rating
- IP67
- Kelvin (Color Temperature)
- 5,700K
- LUX
- 10,733lx
- Lead Time AVG
- 1 Day
- Life Expectancy
- 50,000 hours
- Operating Voltage
- 10-30VDC
- Related SKUs
- SFPHBAO,HBK2PH,RS7TEMPFM-F
- Reverse Polarity Protection
- No
- SEMA Product Type
- Back Up Light
- Territory Restrictions
- No
- Universal or Vehicle Specific
- Vehicle Specific
- Warranty
- Limited Lifetime Warranty
- Wattage
- 60-Watts
- lumens
- 5,750lm
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2020-2022 Jeep Gladiator
