Race Sport Lighting / FHDHB17UP

View More

Part #: FHDHB17UP
UPC: 810077231692

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Race Sport Lighting Series: Hitch Bar Reverse Light Kits

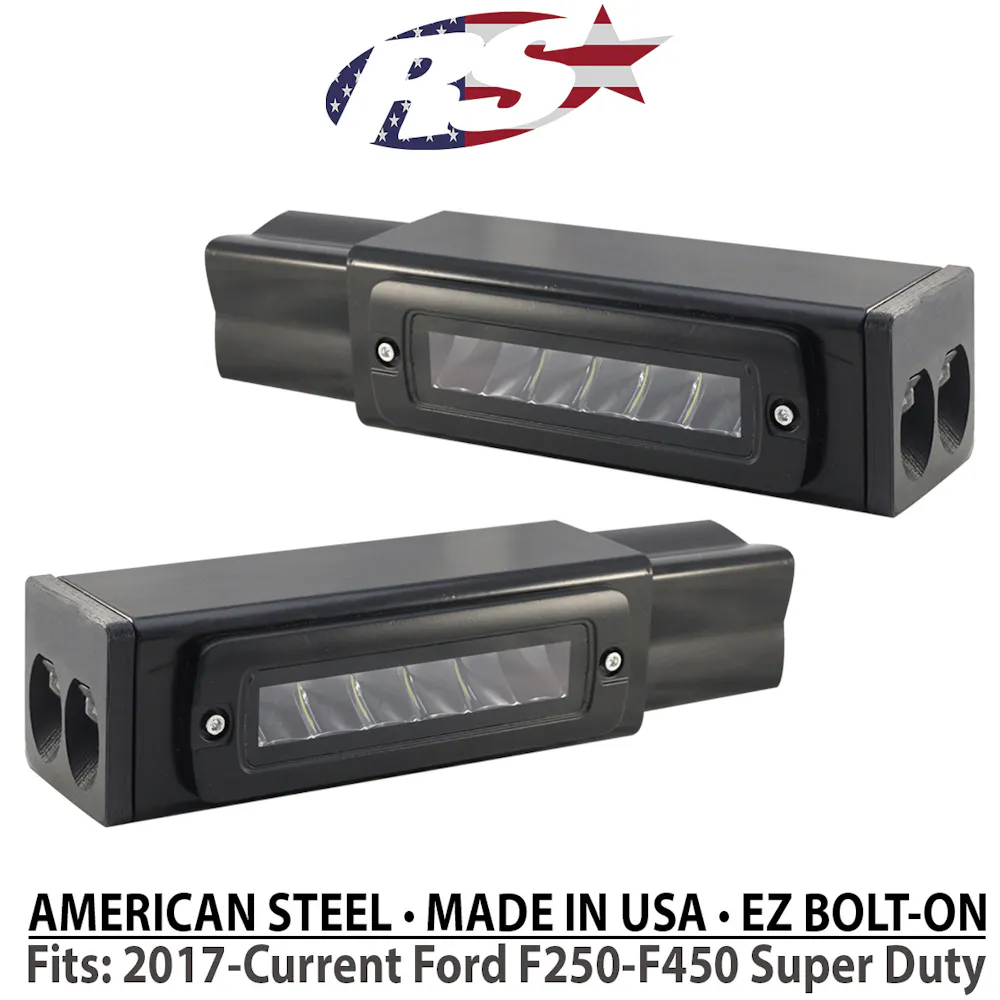

Description: Dual Row Blacked Out Light Bar Kits; 2017-Current Ford F250-F450 Super Duty Hitch Bar Reverse 7in LED Flood Lighting Heavy Duty Bolt-On Blacked Out Kit with Heated Lens and Single End Light Cap

pro mess

Cancer - www.P65Warnings.ca.gov

Description

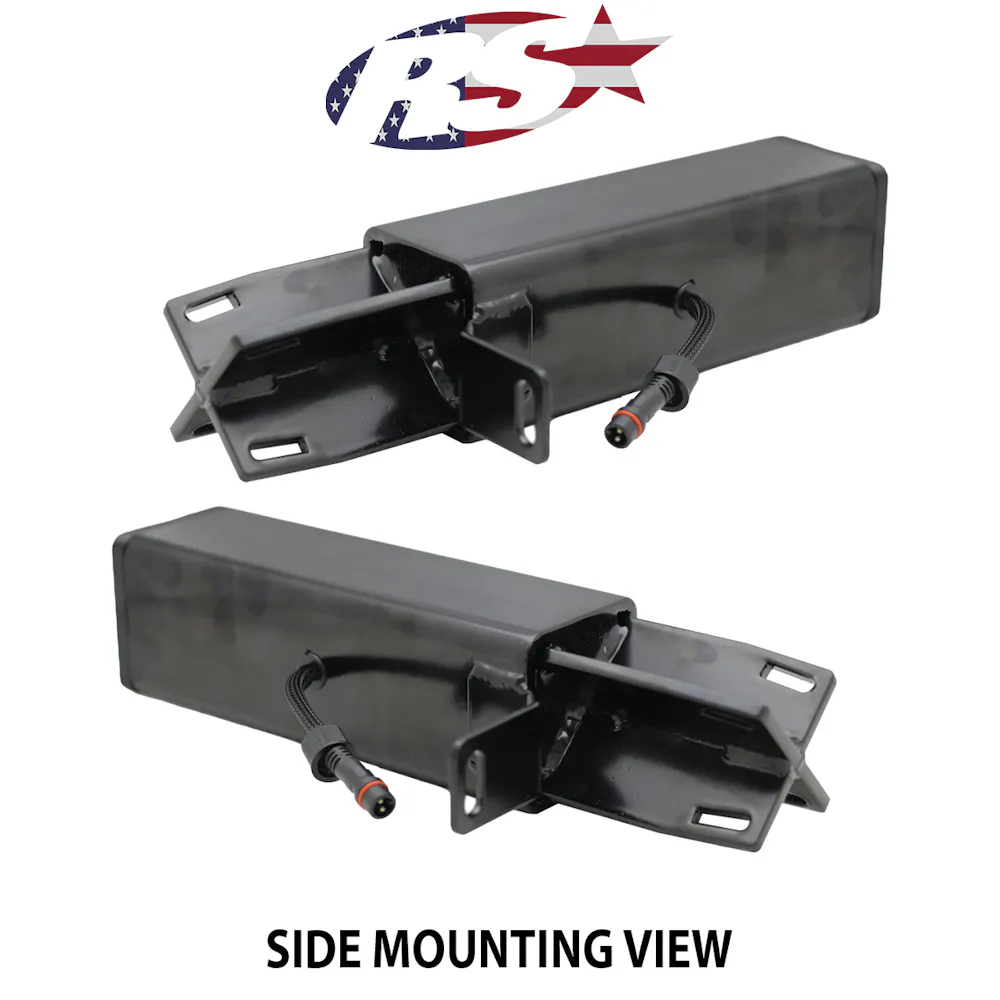

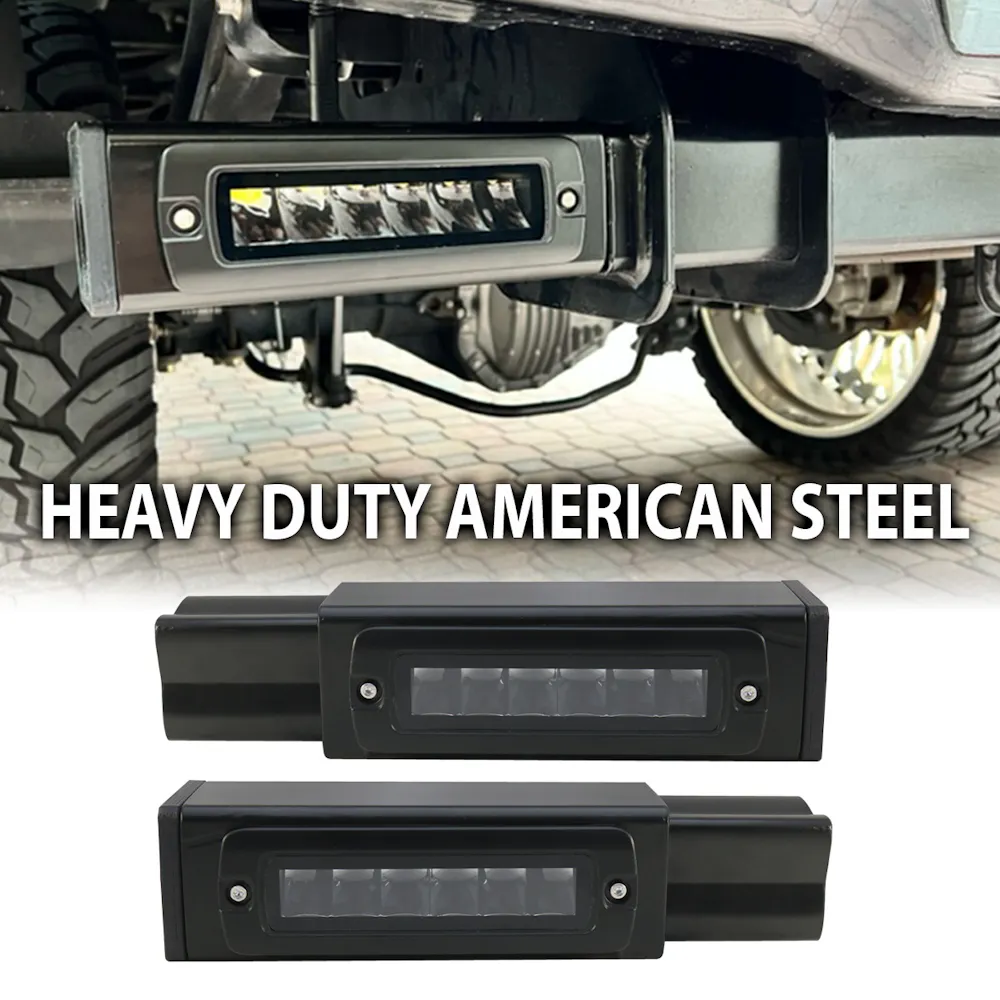

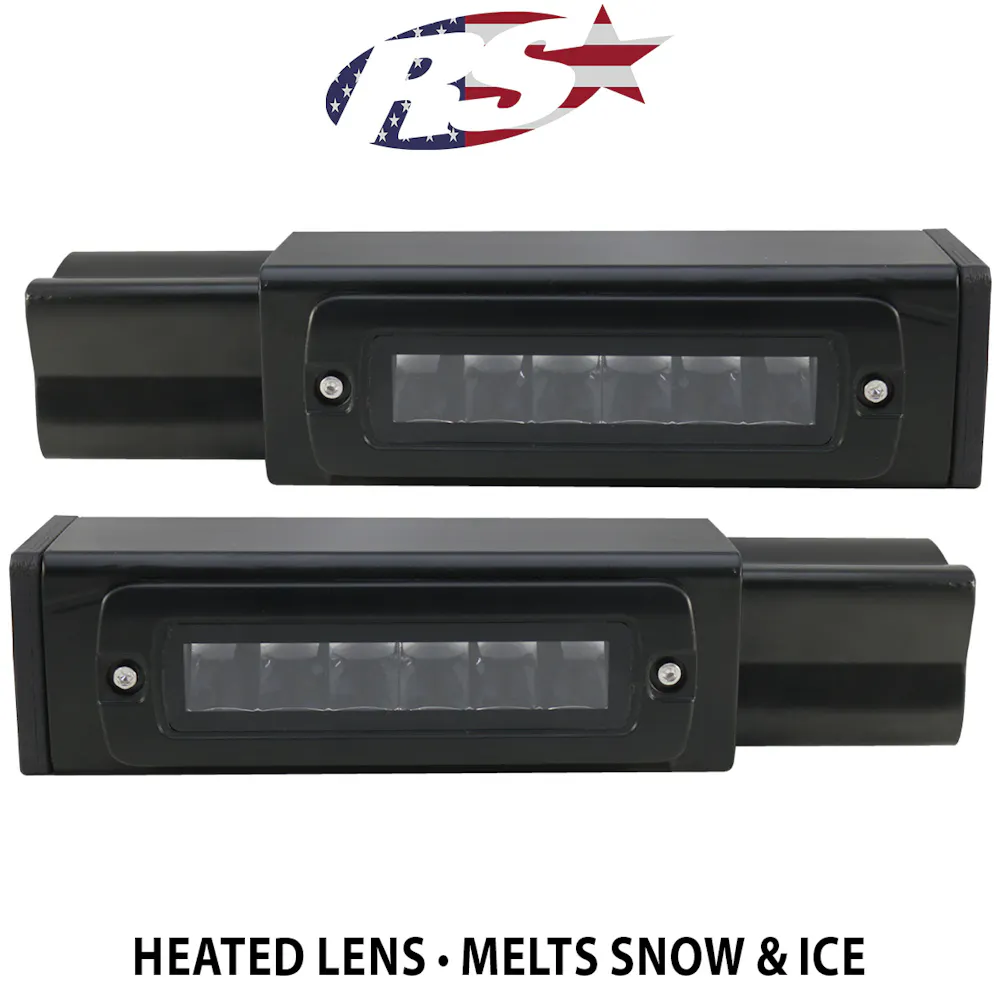

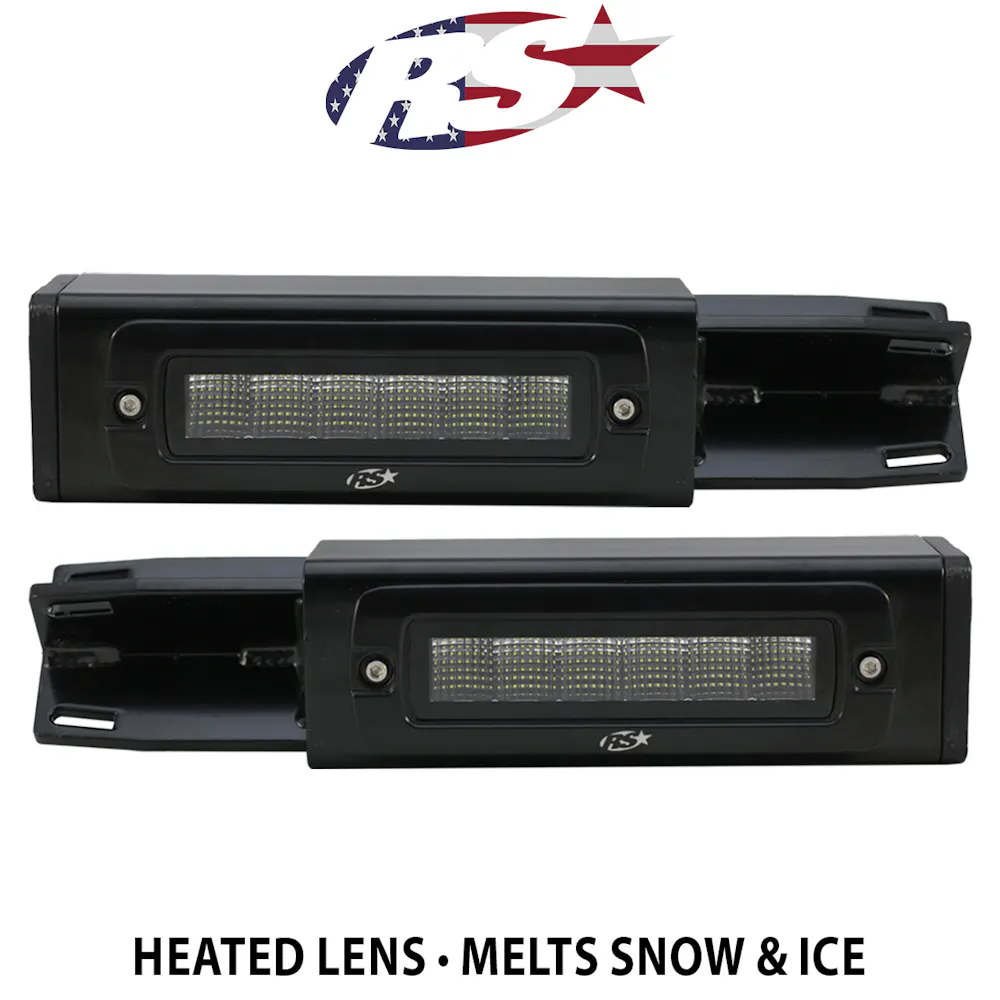

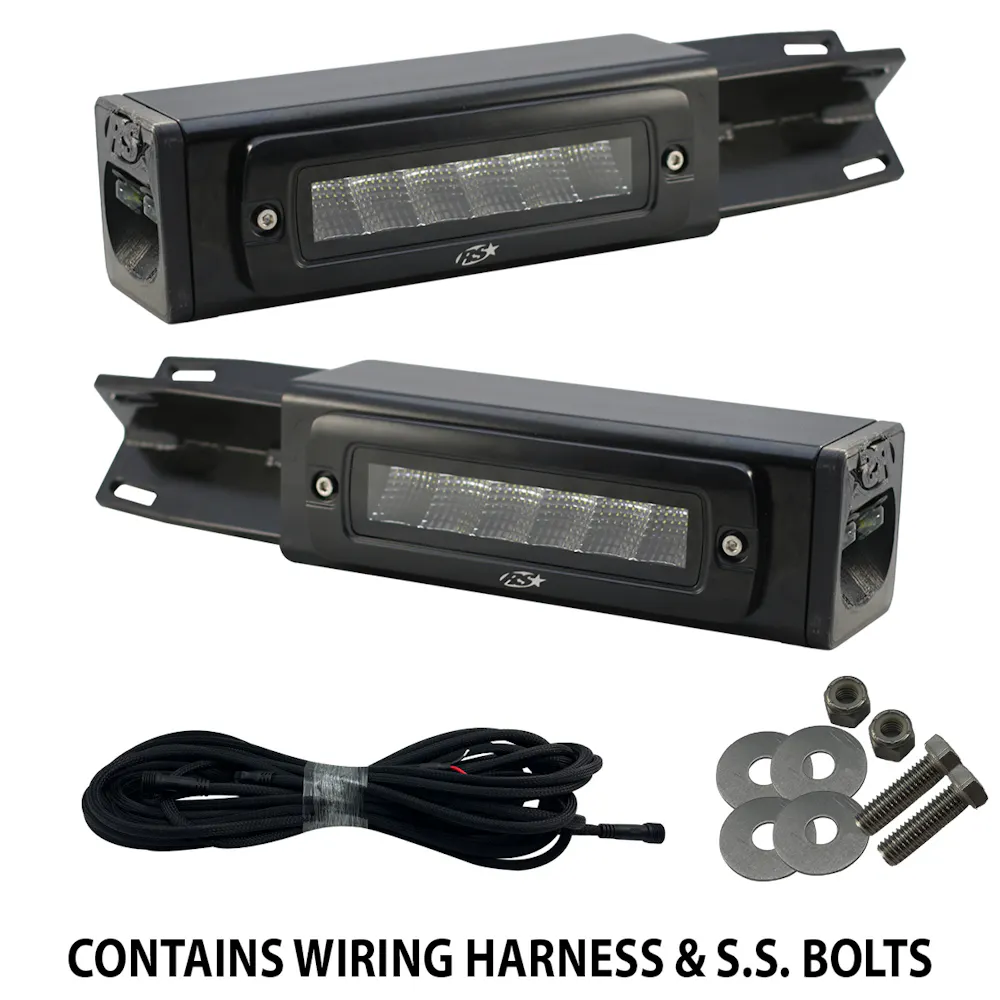

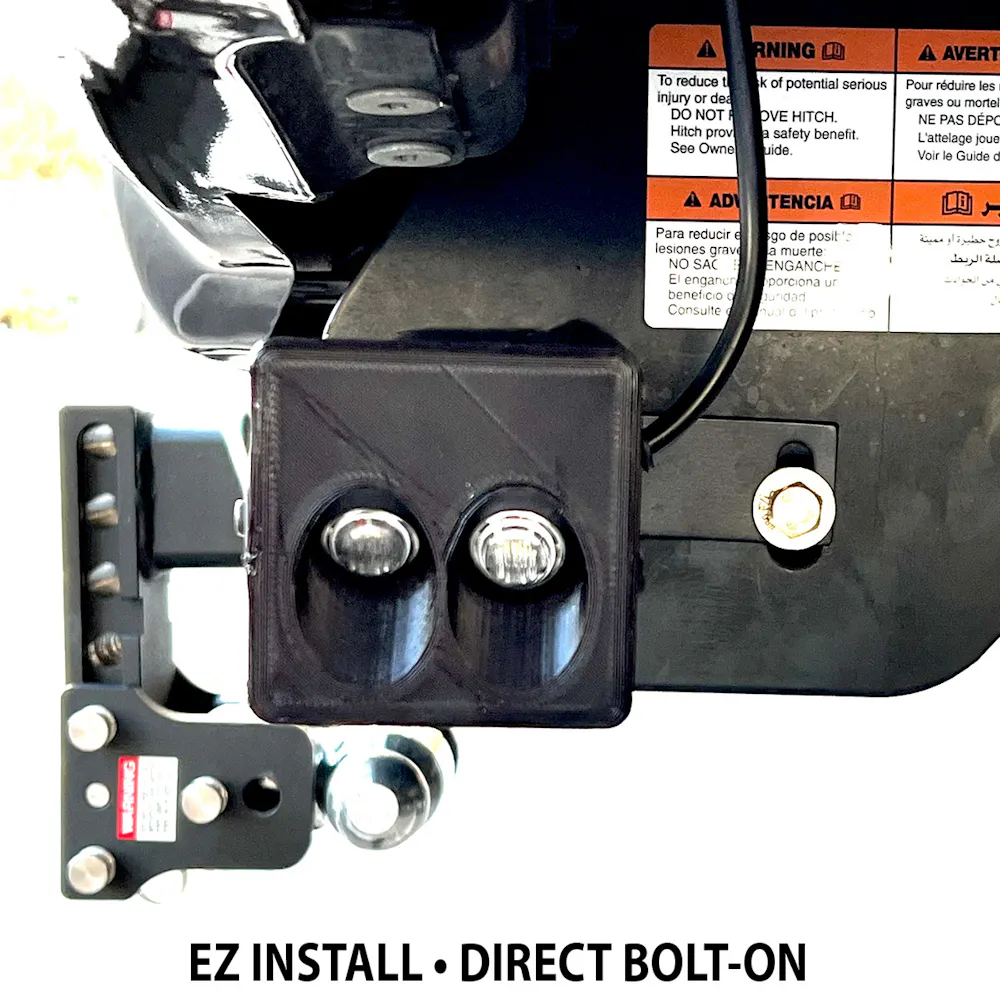

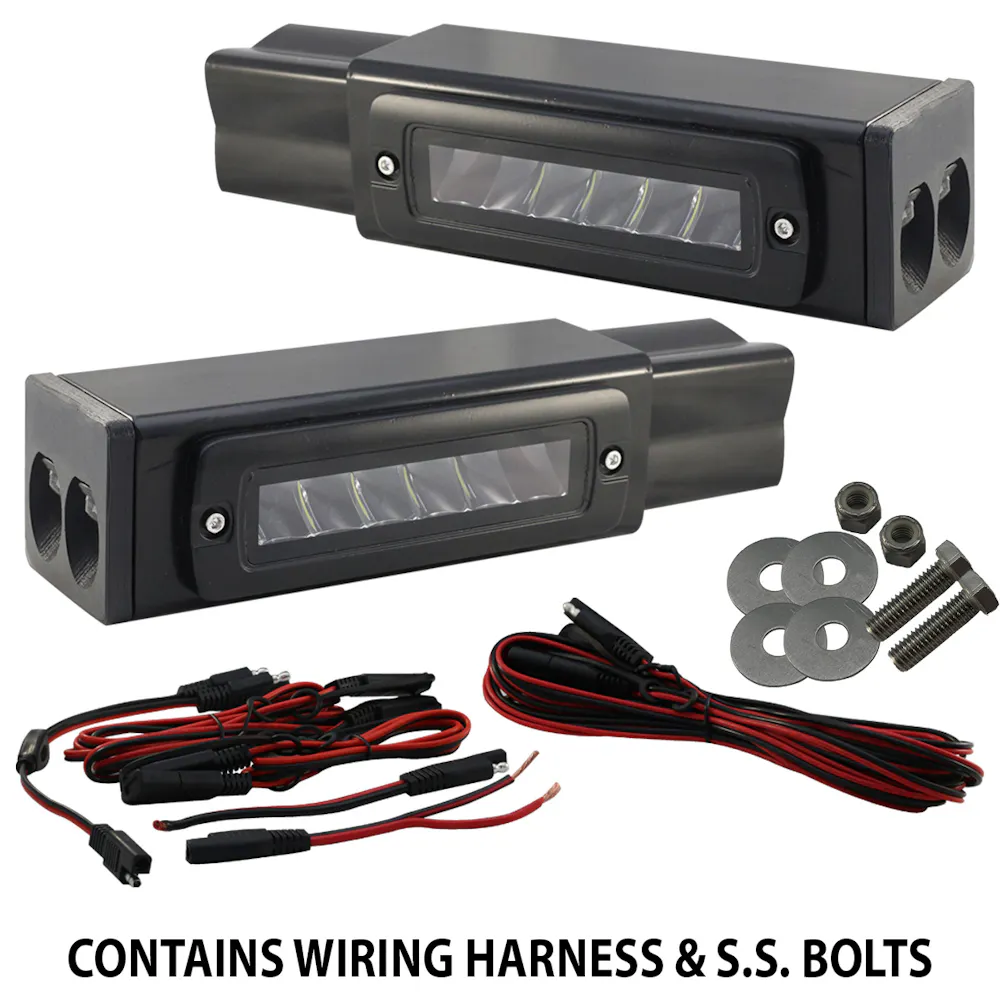

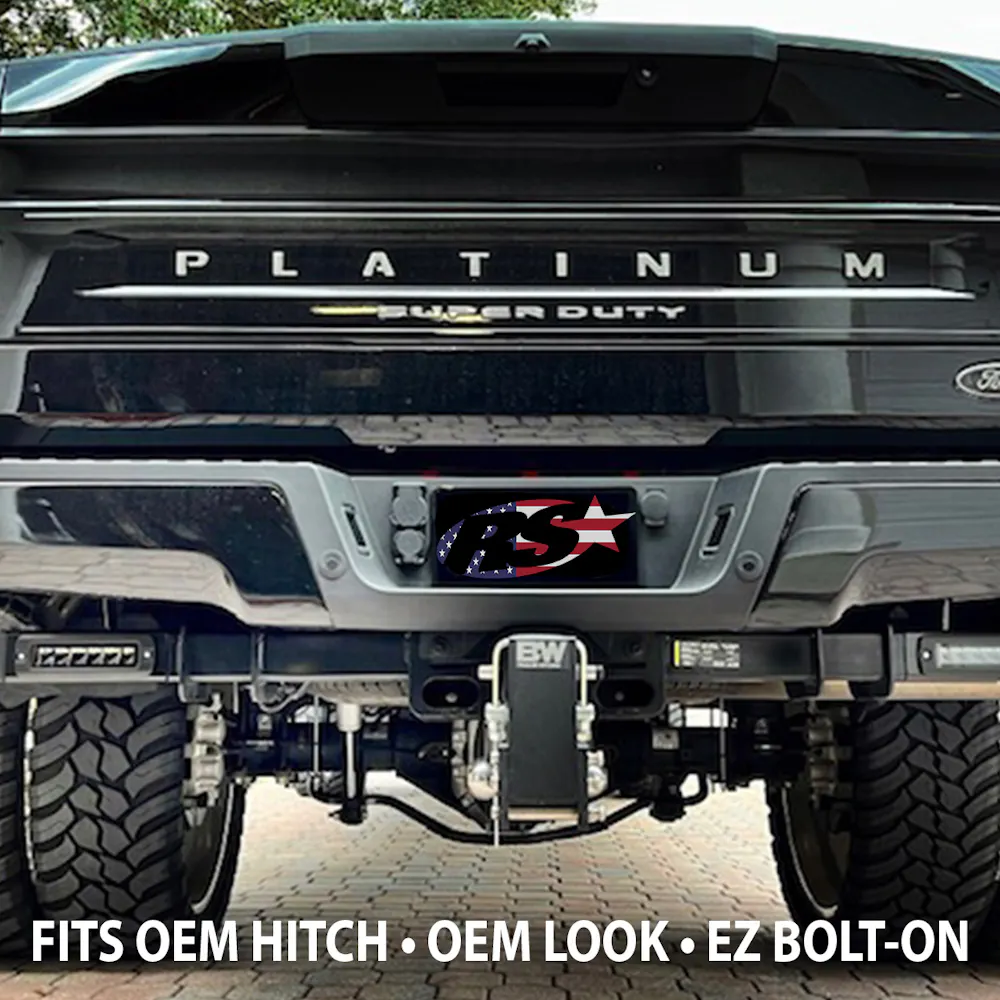

SPECIFICATIONS:-3X3" 3/16 STEEL TUBE FRAMED CONSTRUCTION TO MATCH THE DIMENSIONS OF THE STOCK HITCH FRAME-SATIN BLACK POWDER COATED FOR DURABILITY -3D PRINTED CARBON REINFORCED ENDCAPS SINGLE SIDED-47 DEGREE DOWN ANGLED MARINE GRADE SIDE LIGHTS TO LIGHT UP THE "GROUND TO TIRE" AREA AROUND THE REAR WHEELS-LOADED WITH RACE SPORT LIGHTING ROADRUNNER BLACKED OUT SERIES HIGH POWER FLOOD LIGHT with Heated Lens to melt Snow and Ice-1 BOLT INSTALLATION - HARDWARE INCLUDED-EASY TO INSTALL 4-PIN HARNESS CONNECTORS ON EACH LIGHT AND A 25' HARDWIRE HARNESS FOR A NO SPLICE INSTALLATION HARNESS INCLUDED W/ Extra Outputs for Optional Strobe Flasher Plate Add On Accessory Sold Separately-NO EXTERNAL WELDS TO RUST. URGENT - Does not fit 2017-23 Ford F250-F350 with the AMP rear steps. Please see our Mini Hitch Bar Product made specifically for this vehicle.

Application summary

Year	Make / model
2017-2024	Ford F-250 Super Duty
2017-2024	Ford F-350 Super Duty
2017-2024	Ford F-450 Super Duty
2017	Ford F-550 Super Duty

Specifications

GTIN: 00810077231692
Weight: 17 lb
Height: 9 in
Length: 14 in
Width: 14 in
Life cycle: Available to Order
Alt. part number: FHDHB17UP
AAM brand code: RSP
Warehouse brand code: RSP
AAIA brand code: GBKR

Attributes

AAP Selling Package Quantity: 1
AAP Selling Package Quantity UOM: EA
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 65
Alternate Part Number: FHDHB17UP
Beam Pattern: Flood
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Chip Type: OSRAM
Contain Battery: No
Cross-Sell SKUs: 1007472,1007602,SFPHBAO
Current Draw: 4.4 AMPS
Estimated Install Time: 2 Hours
Freight Class: 65
HAZMAT Item: No
IP Rating: IP67
Kelvin (Color Temperature): 5,700K
LUX: 10,733lx
Life Expectancy: 50,000 hours
Lumens: 5,750lm
Operating Voltage: 10-30VDC
Related SKUs: RS7TEMPFM-F,HBK2PH,SFPHBAO
Reverse Polarity Protection: No
Title: 2017-Current Ford F250-F450 Super Duty Hitch Bar Reverse 7in LED Flood Lighting Heavy Duty Bolt-On Blacked Out Kit with Heated Lens and Single End Light Cap
Upsell Skus: RS7TEMPFM-F
Warranty: Limited Lifetime Warranty
Warranty Process: https://www.racesportinc.com/rma
Wattage: 60-Watts
