Race Sport Lighting · 9005LEDDSv2
Part #: 9005LEDDSv2
UPC: 817999029864
Log in for inventory
Notify me when this item is in stock.
pro mess

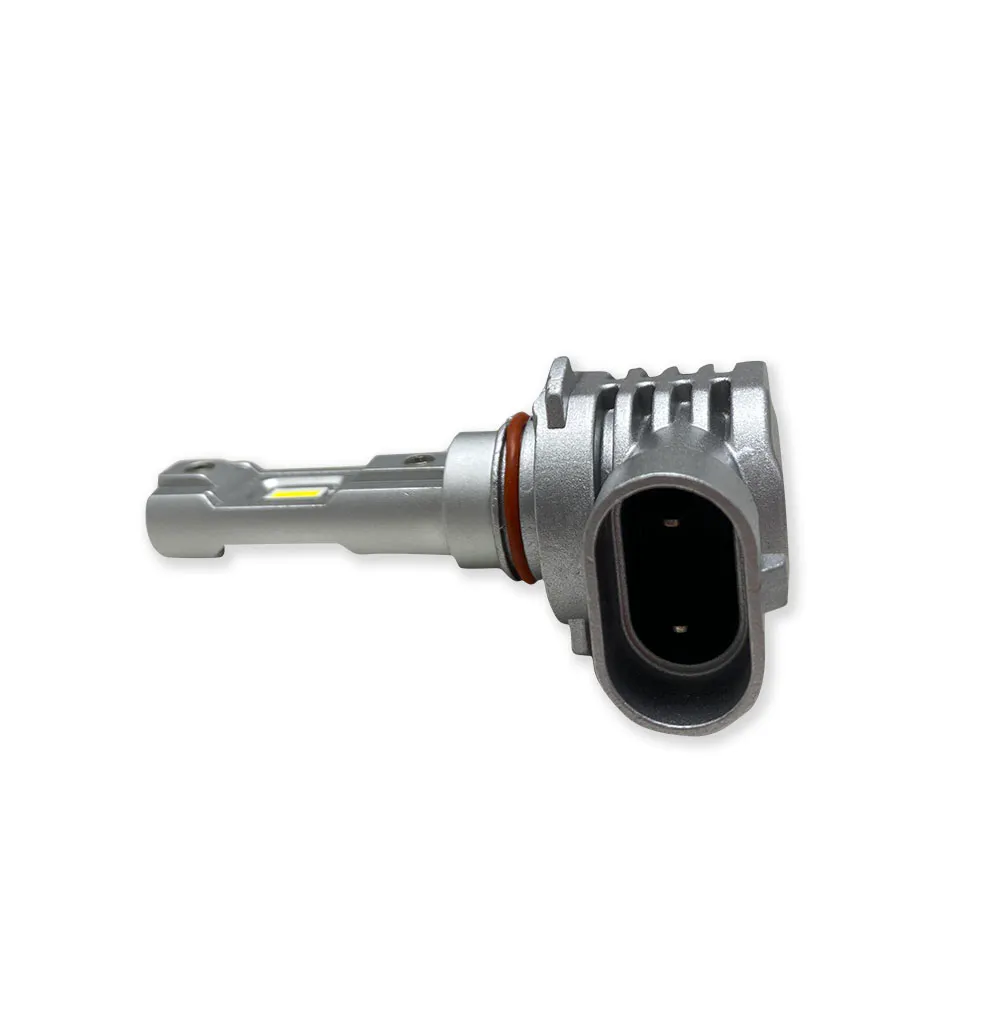

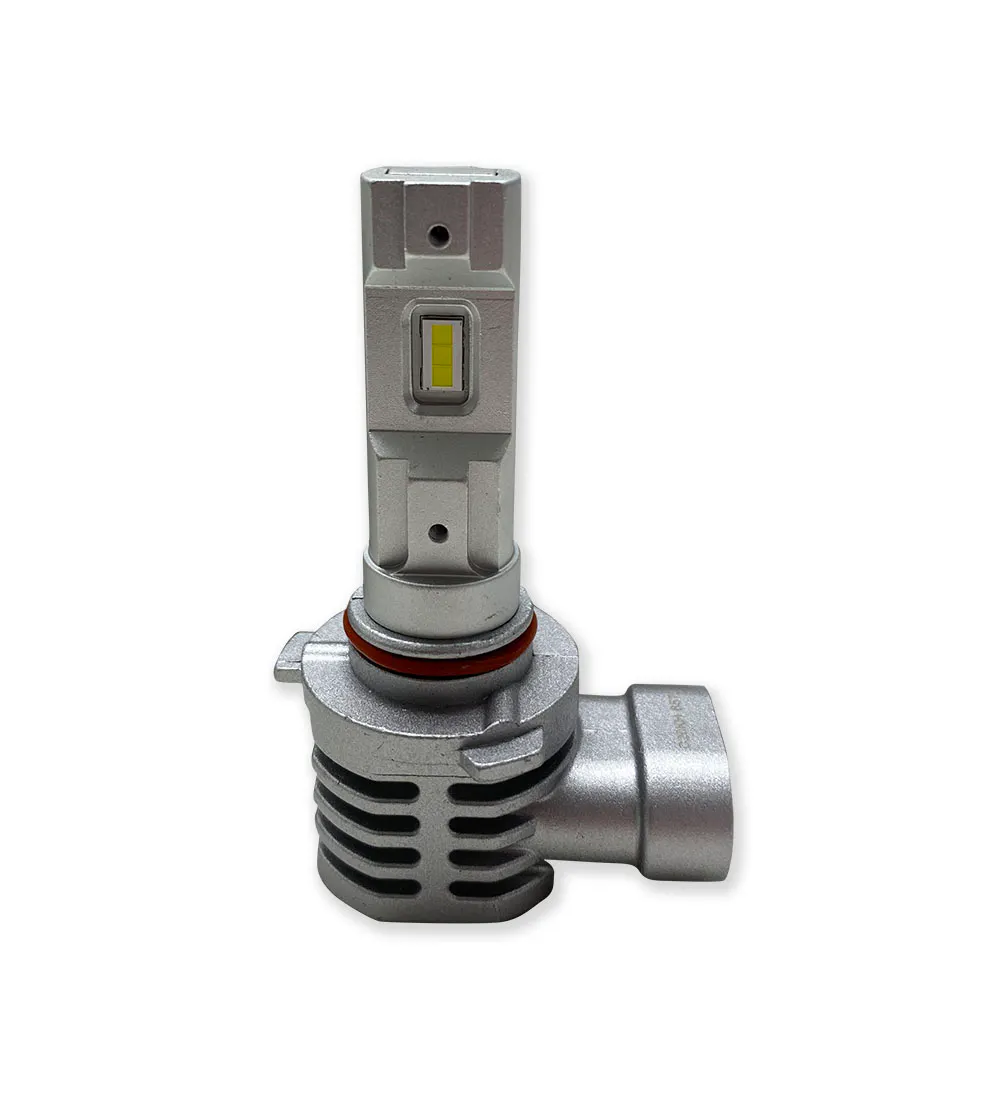

Description: Race Sport Headlight Conversion Kit - 1007425; V2 DRIVE Series 9005 2,500 LUX Driverless Plug-&-Play LED Headlight Kit w/ Canbus Decoder 3yr warranty
Description:
Description
The NEW V2 DRIVE Series is the latest LED headlight and fog light kit in the industry for ATV's, Motorcycles, Race bikes, Off-Road vehicles, and Automotive. All the solutions for LED's have been built into this technology. The LED kit does not contain a driver, but does come with an optional Canbus Decoder pack to plug n play between the LED bulbs and the vehicle to steady voltage, and interface with CANBUS functional vehicles. The size of the bulb bases are specifically designed to eliminate fitment issues from oversized aftermarket bulbs. The light output and performance is amazing at 2,500 LUX, and great for night time safety driving. General Specs: Rated LUX output - 2,500 LUX per bulb or 5,000 LUX per kit. RAW LUX light output is 2,980lx per bulb or 5,960lx per kit. RAW Lumen Measured on Meter is 2,480lm per bulb or 4,960lm per kit. Warranty - 3yr Warranty. Canbus - Canbus Decoders included in kits. Plug N Play OEM sized (no fitment issues). Temperature: -45 plus or minus 85 C. Voltage: DC9V-32V. Beam Angle: 330 degree. 6,000 Kelvin Color range
Application summary
| Year | Make / model |
|---|---|
| 1997-1999 | Acura CL |
| 2001-2003 | Acura CL |
| 2006-2011 | Acura CSX |
| 2013-2015 | Acura ILX |
| 1990-2001 | Acura Integra |
| 1991-1995 | Acura Legend |
| 2001-2013 | Acura MDX |
| 1991-2005 | Acura NSX |
| 2013-2015 | Acura RDX |
| 2005-2012 | Acura RL |
| 2005-2006 | Acura RSX |
| 1999-2014 | Acura TL |
| 2009-2014 | Acura TSX |
| 1992-1994 | Acura Vigor |
| 2010-2013 | Acura ZDX |
| 1995-1998 | Audi A6 |
| 1995-1998 | Audi A6 Quattro |
| 1997-1999 | Audi A8 |
| 1997-1999 | Audi A8 Quattro |
| 1995-1997 | Audi S6 |
| 1997-1999 | BMW 318ti |
| 1999 | BMW 323is |
| 1999 | BMW 328is |
| 1994-1997 | BMW 840Ci |
| 1993-1997 | BMW 850Ci |
| 1994-1995 | BMW 850CSi |
| 1991-1992 | BMW 850i |
| 1995-1999 | BMW M3 |
| 2000-2004 | BMW X5 |
| 1997-2002 | BMW Z3 |
| 1989-2005 | Buick Century |
| 2013-2017 | Buick Encore |
| 2014-2016 | Buick LaCrosse |
| 1990-2005 | Buick LeSabre |
| 2006-2011 | Buick Lucerne |
| 1995-2005 | Buick Park Avenue |
| 2004-2007 | Buick Rainier |
| 1997-2004 | Buick Regal |
| 2002-2007 | Buick Rendezvous |
| 1995-1999 | Buick Riviera |
| 2003-2007 | Cadillac CTS |
| 1987-2005 | Cadillac DeVille |
| 1992-2002 | Cadillac Eldorado |
| 1999-2000 | Cadillac Escalade |
| 2002-2006 | Cadillac Escalade |
| 2003-2006 | Cadillac Escalade ESV |
| 2002-2006 | Cadillac Escalade EXT |
| 1990-1996 | Cadillac Fleetwood |
| 1992-2004 | Cadillac Seville |
| 2004-2005 | Cadillac SRX |
| 2010-2015 | Cadillac SRX |
| 2005-2011 | Cadillac STS |
| 2010-2017 | Chevrolet Equinox |
| 2013-2015 | Chevrolet Malibu |
| 2019-2020 | Chevrolet Silverado 1500 |
| 2007-2021 | Chevrolet Silverado 2500 HD |
| 2007-2021 | Chevrolet Silverado 3500 HD |
| 2016-2017 | Chrysler 200 |
| 2016-2017 | Chrysler 300 |
| 2011-2023 | Dodge Charger |
| 2011-2015 | Dodge Durango |
| 2009-2019 | Dodge Journey |
| 2019-2020 | Ford Edge |
| 2017 | Ford Escape |
| 2016-2019 | Ford Explorer |
| 2015-2023 | Ford F-150 |
| 2019-2020 | Ford Ranger |
| 2000-2006 | GMC Sierra 1500 |
| 2008-2013 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2001-2003 | GMC Sierra 1500 HD |
| 2005-2006 | GMC Sierra 1500 HD |
| 2007 | GMC Sierra 1500 HD Classic |
| 2000-2004 | GMC Sierra 2500 |
| 2001-2006 | GMC Sierra 2500 HD |
| 2008-2014 | GMC Sierra 2500 HD |
| 2017-2020 | GMC Sierra 2500 HD |
| 2007 | GMC Sierra 2500 HD Classic |
| 2001-2006 | GMC Sierra 3500 |
Specifications
- GTIN
- 00817999029864
- Weight
- 1.8 lb
- Height
- 2.5 in
- Length
- 5.5 in
- Width
- 7.5 in
- Life cycle
- Available to Order
- Alt. part number
- 9005LEDDSv2
- AAM brand code
- RSP
- Warehouse brand code
- RSP
- AAIA brand code
- GBKR
Attributes
- AAP Selling Package Quantity
- 1
- AAP Selling Package Quantity UOM
- EA
- AAP_UDA_12
- EA
- AAP_UDA_22
- 1
- AAP_UDA_4
- 65
- Alternate Part Number
- 9005LEDDSv2
- Beam Pattern
- Directional
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Chip Type
- PHILLIPS
- Contain Battery
- No
- Cross-Sell SKUs
- RSIKIT,RSUKIT,RS8PRGBW
- Estimated Install Time
- 0.5 Hours
- Exportable
- Yes
- Freight Class
- 65
- HAZMAT Item
- No
- IP Rating
- IP67
- Kelvin (Color Temperature)
- 6,000K
- LUX
- 5,960 RAW LUX
- Lead Time AVG
- 1 Day
- Life Expectancy
- 50,000 hours
- Lumens
- 4,960 RAW LUMEN
- Operating Voltage
- 12VDC
- Returnable
- Yes
- Reverse Polarity Protection
- No
- SEMA Product Type
- Headlight Conversion Kit
- Shipping Port
- Chicago
- Territory Restrictions
- No
- Title
- V2 DRIVE Series 9005 2,500 LUX Driverless Plug-&-Play LED Headlight Kit w/ Canbus Decoder 3yr warranty
- Warranty
- 3 year
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1997-1999 Acura CL; 2001-2003 Acura CL; 2006-2011 Acura CSX; 2013-2015 Acura ILX; 1990-2001 Acura Integra; 1991-1995 Acura Legend; 2001-2013 Acura MDX; 1991-2005 Acura NSX; 2013-2015 Acura RDX; 2005-2012 Acura RL; 2005-2006 Acura RSX; 1999-2014 Acura TL; 2009-2014 Acura TSX; 1992-1994 Acura Vigor; 2010-2013 Acura ZDX; 1995-1998 Audi A6; 1995-1998 Audi A6 Quattro; 1997-1999 Audi A8; 1997-1999 Audi A8 Quattro; 1995-1997 Audi S6; 1997-1999 BMW 318ti; 1999 BMW 323is; 1999 BMW 328is; 1994-1997 BMW 840Ci; 1993-1997 BMW 850Ci; 1994-1995 BMW 850CSi; 1991-1992 BMW 850i; 1995-1999 BMW M3; 2000-2004 BMW X5; 1997-2002 BMW Z3; 1989-2005 Buick Century; 2013-2017 Buick Encore; 2014-2016 Buick LaCrosse; 1990-2005 Buick LeSabre; 2006-2011 Buick Lucerne; 1995-2005 Buick Park Avenue; 2004-2007 Buick Rainier; 1997-2004 Buick Regal; 2002-2007 Buick Rendezvous; 1995-1999 Buick Riviera; 2003-2007 Cadillac CTS; 1987-2005 Cadillac DeVille; 1992-2002 Cadillac Eldorado; 1999-2000 Cadillac Escalade; 2002-2006 Cadillac Escalade; 2003-2006 Cadillac Escalade ESV; 2002-2006 Cadillac Escalade EXT; 1990-1996 Cadillac Fleetwood; 1992-2004 Cadillac Seville; 2004-2005 Cadillac SRX; 2010-2015 Cadillac SRX; 2005-2011 Cadillac STS; 2010-2017 Chevrolet Equinox; 2013-2015 Chevrolet Malibu; 2019-2020 Chevrolet Silverado 1500; 2007-2021 Chevrolet Silverado 2500 HD; 2007-2021 Chevrolet Silverado 3500 HD; 2016-2017 Chrysler 200; 2016-2017 Chrysler 300; 2011-2023 Dodge Charger; 2011-2015 Dodge Durango; 2009-2019 Dodge Journey; 2019-2020 Ford Edge; 2017 Ford Escape; 2016-2019 Ford Explorer; 2015-2023 Ford F-150; 2019-2020 Ford Ranger; 2000-2006 GMC Sierra 1500; 2008-2013 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2001-2003 GMC Sierra 1500 HD; 2005-2006 GMC Sierra 1500 HD; 2007 GMC Sierra 1500 HD Classic; 2000-2004 GMC Sierra 2500; 2001-2006 GMC Sierra 2500 HD; 2008-2014 GMC Sierra 2500 HD; 2017-2020 GMC Sierra 2500 HD; 2007 GMC Sierra 2500 HD Classic; 2001-2006 GMC Sierra 3500; ...
