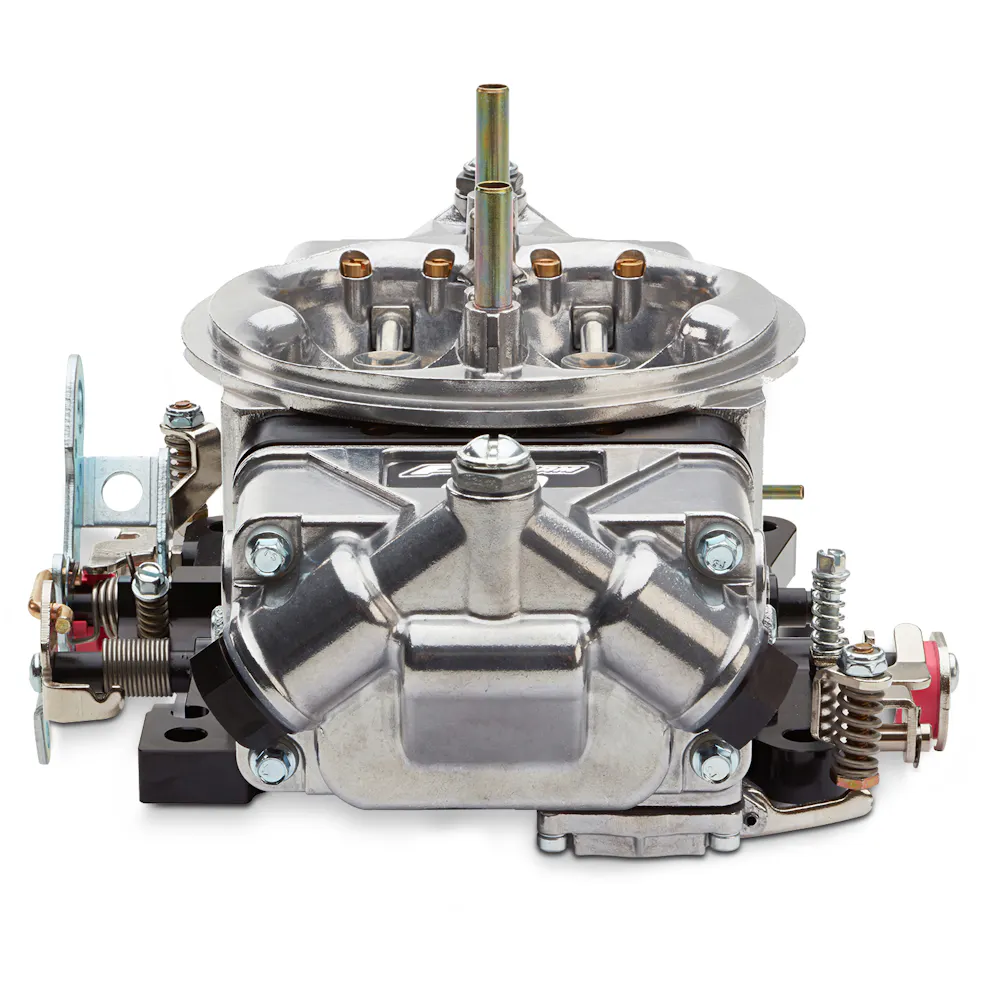

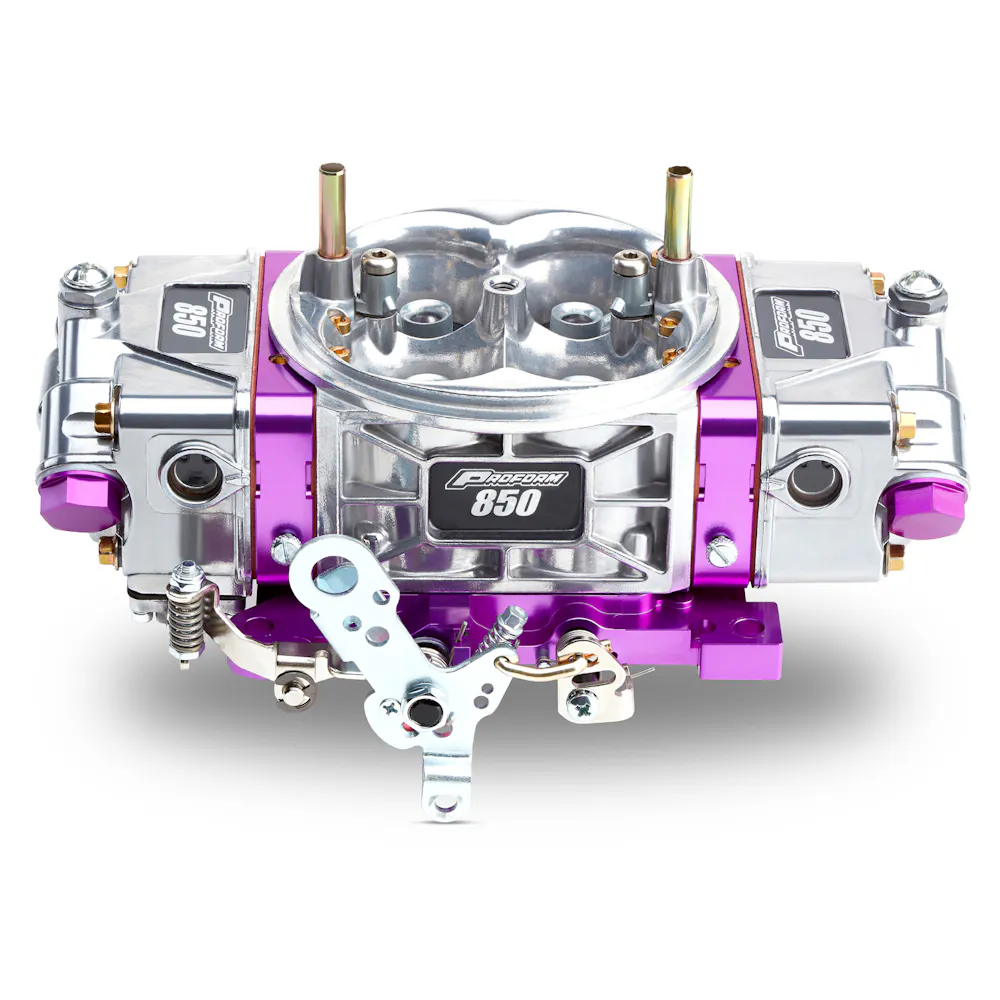

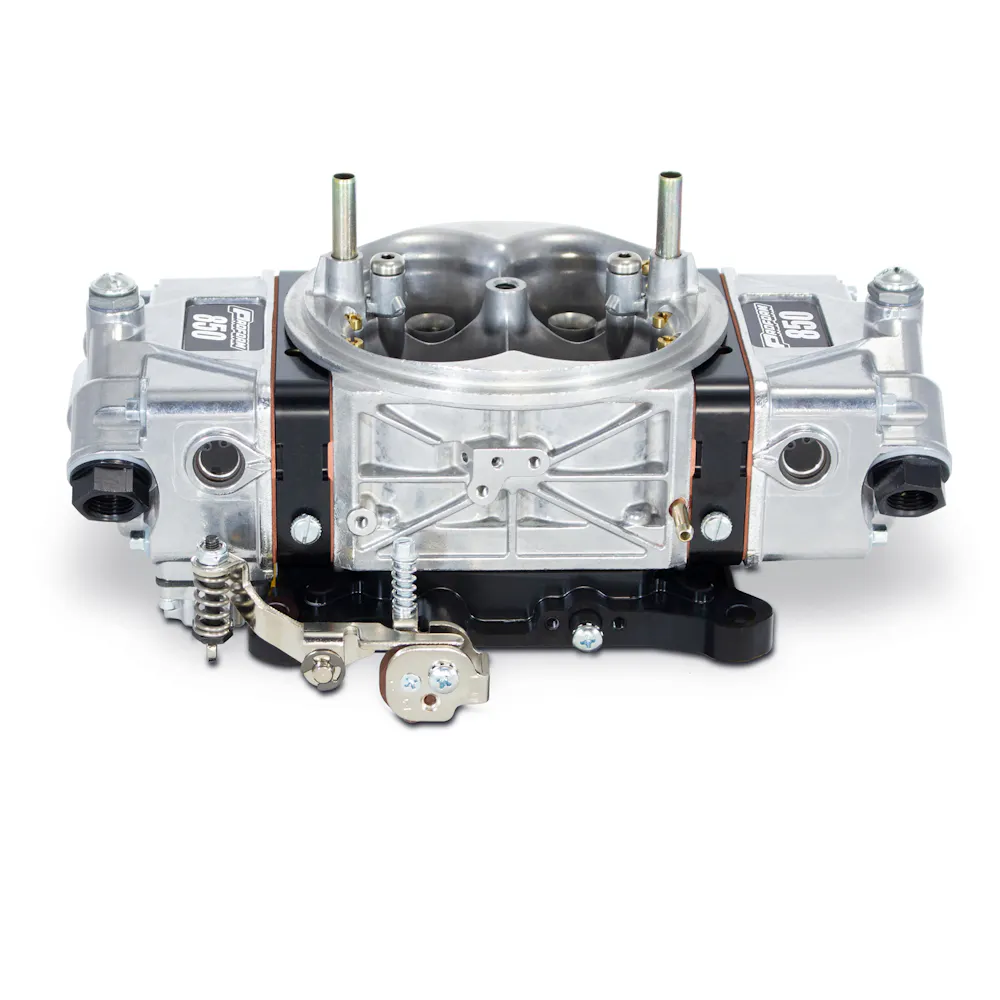

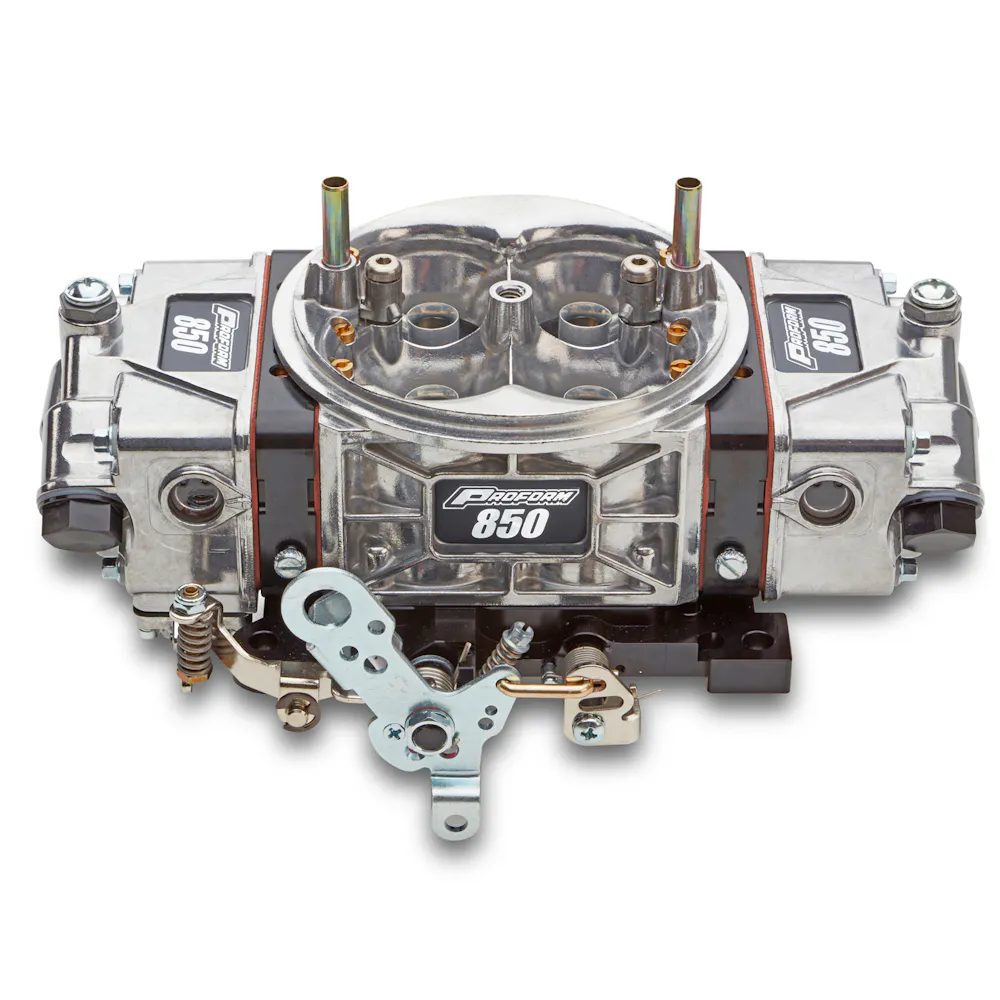

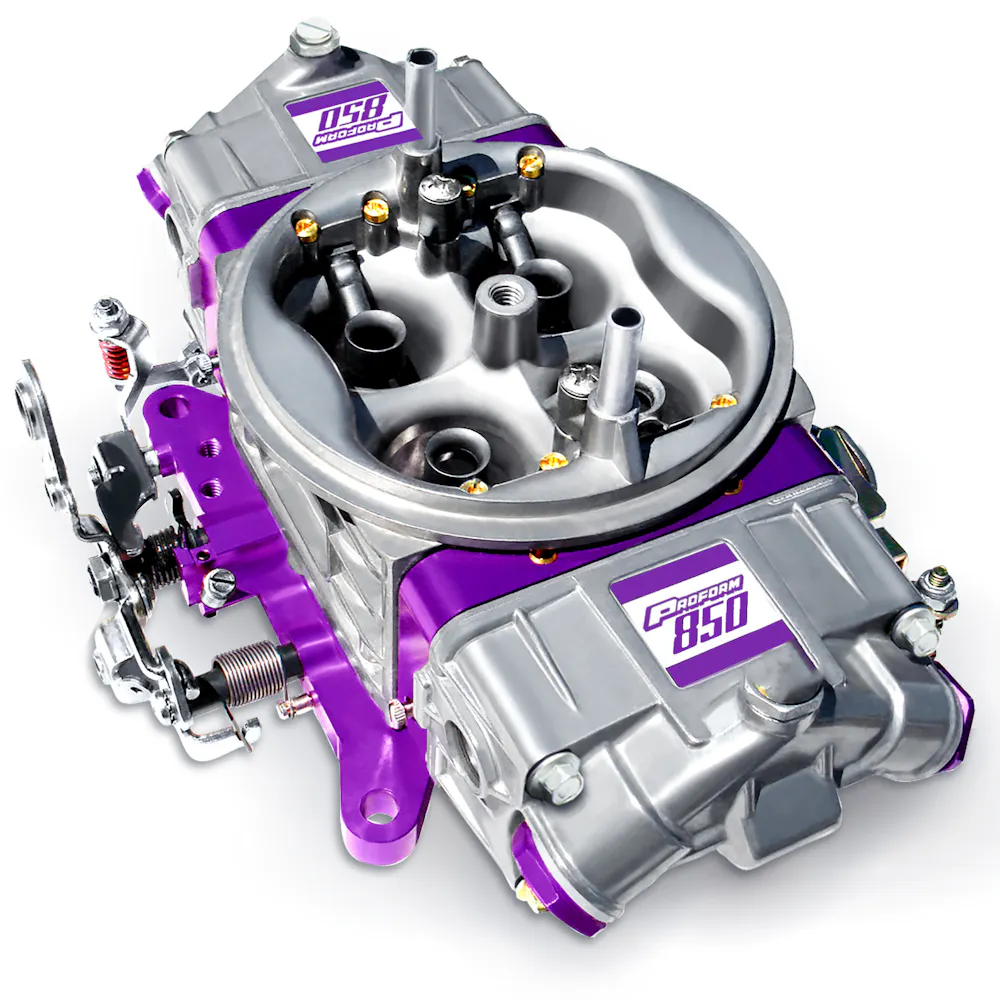

PROFORM · 67201

View More

Part #: 67201
UPC: 037995362011

Loading availability... Loading...

Notify me when this item is in stock.

Brand: PROFORM Series: Race Series Carburetors

Description: Mechanical Secondaries; Sold Each

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

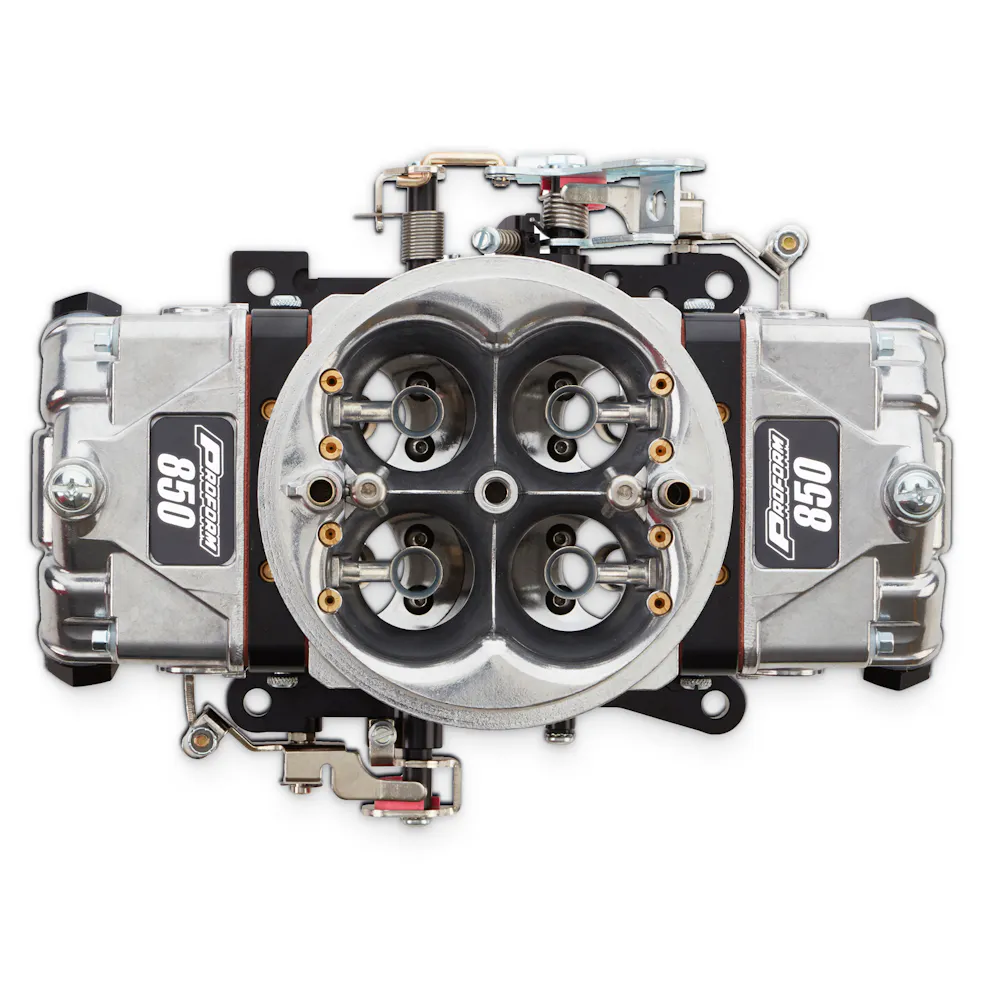

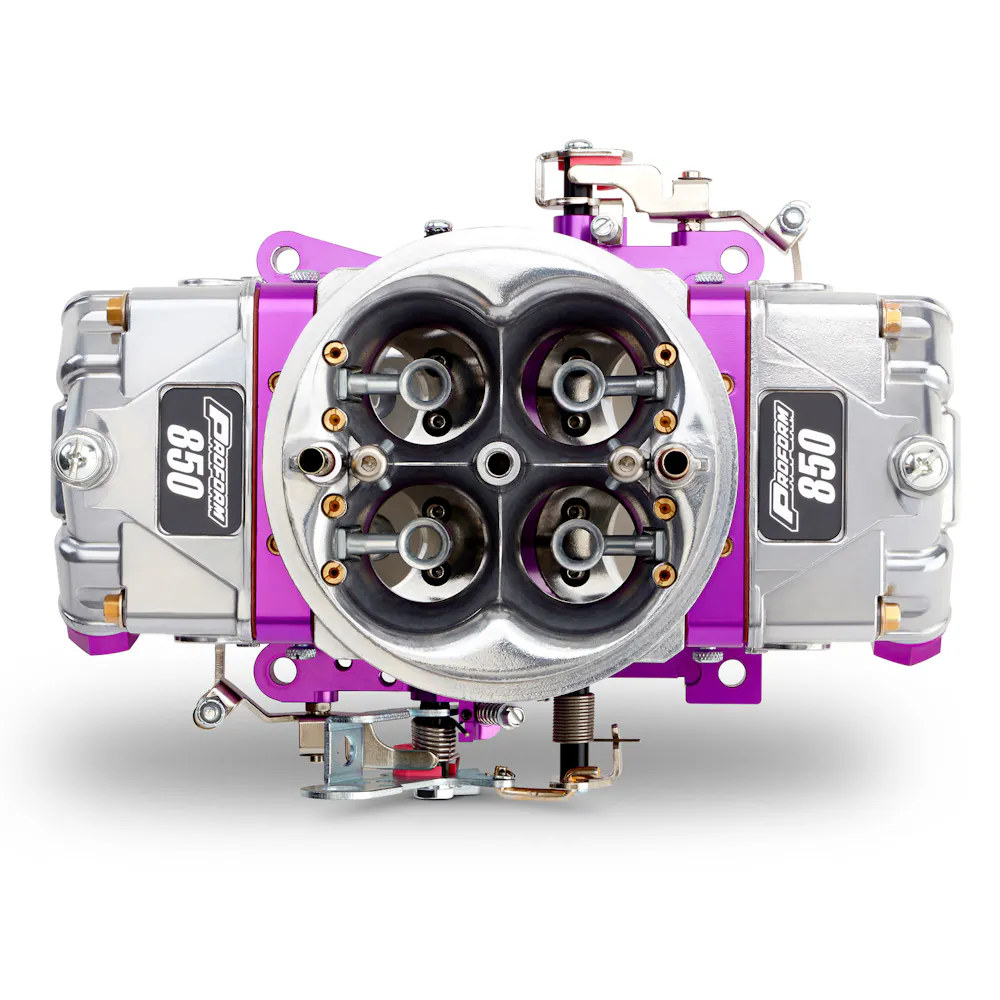

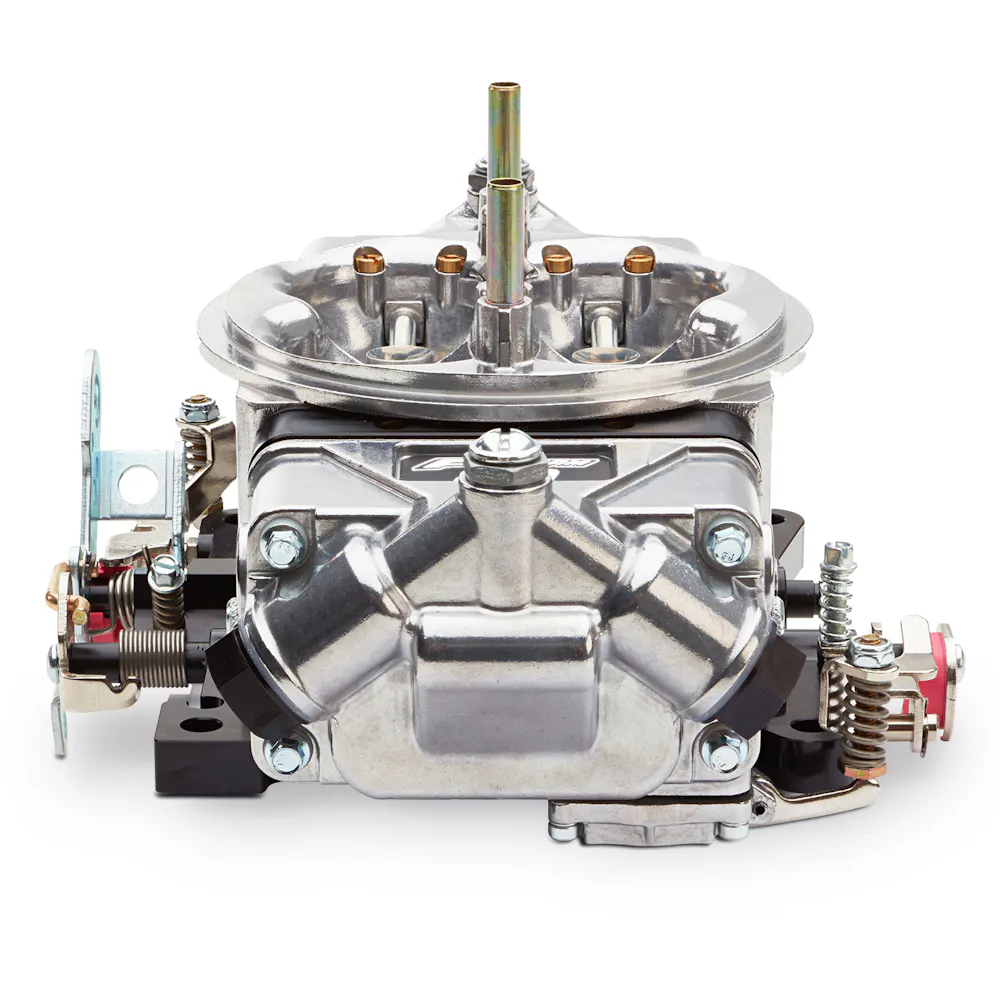

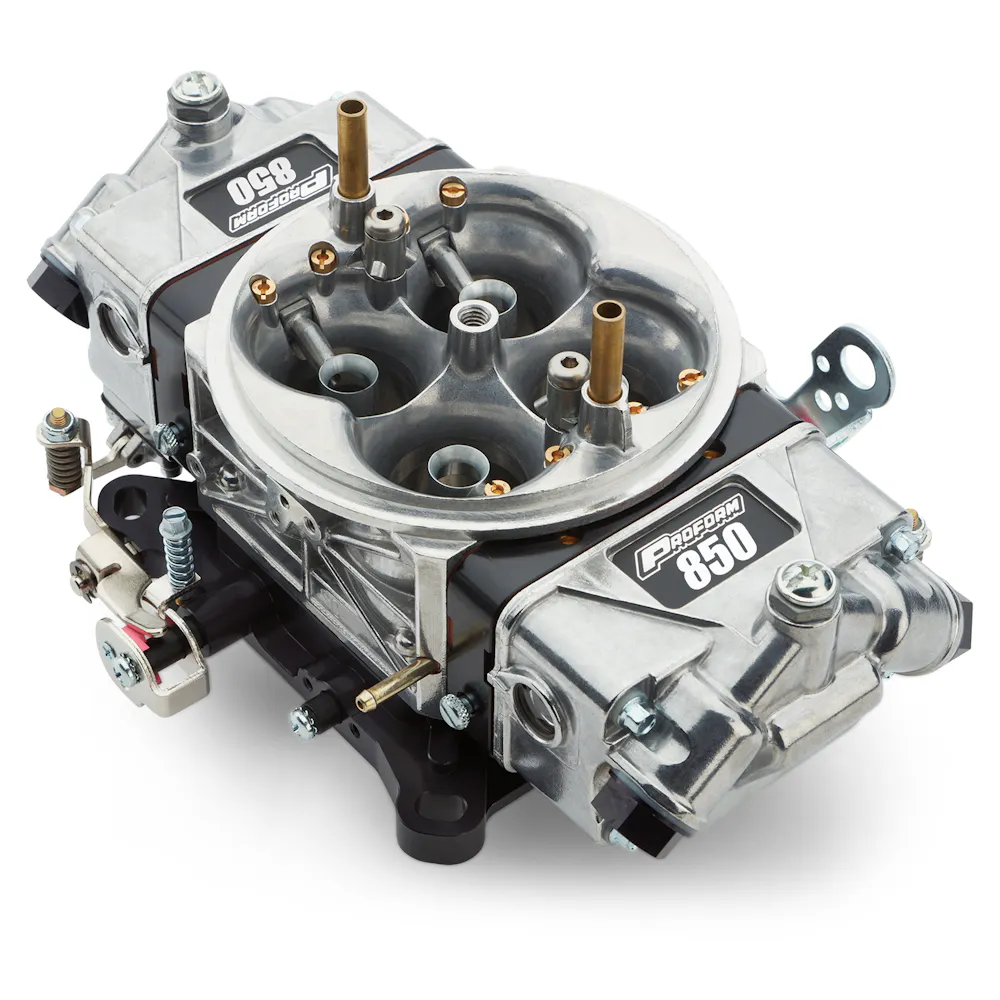

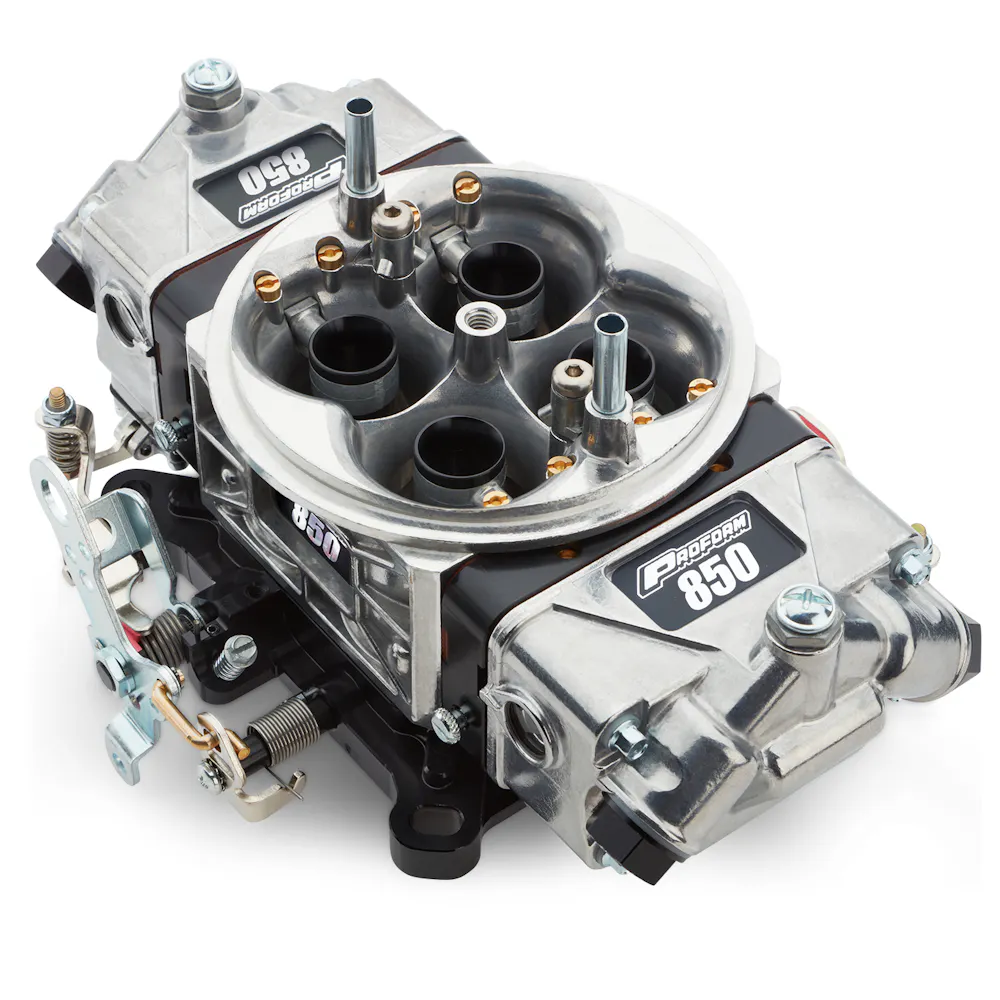

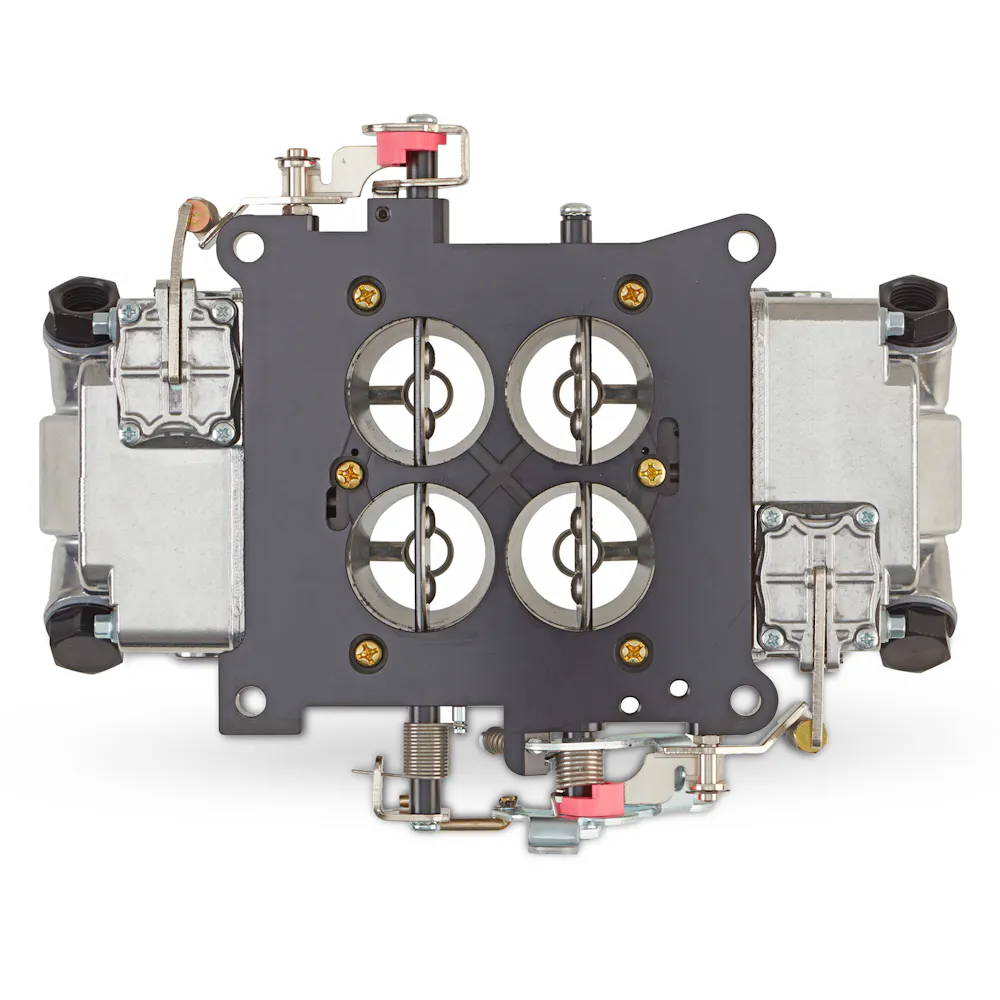

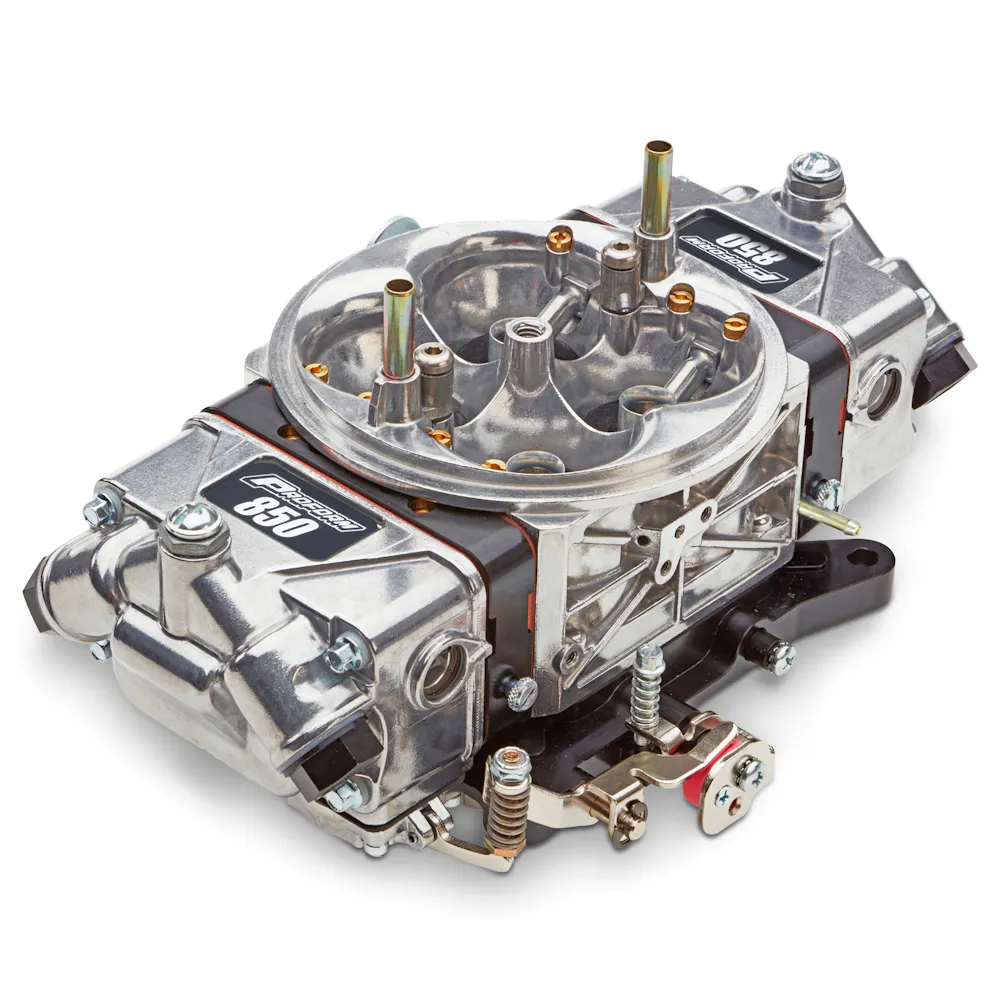

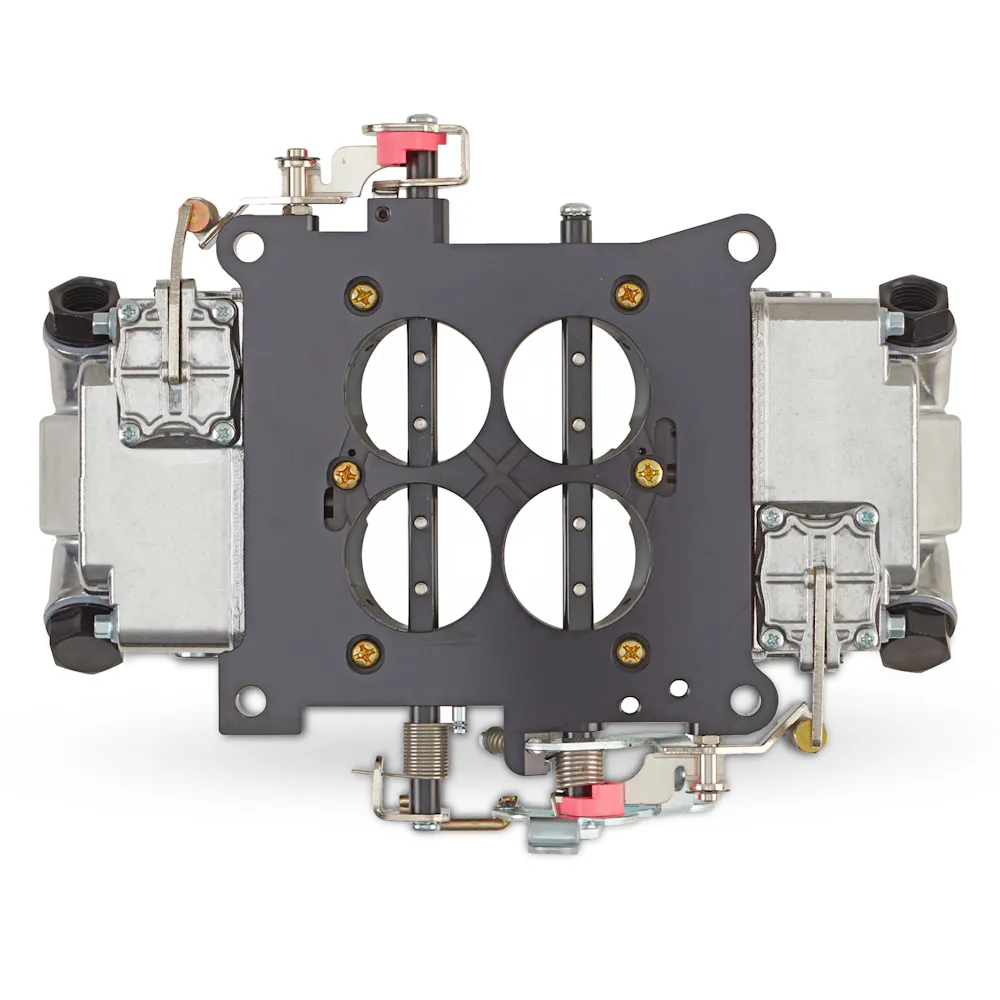

Next Gen Race Series Carbs are HERE! PROFORM is taking its popular carburetors and making them even better! Here are the NEW Features: Main Body: Completely new main body design with contoured venturis and new 2-step down-leg boosters. The combination creates better air flow and increased fuel atomization! Fuel Bowls: Completely new design with increased internal baffling and a lower fuel ramp. The metering blocks also have a new baffle designed to work in conjunction with the bowl baffles to reduce fuel slosh and increase control. Throttle Base Plate: Slabbed shafts for increased airflow are now standard! In addition to these new features are all the great features that define the Race Series from the competition. Hand assembled and dyno tested in the U.S.A. by racers for racers! All PROFORM Race Series Carbs include the following: PROFORM's innovative all-aluminum next-gen main body with adjustable screw-in air bleeds and torx head squirters. Billet aluminum throttle base plate that is fully adjustable for fine tuning, and won't warp. The throttle lever is compatible with Ford kickdown bracketry, and the secondary opening rate can be adjusted with a linkage kit (sold separately). The billet aluminum metering blocks have a new fuel baffle design that integrates with the fuel bowl float for better fuel control. The metering blocks are fully adjustable as they always have been. Lastly, the aluminum fuel bowls with sight glass windows and billet fittings are a new design that is optimized with new features for better fuel control and easy float setting.

Features & benefits

Lightweight Aluminum Construction

Information

Mechanical Secondaries

Specifications

GTIN: 00037995362011
Weight: 9.8 lb
Height: 7.5 in
Length: 13.5 in
Width: 11.25 in
EO: Offroad
Life cycle: Available to Order
AAM brand code: PRF
Warehouse brand code: PRF
AAIA brand code: BCHW

Attributes

Adjustable Float Level: Yes
Air Bleed Material: Brass
Air Bleed Size (Inner High Speed): 35 / 35
Air Bleed Size (Outer Idle): 70 / 70
Air Bleeds Included: Yes
Air Cleaner Flange Diameter: 0.25
Barrel Quantity: 4
Base Length: 5.25

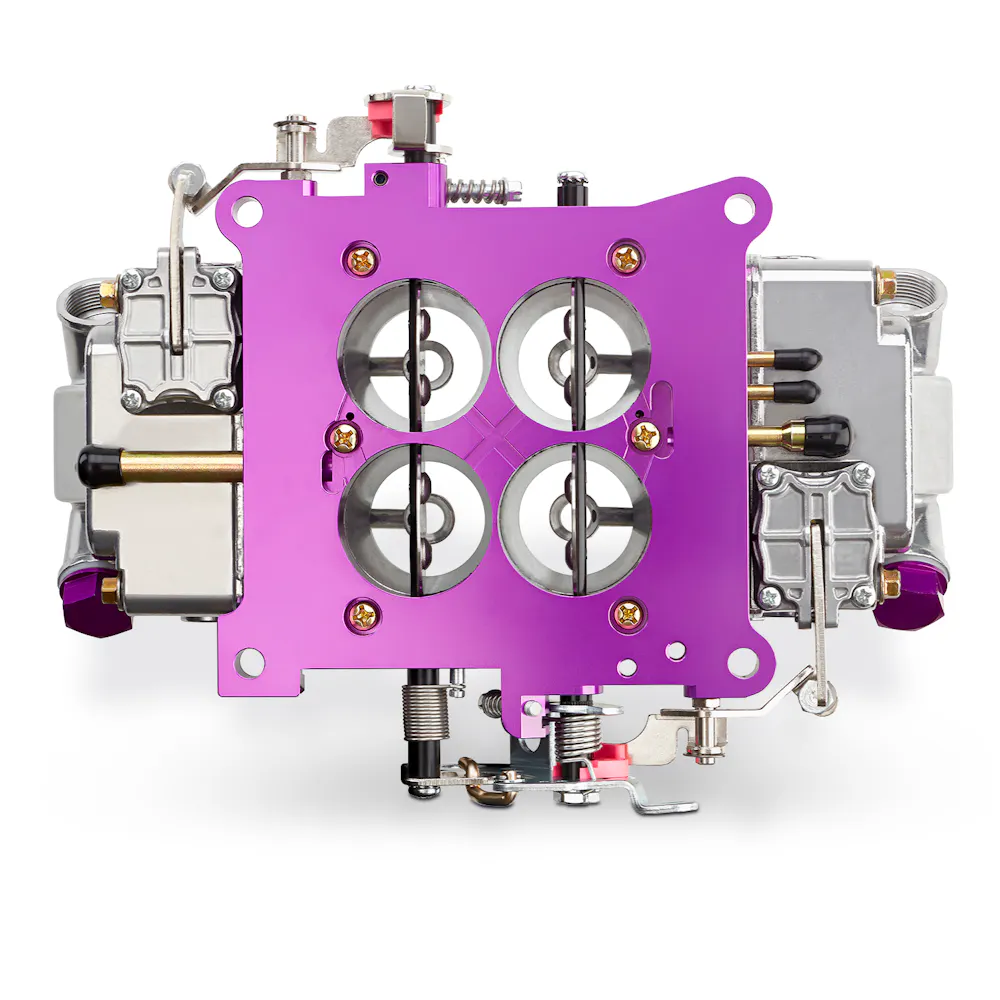

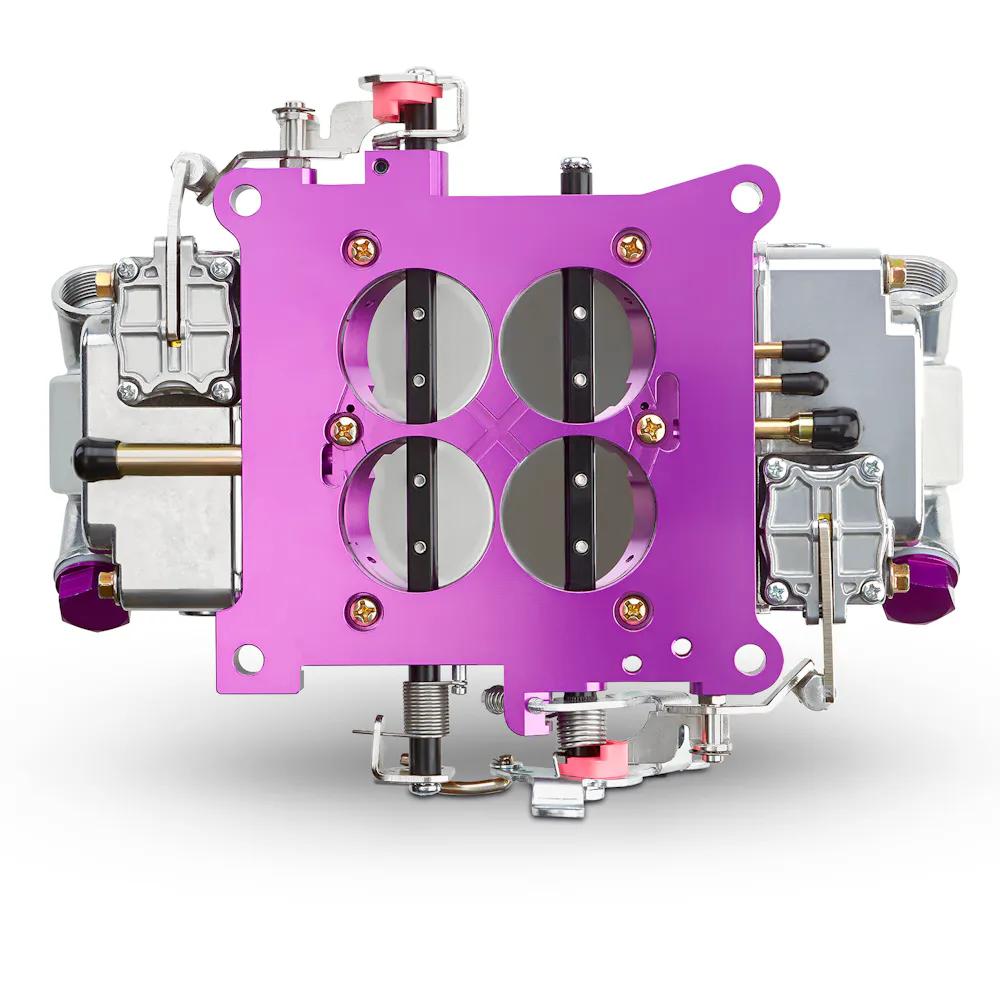

Base Plate Material: Billet Aluminum
Base Width: 5.25
Body Color: Silver
Body Height: 3.25
Body Material: Aluminum
Booster Style: Down-Leg Boosters
CFM: 850 CFM
Calibration: Universal
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Category: Carbs
Center Hung Floats: Yes
Choke: No Choke
Choke Type: Manual
Color: Natural
Discharge Nozzle Size (Primary / Secondary): .033 in. / .033 in.
EGR: Without EGR
Emissions: 49 State Legal
Feature/Benefit: Factory Tested
Finish: Vibratory Tumble Polished
Flange Shape: 4150 & 8090
Flange Style: Square Bore
Flange Type: Square/4150
Float Material: Nitrophyl
Ford Kickdown Bracket Included: No
Fuel: Gasoline
Fuel Inlet: Dual
Fuel Inlet Thread: 7/8-in. x20
Fuel Line Inlet Distance: 9-11/16 inch
Gasket Or Seal Included: Yes
Grade Type: Performance
Height (IN): 3.25 inch
Idle/High Speed Air Bleed Sizes: 70 / 35
Linkage Attached: Yes
Main Body Material: Lightweight Aluminum
Main Venturi Diameter: 1.875
Marine Approved: No
Material: Aluminum
Metering Block Material: Billet Aluminum
Mounting Hardware Included: No
Mounting Hole Diameter: 0.25
Mounting Hole Quantity: 4
Needle & Seat: 120
Number of Barrels: 4
Part Type: Carburetor
Primary Jet Diameter: 0.087
Primary Main Jet Size: 78 / .084
Primary Power Valve (Hg): 4.5
Secondaries: Mechanical Secondaries
Secondary Jet Diameter: 0.102
Secondary Main Jet Size: 87.5 / .099
Series: Race Series
Small Venturi Diameter: 1.75
Spacer Included: No
Street Legal: Yes
Throttle Linkage: Universal
Title: PROFORM Race Series 850 CFM Carburetor
