PROFORM · 67199
Part #: 67199
UPC: 037995351992
Log in for inventory
Notify me when this item is in stock.
Description: Mechanical Secondaries; Sold Each
Description:
Description

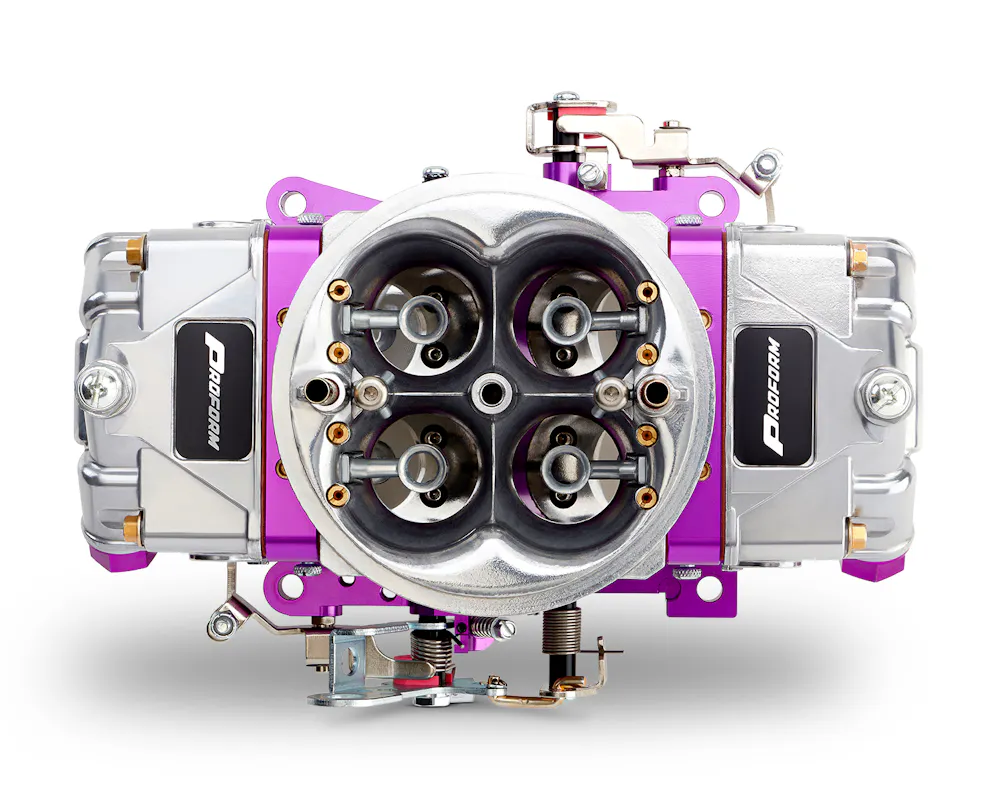

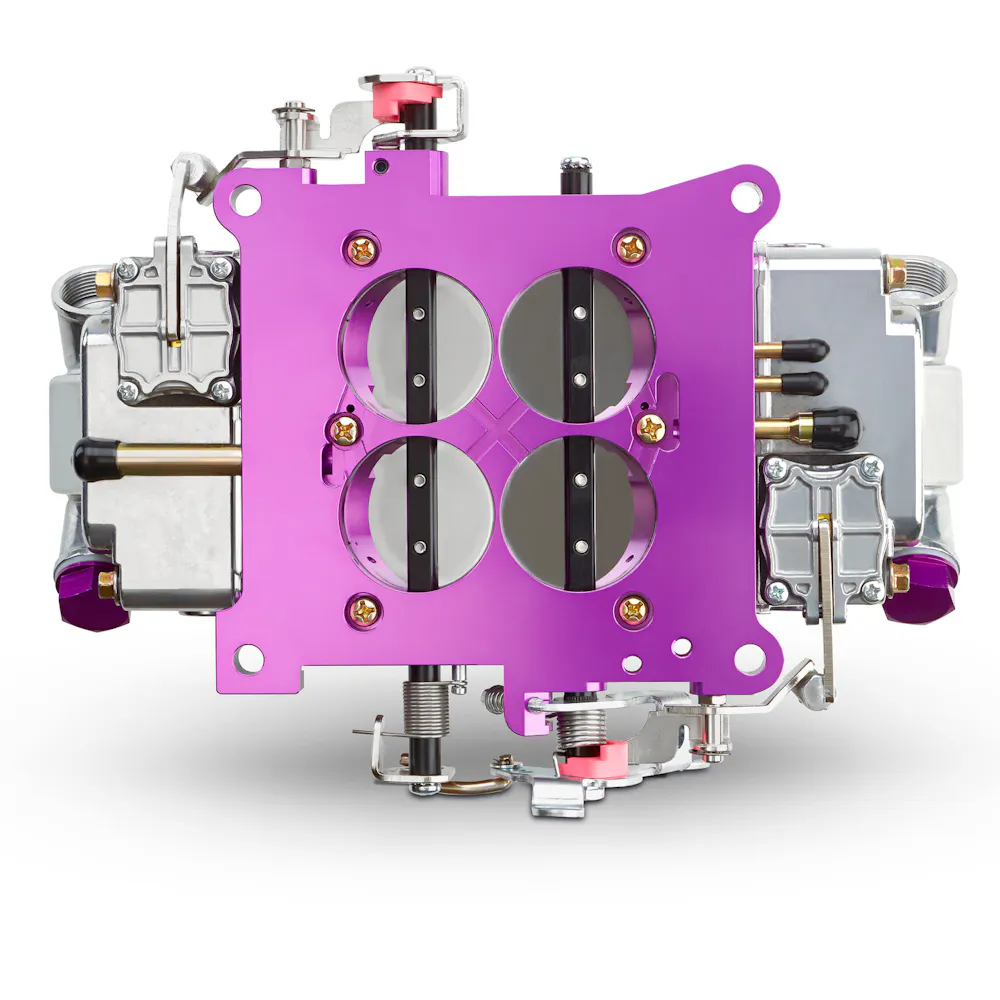

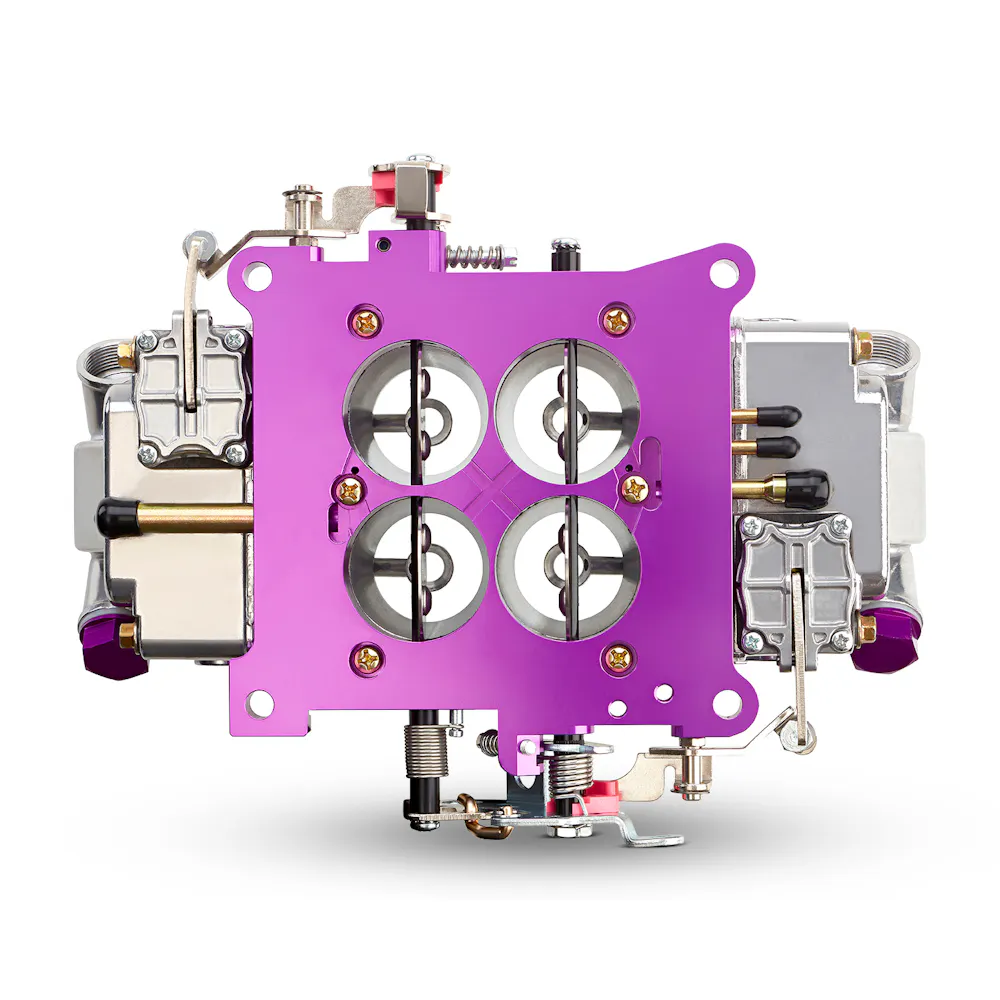

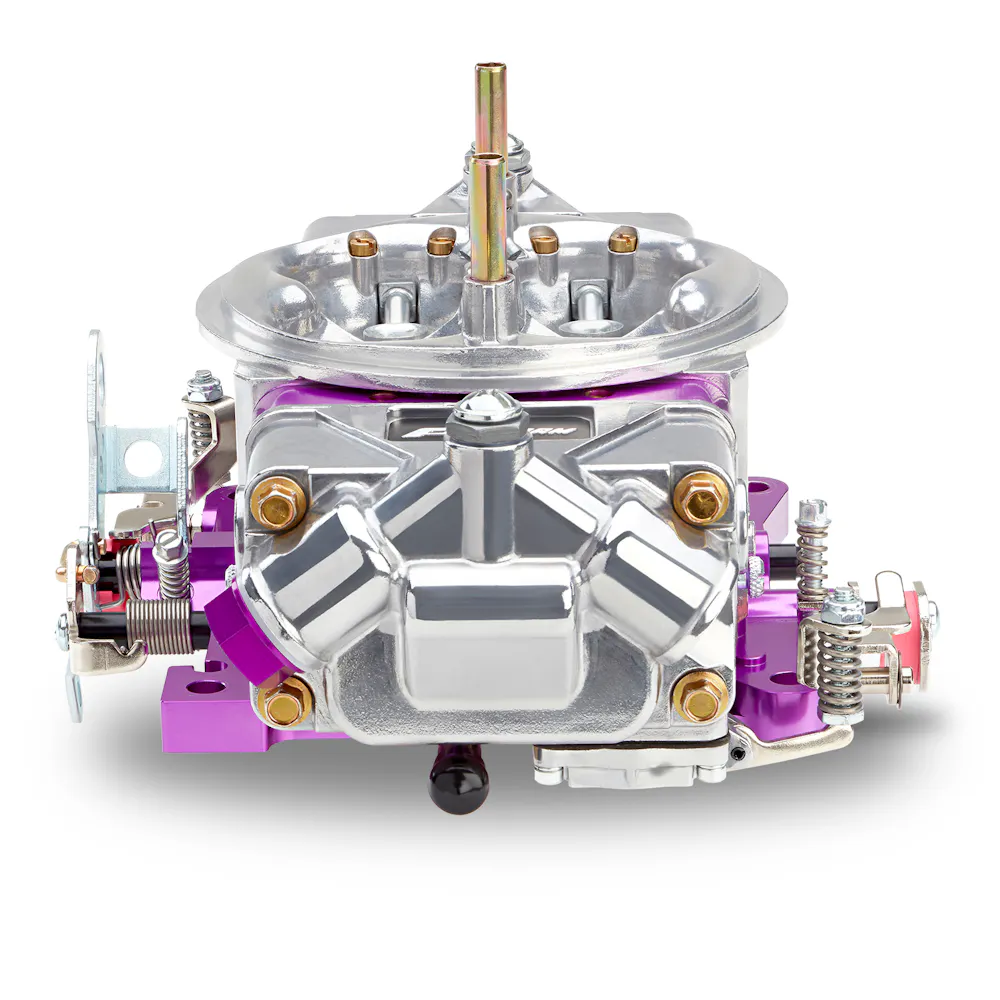

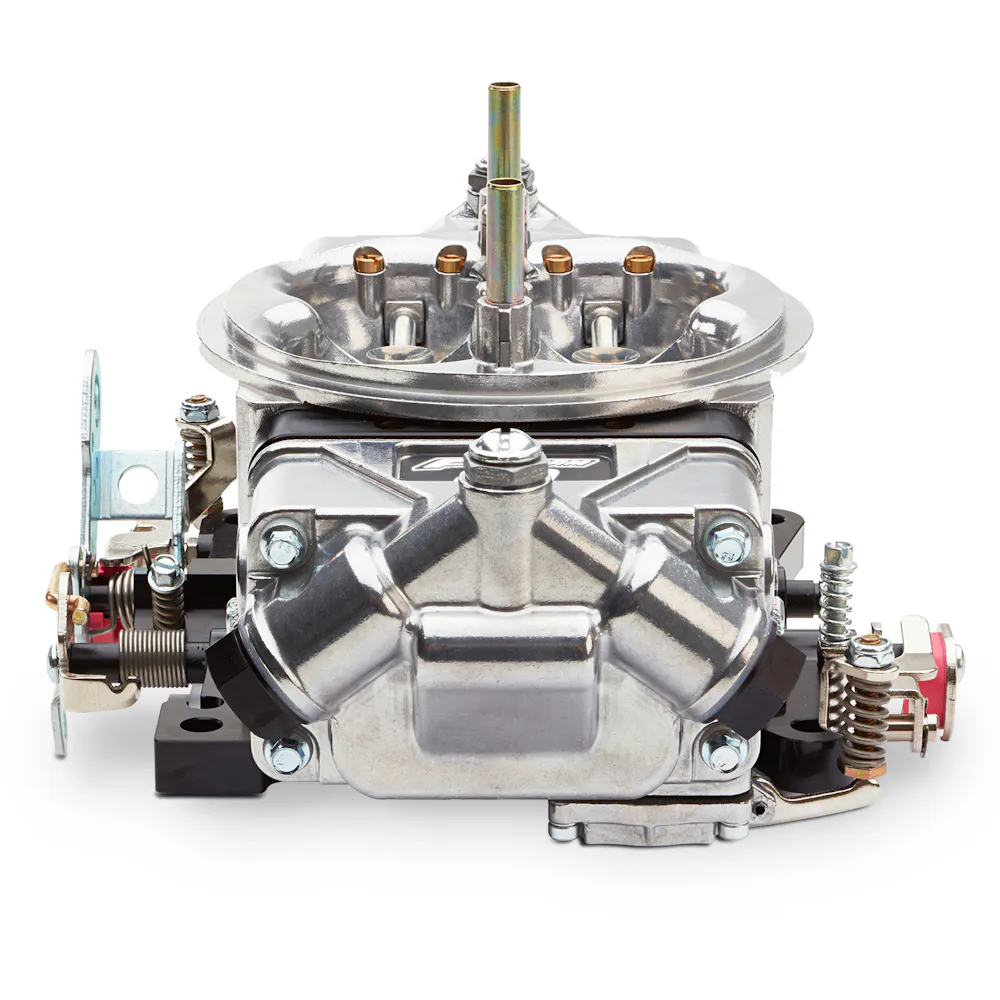

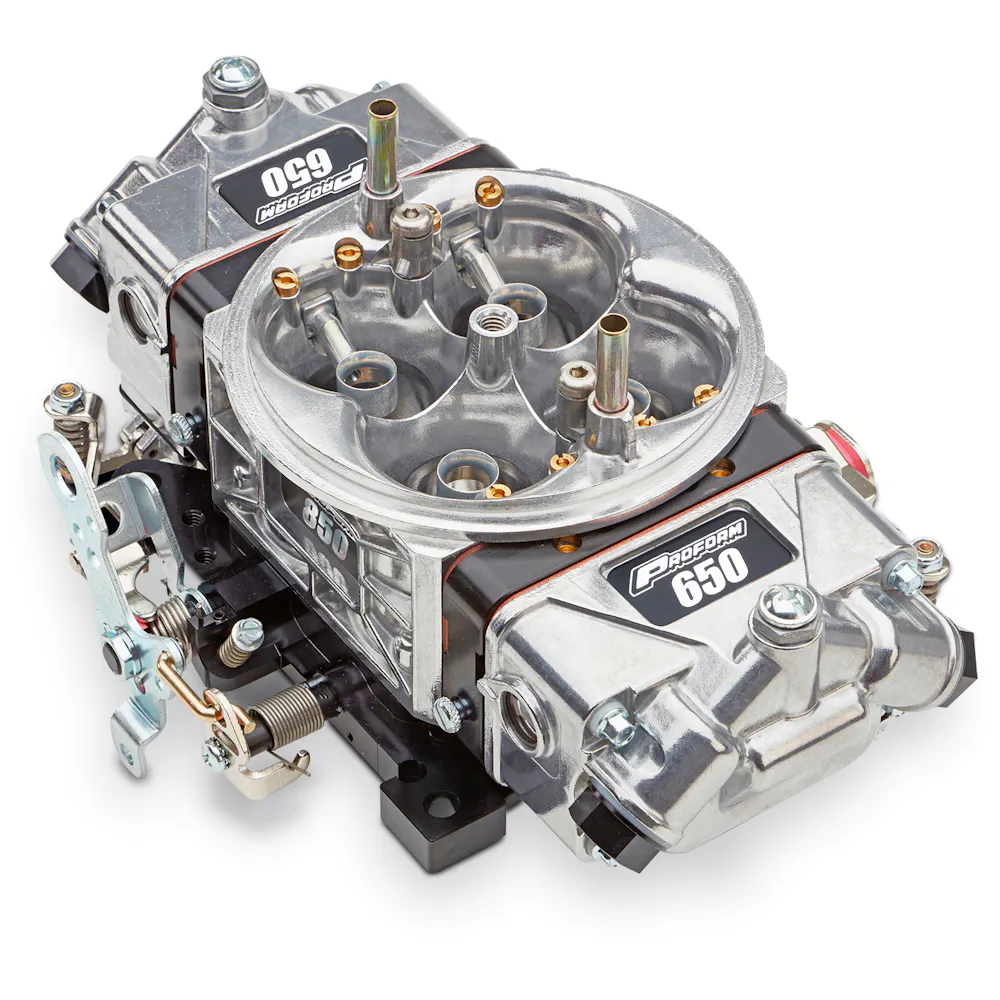

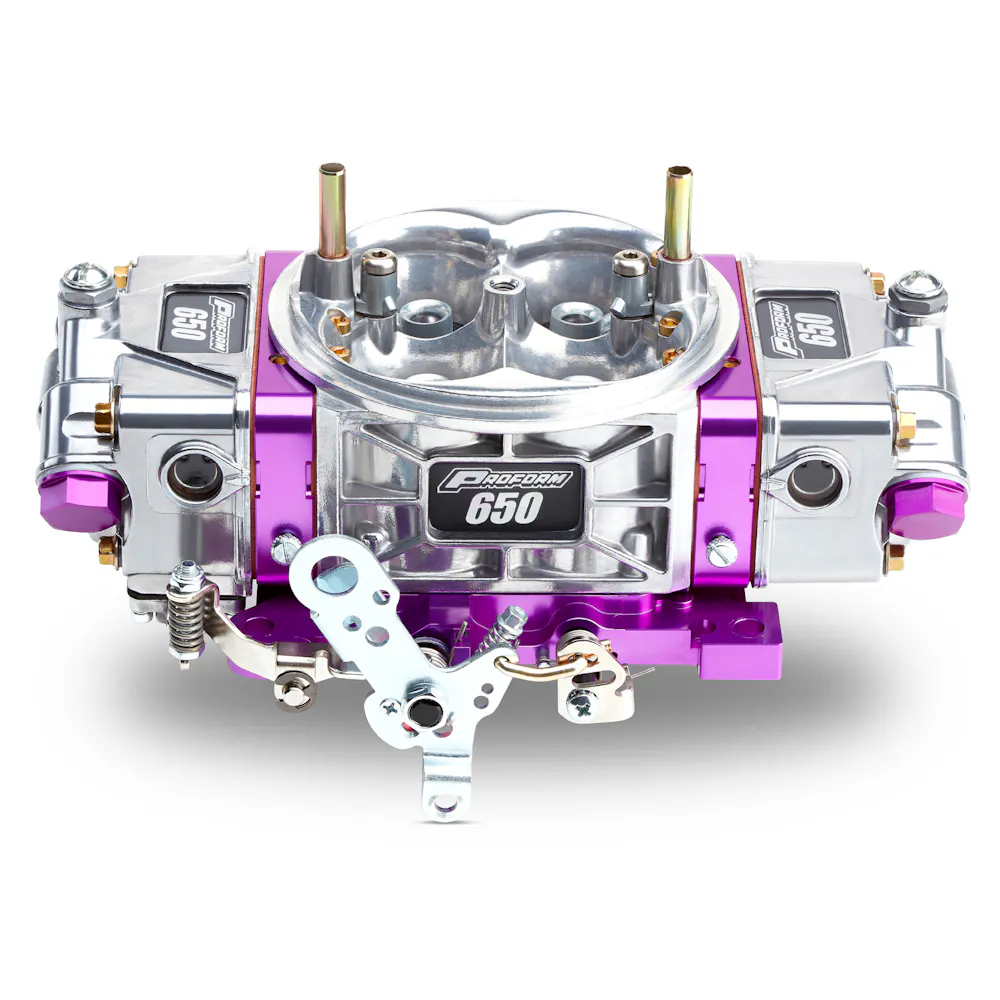

Finally an affordable high-performance race carburetor! PROFORM's new Race Series Carburetor is hand assembled in the U.S. utilizing the PROFORM High-Flow Carburetor Main Body, durable billet metering blocks, and a high performance billet throttle baseplate. The PROFORM Race Series Carb includes: PROFORM Carburetor Main Body, High-Flow Aluminum Main Body! , Dyno-Proven Horsepower and Torque Gain! , Adjustable, Screw-In Air Bleeds! , Maximum Air Flow: No Air Horn, Choke Tower, or Choke Control!, High-Rate Air-Flow Section Design!, Uses standard service and tuning components! PROFORM Billet Throttle Base Plates!!, Adjustable Secondary Air Flow Cam Bracket! , Solid Billet Construction!, Manufactured in the U.S.A.! , Timed and Full Vacuum Tubes for Accessories and Tunng!, Button Torx Head Throttle Plate Screws! , Power Valve Blow Out Protection! , Slip Link Mechanical Secondary Linkage!, Serviceable Throttle Levers!PROFORM Billet Metering Blocks, Solid Billet Construction! , Durable, No Warping or Porosity Problems! , Changeable Idle Feed Restriction! , Manufactured in the U.S.A.! PROFORM Aluminum Fuel Bowls, Lightweight Aluminum , Sight Glass Windows for easy float adjustment!
Features & benefits
- Lightweight Aluminum Construction
Information
Mechanical Secondaries
Application summary
| Year | Make / model |
|---|---|
| 1969-1972 | Avanti II |
| 1977-1980 | Avanti II |
| 1994-1996 | Cadillac Commercial Chassis |
| 1979-1984 | Cadillac DeVille |
| 1979-1985 | Cadillac Eldorado |
| 1999 | Cadillac Escalade |
| 1979-1985 | Cadillac Fleetwood |
| 1994-1996 | Cadillac Fleetwood |
| 1978-1985 | Cadillac Seville |
| 1969-1974 | Checker Aerobus |
| 1969-1970 | Checker Deluxe |
| 1969-1979 | Checker Marathon |
| 1969-1974 | Checker Taxicab |
| 1969-1975 | Chevrolet Bel Air |
| 1969-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1987-1994 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1975-1986 | Chevrolet C10 |
| 1969-1974 | Chevrolet C10 Pickup |
| 1969-1986 | Chevrolet C10 Suburban |
| 1982-1985 | Chevrolet C15 |
| 1988-1999 | Chevrolet C1500 |
| 1992-1999 | Chevrolet C1500 Suburban |
| 1975-1987 | Chevrolet C20 |
| 1969-1974 | Chevrolet C20 Pickup |
| 1969-1986 | Chevrolet C20 Suburban |
| 1988-1999 | Chevrolet C2500 |
| 1992-1999 | Chevrolet C2500 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1969-1974 | Chevrolet C30 Pickup |
| 1983-1999 | Chevrolet C35 |
| 1988-1999 | Chevrolet C3500 |
| 1991-1995 | Chevrolet C3500HD |
| 1969-1979 | Chevrolet C50 |
| 1969-1979 | Chevrolet C60 |
| 1979 | Chevrolet C70 |
| 1967-1981 | Chevrolet Camaro |
| 1987-1997 | Chevrolet Camaro |
| 1969-1988 | Chevrolet Caprice |
| 1994-1996 | Chevrolet Caprice |
| 1997-1999 | Chevrolet Cargo Van |
| 1969-1973 | Chevrolet Chevelle |
| 1968 | Chevrolet Chevy II |
| 1994 | Chevrolet Commercial Chassis |
| 1969-1981 | Chevrolet Corvette |
| 1985-1996 | Chevrolet Corvette |
| 1968-1979 | Chevrolet El Camino |
| 1983-1984 | Chevrolet El Camino |
| 1969-1970 | Chevrolet Estate |
| 1996-1999 | Chevrolet Express 1500 |
| 1996-1999 | Chevrolet Express 2500 |
| 1996-1999 | Chevrolet Express 3500 |
| 1975-1993 | Chevrolet G10 |
| 1970-1974 | Chevrolet G10 Van |
| 1975-1995 | Chevrolet G20 |
| 1970-1974 | Chevrolet G20 Van |
| 1975-1996 | Chevrolet G30 |
| 1970-1974 | Chevrolet G30 Van |
| 1993-1996 | Chevrolet GP3500 |
| 1969-1985 | Chevrolet Impala |
| 1994-1996 | Chevrolet Impala |
| 1975-1986 | Chevrolet K10 |
| 1969-1974 | Chevrolet K10 Pickup |
| 1969-1986 | Chevrolet K10 Suburban |
| 1988-1999 | Chevrolet K1500 |
| 1992-1999 | Chevrolet K1500 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1969-1974 | Chevrolet K20 Pickup |
Specifications
- GTIN
- 00037995351992
- Weight
- 9.8 lb
- Height
- 7.5 in
- Length
- 13.5 in
- Width
- 11.25 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- PRF
- Warehouse brand code
- PRF
- AAIA brand code
- BCHW
Attributes
- Adjustable Float Level
- Yes
- Air Bleed Material
- Brass
- Air Bleed Size (Inner High Speed)
- 35 / 35
- Air Bleed Size (Outer Idle)
- 73 / 73
- Air Bleeds Included
- Yes
- Air Cleaner Flange Diameter
- 0.25
- Barrel Quantity
- 4
- Base Length
- 5.25
- Base Plate Material
- Billet Aluminum
- Base Width
- 5.25
- Body Color
- Silver
- Body Height
- 3.25
- Body Material
- Aluminum
- Booster Style
- Down-Leg Boosters
- CFM
- 650 CFM
- Calibration
- Universal
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category
- Carburetor - 650 CFM
- Center Hung Floats
- Yes
- Choke
- No Choke
- Choke Type
- Manual
- Color
- Vibratory Tumble Finish
- Discharge Nozzle Size (Primary / Secondary)
- .031 in. / .031 in.
- EGR
- Without EGR
- Emissions
- 49 State Legal
- Feature/Benefit
- Tons of features and affordable pricing = GREAT VALUE!
- Finish
- Vibratory Tumble Polished
- Flange Shape
- 4150 & 8090
- Flange Style
- Square Bore
- Flange Type
- Square/4150
- Float Material
- Nitrophyl
- Ford Kickdown Bracket Included
- No
- Fuel
- Gasoline
- Fuel Inlet
- Dual
- Fuel Inlet Thread
- 7/8-in. x20
- Fuel Line Inlet Distance
- 9-11/16 inch
- Gasket Or Seal Included
- Yes
- Grade Type
- Performance
- Height (IN)
- 3.25 inch
- Idle/High Speed Air Bleed Sizes
- 73 / 35
- Linkage Attached
- Yes
- Main Body Material
- Lightweight Aluminum
- Marine Approved
- No
- Material
- Aluminum
- Metering Block Material
- Billet Aluminum
- Mounting Hardware Included
- No
- Mounting Hole Diameter
- 0.25
- Mounting Hole Quantity
- 4
- Needle & Seat
- 110
- Number of Barrels
- 4
- Part Type
- Carburetor
- Primary Jet Diameter
- 0.075
- Primary Main Jet Size
- 71 / .075
- Primary Power Valve (Hg)
- 4.5
- Secondaries
- Mechanical Secondaries
- Secondary Jet Diameter
- 0.0685
- Secondary Main Jet Size
- 78 / .084
- Series
- Race Series
- Small Venturi Diameter
- 1.75
- Spacer Included
- No
- Street Legal
- Yes
- Throttle Linkage
- Universal
- Title
- PROFORM Race Series 650 CFM Carburetor
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1969-1972 Avanti II; 1977-1980 Avanti II; 1994-1996 Cadillac Commercial Chassis; 1979-1984 Cadillac DeVille; 1979-1985 Cadillac Eldorado; 1999 Cadillac Escalade; 1979-1985 Cadillac Fleetwood; 1994-1996 Cadillac Fleetwood; 1978-1985 Cadillac Seville; 1969-1974 Checker Aerobus; 1969-1970 Checker Deluxe; 1969-1979 Checker Marathon; 1969-1974 Checker Taxicab; 1969-1975 Chevrolet Bel Air; 1969-1972 Chevrolet Biscayne; 1969-1974 Chevrolet Blazer; 1987-1994 Chevrolet Blazer; 1969-1972 Chevrolet Brookwood; 1975-1986 Chevrolet C10; 1969-1974 Chevrolet C10 Pickup; 1969-1986 Chevrolet C10 Suburban; 1982-1985 Chevrolet C15; 1988-1999 Chevrolet C1500; 1992-1999 Chevrolet C1500 Suburban; 1975-1987 Chevrolet C20; 1969-1974 Chevrolet C20 Pickup; 1969-1986 Chevrolet C20 Suburban; 1988-1999 Chevrolet C2500; 1992-1999 Chevrolet C2500 Suburban; 1975-1986 Chevrolet C30; 1969-1974 Chevrolet C30 Pickup; 1983-1999 Chevrolet C35; 1988-1999 Chevrolet C3500; 1991-1995 Chevrolet C3500HD; 1969-1979 Chevrolet C50; 1969-1979 Chevrolet C60; 1979 Chevrolet C70; 1967-1981 Chevrolet Camaro; 1987-1997 Chevrolet Camaro; 1969-1988 Chevrolet Caprice; 1994-1996 Chevrolet Caprice; 1997-1999 Chevrolet Cargo Van; 1969-1973 Chevrolet Chevelle; 1968 Chevrolet Chevy II; 1994 Chevrolet Commercial Chassis; 1969-1981 Chevrolet Corvette; 1985-1996 Chevrolet Corvette; 1968-1979 Chevrolet El Camino; 1983-1984 Chevrolet El Camino; 1969-1970 Chevrolet Estate; 1996-1999 Chevrolet Express 1500; 1996-1999 Chevrolet Express 2500; 1996-1999 Chevrolet Express 3500; 1975-1993 Chevrolet G10; 1970-1974 Chevrolet G10 Van; 1975-1995 Chevrolet G20; 1970-1974 Chevrolet G20 Van; 1975-1996 Chevrolet G30; 1970-1974 Chevrolet G30 Van; 1993-1996 Chevrolet GP3500; 1969-1985 Chevrolet Impala; 1994-1996 Chevrolet Impala; 1975-1986 Chevrolet K10; 1969-1974 Chevrolet K10 Pickup; 1969-1986 Chevrolet K10 Suburban; 1988-1999 Chevrolet K1500; 1992-1999 Chevrolet K1500 Suburban; 1975-1986 Chevrolet K20; 1969-1974 Chevrolet K20 Pickup; ...
