PROFORM / 66430.16N
Part #: 66430.16N
UPC: 037995930166
Loading...
Notify me when this item is in stock.
Description: 100% New; Sold Individually
Description:
Description

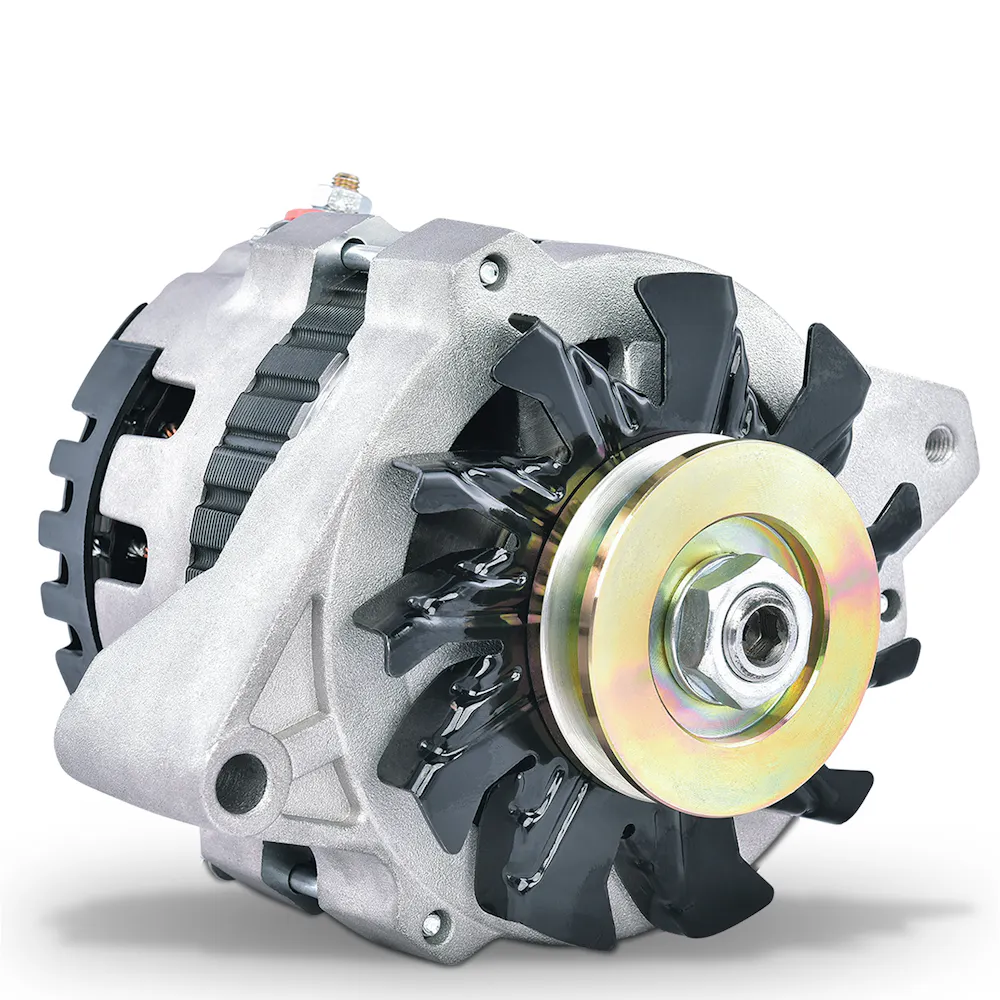

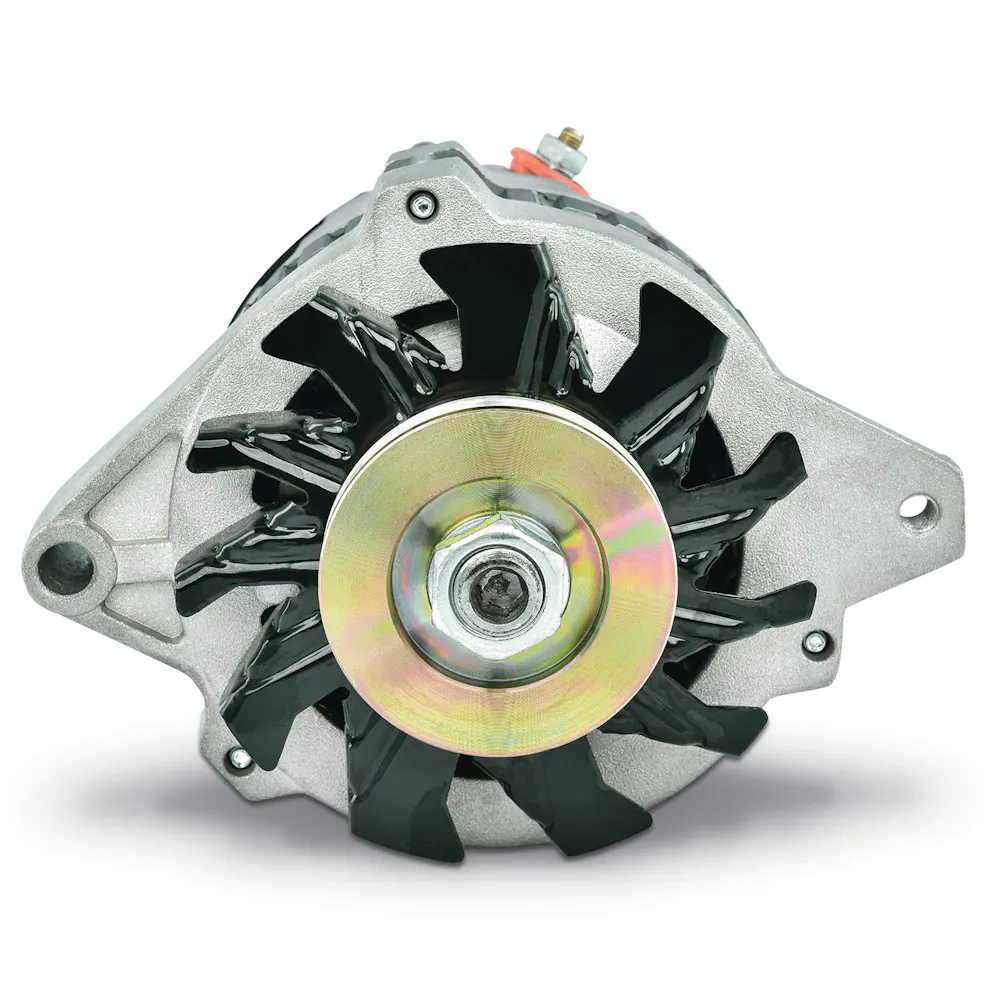

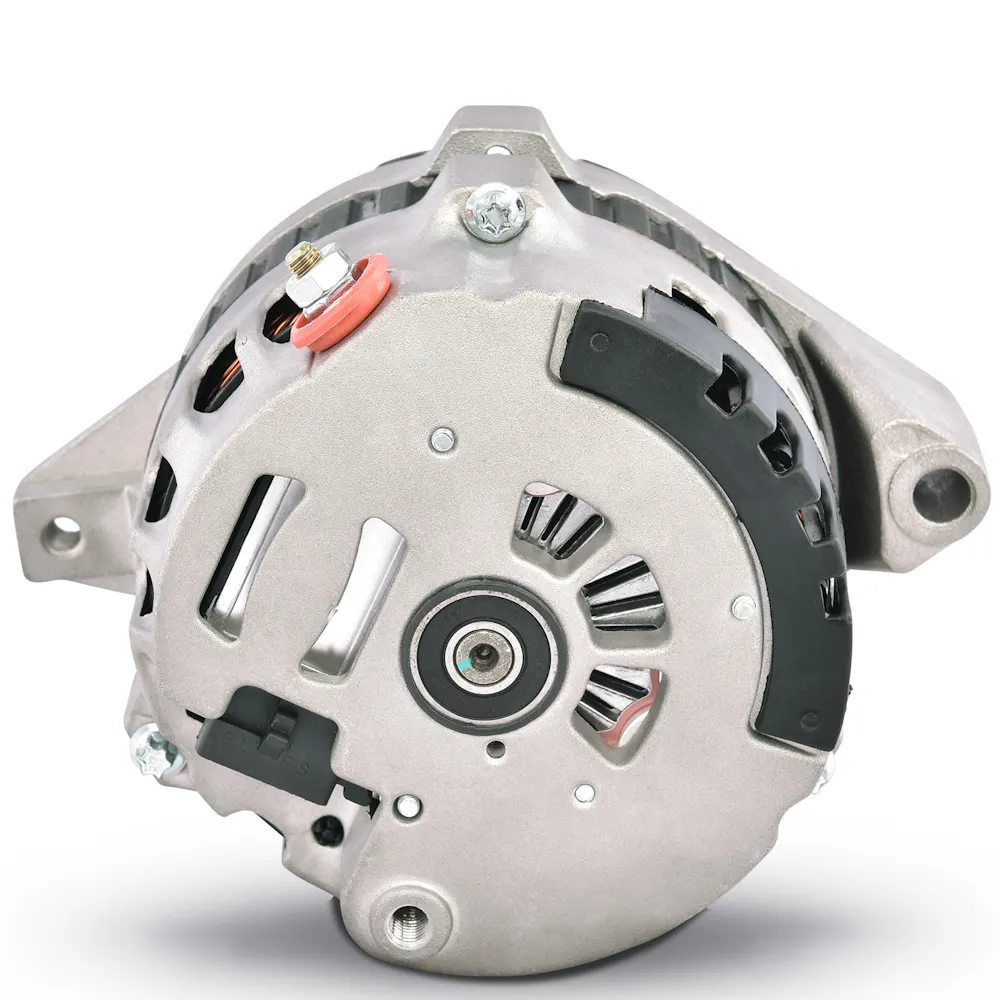

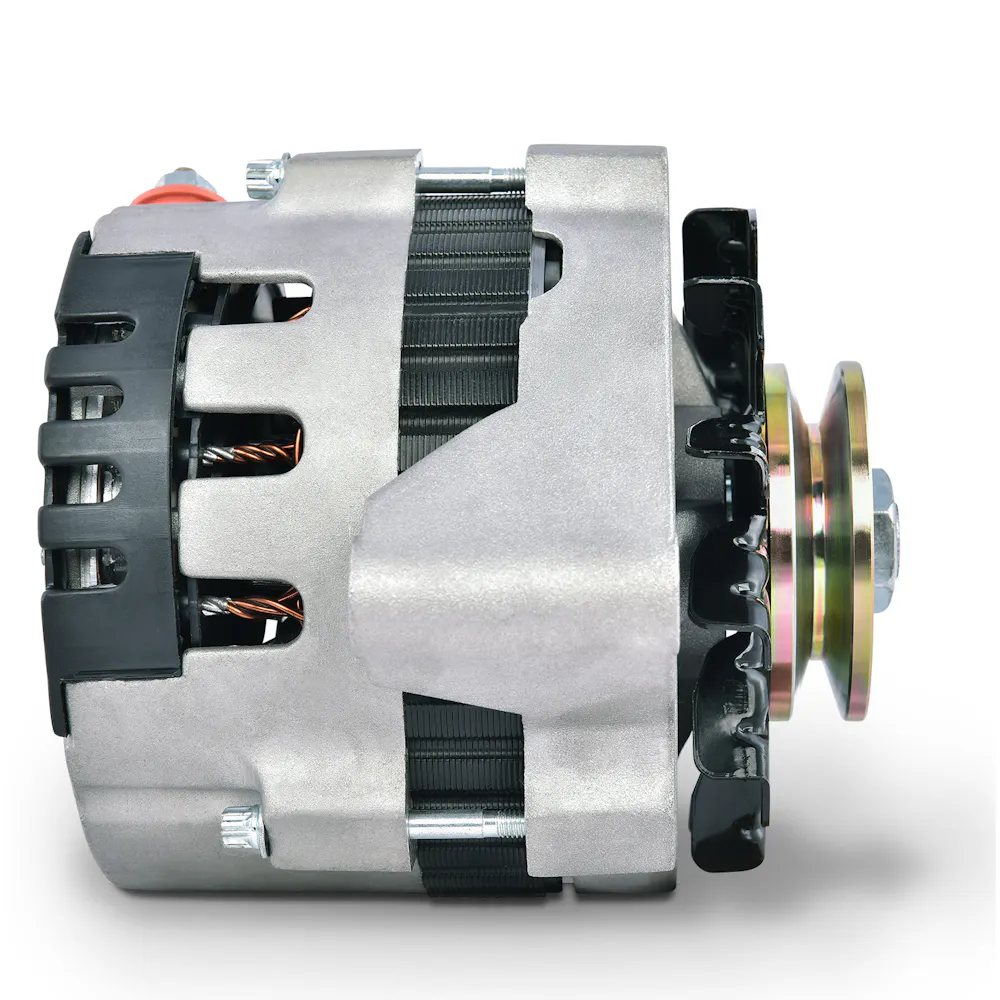

PROFORM's NEW CS130 160 AMP Alternator, for Small Block Chevy 305-350 and Big Block Chevy 402-454 engines, is a 1-wire, CS130 Case Style, complete with Internal Regulator. The External Fan Style Alternator features a Machined Pulley, natural cast finish and is NOT made with re-man components. Each alternator is produced by highly specialized machines, assembled by highly trained personnel using dedicated jigs and equipment - 100% New. Sold individually.
Information
100% New
Application summary
| Year | Make / model |
|---|---|
| 1986 | Chevrolet Astro |
| 1987 | Chevrolet Blazer |
| 1990-1993 | Chevrolet C1500 |
| 1990-1993 | Chevrolet C2500 |
| 1992-1993 | Chevrolet C2500 Suburban |
| 1988-1993 | Chevrolet C3500 |
| 1987 | Chevrolet Camaro |
| 1988 | Chevrolet Caprice |
| 1991-1993 | Chevrolet G20 |
| 1988-1993 | Chevrolet G30 |
| 1990-1991 | Chevrolet K1500 |
| 1990-1993 | Chevrolet K2500 |
| 1992-1993 | Chevrolet K2500 Suburban |
| 1988-1993 | Chevrolet K3500 |
| 1987 | Chevrolet R10 |
| 1987-1988 | Chevrolet R10 Suburban |
| 1987-1988 | Chevrolet R20 |
| 1987-1988 | Chevrolet R20 Suburban |
| 1989 | Chevrolet R2500 |
| 1989-1991 | Chevrolet R2500 Suburban |
| 1987-1988 | Chevrolet R30 |
| 1989-1991 | Chevrolet R3500 |
| 1986 | Chevrolet S10 |
| 1987 | Chevrolet V10 |
| 1987-1988 | Chevrolet V10 Suburban |
| 1987 | Chevrolet V20 |
| 1987-1988 | Chevrolet V20 Suburban |
| 1990 | Chevrolet V2500 Suburban |
| 1987-1988 | Chevrolet V30 |
| 1989-1991 | Chevrolet V3500 |
| 1988-1991 | GMC C1500 |
| 1988-1993 | GMC C2500 |
| 1988-1993 | GMC C3500 |
| 1991-1993 | GMC G2500 |
| 1988-1993 | GMC G3500 |
| 1987-1990 | GMC Jimmy |
| 1988-1991 | GMC K1500 |
| 1988-1993 | GMC K2500 |
| 1993 | GMC K2500 Suburban |
| 1988-1993 | GMC K3500 |
| 1987 | GMC R1500 |
| 1987-1988 | GMC R1500 Suburban |
| 1987-1989 | GMC R2500 |
| 1987-1988 | GMC R2500 Suburban |
| 1987-1991 | GMC R3500 |
| 1986 | GMC S15 |
| 1986 | GMC Safari |
| 1987 | GMC V1500 |
| 1987-1988 | GMC V1500 Suburban |
| 1987 | GMC V2500 |
| 1987-1988 | GMC V2500 Suburban |
| 1987-1991 | GMC V3500 |
| 1988 | Oldsmobile Cutlass Calais |
| 1988 | Pontiac Fiero |
| 1987 | Pontiac Firebird |
| 1986-1987 | Pontiac Grand Am |
Specifications
- GTIN
- 00037995930166
- Weight
- 11.75 lb
- Height
- 8 in
- Length
- 7.25 in
- Width
- 6.75 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- PRF
- Warehouse brand code
- PRF
- AAIA brand code
- BCHW
Attributes
- AC Service Tap
- No
- Amperage Output
- 160 AMP
- Amperage Rating
- 160
- Brushless
- No
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Case Circumference
- 17
- Case Color
- Natural
- Case Material
- Aluminum
- Case Style
- CS-130
- Category
- Alternators
- Color
- Gray
- Decoupled Or Clutch Pulley
- Yes
- Distance Between Mounting Feet
- 6.133
- Drive End To Pulley 1st Groove Distance
- 1.4
- Drive End To Rotor Shaft End Distance
- 6
- External Fan Included
- Yes
- External Regulator Included
- Yes
- Family
- CS-130
- Fan Type
- Internal
- Feature/Benefit
- A manufacturing break-through has enabled PROFORM to offer 100% NEW alternators with the same affordability as other brands' re-built models!
- Finish
- Powder Coated
- Ground Type
- Positive
- Mounting Type
- Standard
- One Wire Capable
- Yes
- Outside Pulley Diameter
- 2.621
- Part Type
- Alternator
- Plug Clock Rear View Main Mounting Ear at 6 O Clock
- 12
- Pulley Belt Type
- V-Belt
- Pulley Diameter
- 2 1/2 inch
- Pulley Groove Quantity
- 0
- Regulator Type
- Internal
- Thread Size
- M8-1.25
- Title
- CS130 Alternator, 160 AMP Natural Finish, 1-Wire
- Voltage
- 12 Volt
- Wire Type
- 1-Wire
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1986 Chevrolet Astro; 1987 Chevrolet Blazer; 1990-1993 Chevrolet C1500; 1990-1993 Chevrolet C2500; 1992-1993 Chevrolet C2500 Suburban; 1988-1993 Chevrolet C3500; 1987 Chevrolet Camaro; 1988 Chevrolet Caprice; 1991-1993 Chevrolet G20; 1988-1993 Chevrolet G30; 1990-1991 Chevrolet K1500; 1990-1993 Chevrolet K2500; 1992-1993 Chevrolet K2500 Suburban; 1988-1993 Chevrolet K3500; 1987 Chevrolet R10; 1987-1988 Chevrolet R10 Suburban; 1987-1988 Chevrolet R20; 1987-1988 Chevrolet R20 Suburban; 1989 Chevrolet R2500; 1989-1991 Chevrolet R2500 Suburban; 1987-1988 Chevrolet R30; 1989-1991 Chevrolet R3500; 1986 Chevrolet S10; 1987 Chevrolet V10; 1987-1988 Chevrolet V10 Suburban; 1987 Chevrolet V20; 1987-1988 Chevrolet V20 Suburban; 1990 Chevrolet V2500 Suburban; 1987-1988 Chevrolet V30; 1989-1991 Chevrolet V3500; 1988-1991 GMC C1500; 1988-1993 GMC C2500; 1988-1993 GMC C3500; 1991-1993 GMC G2500; 1988-1993 GMC G3500; 1987-1990 GMC Jimmy; 1988-1991 GMC K1500; 1988-1993 GMC K2500; 1993 GMC K2500 Suburban; 1988-1993 GMC K3500; 1987 GMC R1500; 1987-1988 GMC R1500 Suburban; 1987-1989 GMC R2500; 1987-1988 GMC R2500 Suburban; 1987-1991 GMC R3500; 1986 GMC S15; 1986 GMC Safari; 1987 GMC V1500; 1987-1988 GMC V1500 Suburban; 1987 GMC V2500; 1987-1988 GMC V2500 Suburban; 1987-1991 GMC V3500; 1988 Oldsmobile Cutlass Calais; 1988 Pontiac Fiero; 1987 Pontiac Firebird; 1986-1987 Pontiac Grand Am
Equivalent Parts
PROFORM 66430.16N
