Oracle Lighting / 6923-023

Part #: 6923-023
UPC: 810030398929

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Oracle Lighting Series: LED Light Bars

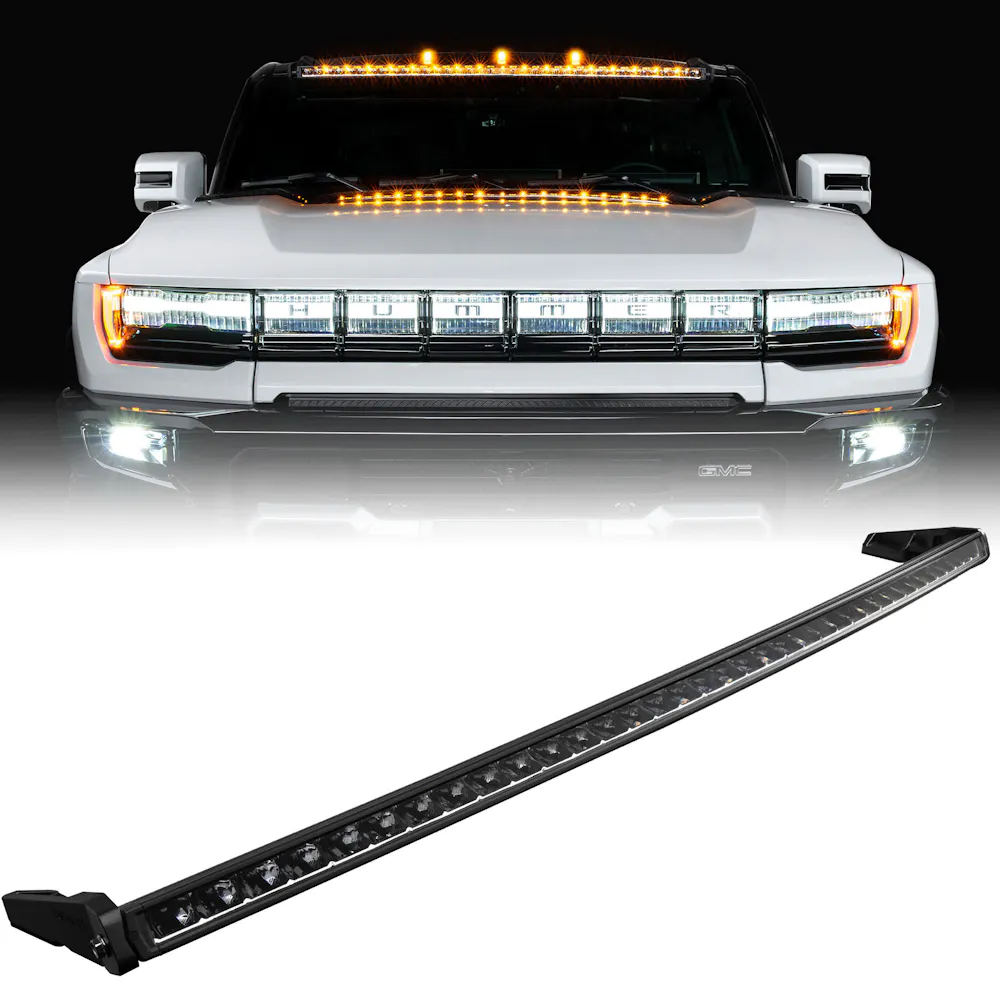

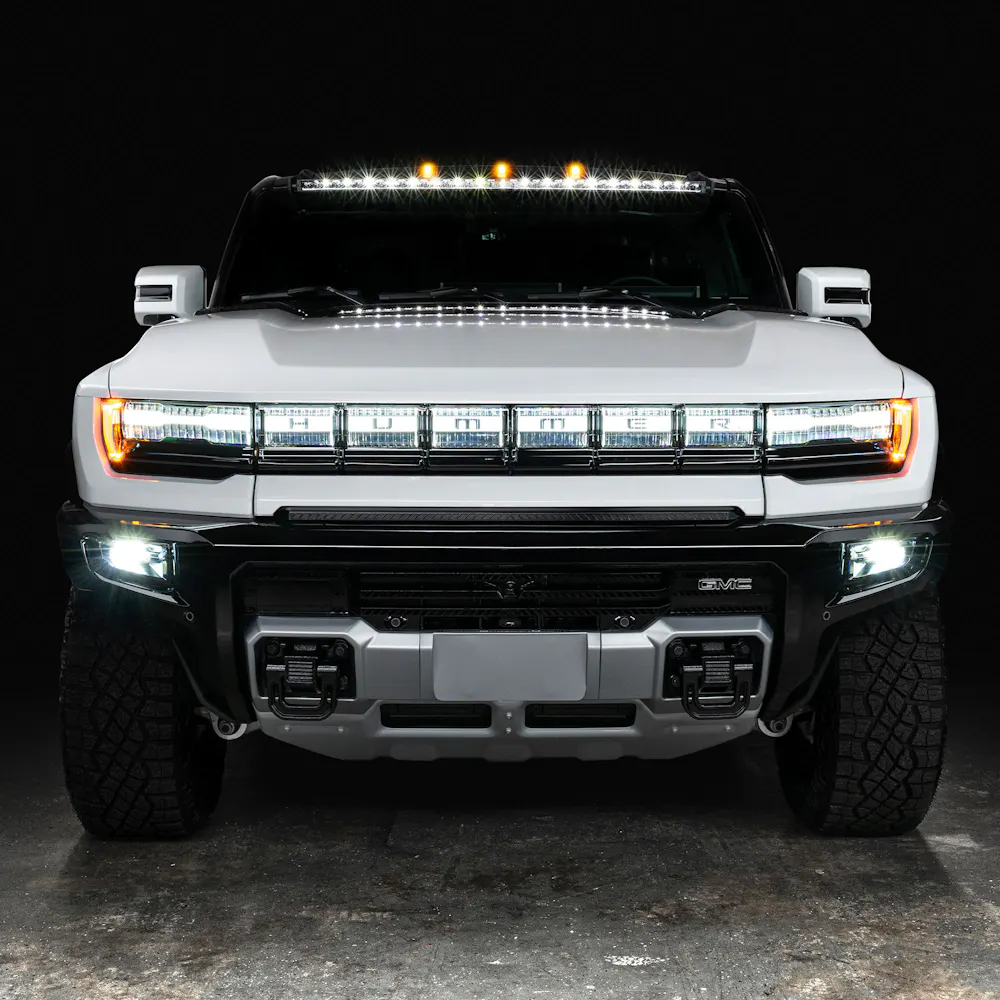

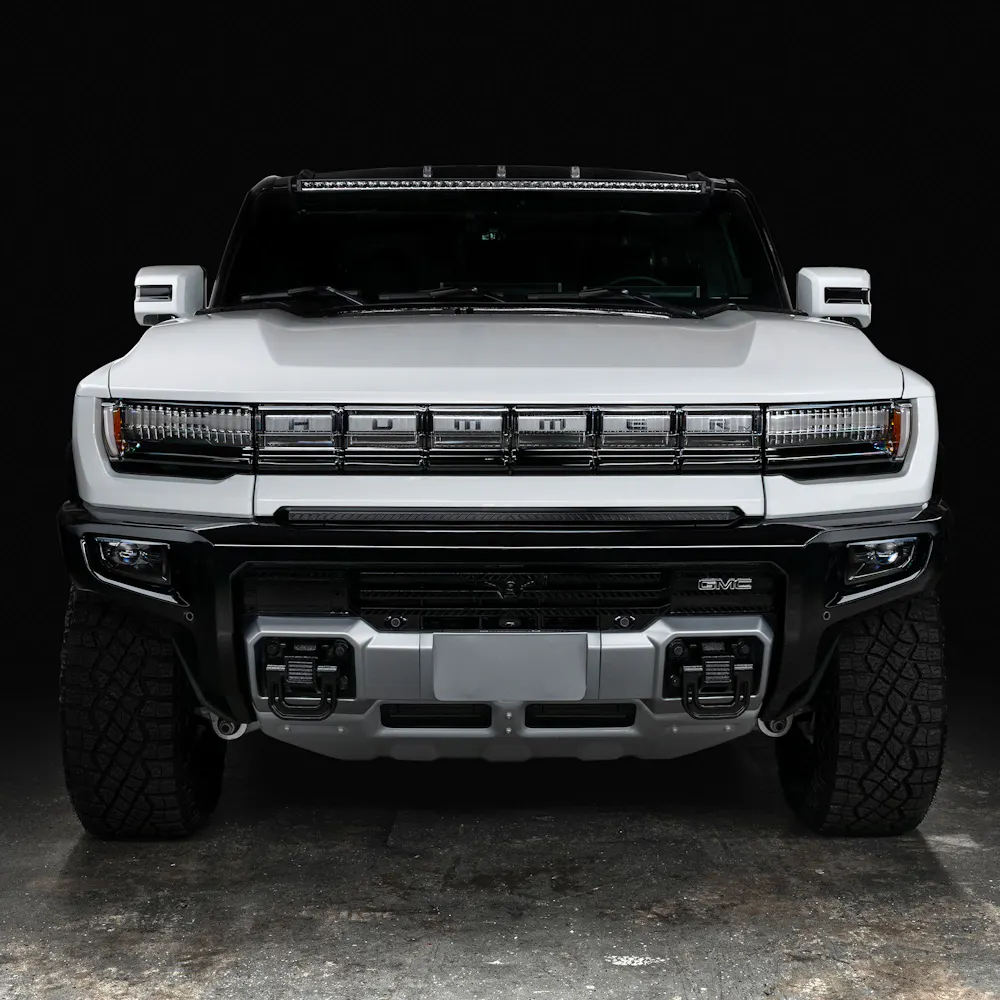

Description: 2022-2025 Hummer EV 50" Roof Mount Curved Light Bar w/ Brackets - Black; ORACLE Lighting 2022-2024 Hummer EV 50" Roof Mount Curved Light Bar w/ Brackets

pro mess

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

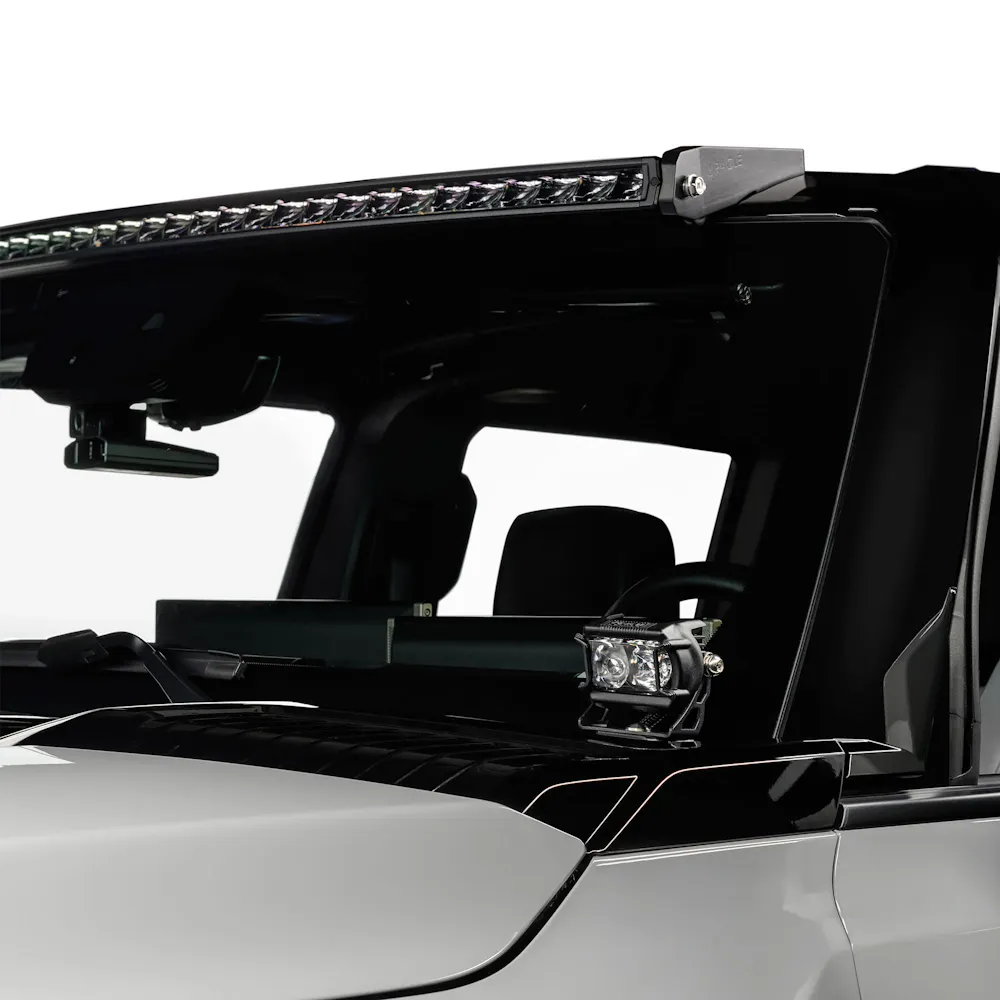

The ORACLE LED Light bar for the Hummer EV features a unique Low-Profile design which reduces wind noise and does not block the factory cab clearance lights. The brackets are CAD-designed specifically for this application for easy installation. The LED Light bar features an amazing 22,200 Lumens brightness which projects over 2,000 ft distance! Designed to match the curvature of the Hummer windshield, this light bar stands out from some of the other generic light bar options on the market in both Quality and Performance.

Features & benefits

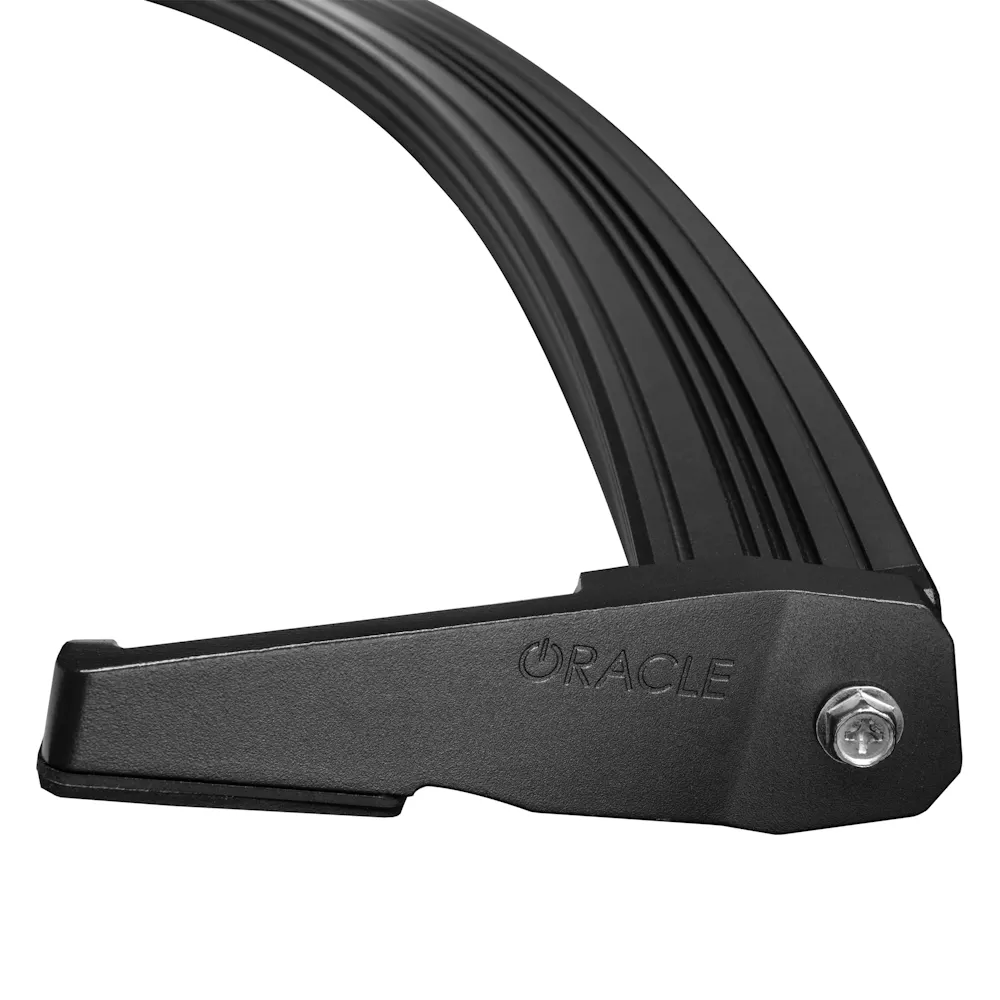

Hummer Bracket Specifications: Material: Cast Aluminum, Finish: Black Powder Coat, Fitment: Hummer EV (All), Rubberized Base Gaskets
Lamp Housing Material: 6030 Aluminum
Reflector Material: Plated Polycarbonate
High-Powered Lighting 36x 7W LED Main Light
Lens: Material: Lexan Polycarbonate
Lamp Finish: Polyester Powder Coat
Stainless Steel Anti-Fog Breather Valves
Molded IP68 Waterproof Connectors
Waterproof Rating: IP69 Ingress Protection

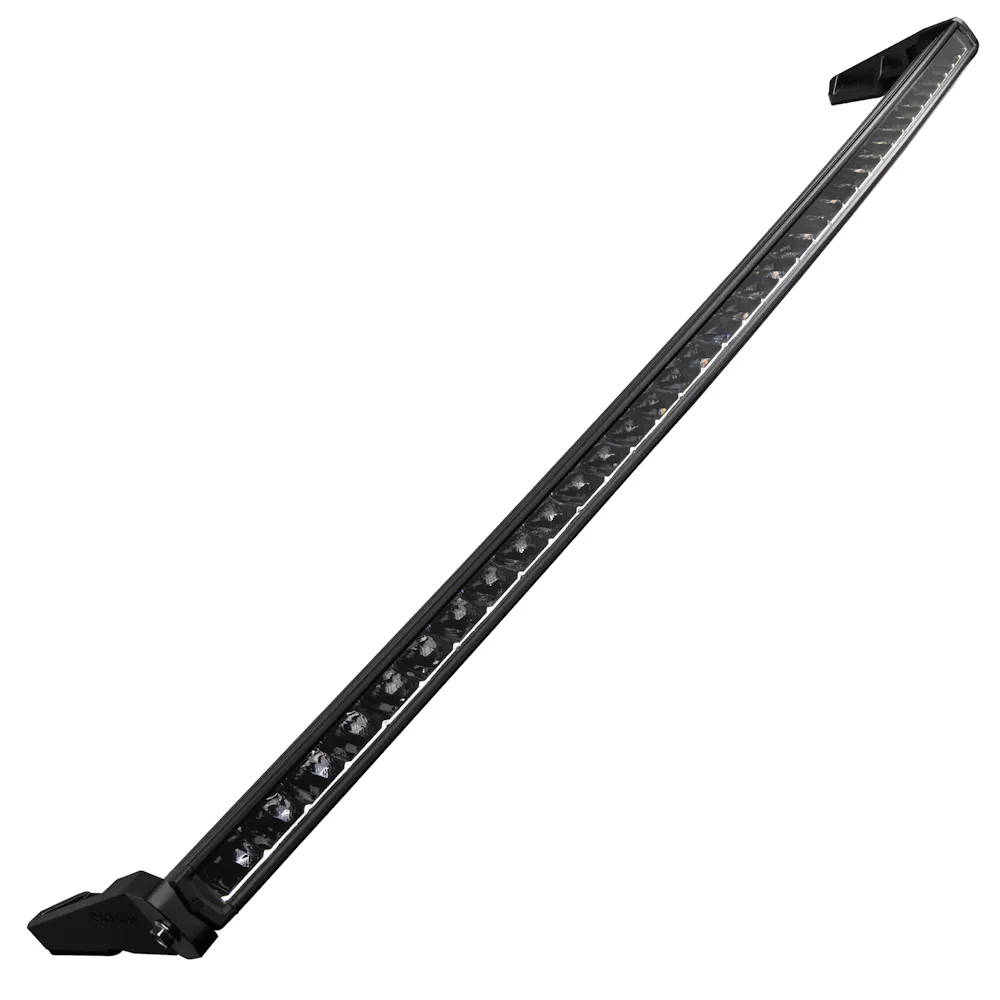

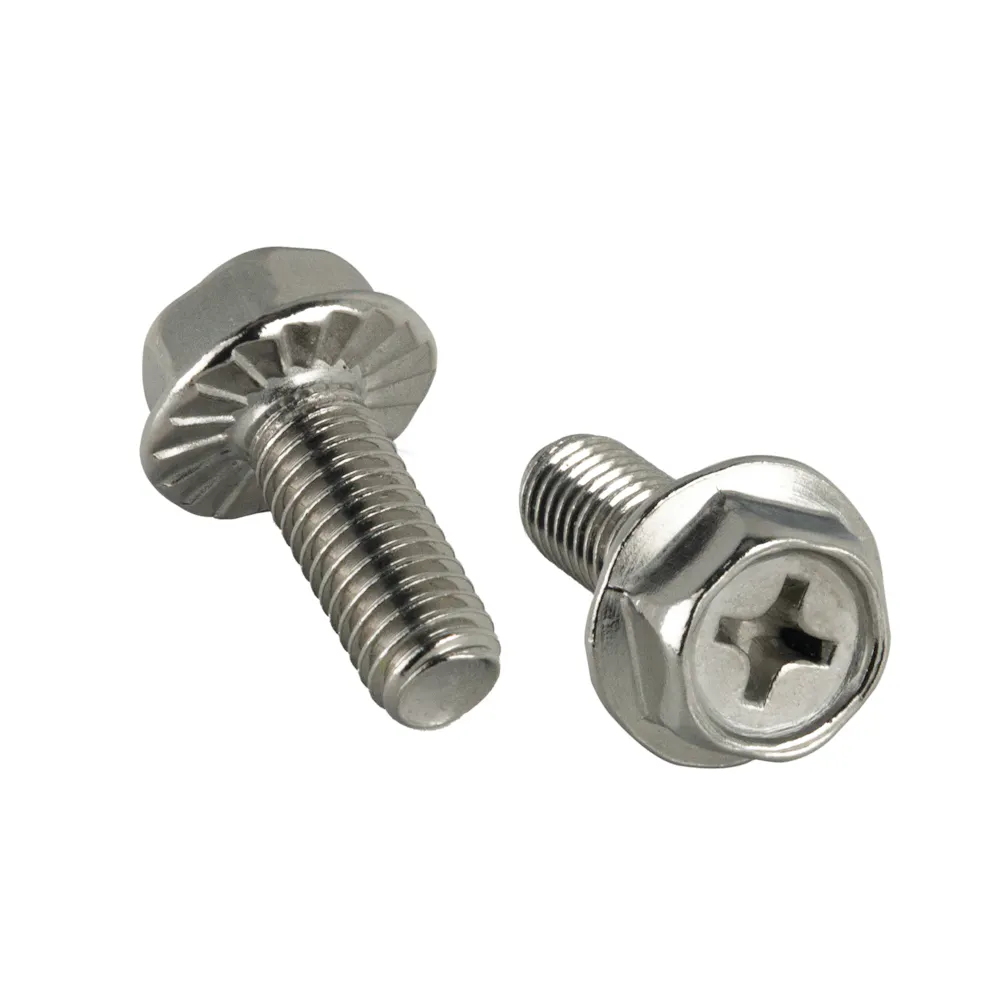

In the Box: (1) 2022-2024 Hummer EV 50" Roof Mount Curved Light Bar, (2) Mounting Brackets, Mounting Hardware & Weather Gasket

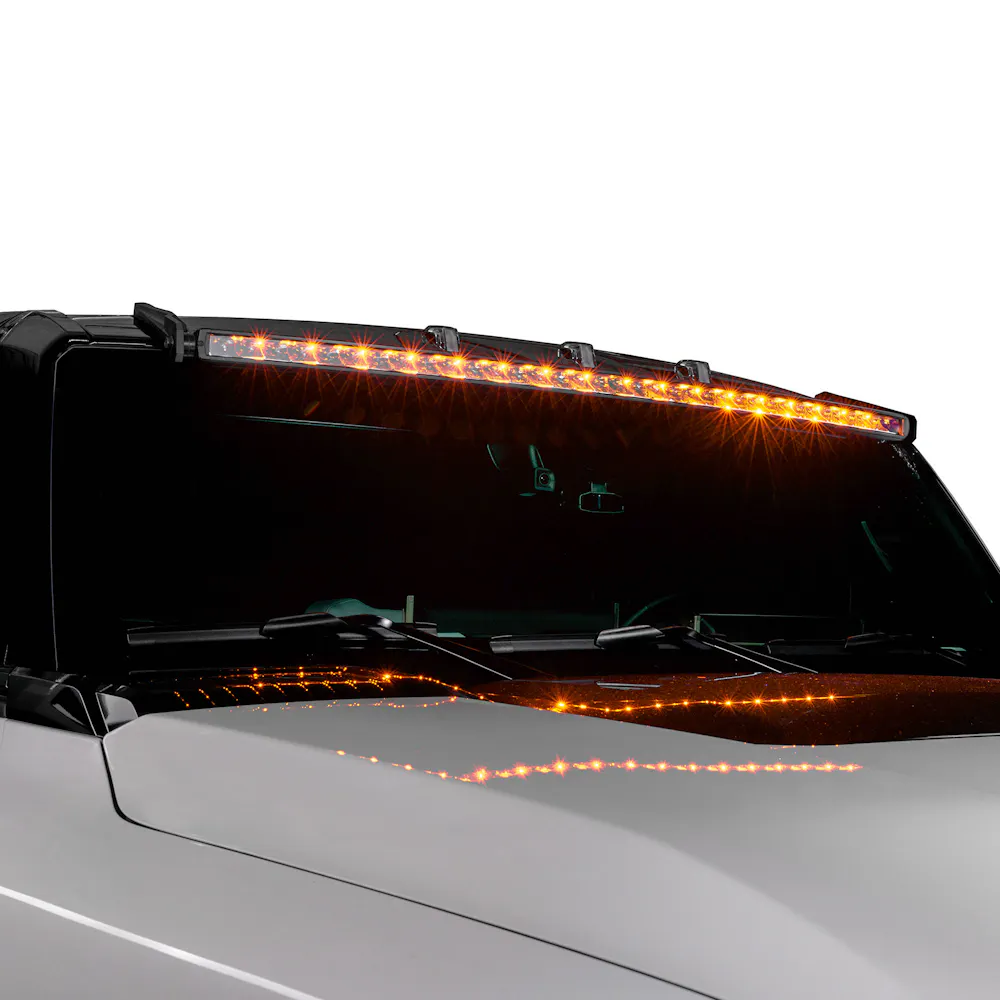

Selectable Amber or White Clearance Lights
Effective Lumen Light Output: 18,800LM
Precision LED Reflector-Facing Technology
Electronic Thermal Management
Innovative Patent-Pending Design
Designed and Engineered in the USA
LED Lifespan 50,000+ Hours
Raw Lumen Light Output: 22,200LM
Total Wattage: 252 Watts
Total Amp Draw: 16 Amps @12V DC
Beam Angle: 50° Driving Beam
Max Projection Distance: 1Lux@460M
Color Temperature: 5500K-6000K
Advanced Optic Design for Optimal Visibility
Outer Housing Material: Polycarbonate

Information

Black

Application summary

Year	Make / model
2022-2024	GMC Hummer EV Pickup
2024	GMC Hummer EV SUV

Specifications

GTIN: 00810030398929
Weight: 11 lb
Height: 4 in
Length: 53 in
Width: 8 in
Life cycle: Available to Order
AAM brand code: ORL
Warehouse brand code: FQCV
AAIA brand code: FQCV

Attributes

Add-On: N/A
Base Color: Black
Base Diameter: 55.5
Base Length: 56.62
Base Material: Aluminum
Brightness: 22000
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color: Black
Department of Transportation Approved: No
Electronic Thermal Management: Yes
Housing Color: Black
Housing Design: 6030 Aluminum
Housing Finish: Powder Coated
Housing Material: Aluminum
Housing Shape: Rectangle
Install Note: DIY Install- No Fabrication/ Modification Required
Lens Color: Clear
Lens Diameter: 48.05
Lens Length: 50
Lens Material: Polycarbonate
Lens Width: 40.5
Light Quantity: 36
Light Selection: Selectable Amber or White Clearance Lights
Light Type: High-Powered Lighting 36x 7W LED Main Light
Mount Type: Mounts using supplied brackets
Mounting Hardware Included: Yes
Protection Type: Under/Over Voltage and Reverse Polarity Protection
Relay Included: No
Street Legal: Yes
Switch Included: No
Technology: Precision LED Reflector-Facing Technology
Terminal Quantity: 4
Terminal Type: Lead Wire
Title: 6923-023 - Off-Road Lighting
Voltage: 12
Wattage: 252
Wire Gauge Measurement: 16
Wire Quantity: 4
Wiring Harness Included: Yes
Wiring Harness Length: 36
