Oracle Lighting · 5917-023

View More

Part #: 5917-023
UPC: 810030398905

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Oracle Lighting Series: LED Light Bars

pro mess

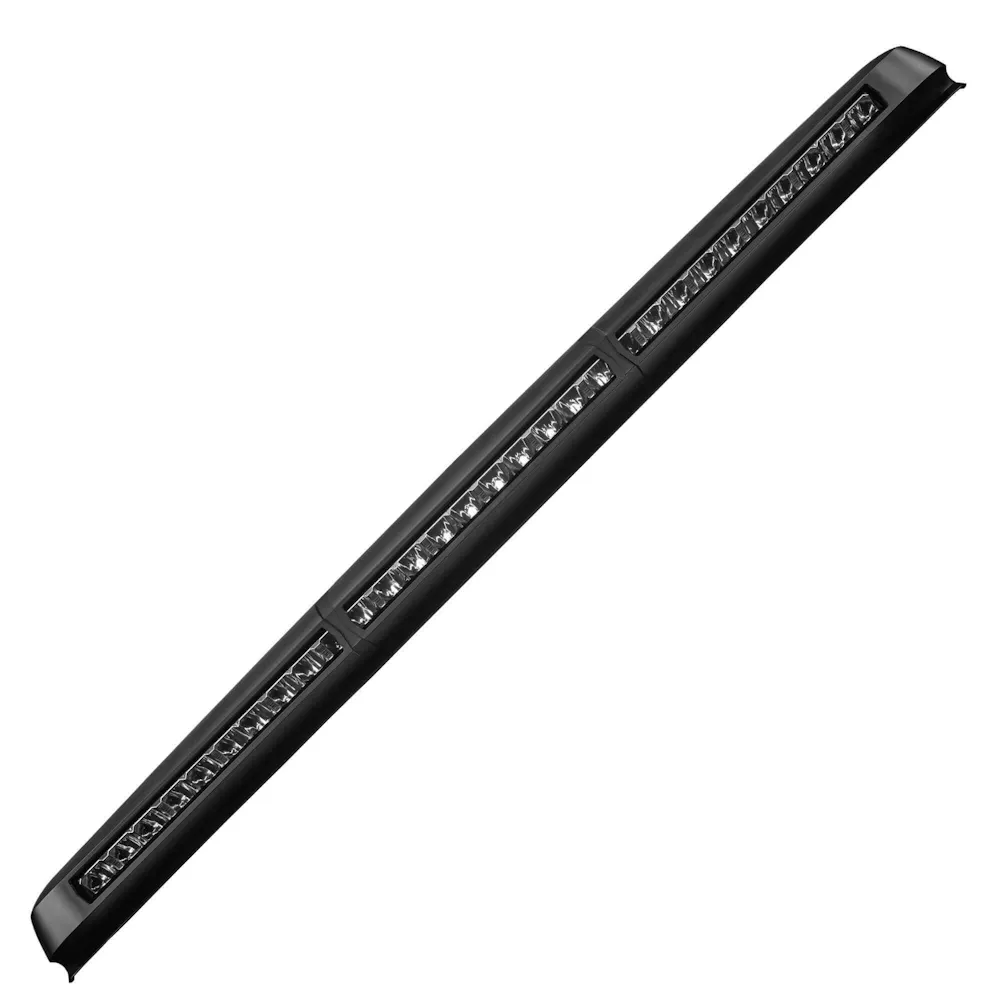

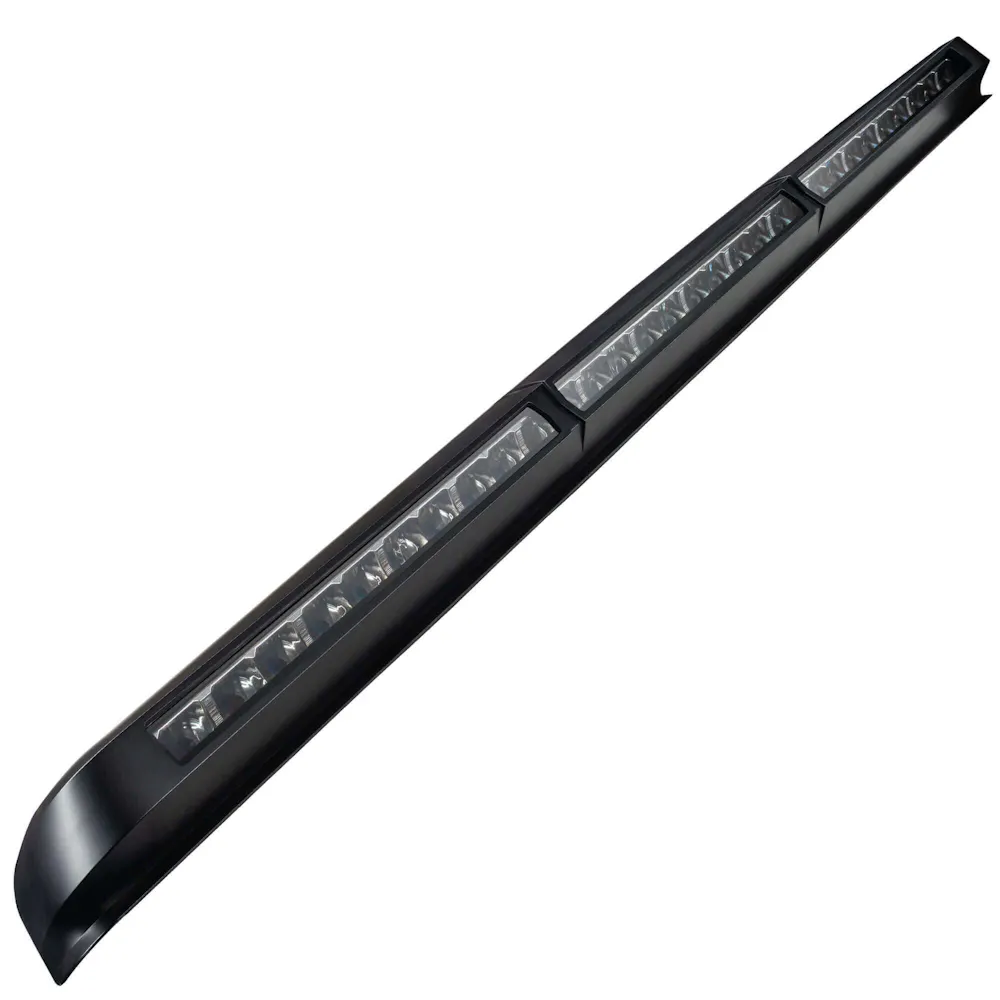

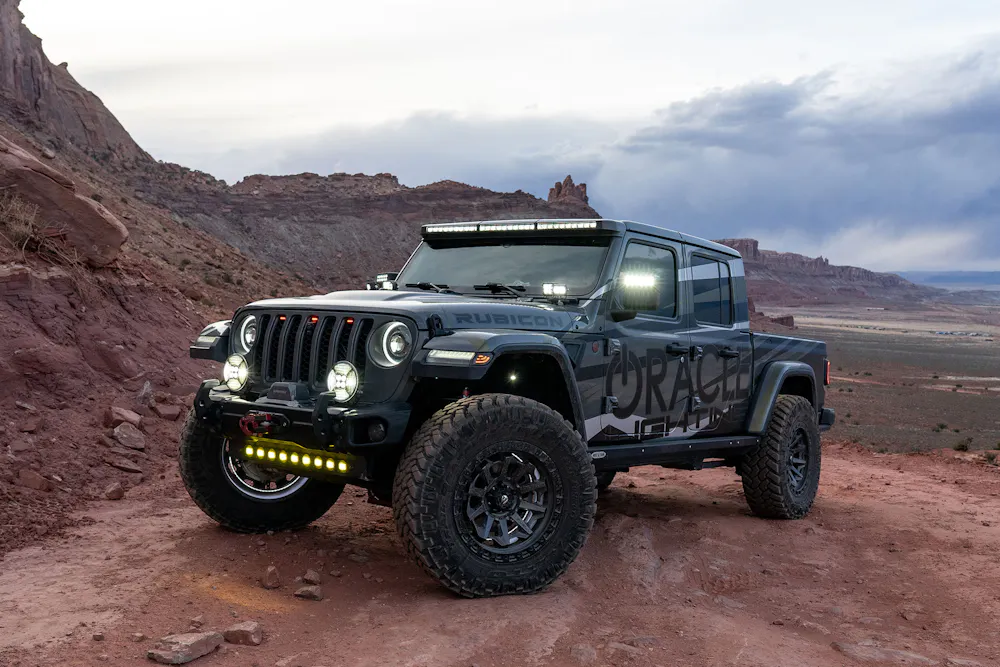

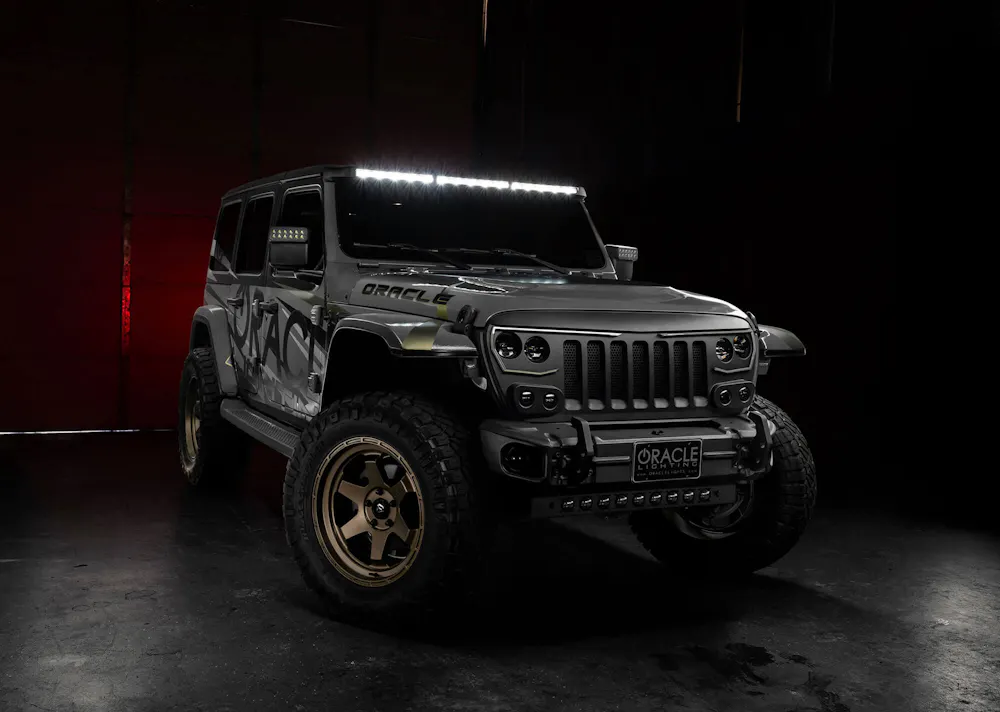

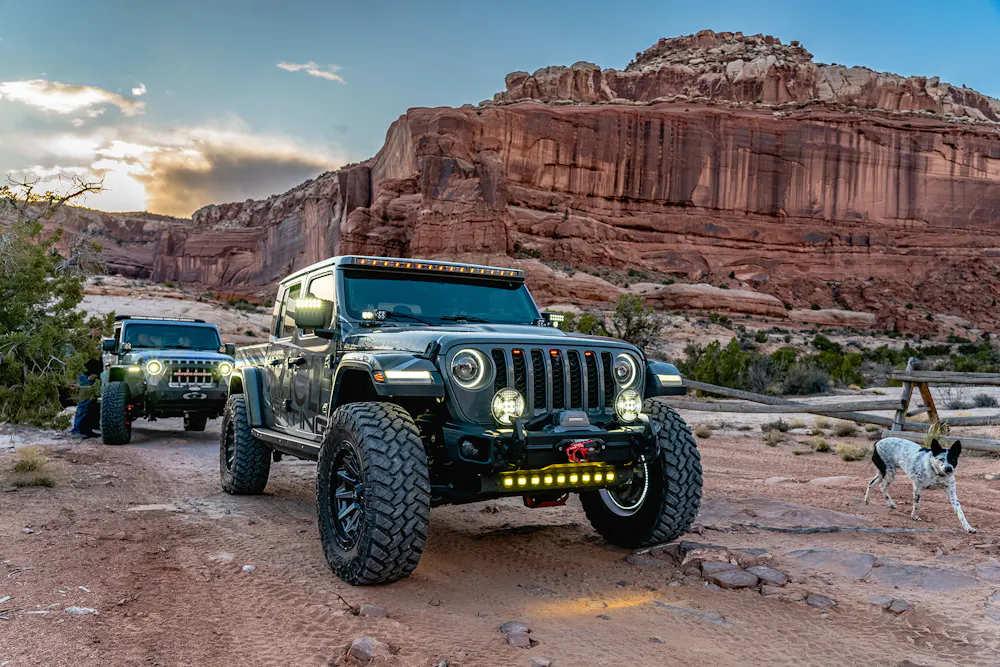

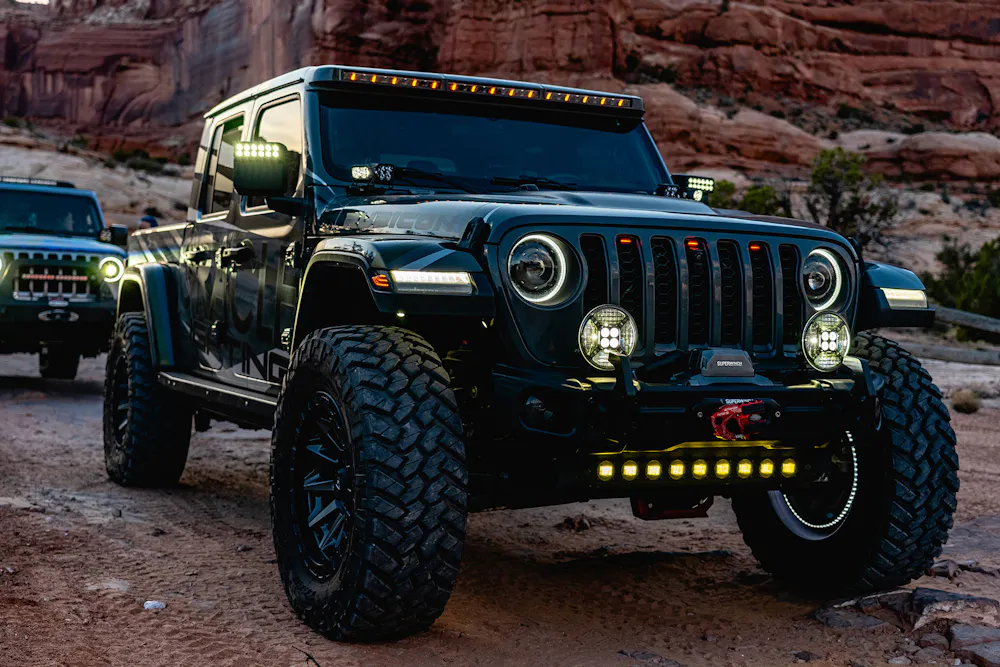

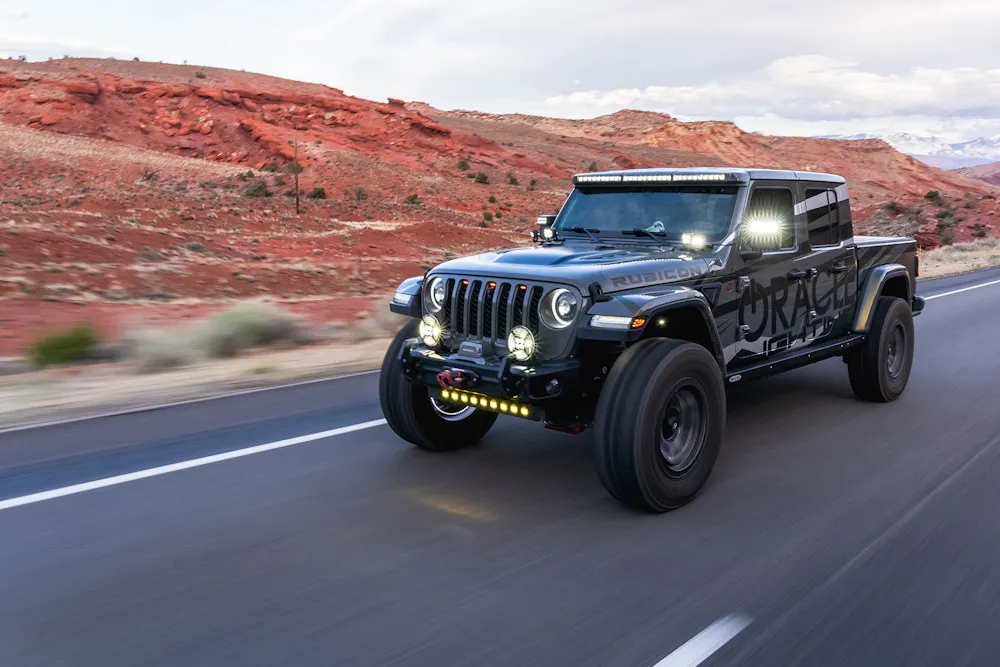

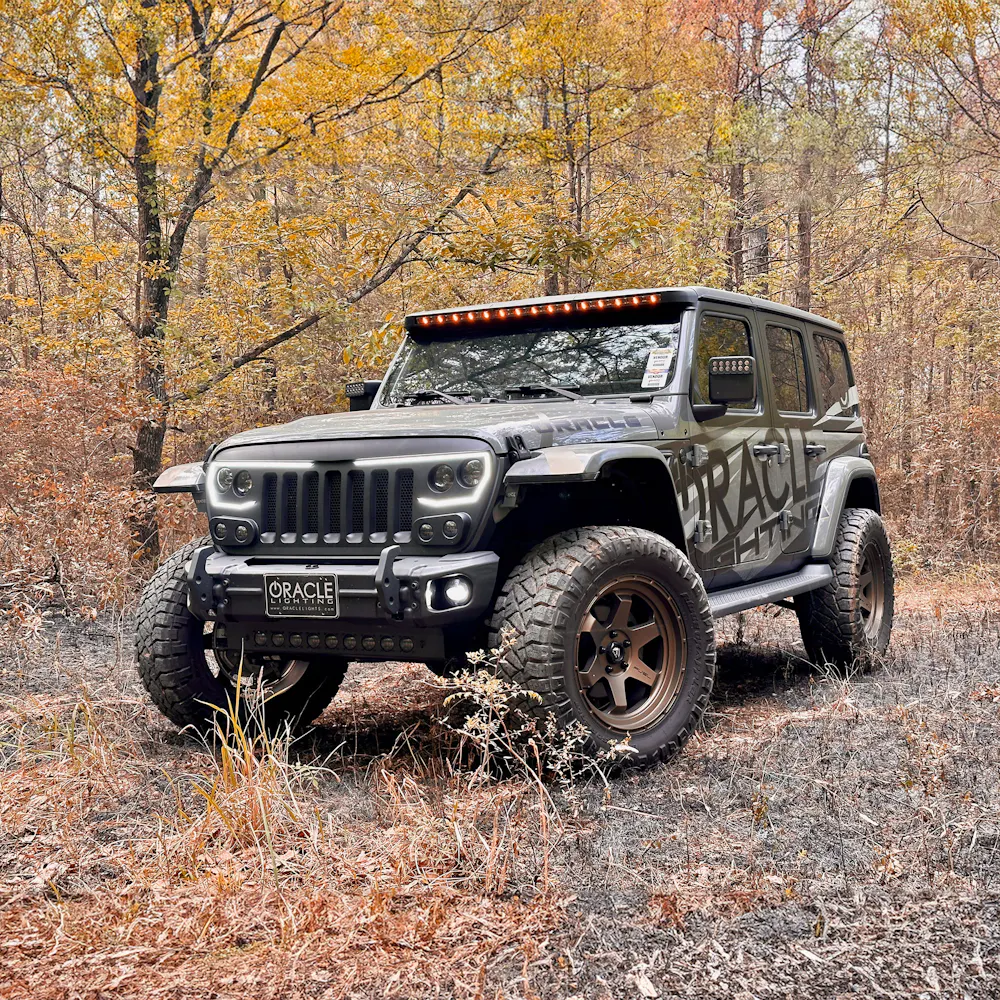

Description: Integrated Windshield Roof Light Bar System for Jeep Wrangler JL & - Black; ORACLE Lighting Integrated Windshield Roof LED Light Bar System for Jeep Wrangler JL & Gladiator JT

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

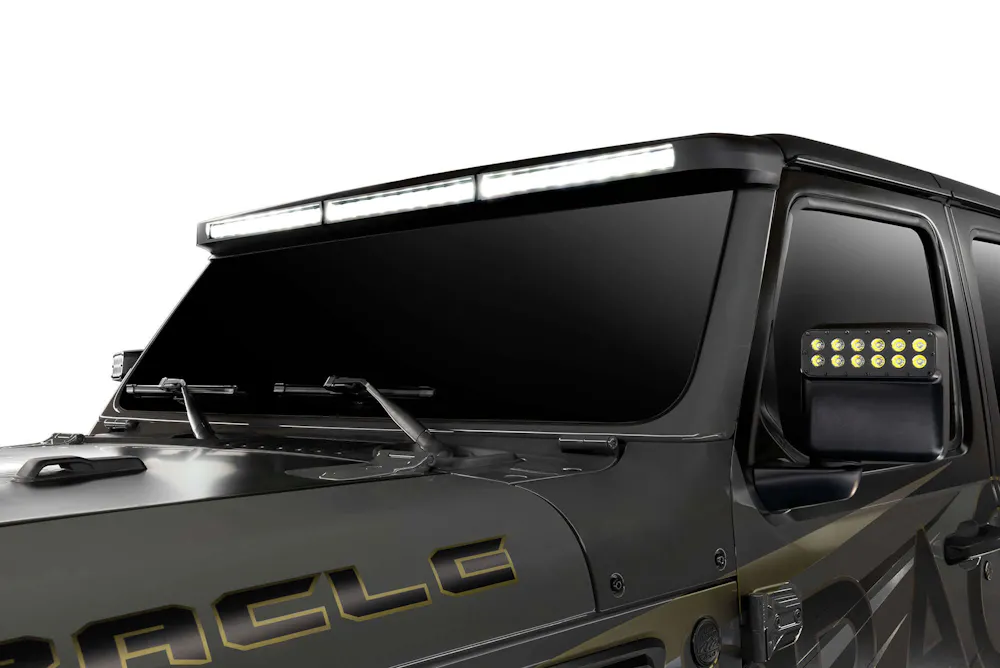

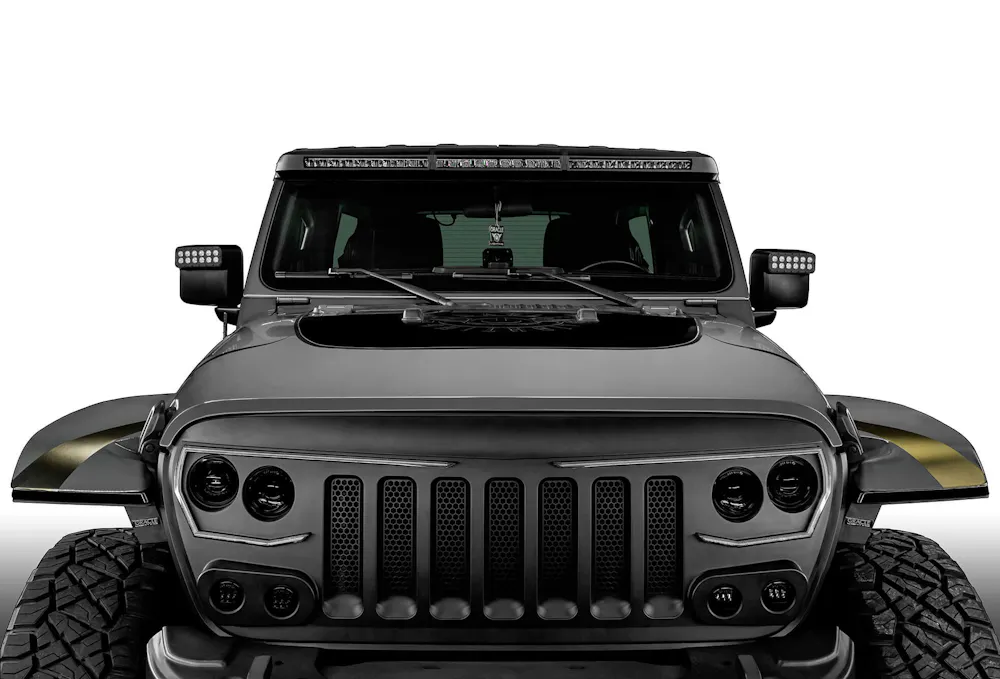

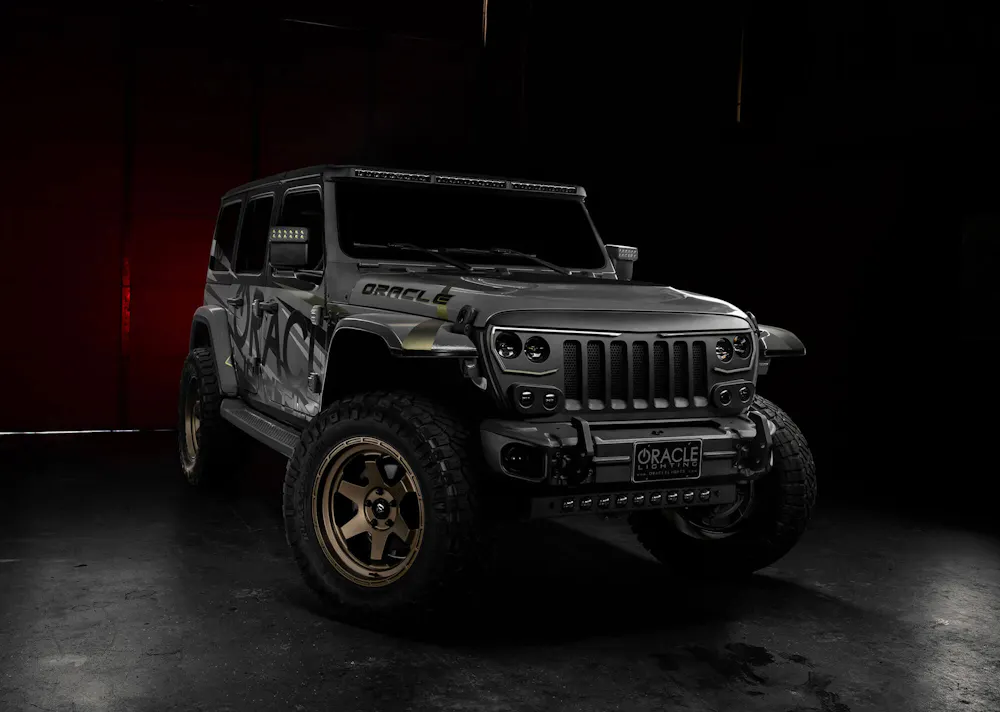

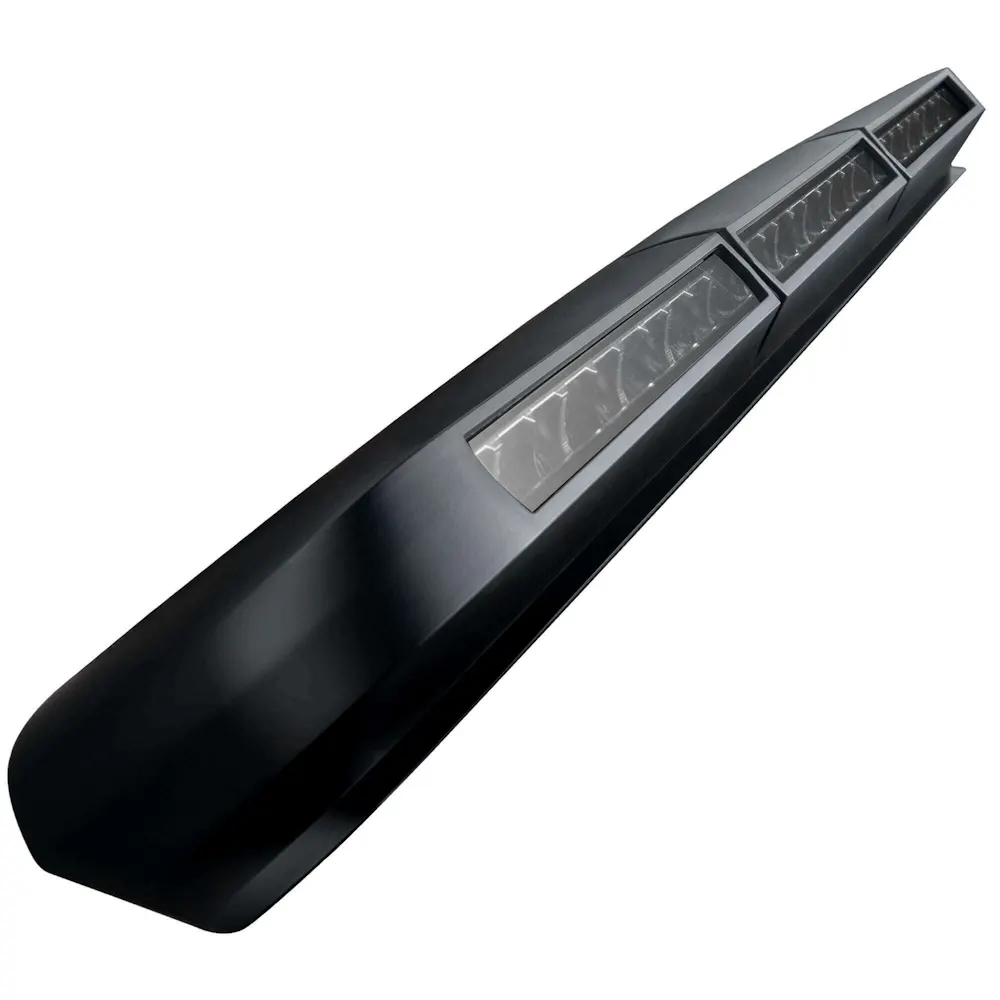

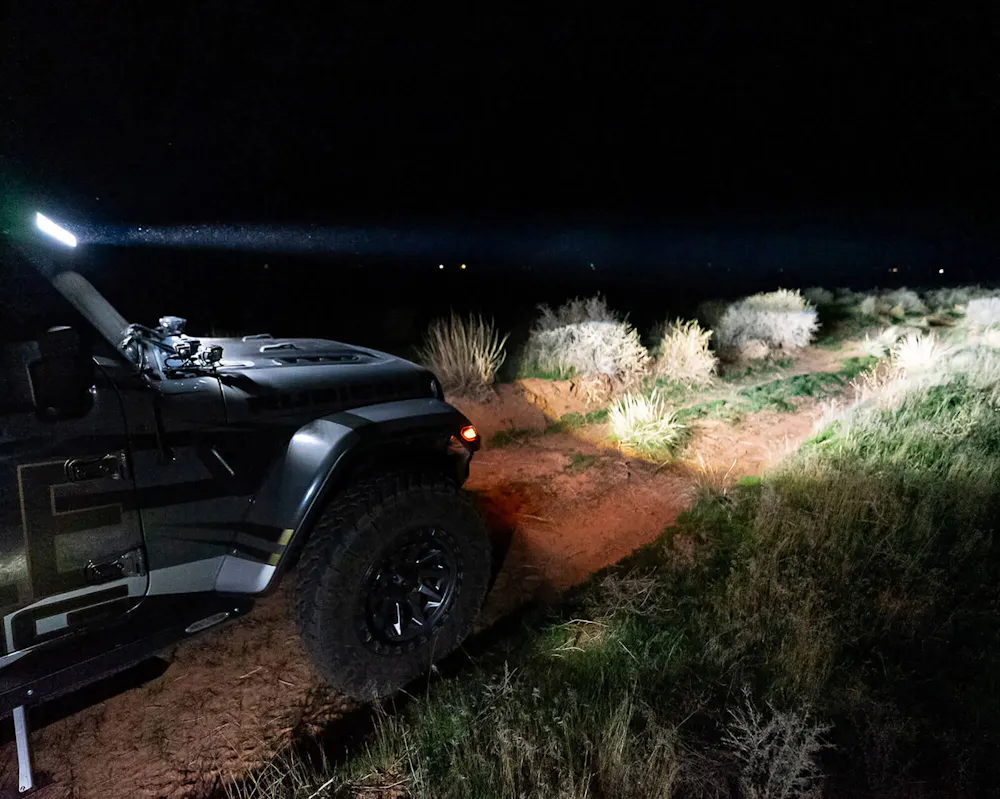

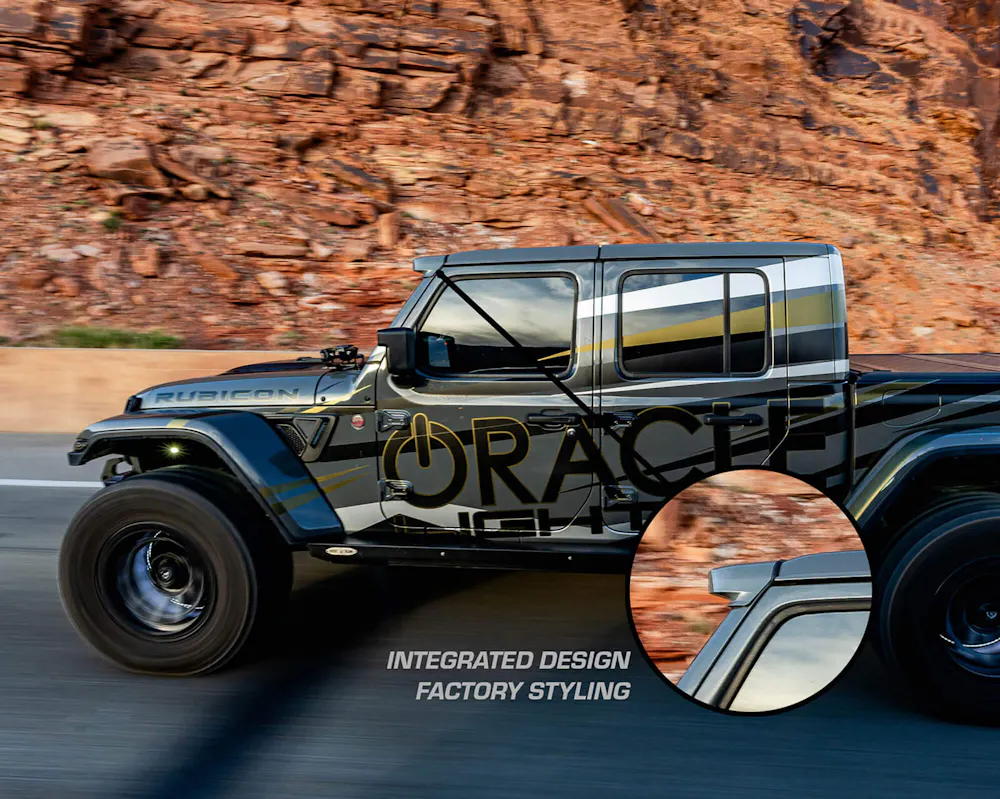

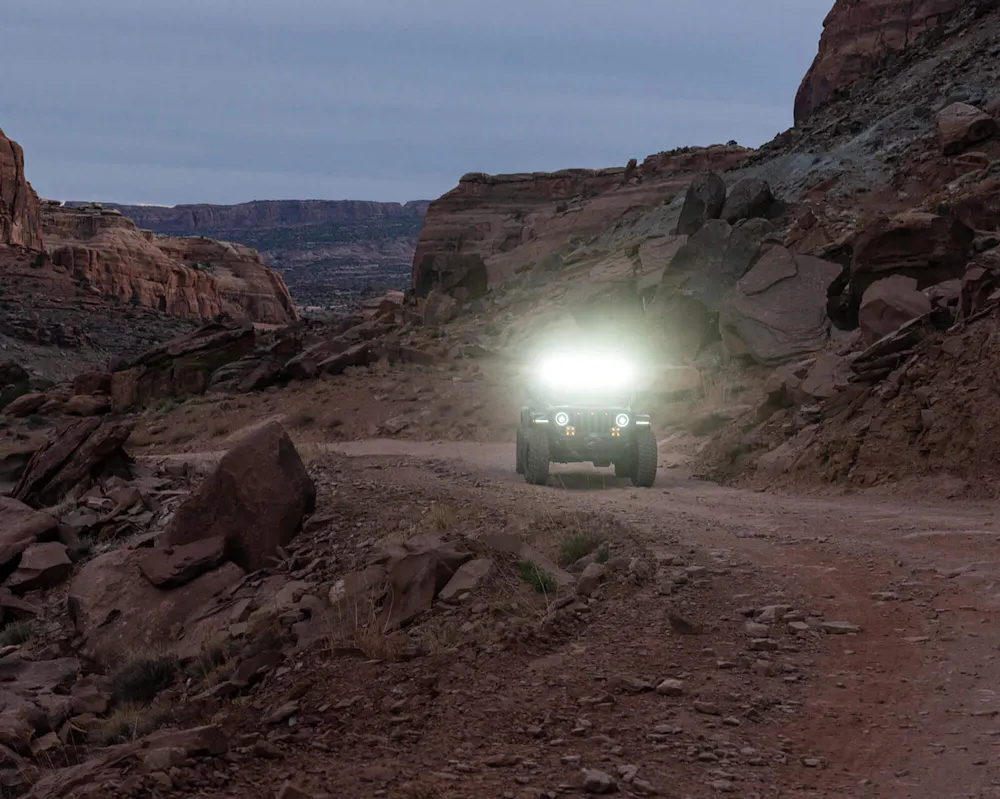

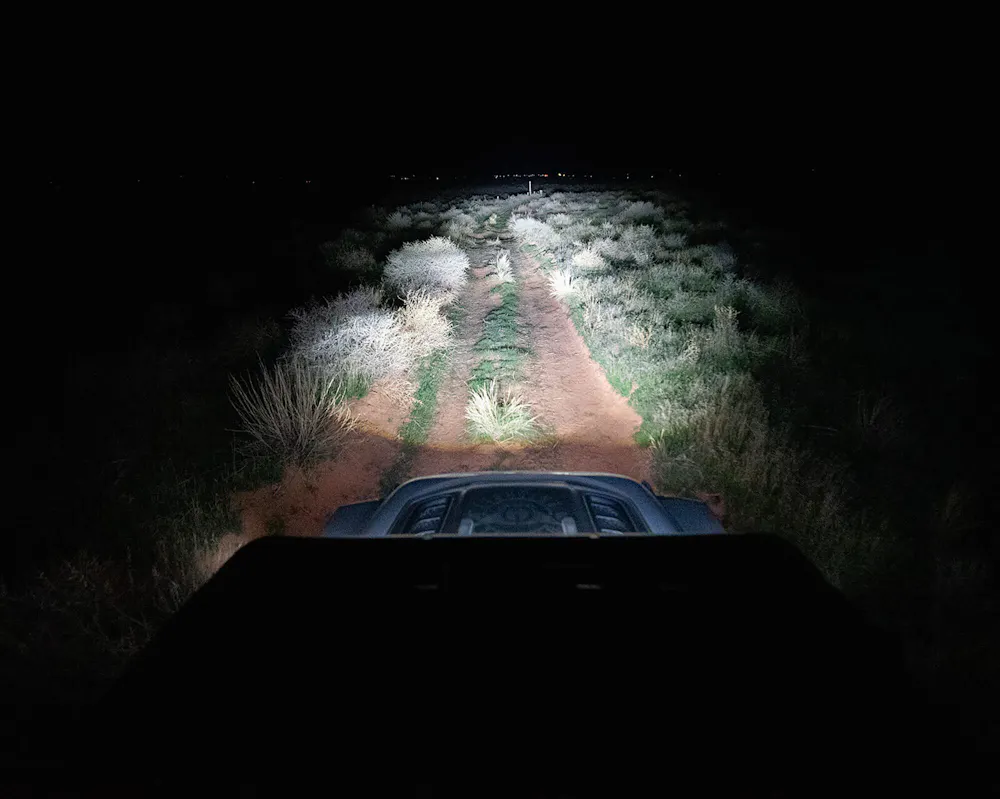

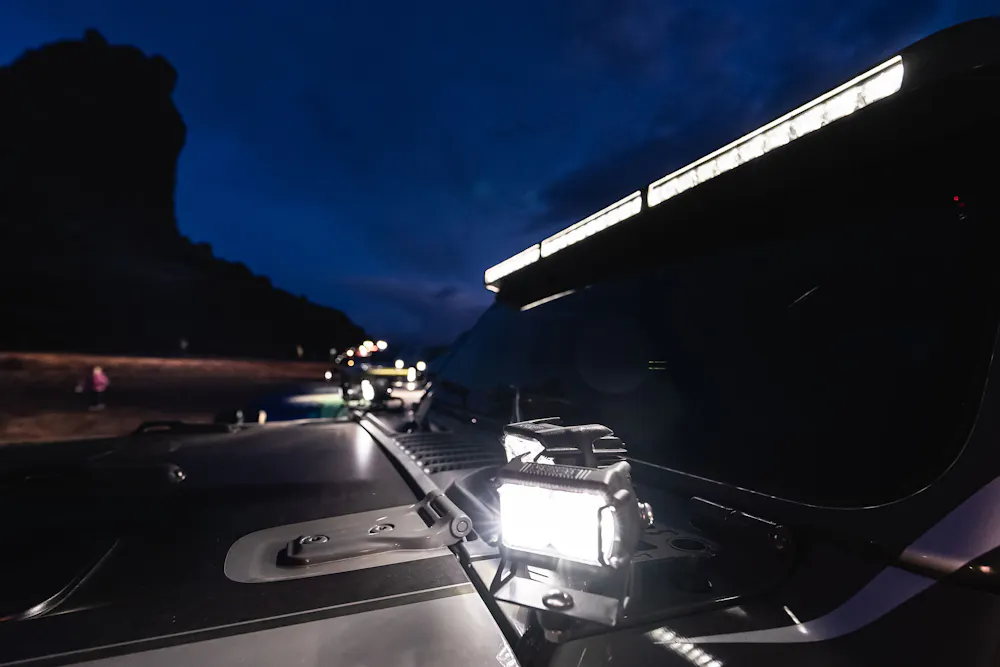

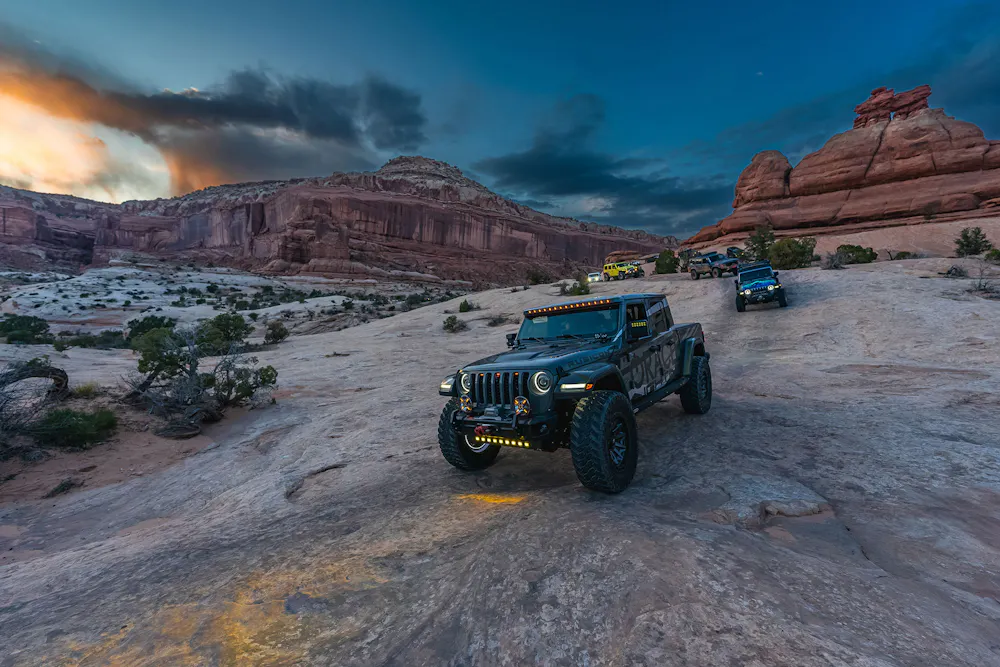

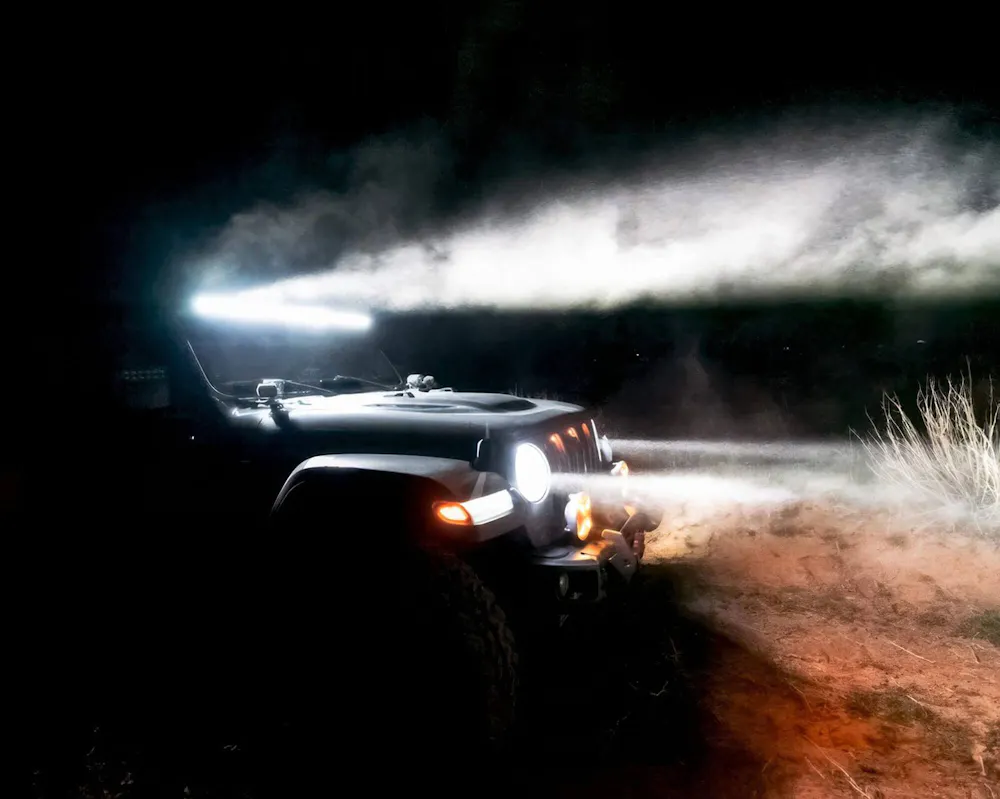

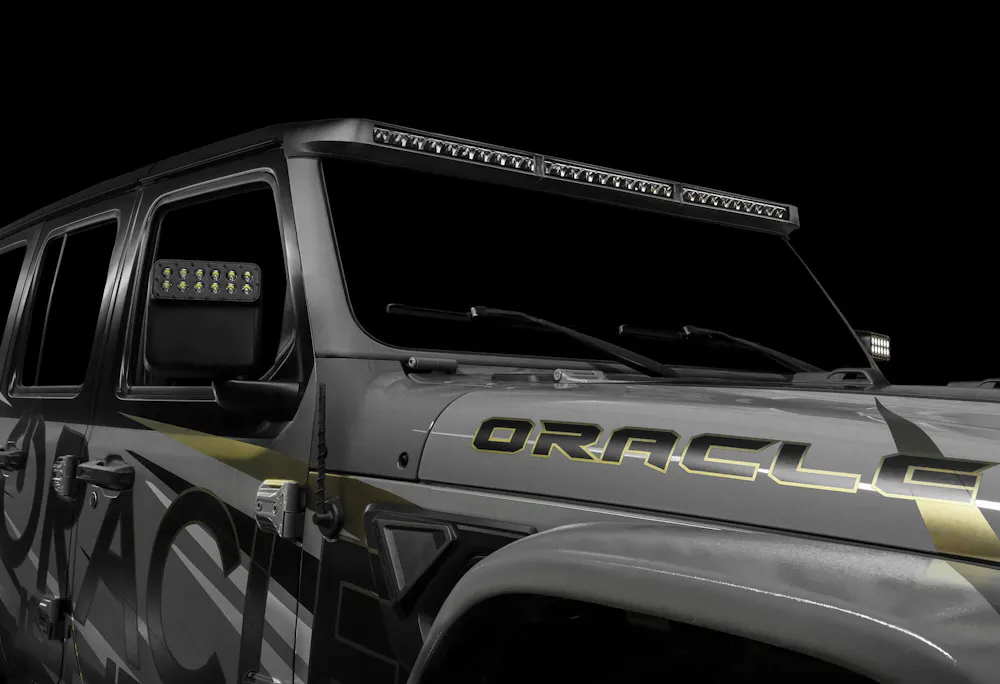

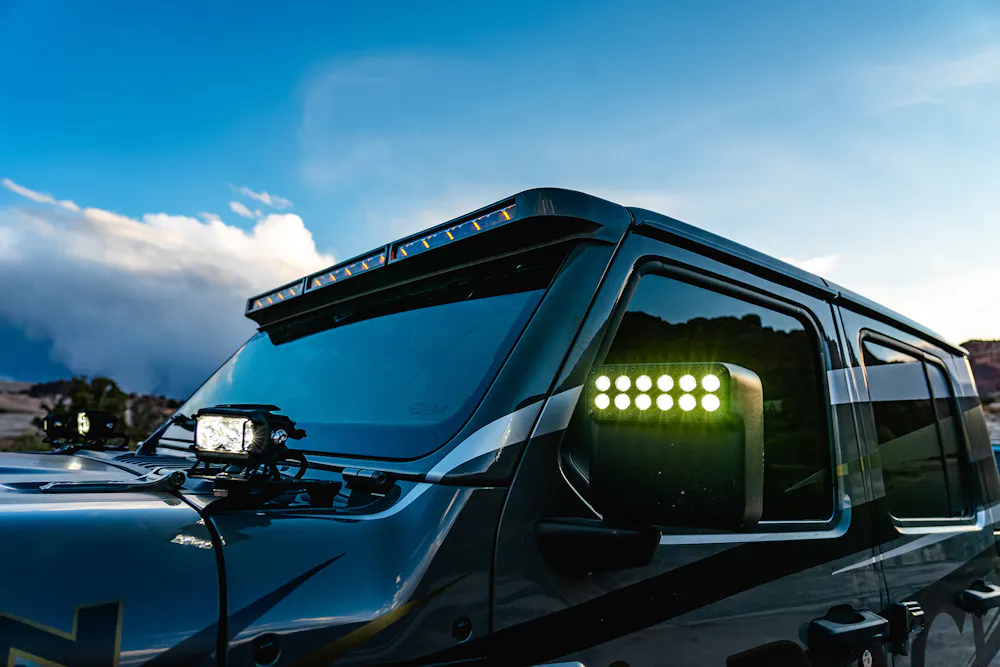

If you are in the market for a high-mount LED Light bar and want to retain an almost factory look, the new ORACLE Integrated LED Light Bar is for you! While other offerings look obviously after-market or like an afterthought, our Patented Integrated design with its molded cowling integrates into the factory roof line of your Jeep. Along with blending in with the factory design, the unique cowl design also provides a quieter and more aerodynamic installation compared to traditional LED light bar setups. The polycarbonate housing is designed to match the styling of the factory hardtop. The light bar features reflector-facing LED technology so if it does not look like a traditional light bar that's because it's not. This reflector system is designed to provide optimized LED light output from the 30 individual 8W LED emitters creating at total of 18,000 raw lumens and a projection distance of over 600 meters. As an added bonus, the system features selectable Amber or White clearance lights. You can select to connect these lights to an Aux Switch, Parking Lights, DRL, or just leave them disconnected if you prefer not to have the clearance light feature on your Jeep.

Features & benefits

Innovative Patent-Pending Design
Max Projection Distance: 1Lux@648M
Color Temperature: 5500K
Aerodynamic Integrated Housing Design
Outer Housing Material: Polycarbonate
Lamp Housing Material: 6030 Aluminum
Reflector Material: Plated Polycarbonate
Lens: Material: Lexan Polycarbonate
Lamp Finish: Polyester Powder Coat
Stainless Steel Anti-Fog Breather Valves
Molded IP68 Waterproof Connectors
Designed and Engineered in the USA
Waterproof Rating: IP68 Ingress Protection

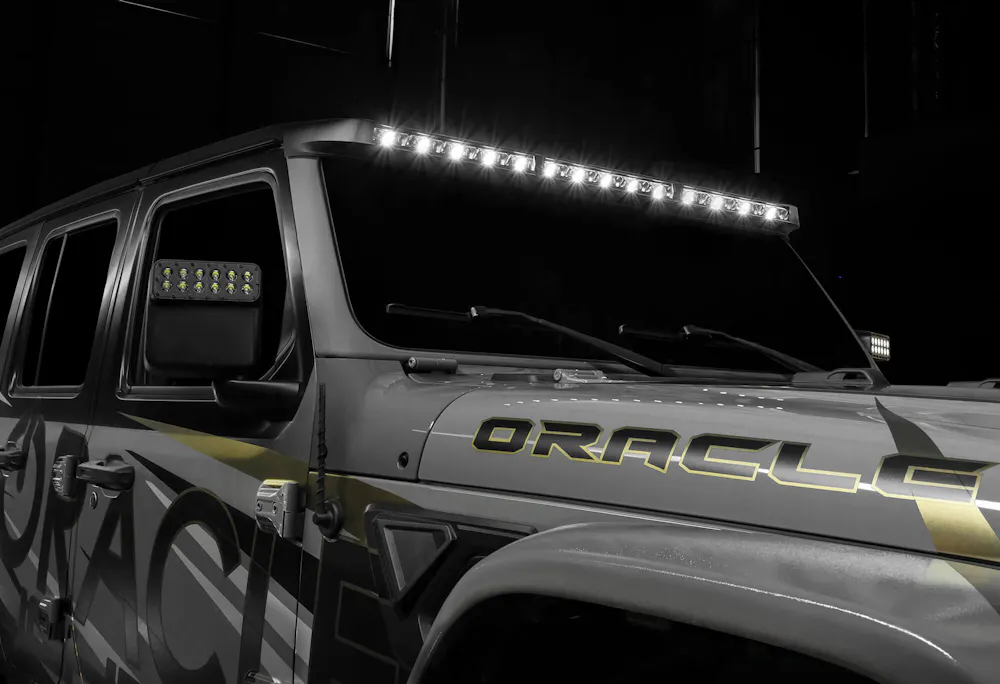

High-Powered Lighting 30x 8W LED Main Light

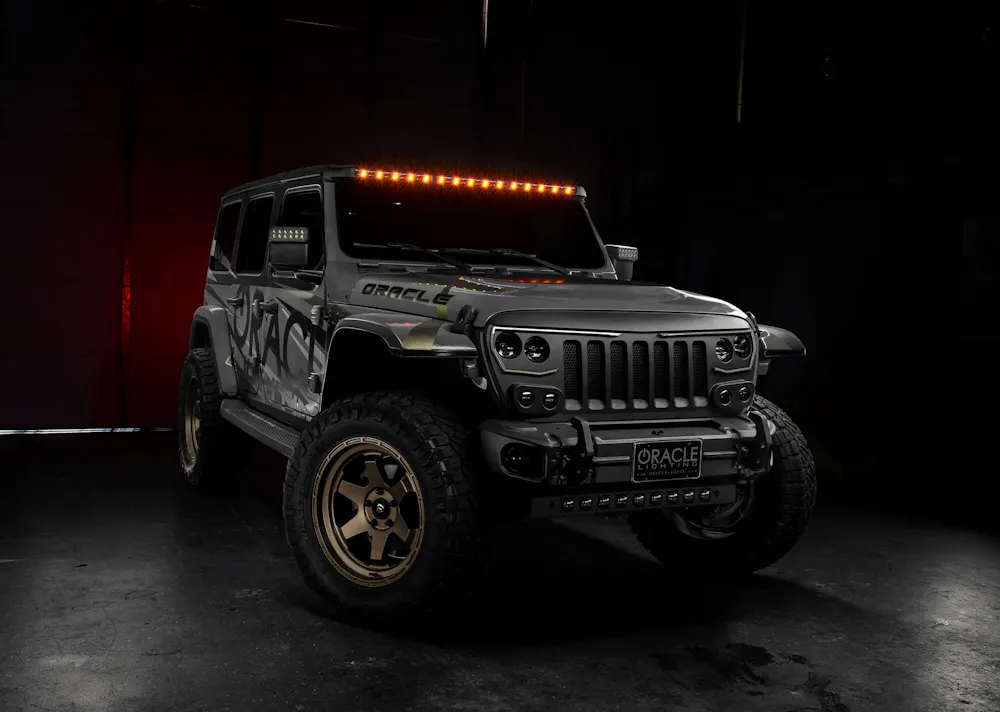

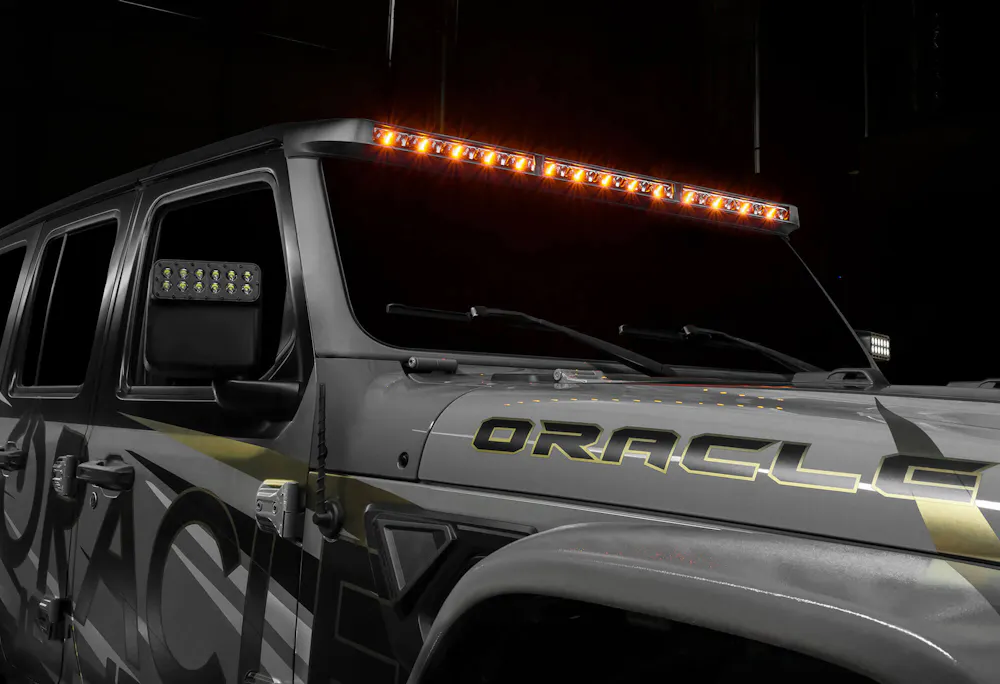

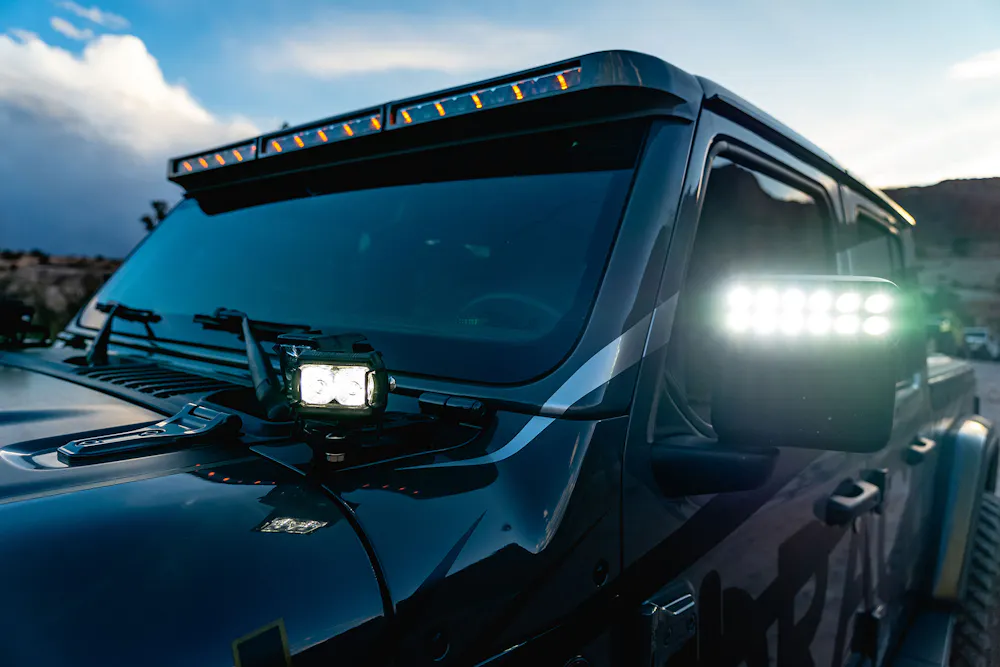

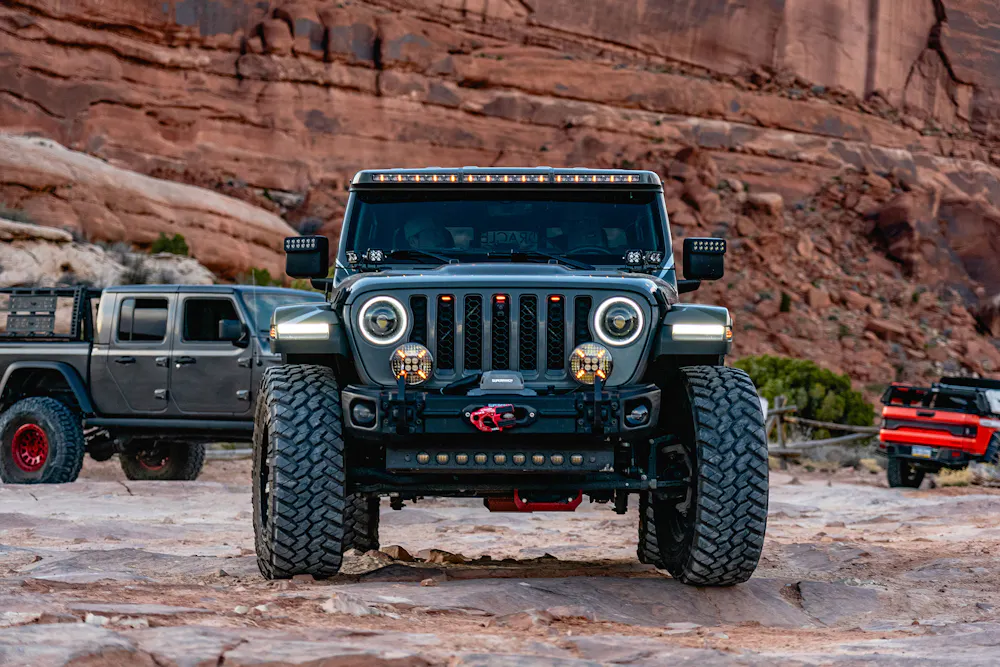

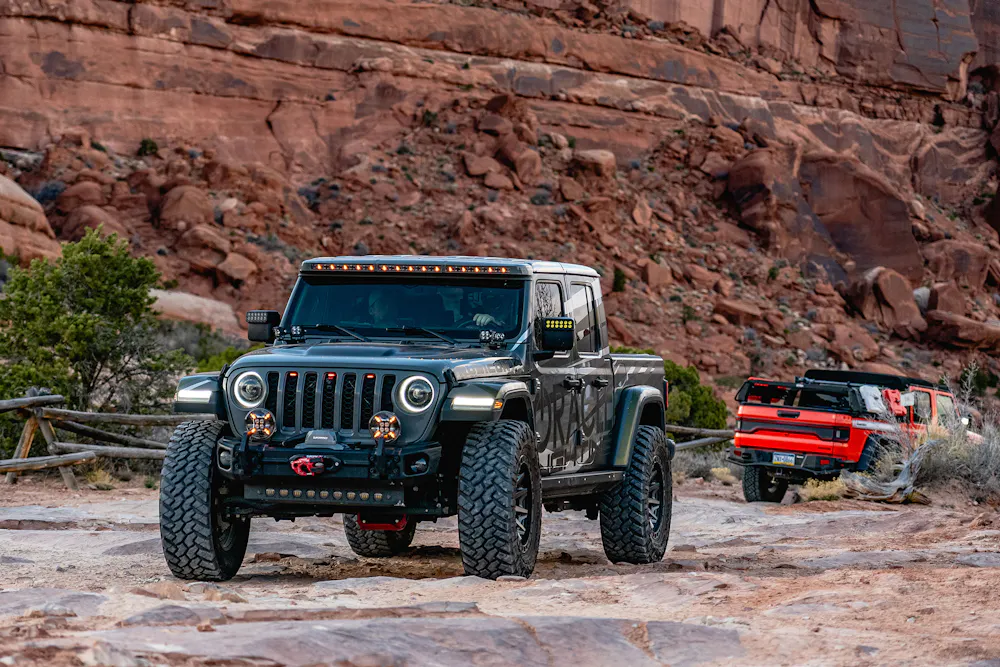

Selectable Amber or White Clearance Lights
Precision LED Reflector-Facing Technology
Tool Included for Installation of Threaded Inserts
Under/Over Voltage and Reverse Polarity Protection
Electronic Thermal Management
Innovative and Integrated Patented Design
LED Lifespan 50,000+ Hours/ 1 Year Warranty
Raw Lumen Light Output: 18,000LM
Effective Lumen Light Output: 14,200LM
Peak Intensity: 420,000CD
Total Wattage: 240 Watts
Total Amp Draw: 14A @12V DC
Beam Angle: 40° Driving Beam

Information

The light bar ships in a matte black color (to match unpainted hard tops) if you have a painted hard top the light bar housing can also be painted to match. We recommend using a professional painter to properly prep, prime, and color-match paint the housing.

Application summary

Year	Make / model

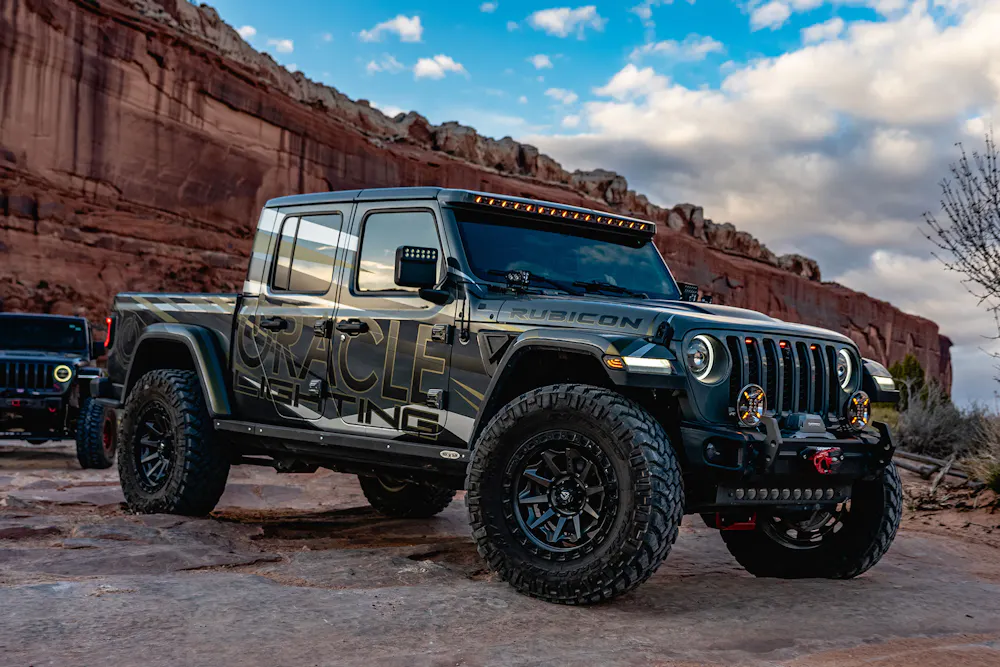

2020-2025	Jeep Gladiator
2018-2025	Jeep Wrangler

Specifications

GTIN: 00810030398905
Weight: 15 lb
Height: 7 in
Length: 60 in
Width: 9 in
Life cycle: Available to Order
AAM brand code: ORL
Warehouse brand code: FQCV
AAIA brand code: FQCV

Attributes

Add-On: N/A
Base Color: Black
Base Diameter: 60
Base Length: 60
Base Material: Aluminum
Brightness: 18000
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color: Black
Department of Transportation Approved: No
Electronic Thermal Management: Yes
Housing Color: Black
Housing Design: Aerodynamic Integrated Housing Design
Housing Finish: Painted
Housing Material: Composite
Housing Shape: Rectangle
Install Note: DIY Install
Lens Color: Clear
Lens Diameter: 48.05
Lens Length: 50
Lens Material: Polycarbonate
Lens Width: 40.5
Light Quantity: 30
Light Selection: Selectable Amber or White Clearance Lights
Light Type: High-Powered Lighting 30x 8W LED Main Light
Mount Type: Mounts using Supplied Hardware
Mounting Hardware Included: Yes
Protection Type: Under/Over Voltage and Reverse Polarity Protection
Relay Included: No
Street Legal: Yes
Switch Included: No
Technology: Precision LED Reflector-Facing Technology
Terminal Quantity: 4
Terminal Type: Lead Wire
Title: 5917-023 - Off-Road Lighting
Voltage: 12
Wattage: 240
Wire Gauge Measurement: 16
Wire Quantity: 4
Wiring Harness Included: No
Wiring Harness Length: 36
