Oracle Lighting / 5900-14-023

View More

Part #: 5900-14-023
UPC: 810030398257

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Oracle Lighting Series: LED Light Bars

Description: Multifunction Reflector-Facing Technology LED Light Bar - 14in. - 5500K-6000K; Multifunction Reflector-Facing Technology LED Light Bar - 14in.

pro mess

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

Using the latest RFT (Reflector Facing Technology) optics to optimize LED efficacy, these new LED Light Bars from ORACLE Lighting stand above the rest. This patent-pending design features an ultra-slim body which makes mounting and fitment easier than ever before. Dual heavy-duty mounting brackets provide options to mount these bars in a variety of applications where other LED light bars will not work. The Amber and White LED Clearance Lights enable the user to utilize integrated running (DRL) and marker lights for enhanced visibility. The RFT optic system makes these light bars effective range (1 lux) up to 2000 ft away!

Features & benefits

Advanced Optic Design for Optimal Visibility

Information

5500K-6000K

Specifications

GTIN: 00810030398257
Weight: 3 lb
Height: 27 in
Length: 5 in
Width: 11 in
Life cycle: Available to Order
AAM brand code: ORL
Warehouse brand code: FQCV
AAIA brand code: FQCV

Attributes

Add-On: N/A
Base Color: Black
Base Diameter: 52.5
Base Length: 14
Base Material: Aluminum
Beam Angle: 40 Driving Beam
Brightness: 6400
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications: ECE R10 CE and RoHS Certifications
Color: Amber and White LED Clearance Lights
Color Temperature: 5500K-6000K

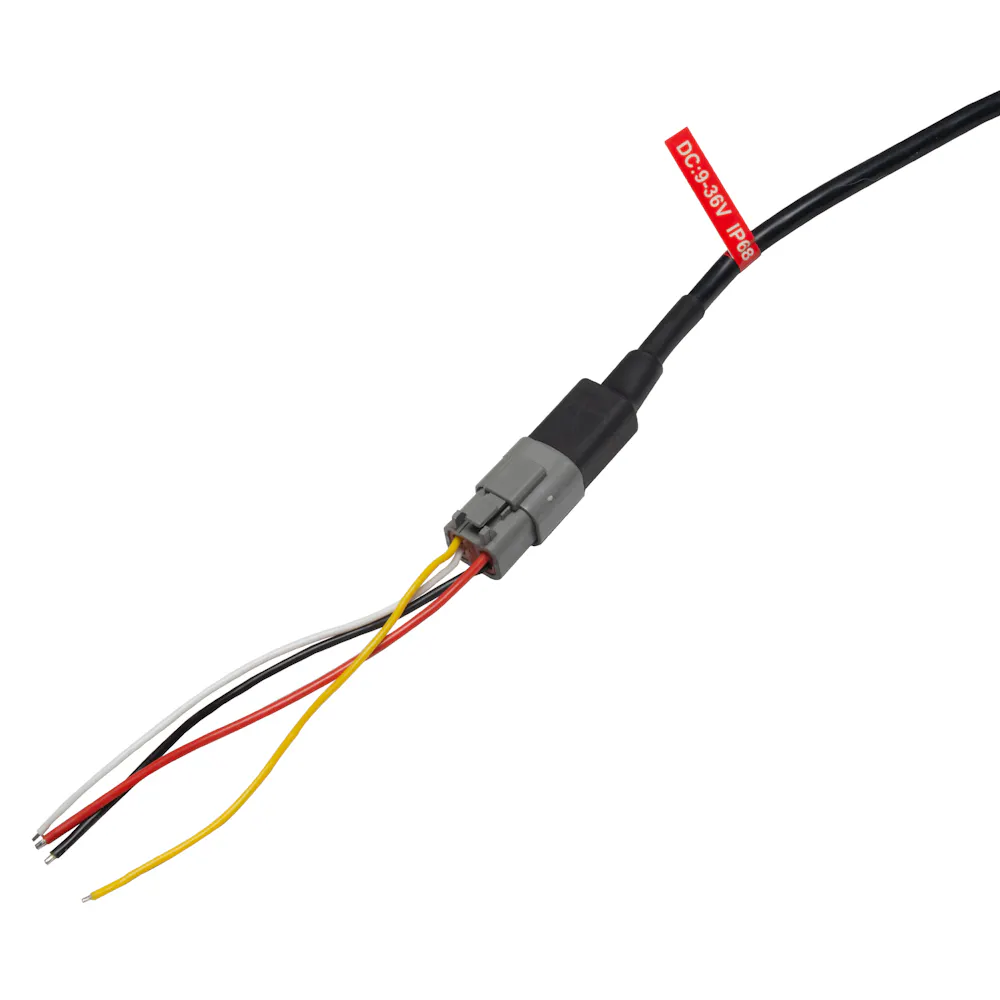

Connector Type: 4 Pin Deutsch Waterproof Connector
Department of Transportation Approved: No
Electronic Thermal Management: Yes
Housing Color: Black
Housing Finish: Powder Coated
Housing Material: Aluminum
Housing Shape: Rectangle
Lens Color: Clear
Lens Diameter: 14
Lens Length: 14
Lens Material: Polycarbonate
Lens Width: 40.5
Light Quantity: 8

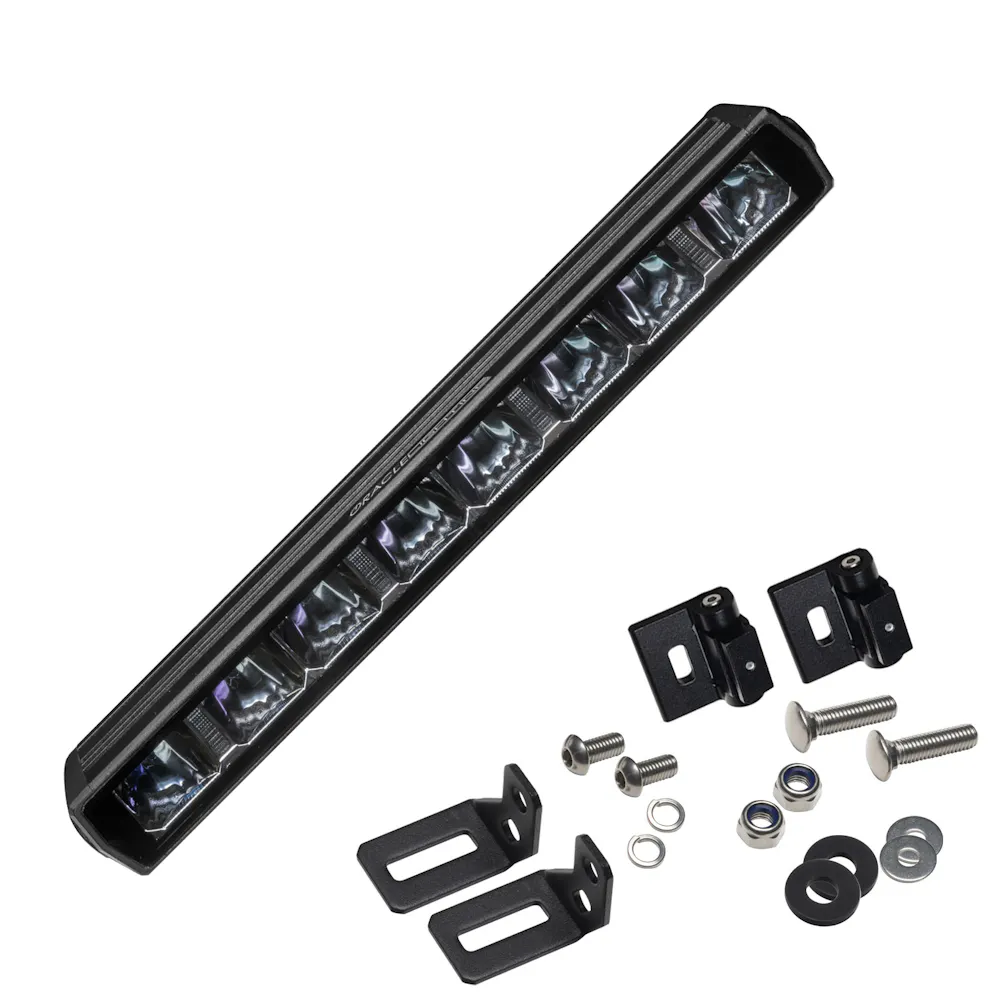

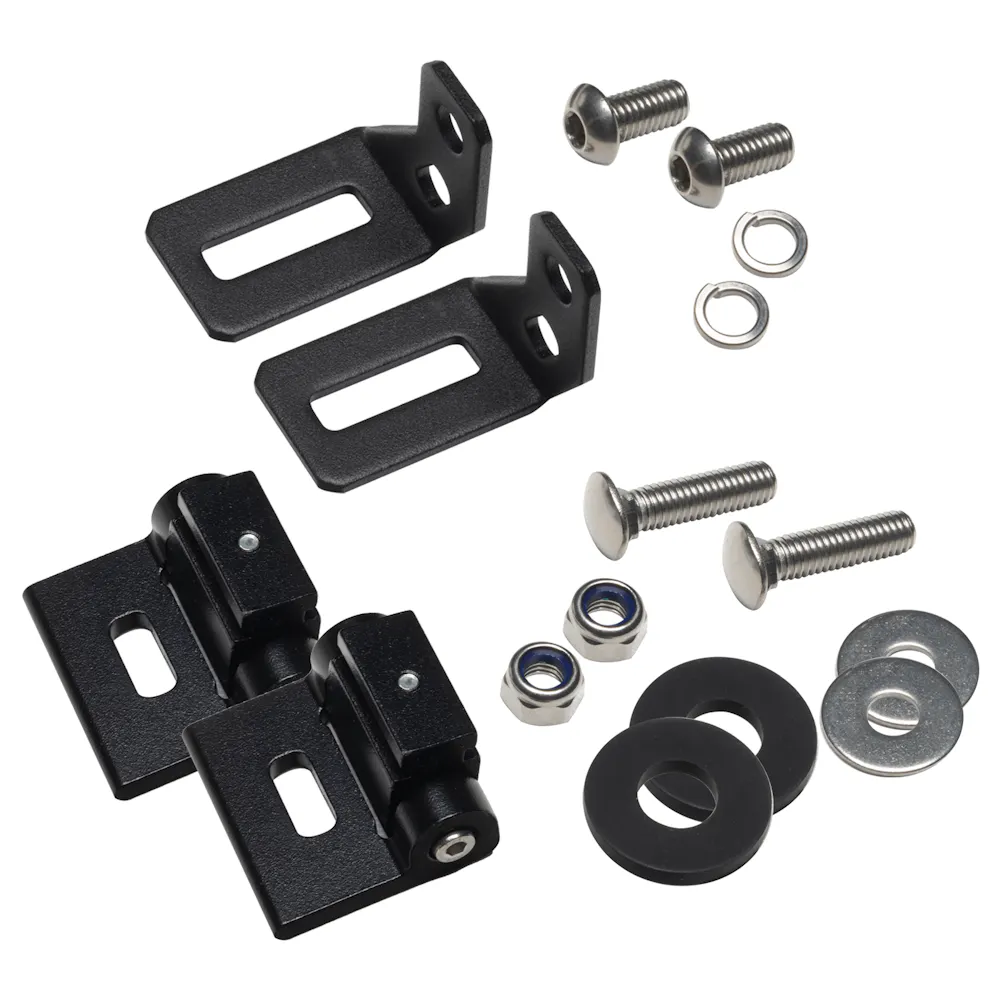

Mount Style: Dual Heavy-Duty Mounting Options
Mounting Hardware Included: Yes
Relay Included: No
Street Legal: Yes
Switch Included: No
Technology: Features Reflector-Facing-Technology
Terminal Quantity: 4
Terminal Type: Lead Wire
Title: 5900-14-023 - Off-Road Lighting
Voltage: 12
Wattage: 64
Wire Gauge Measurement: 16
Wire Quantity: 4
Wiring Harness Included: No
Wiring Harness Length: 36
