Oracle Lighting / 5896-504

Part #: 5896-504
UPC: 810030398295

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Oracle Lighting Series: LED Tail Lights

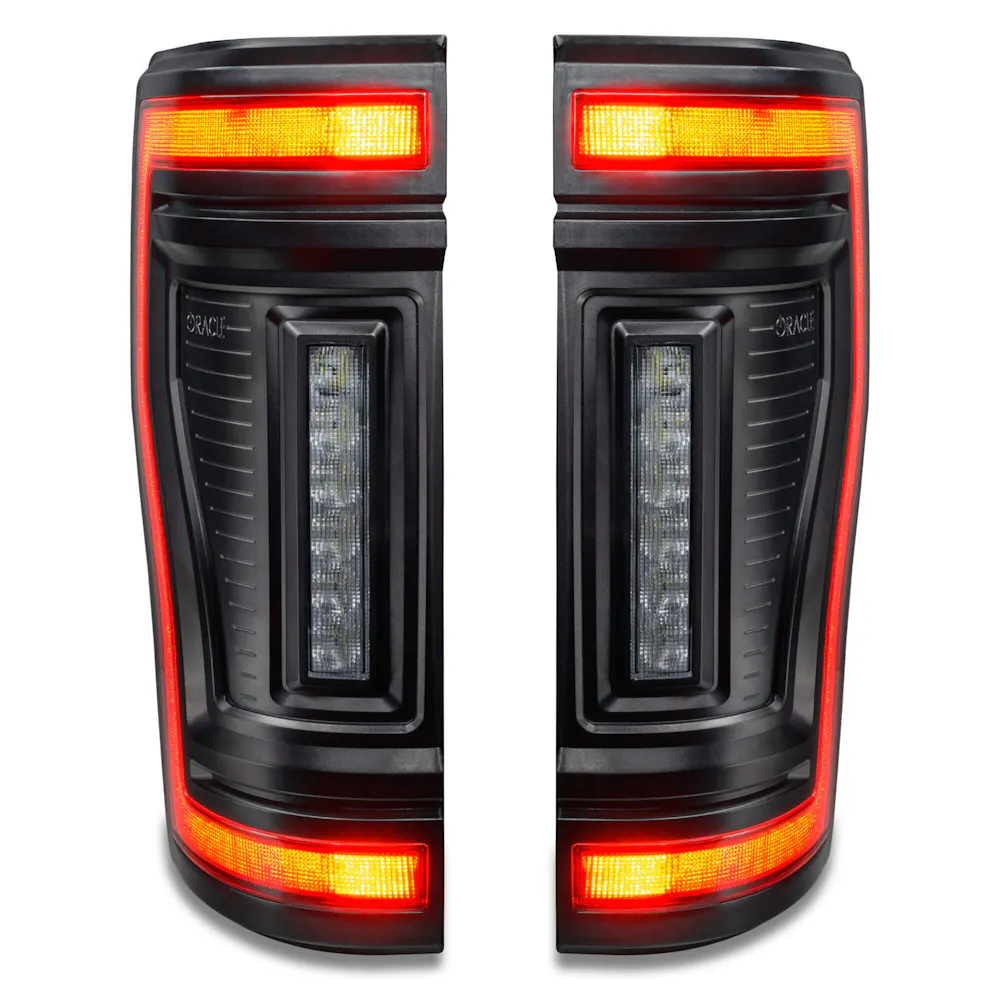

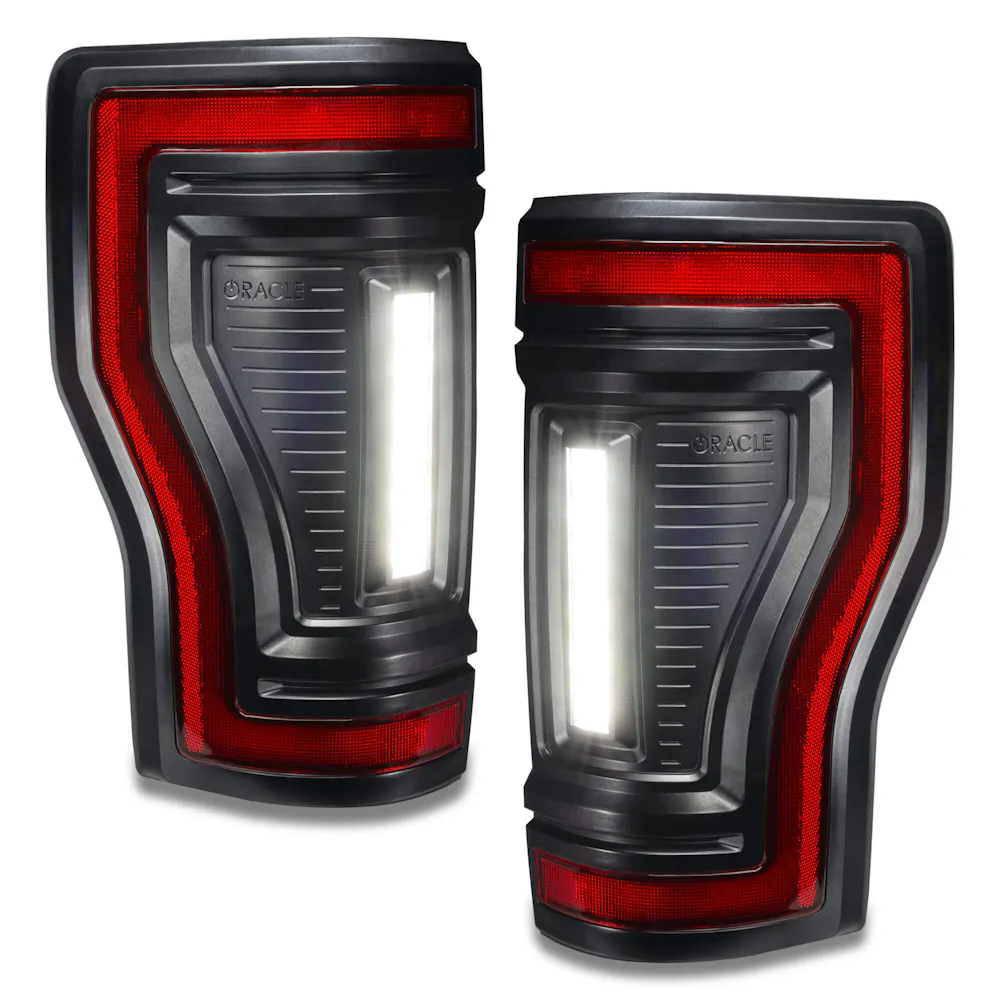

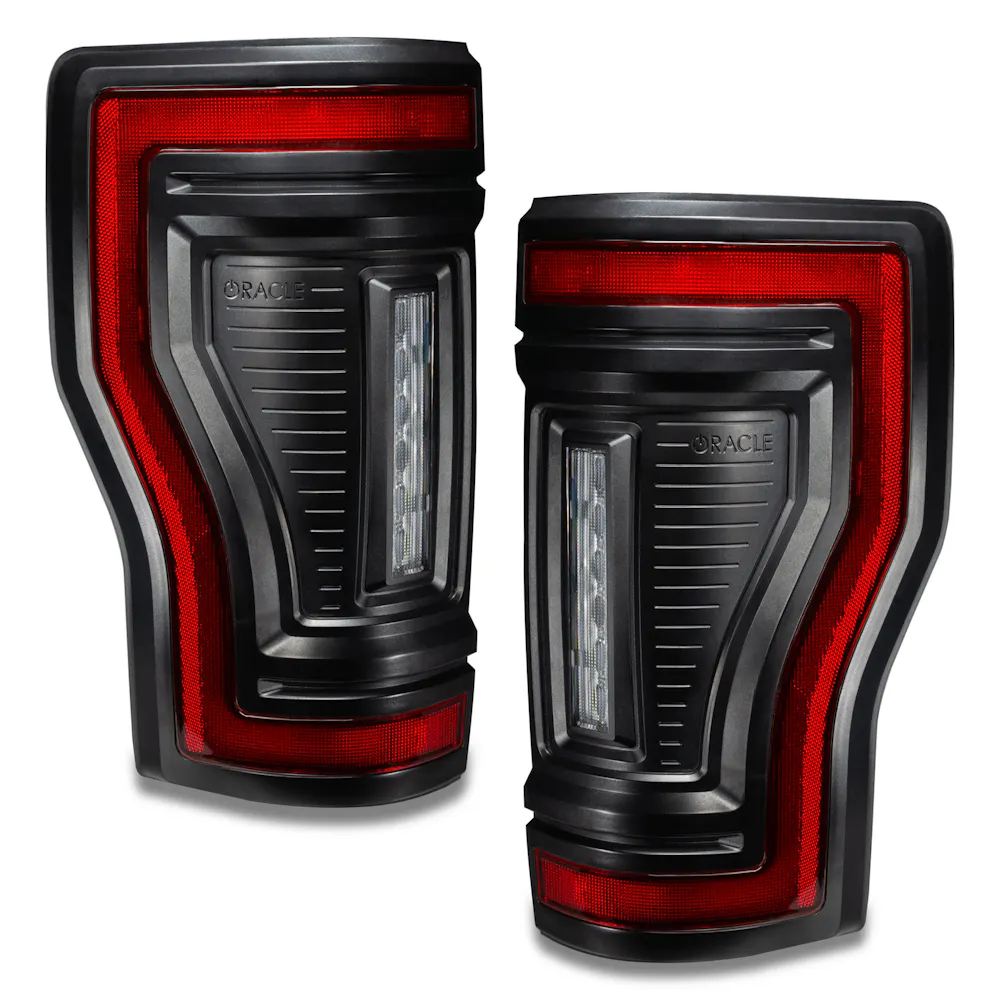

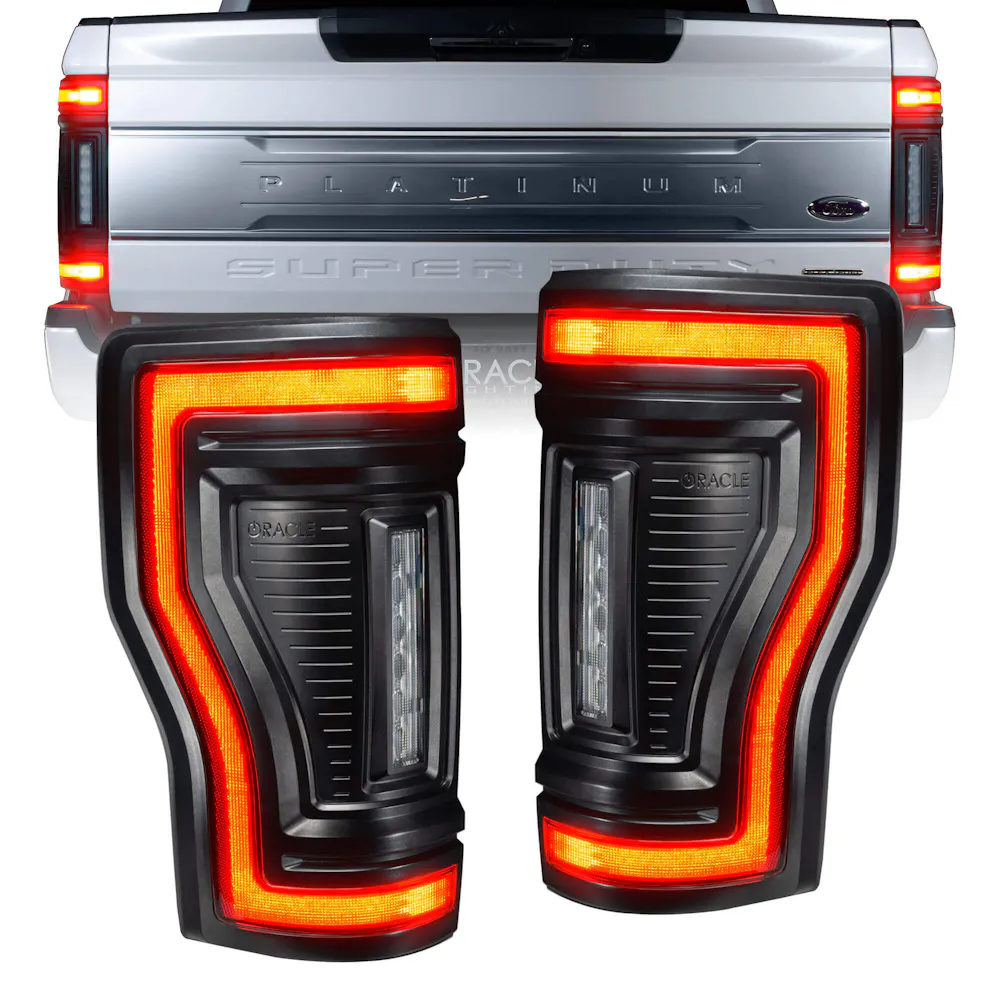

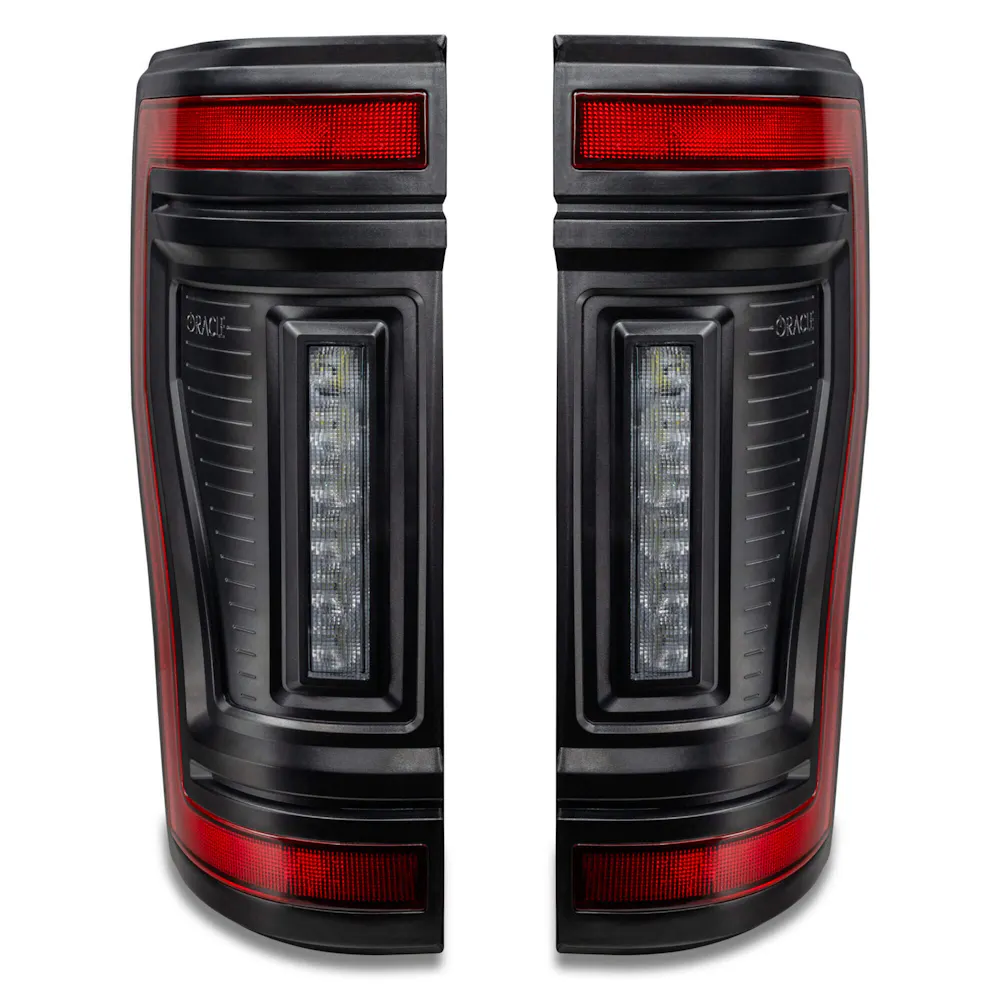

Description: Flush Mount Tail Lts for 2017-2022 Ford F-250/350 SD - Standard Lens; ORACLE Lighting Flush Mount LED Tail Lights for 2017-2022 Ford F-250/350 Superduty

pro mess

Cancer - www.P65Warnings.ca.gov

Description

Dashboard turn signal indicator may appear faster than usual for some users; tail light turn signals will function normally. Users may experience a slight increase in cross-traffic and blind spot signal sensitivity. Not compatible with trucks equipped with Onboard Scales or the Smart Hitch. 2017 XL, Lariat, King Ranch, and Platinum models do not support the Sequential Turn Signal. Possible BLIS error on the following: 2018 Lariat Halogen w/ BLIS, 2020 Lariat Halogen w/ BLIS, 2020 XLT Halogen w/ BLIS, 2021 Platinum LED w/ BLIS, 2022 King Ranch LED w/ BLIS (solution in progress).

Features & benefits

2 year warranty
Modern sleek styling with a flush-mounted, low-profile design
Reduced protrusion helps reduce risk of tail light damage

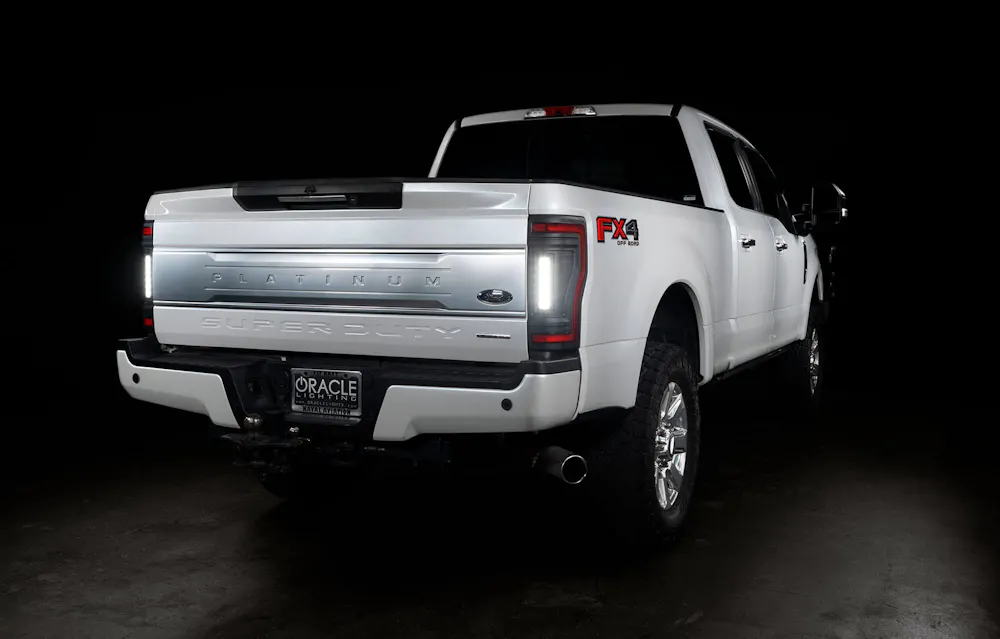

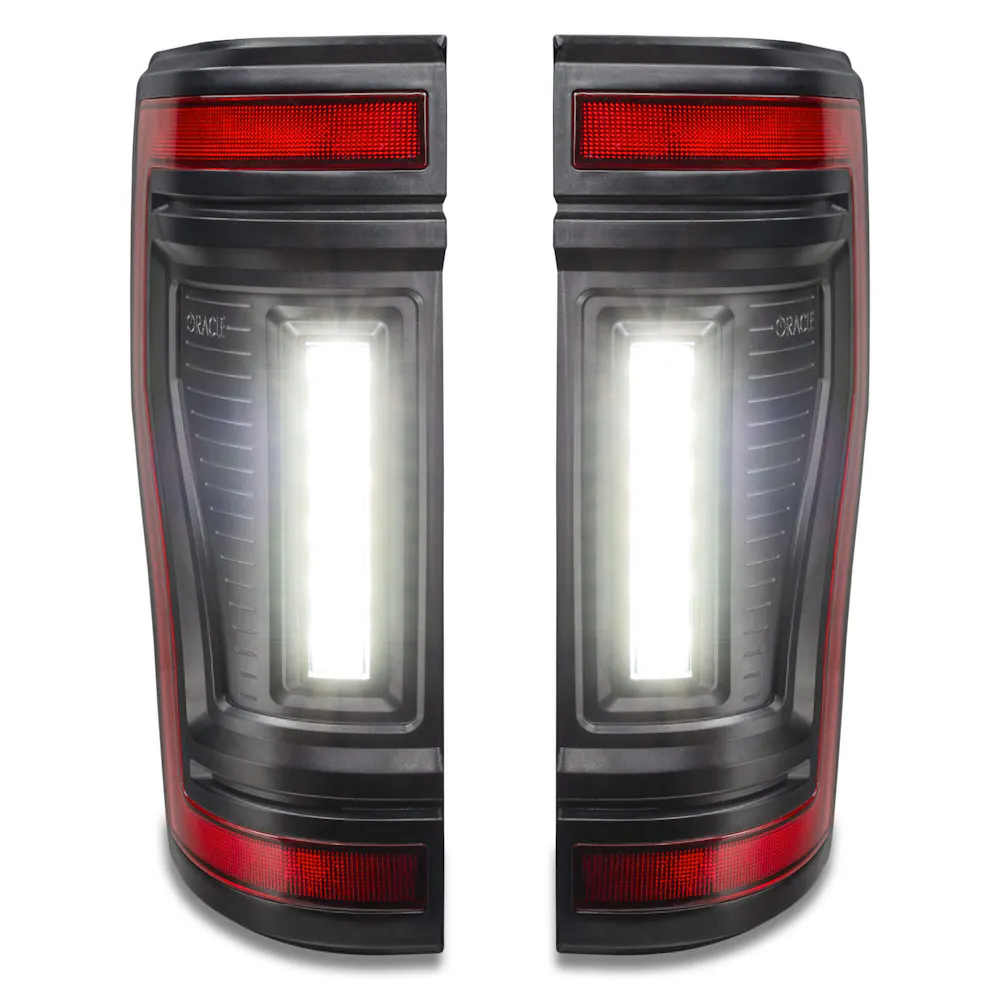

High-powered LED reverse lights providing 4,400+ lumens of rear illumination

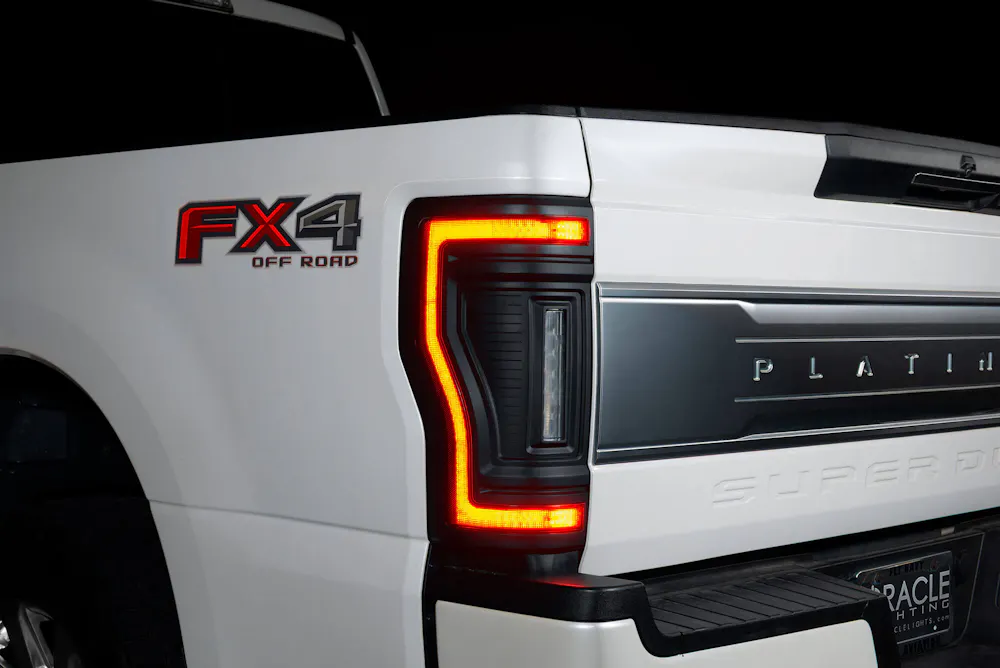

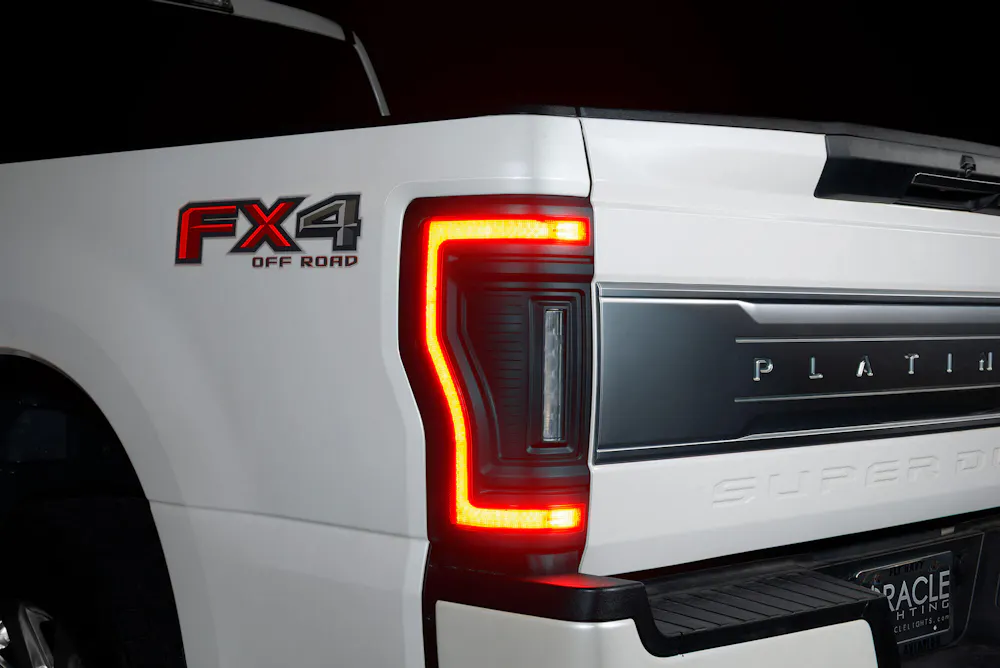

Signature perimeter lighting for a distinct OEM-plus look

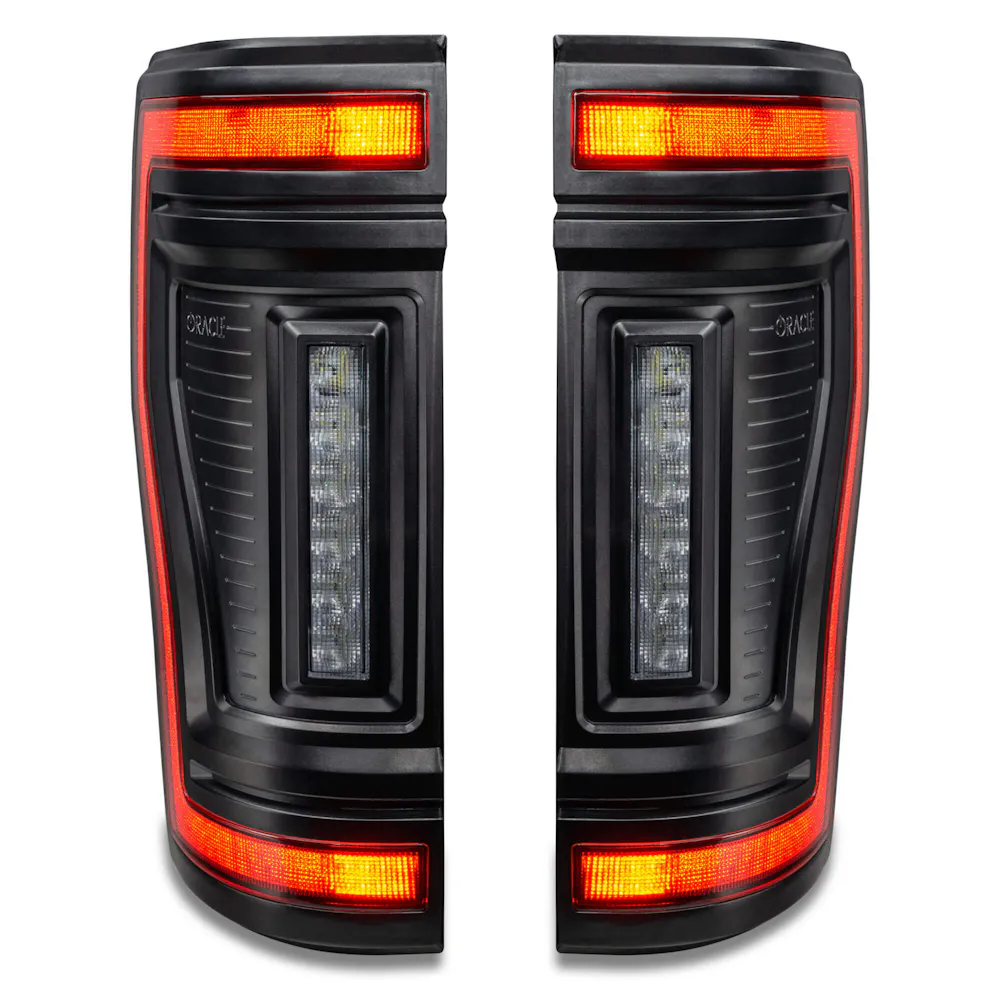

Animated / sequential turn signal sequence (see notes for model limitations)

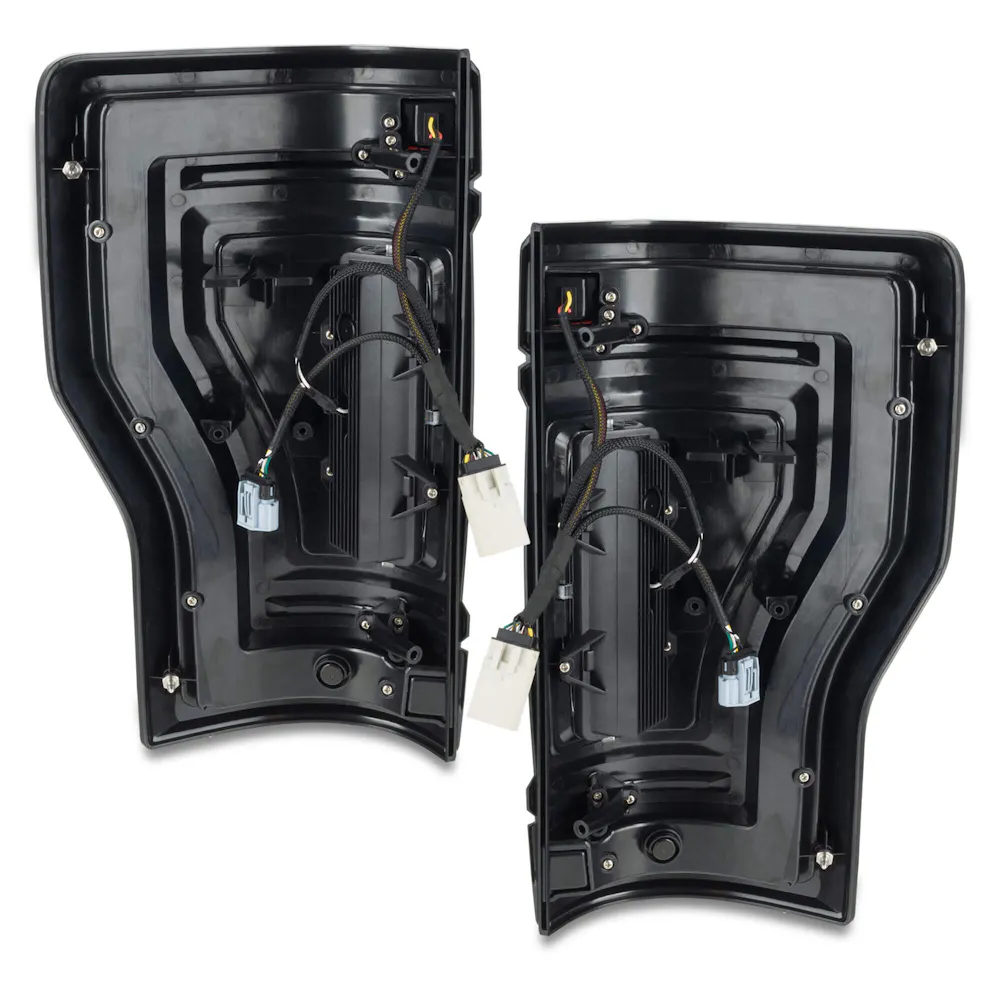

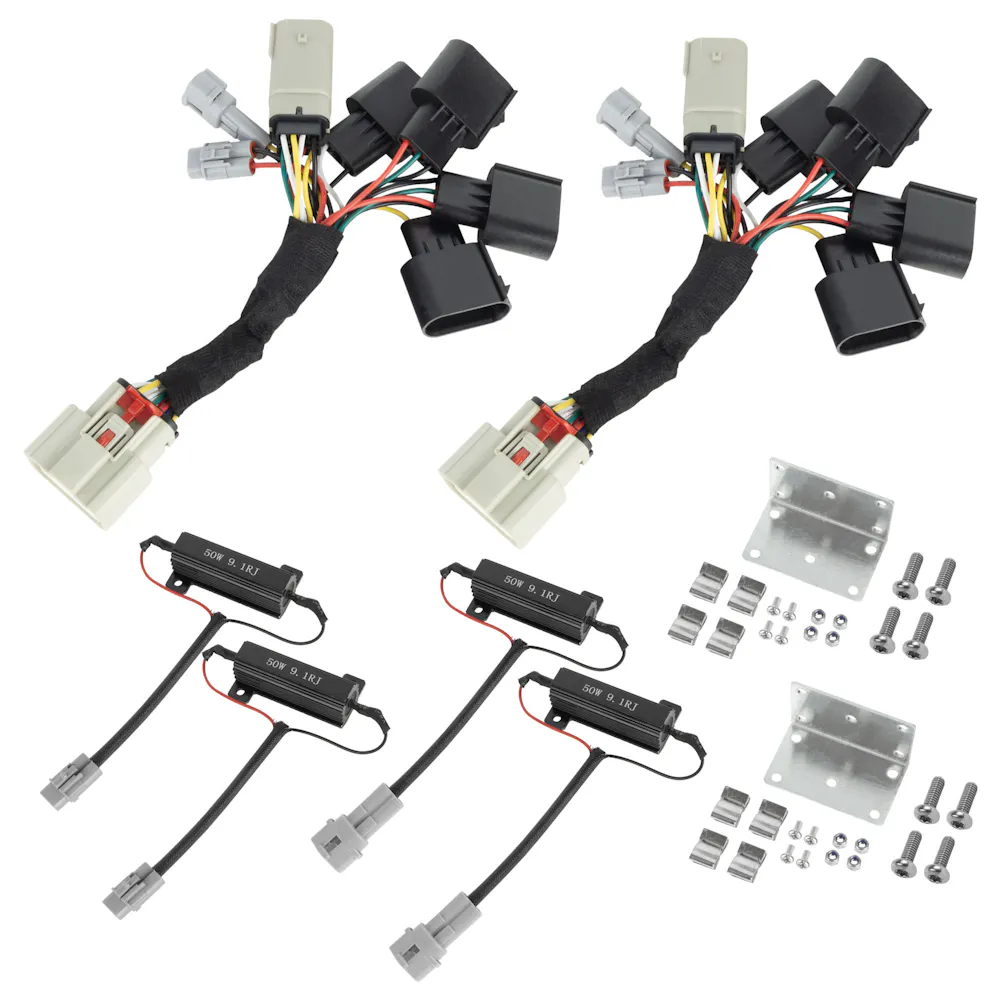

True plug-and-play installation with included adapters
BLIS / cross-traffic compatible using factory sensor swap-over

Information

Standard Lens

Application summary

Year	Make / model
2017-2022	Ford F-250 Super Duty
2017-2022	Ford F-350 Super Duty

Specifications

GTIN: 00810030398295
Weight: 10 lb
Height: 23 in
Length: 5 in
Width: 22 in
Life cycle: Available to Order
AAM brand code: ORL
Warehouse brand code: FQCV
AAIA brand code: FQCV

Attributes

Add-On: N/A
Bulb Quantity: 12
Bulb Technology: LED
Bulb Type: 3157
Bulbs Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Color: Standard Lens
Compatibility: Works with base and LED packages
Connector Quantity: 4
Department of Transportation Approved: No
Details: Signature perimeter lighting
Housing Color: Black
Housing Material: ABS
Install Type: Simple plug-and-play install with factory sensor compatibility
Length: 23
Lens Color: Red
Lens Material: Polycarbonate
Light Count: 12 high-powered LED reverse lights
Maximum Diameter: 23
Maximum Width: 5
Mounting Hardware Included: Yes
Street Legal: Yes
Style Purpose: Sleek styling and flush fit to avoid damage to light
Title: 5896-504 - Tail light Assembly
Turn Signal Style: Sequential effect turn signals
Warranty Time Period: 2 year warranty
Wire Colors: Black
Wire Gauge Measurement: 18
Wiring Harness Included: Yes
Wiring Harness Length: 8
