Oracle Lighting / 5888-023-MF

View More

Part #: 5888-023-MF
UPC: 810030398172

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Oracle Lighting Series: LED Light Bars

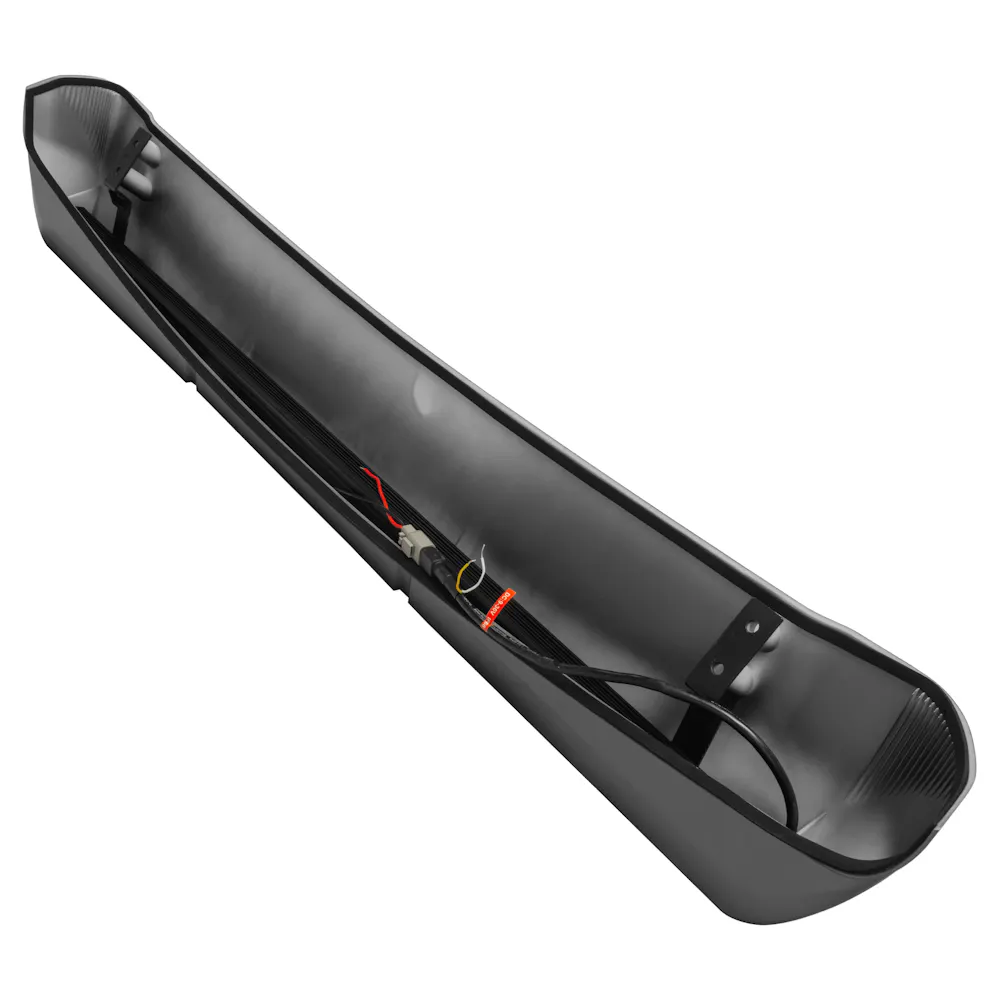

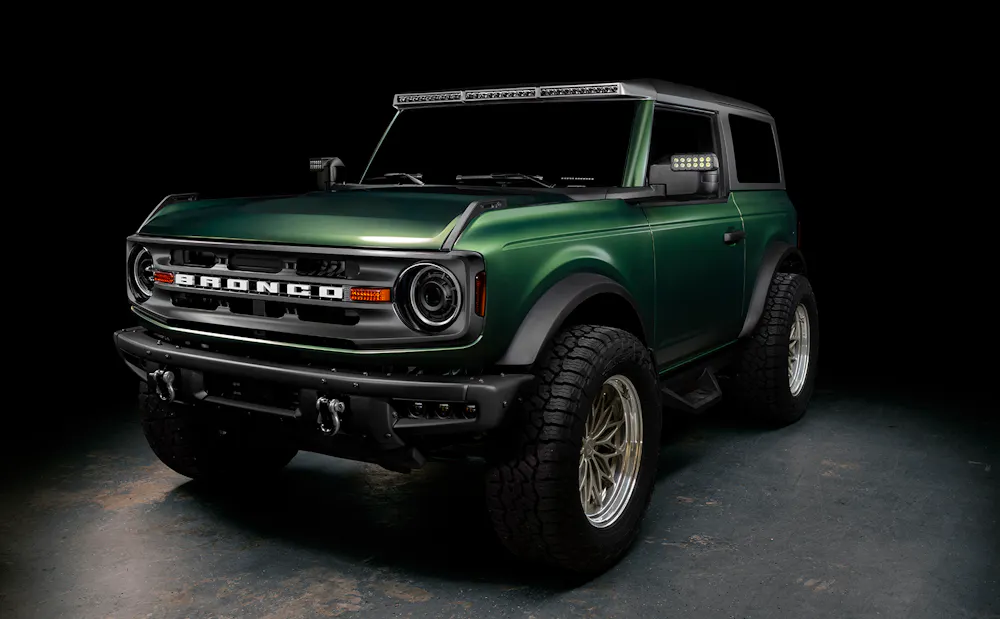

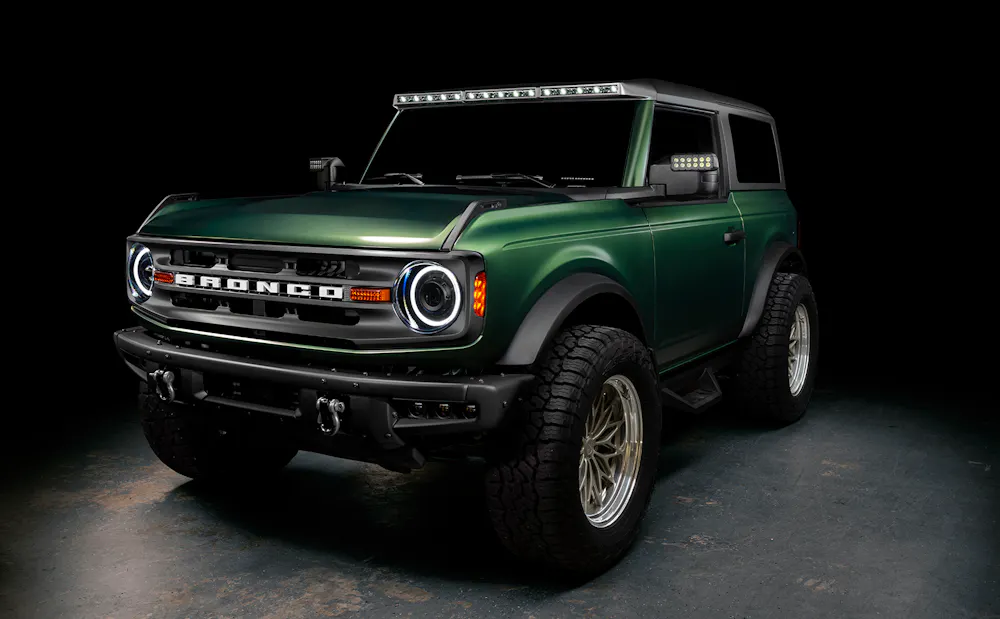

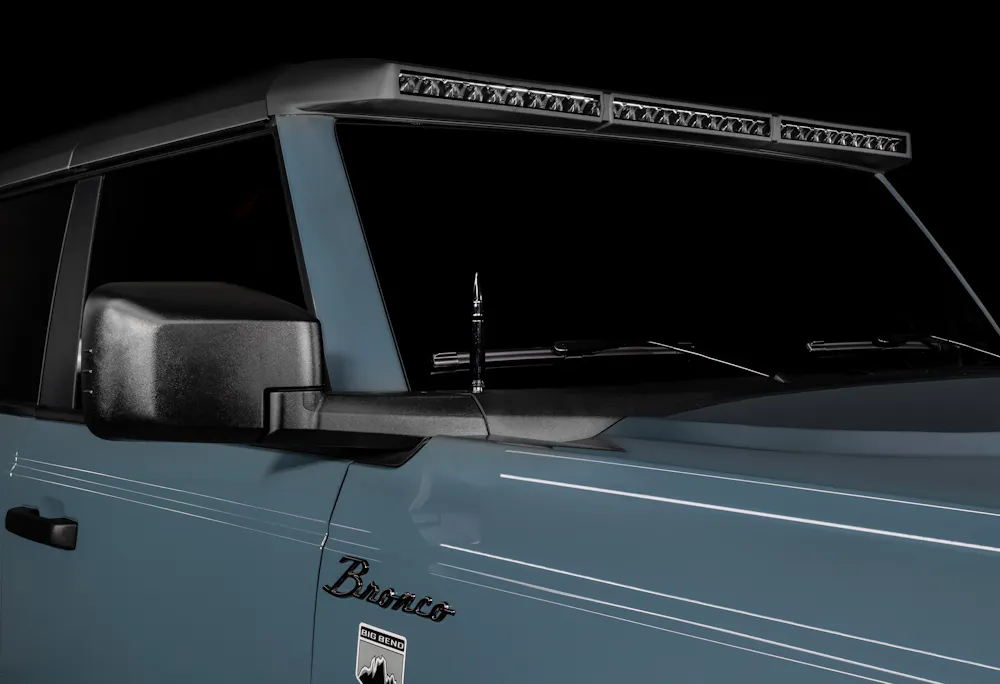

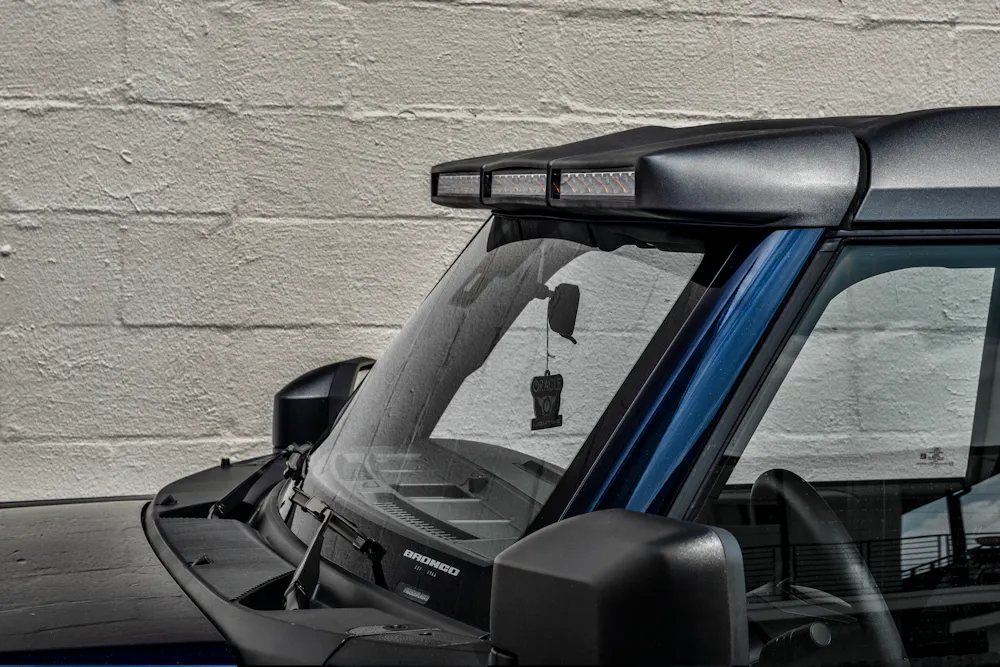

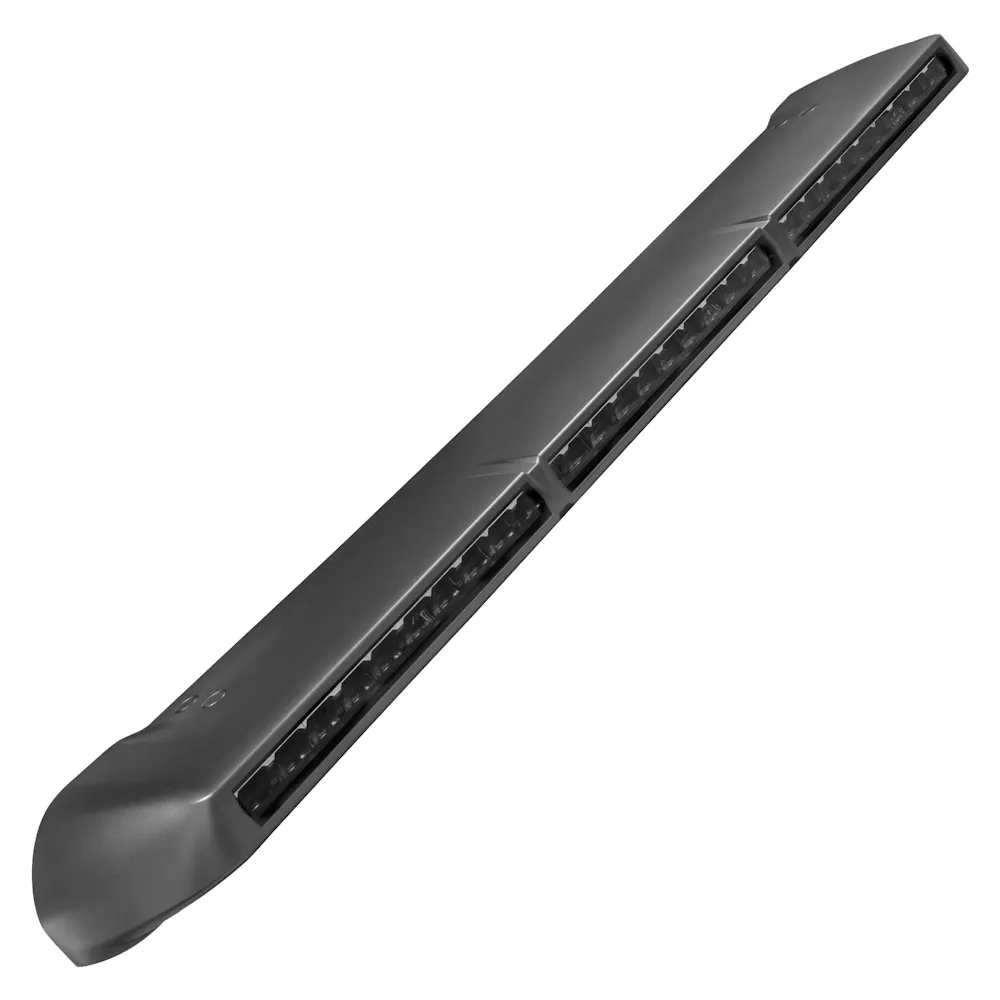

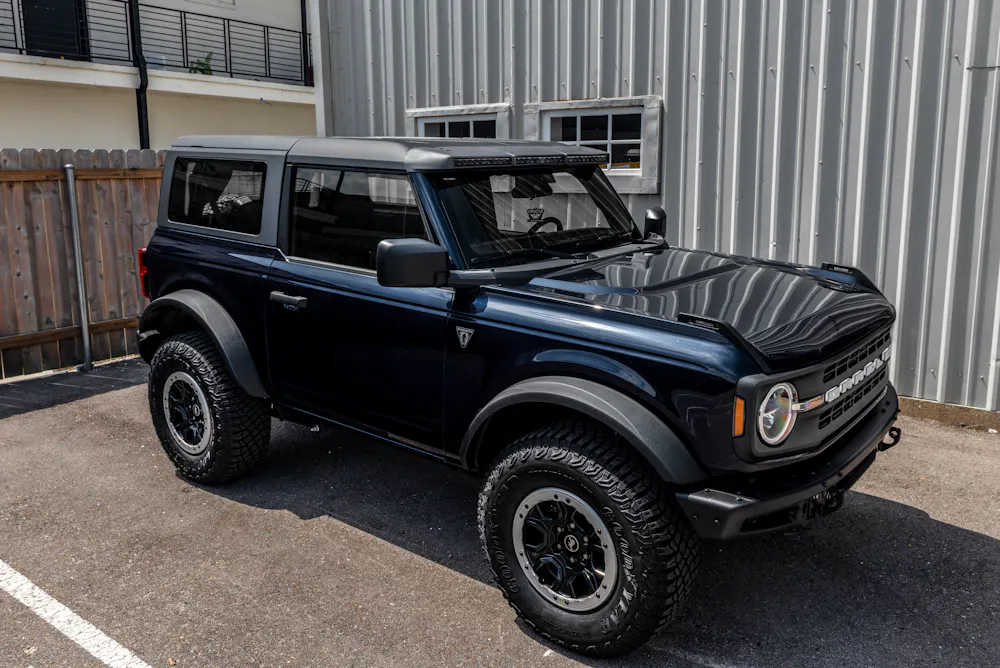

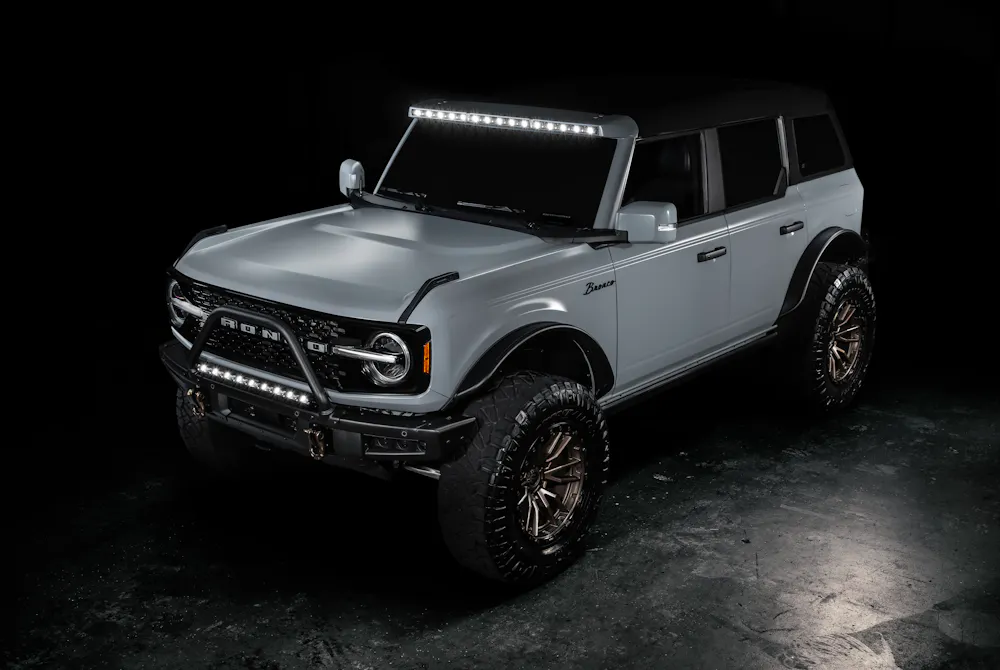

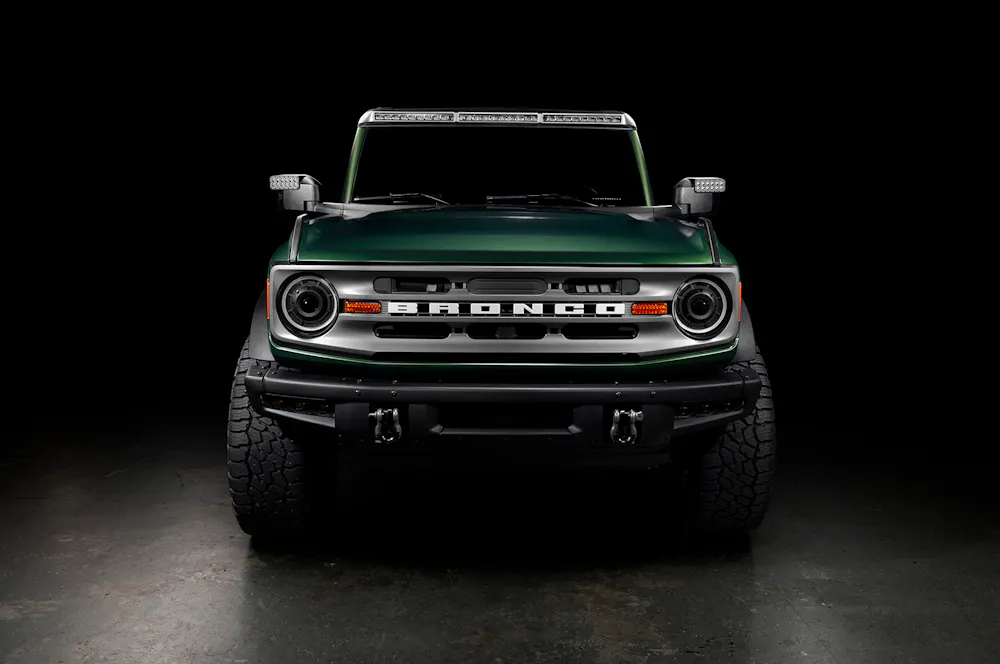

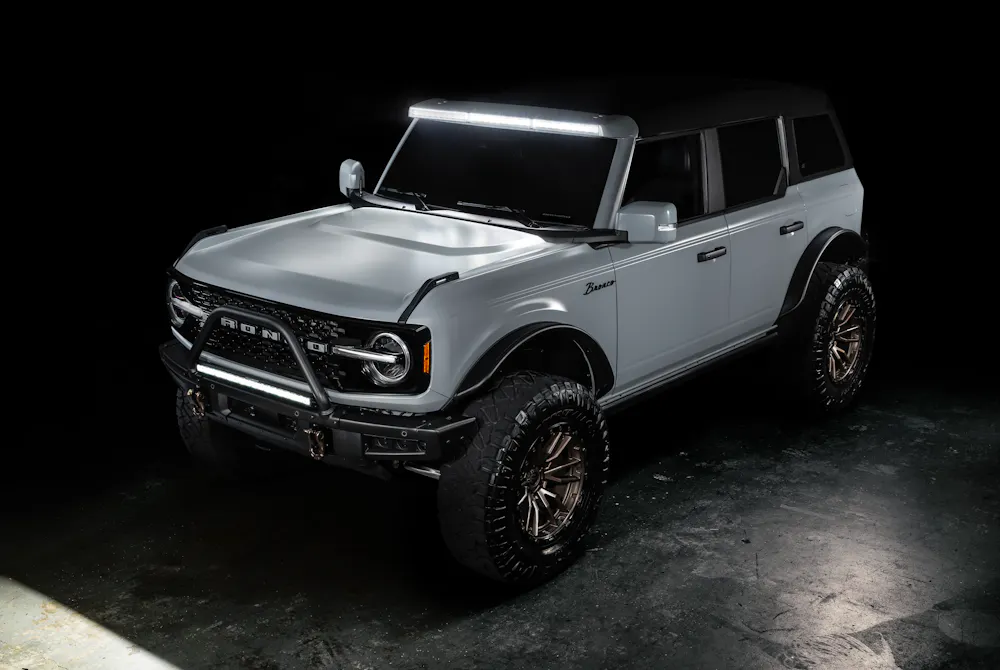

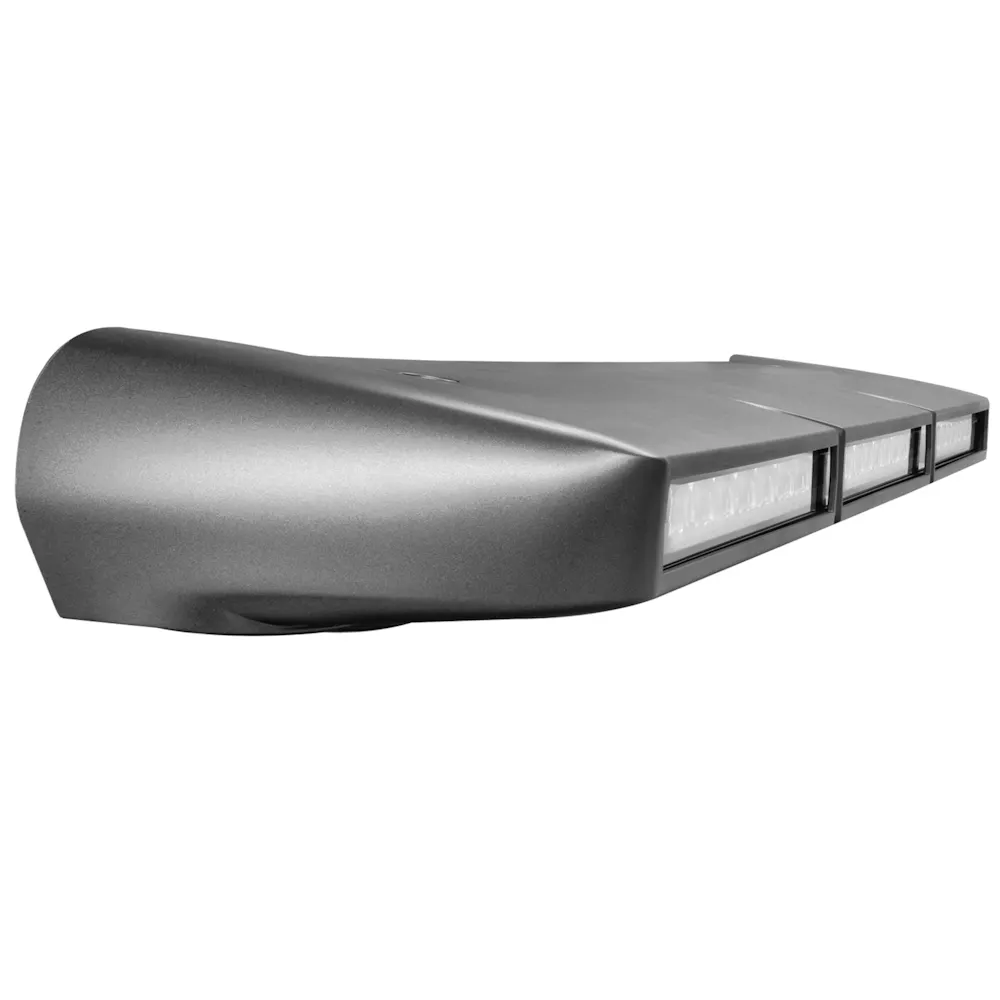

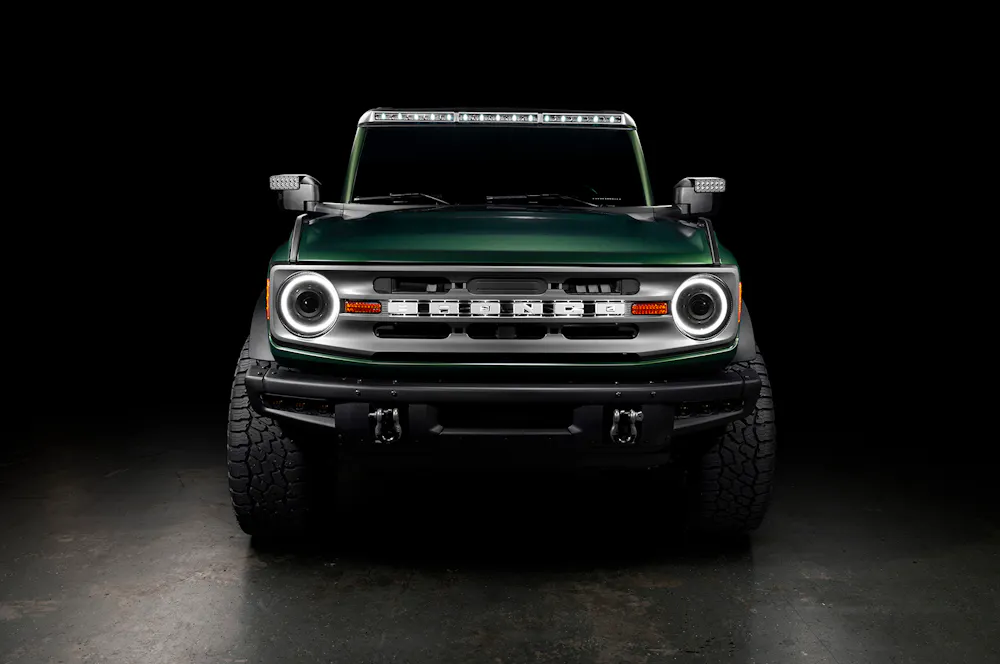

Description: Integrated Windshield Roof Light Bar System for 2021+ Ford - Carbonized Grey; ORACLE Lighting Integrated Windshield Roof LED Light Bar System for 2021+ Ford Bronco

pro mess

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

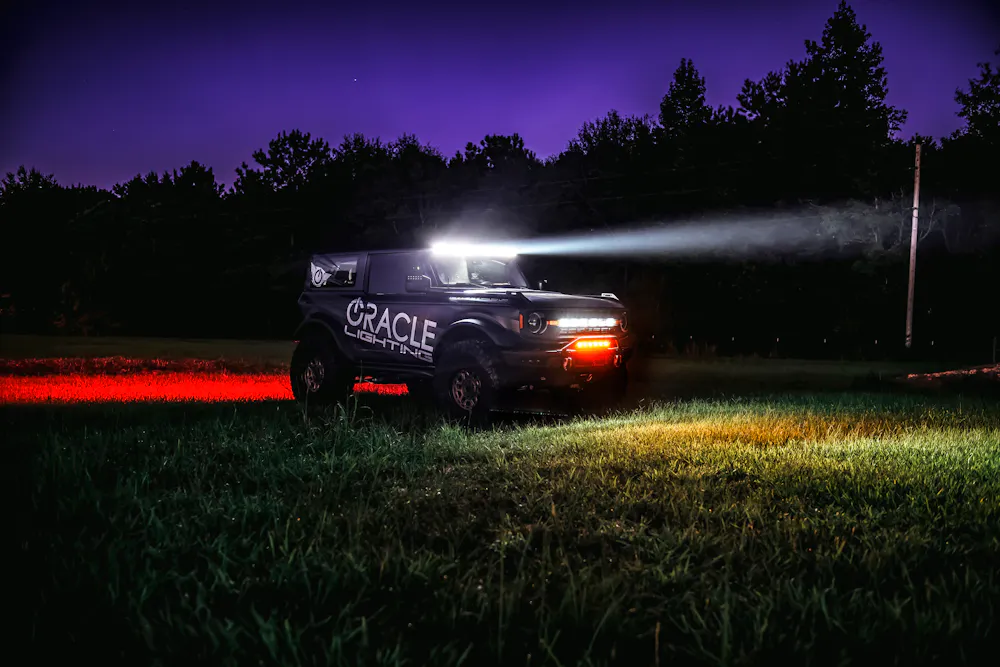

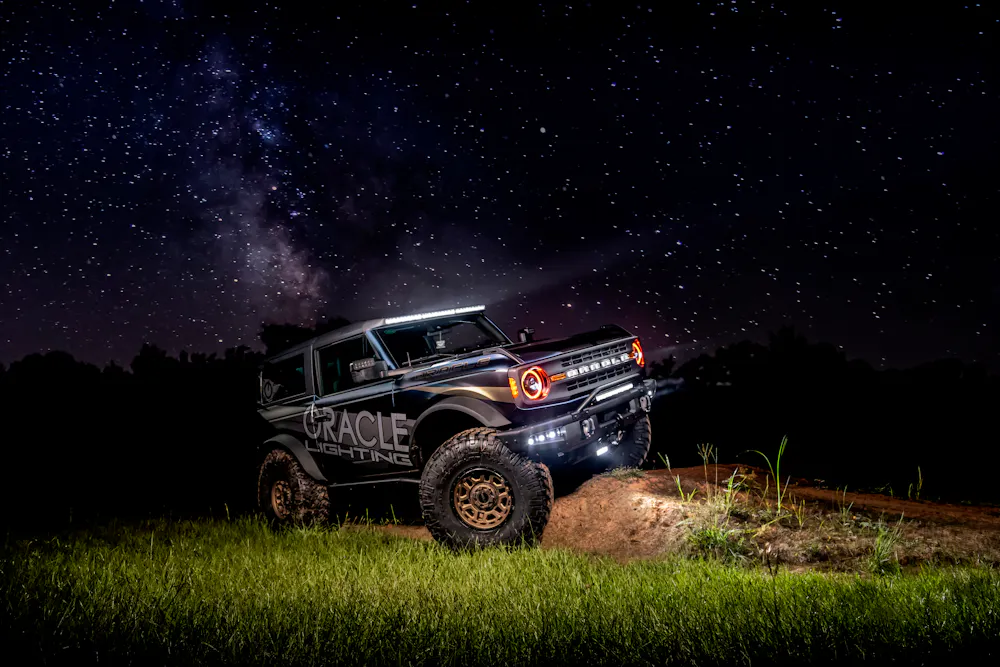

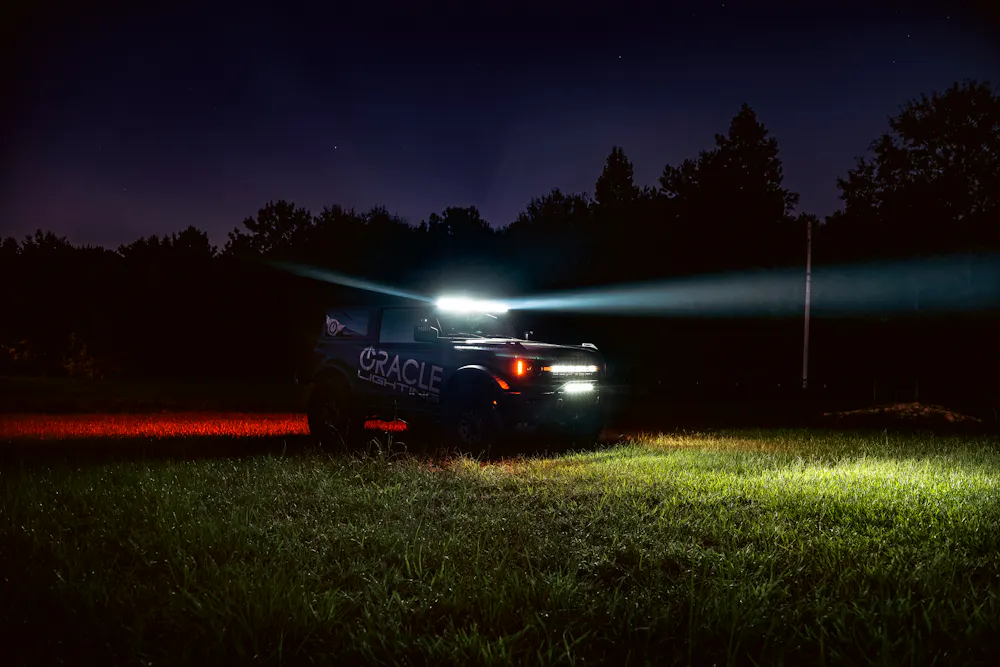

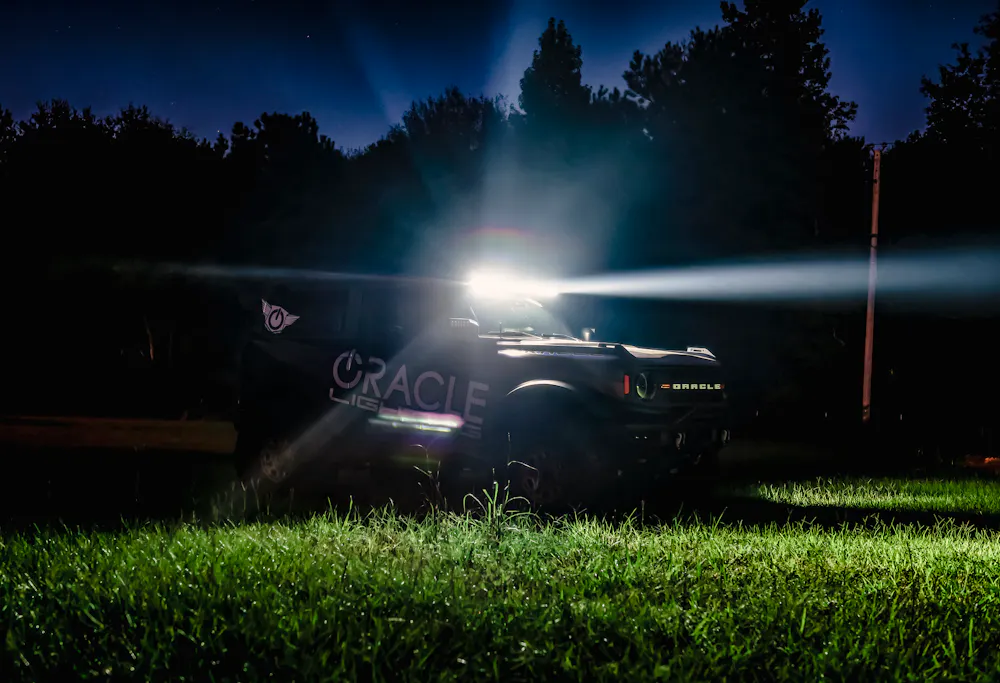

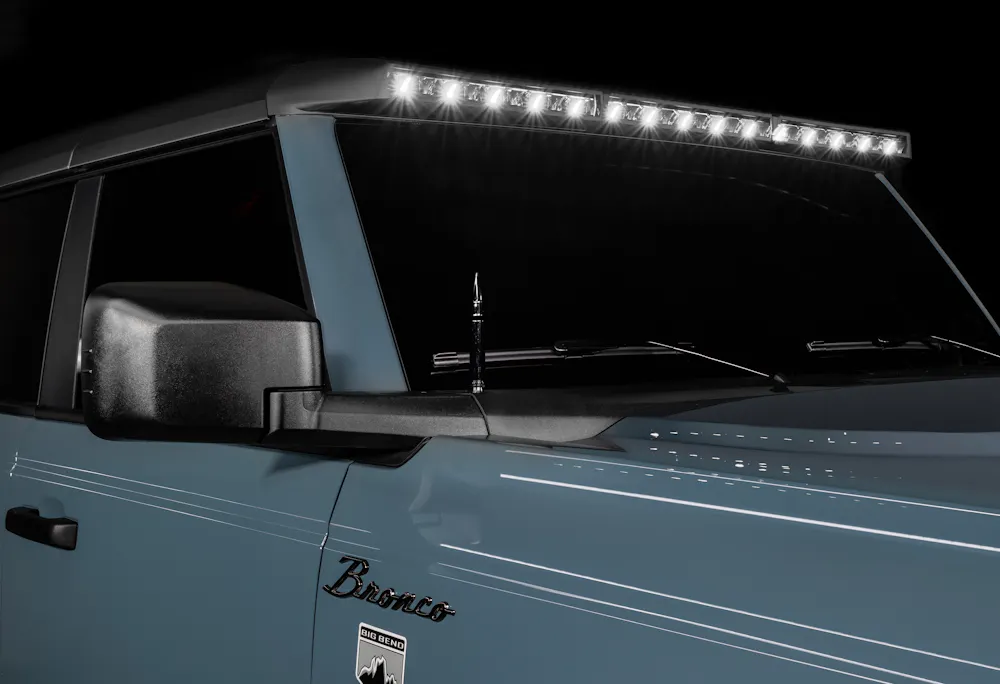

is easy using the factory hardware and only needing the tools included in your glovebox. The ORACLE Light Bar System mounts to your late model Bronco using the factory accessory mounting points and factory hardware for an easy, DIY installation experience! In addition to the color options offered the housing can also be painted to match the color your truck came with from the factory. We recommend using a professional painter to properly prep, prime, and color match paint the housing. The Ford Bronco Integrated LED Light Bar utilizes reflector facing LED technology, elevating it above basic and more common light bars. This reflector system is designed to provide optimized LED light output from the 30 individual 8W LED emitters creating at total of 18,000 raw lumens and a projection distance of over 600 meters. This system also features selectable Amber or White clearance lights. You can select to connect these lights to an Aux Switch, Parking Lights, DRL, or simply leave them disconnected if you prefer not to use the additional clearance light feature on your Bronco.

Features & benefits

Innovative Patent-Pending Design
Designed and Engineered in the USA

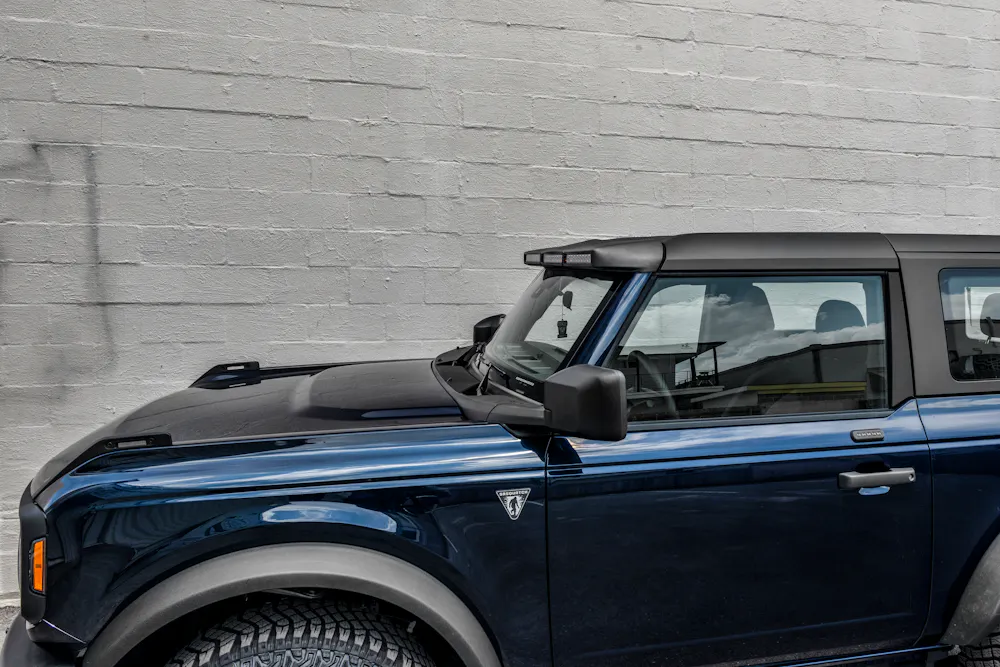

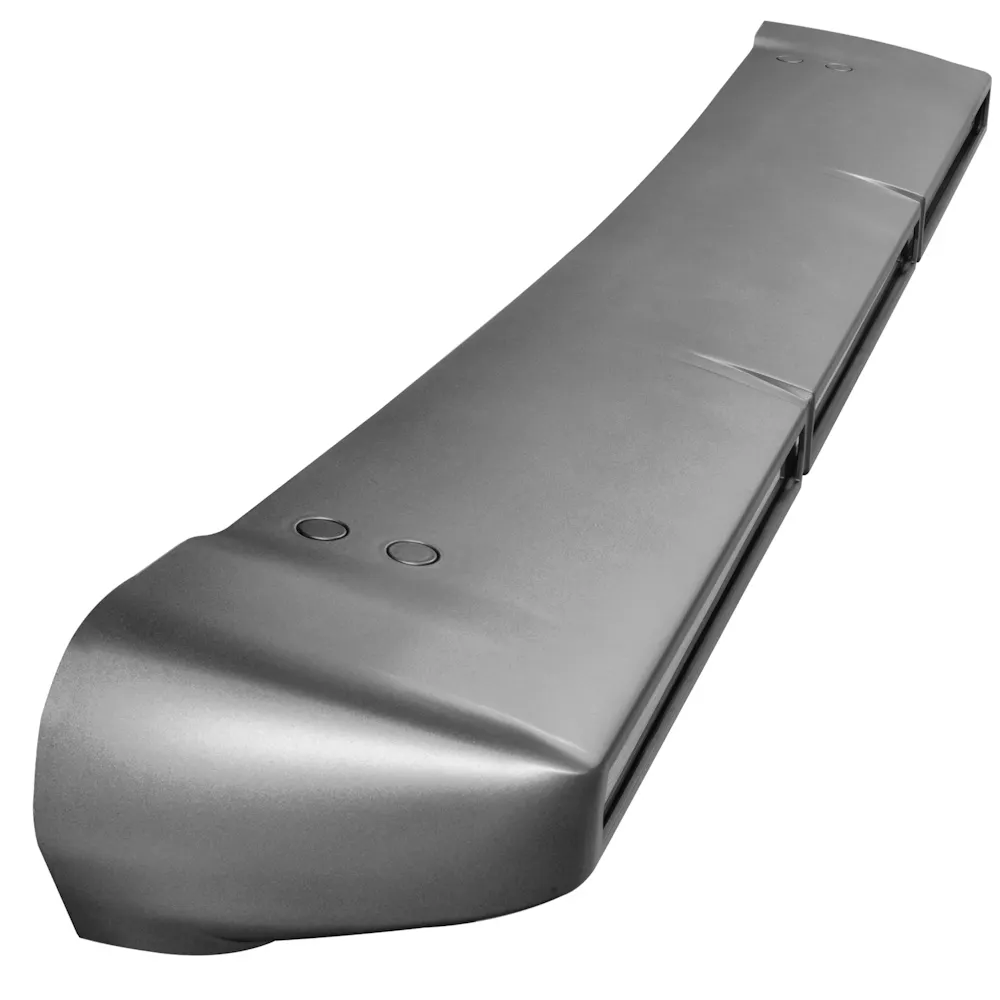

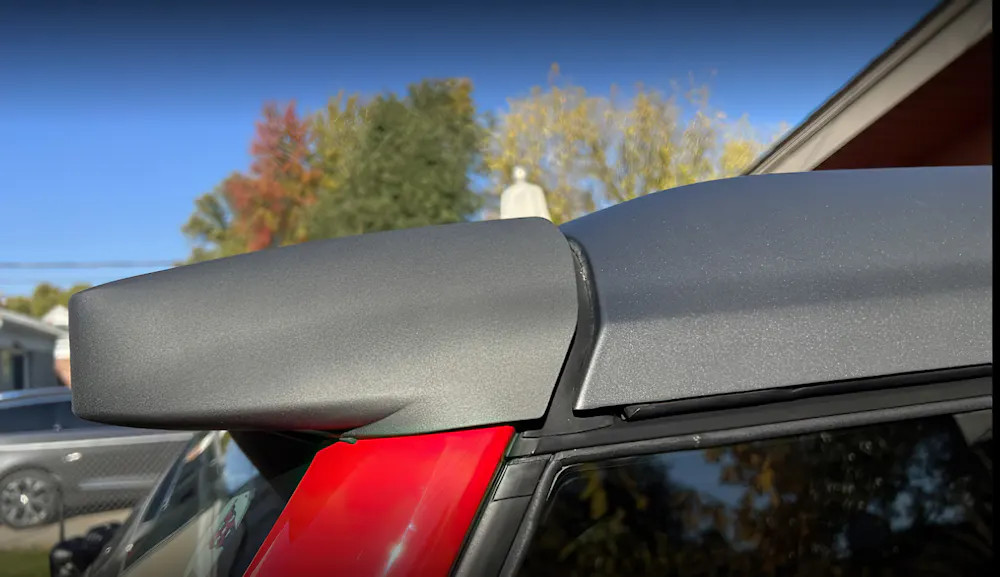

Aerodynamic Integrated Housing Design
Max Projection Distance: 1Lux@648M
Color Temperature: 5500K-6000K
Advanced Optic Design for Optimal Visibility
If you do not have Aux Switches, we recommend adding our wiring harness PN 5897-504. If you do have Aux Switches, we recommend adding our wiring harness PN 5899-504.
Included: (1) Integrated Windshield Roof LED Light Bar System for 2021+ Ford Bronco (4) Accessory Bolt Covers (2) 15" Wiper Blades for Clearance (6) Steel Truss Plates and Installation Hardware

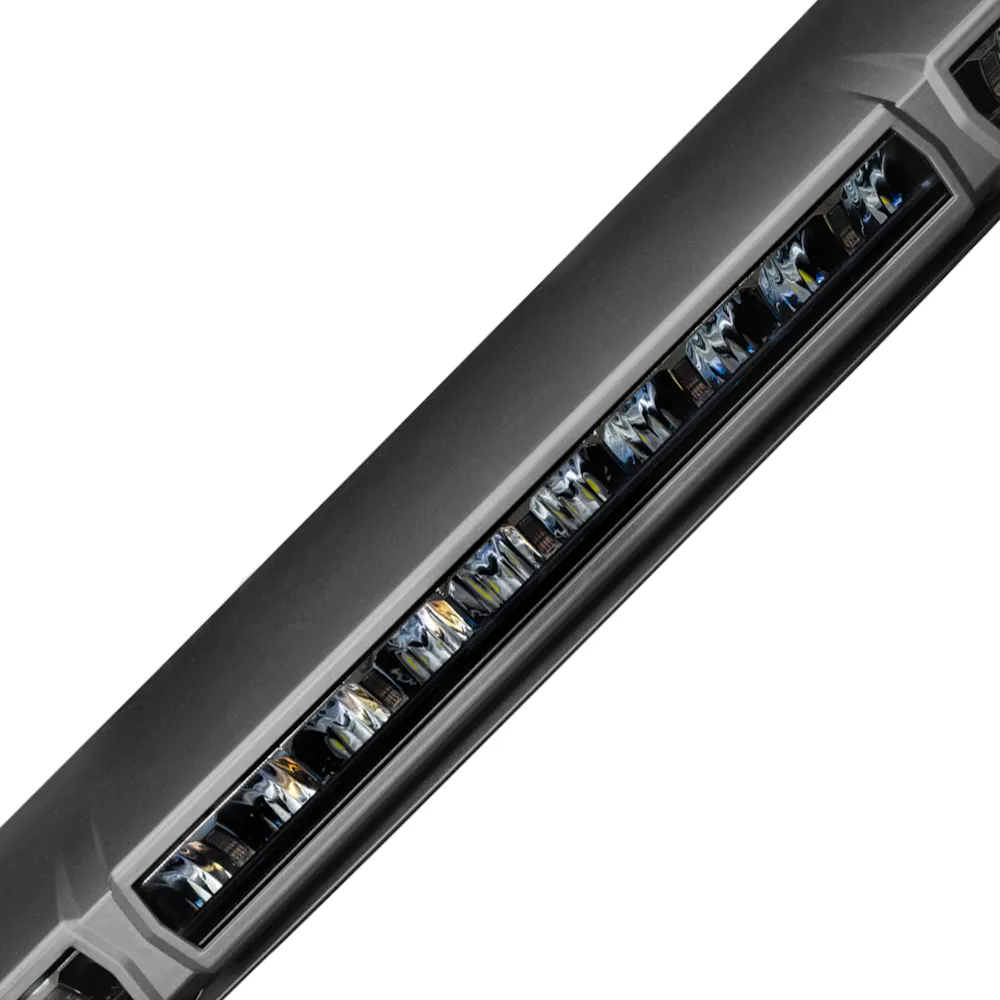

High-Powered Lighting 30x 8W LED Main Light

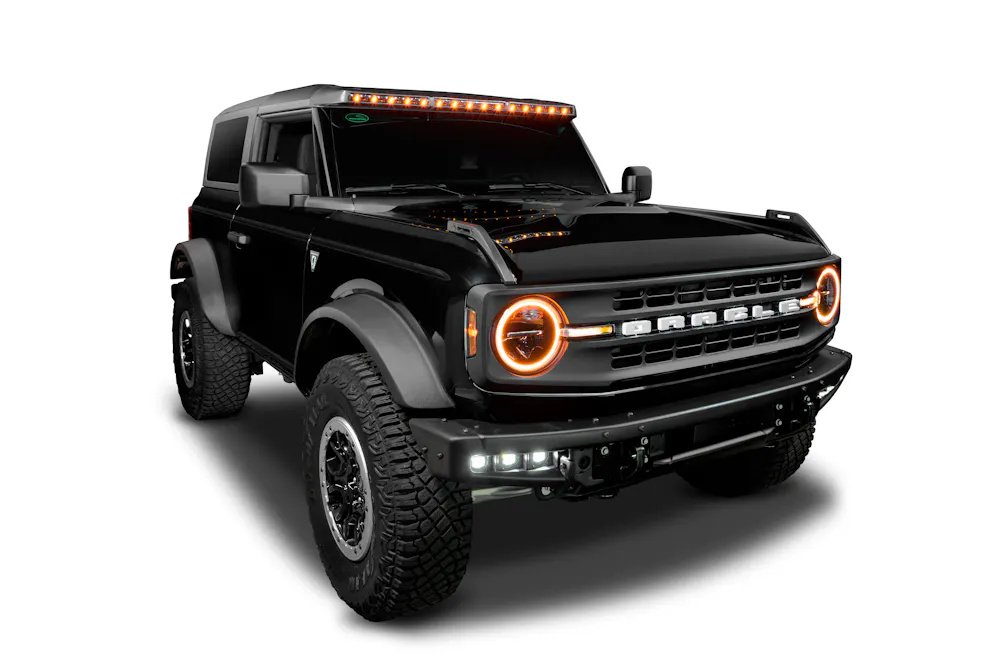

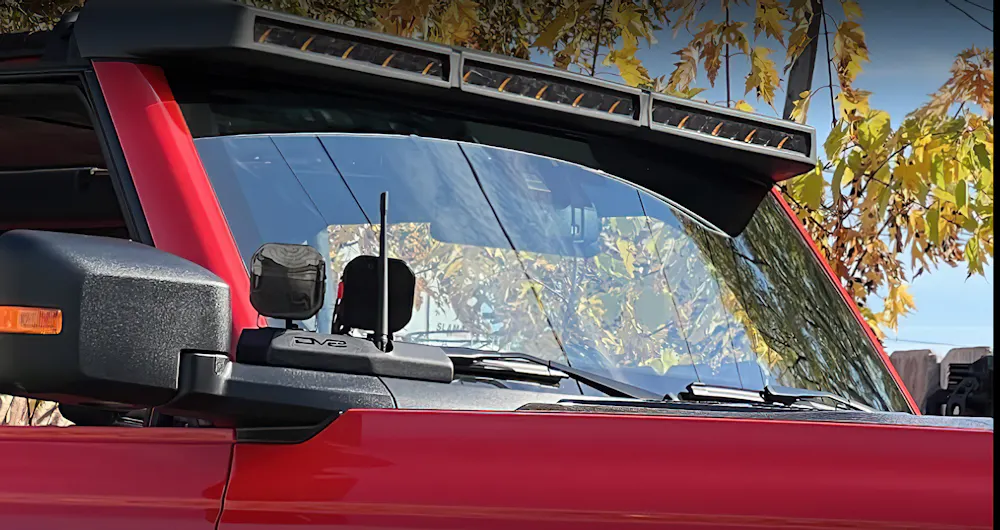

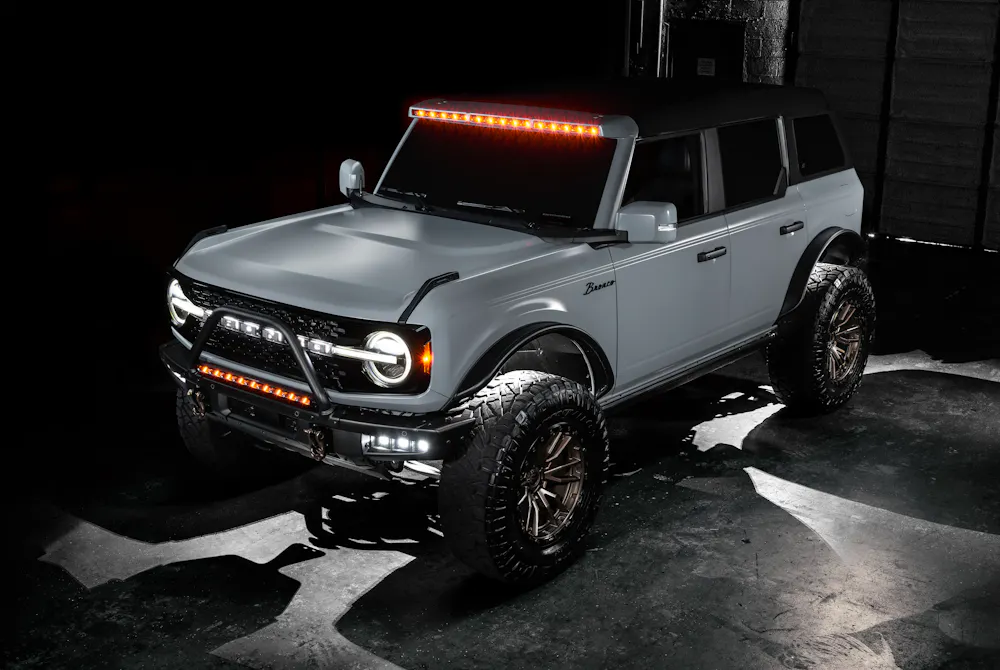

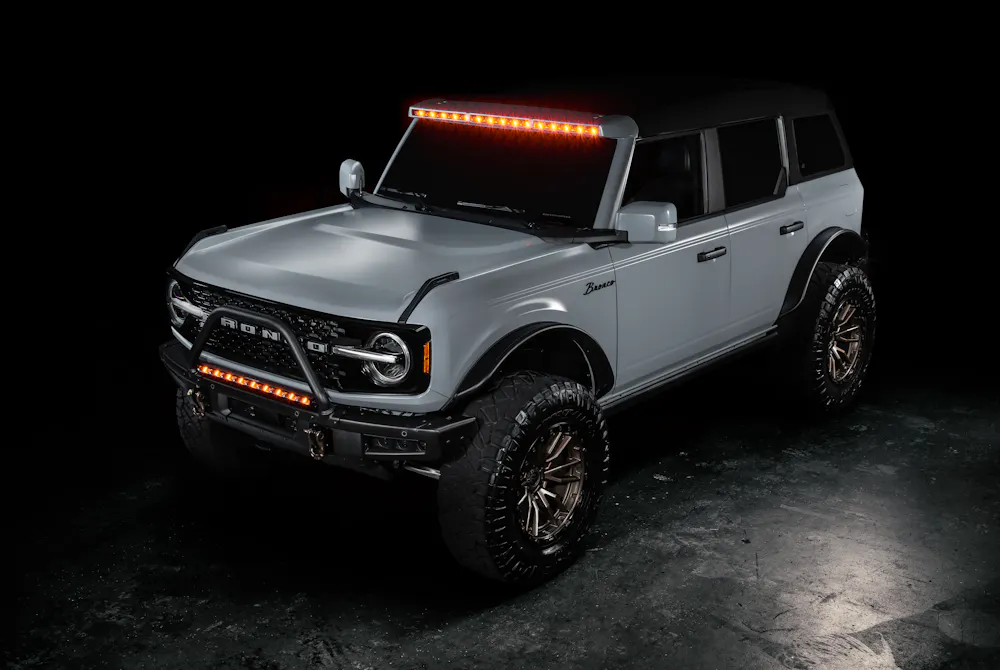

Selectable Amber or White Clearance Lights
Precision LED Reflector-Facing Technology
DIY Install- No Fabrication/ Modification Required
LED Lifespan 50,000+ Hours

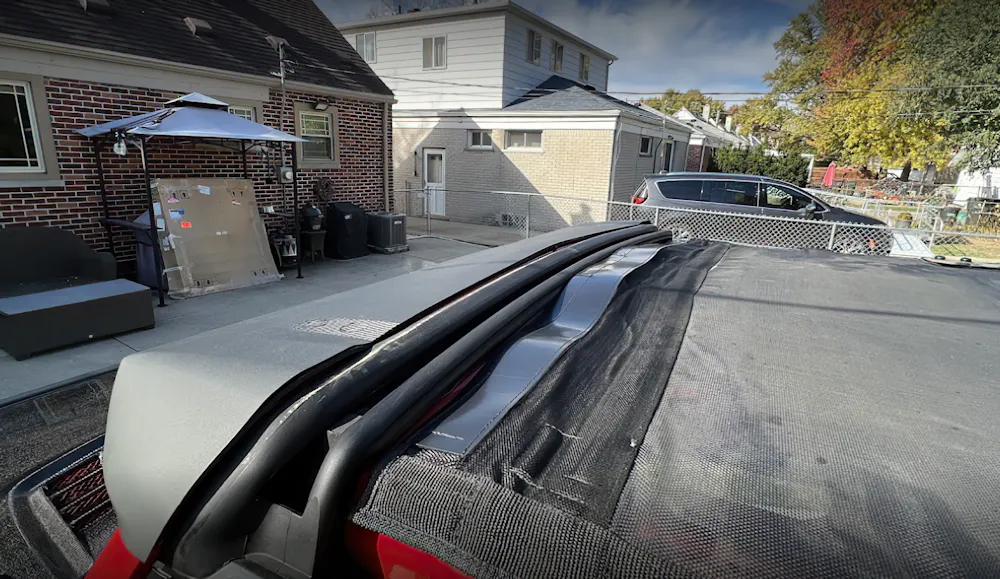

Mounts using Factory Hardware
Under/Over Voltage and Reverse Polarity Protection
Electronic Thermal Management
1 Year Warranty
Raw Lumen Light Output: 18,000LM
Effective Lumen Light Output: 14,200LM
Peak Intensity: 420,000CD
Total Wattage: 240 Watts
Total Amp Draw: 14A @12V DC
Beam Angle: 40° Driving Beam

Information

This product is currently not suitable for use with models outfitted with roof racks. As with any Roof Mounted Light-Bar set up, High Powered Car-Washes with overhead brushes should be avoided.

Application summary

Year	Make / model
2021-2024	Ford Bronco

Specifications

GTIN: 00810030398172
Weight: 16 lb
Height: 6 in
Length: 59 in
Width: 10 in
Life cycle: Available to Order
AAM brand code: ORL
Warehouse brand code: FQCV
AAIA brand code: FQCV

Attributes

Add-On: N/A
Base Color: Gray
Base Diameter: 55.5
Base Length: 56.62
Base Material: Aluminum
Brightness: 18000
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color: Carbonized Grey
Department of Transportation Approved: No
Electronic Thermal Management: Yes
Housing Color: Gray
Housing Design: Aerodynamic Integrated Housing Design
Housing Finish: Painted

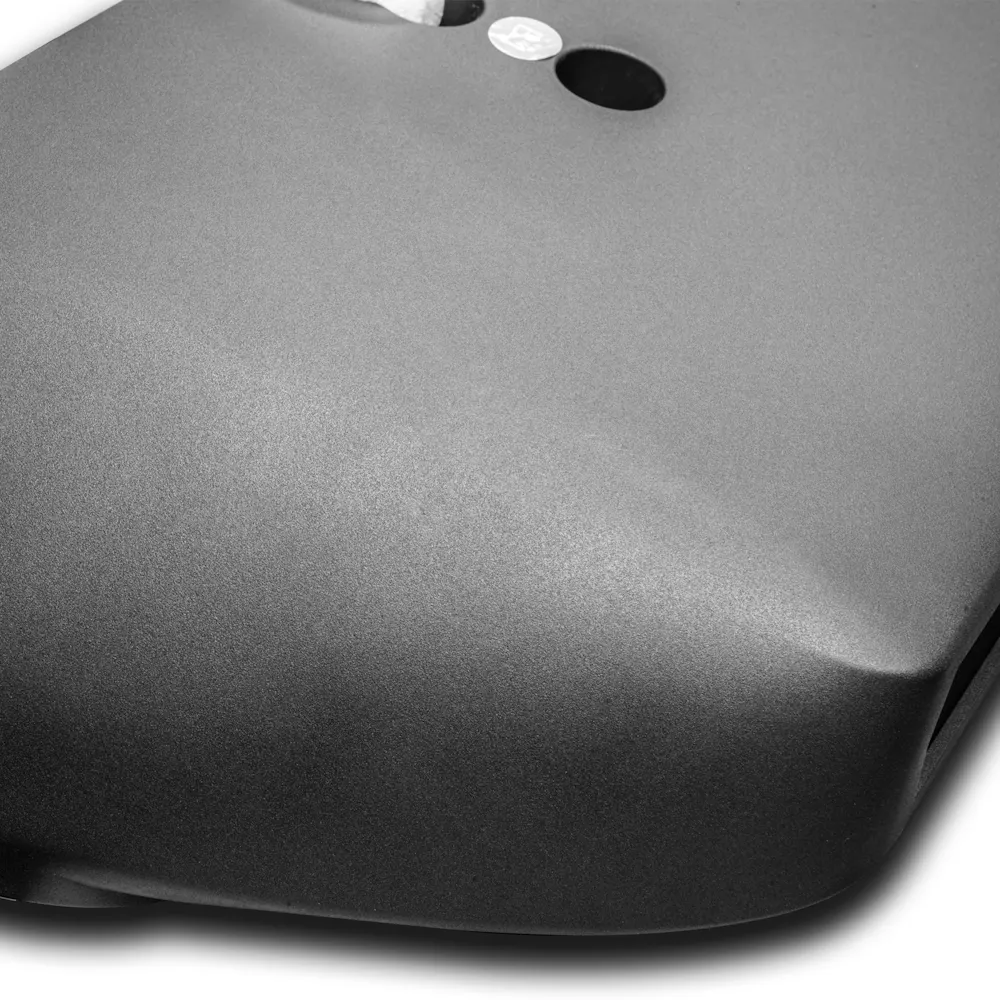

Housing Material: Composite
Housing Shape: Rectangle
Install Note: DIY Install- No Fabrication/ Modification Required
Lens Color: Clear
Lens Diameter: 48.05
Lens Length: 50
Lens Material: Polycarbonate
Lens Width: 40.5
Light Quantity: 30
Light Selection: Selectable Amber or White Clearance Lights
Light Type: High-Powered Lighting 30x 8W LED Main Light
Mount Type: Mounts using Factory Hardware
Mounting Hardware Included: Yes
Protection Type: Under/Over Voltage and Reverse Polarity Protection
Relay Included: No
Street Legal: Yes
Switch Included: No
Technology: Precision LED Reflector-Facing Technology
Terminal Quantity: 4
Terminal Type: Lead Wire
Title: 5888-023-MF - Off-Road Lighting
Voltage: 12
Wattage: 240
Wire Gauge Measurement: 16
Wire Quantity: 4
Wiring Harness Included: No
Wiring Harness Length: 36
